Craftsman 20v Battery holder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 3 likes
  • 10 downloads

3D model description

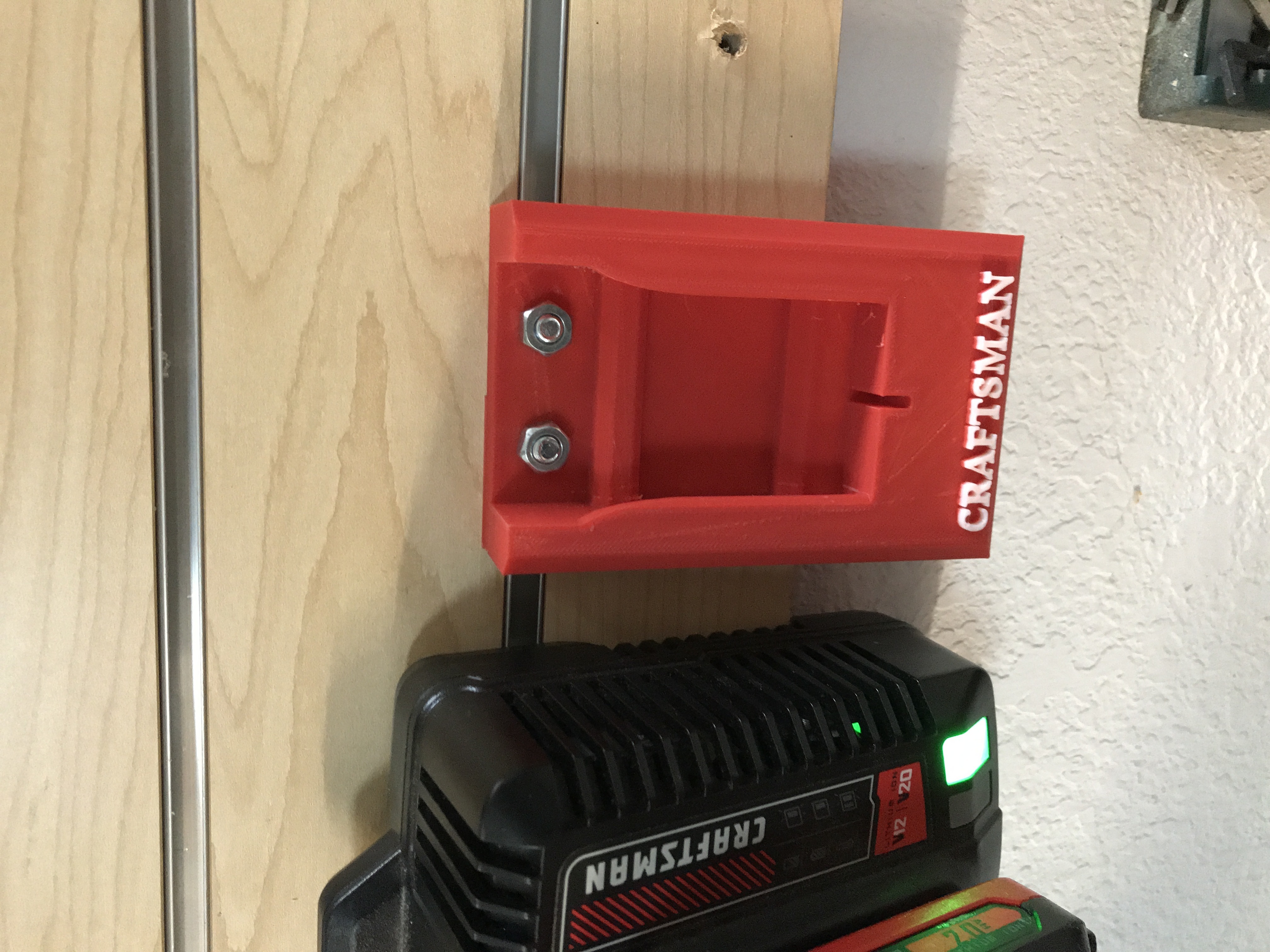

Battery wall holder for Craftsman 20v batteries. This is a nice and convenient way to keep your batteries ready and accessible for when you need them. I use 1/4" bolts that are 3/4" long to install on my slat wall but I have included a file without holes so you can add whatever size hole fits your needs.

UPDATE

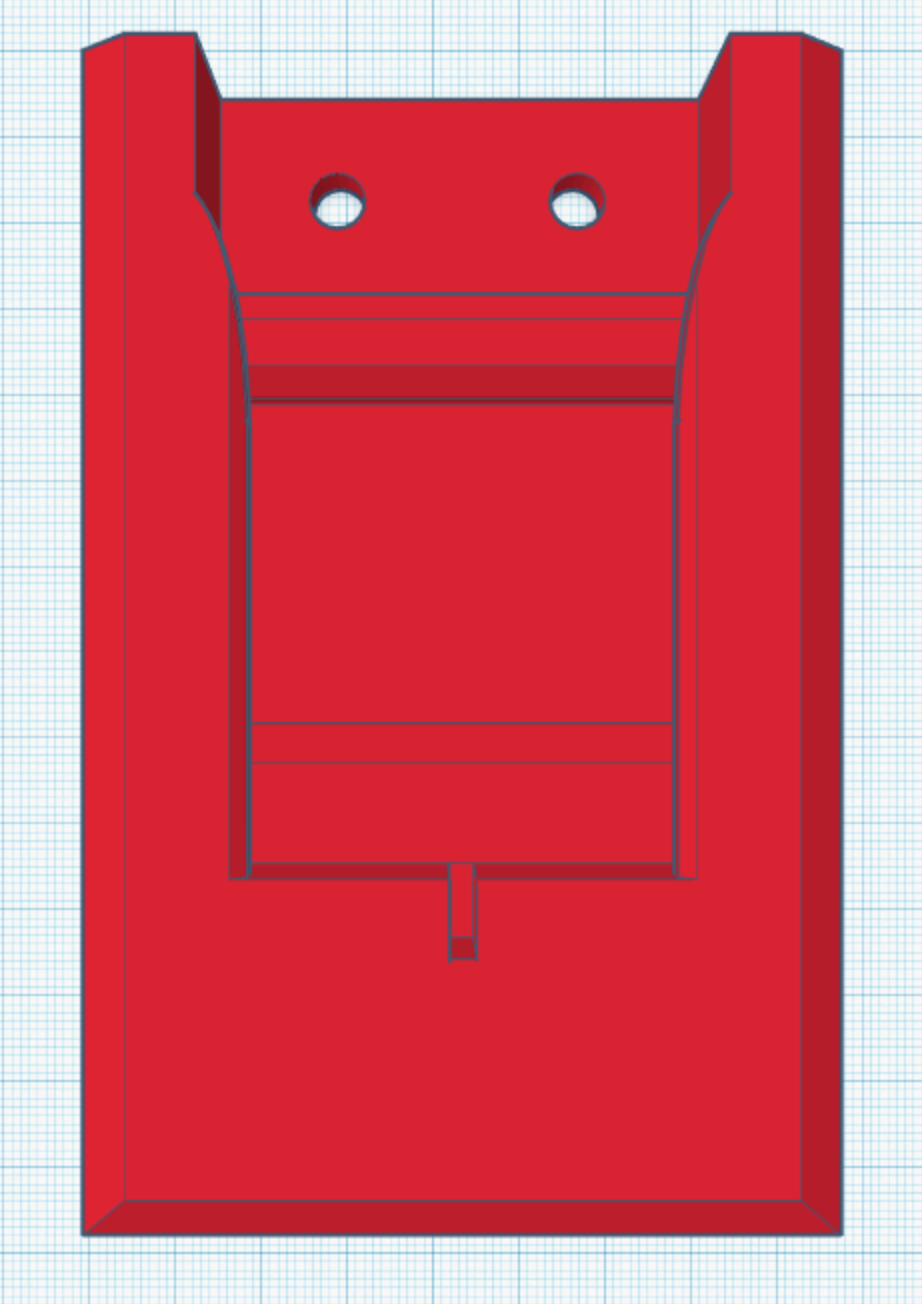

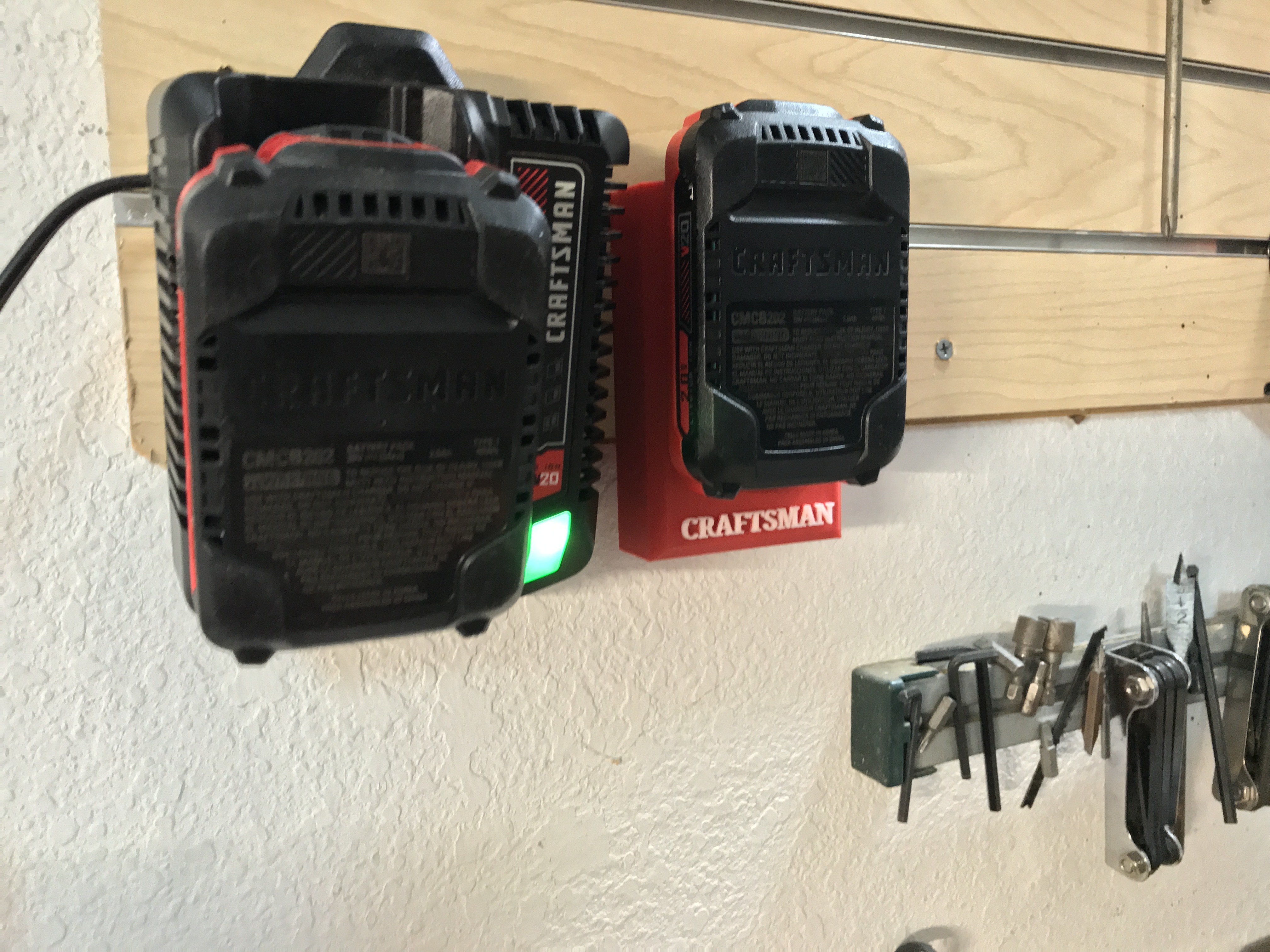

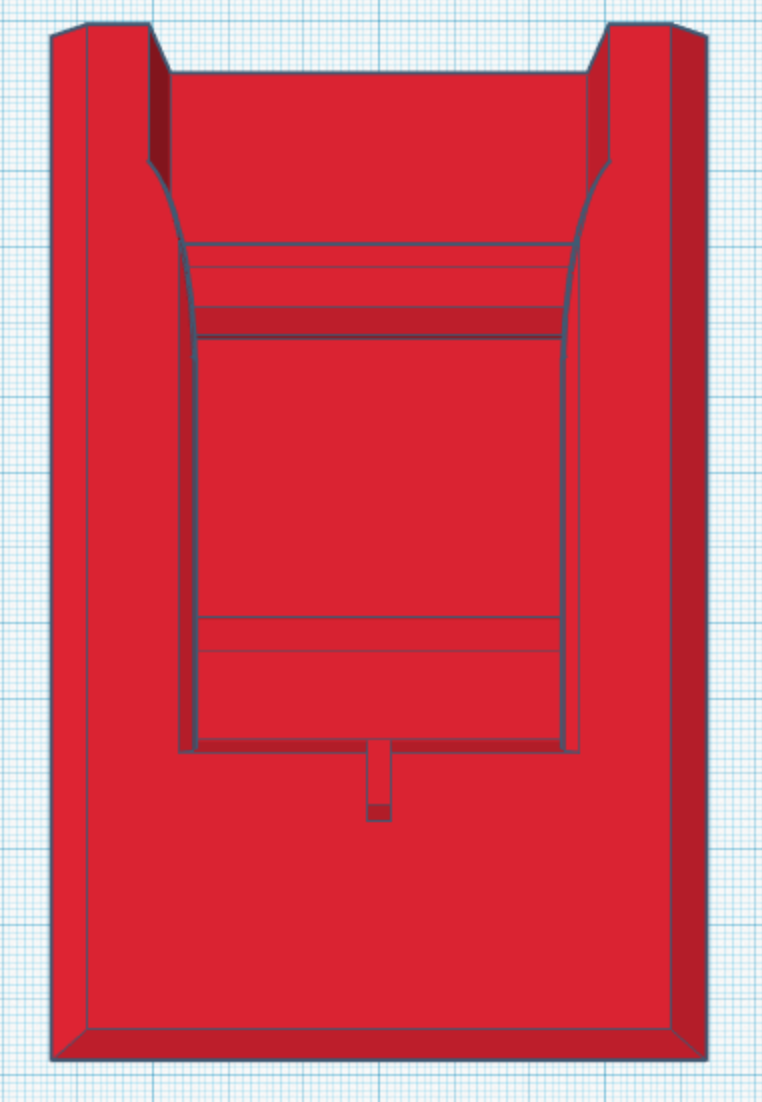

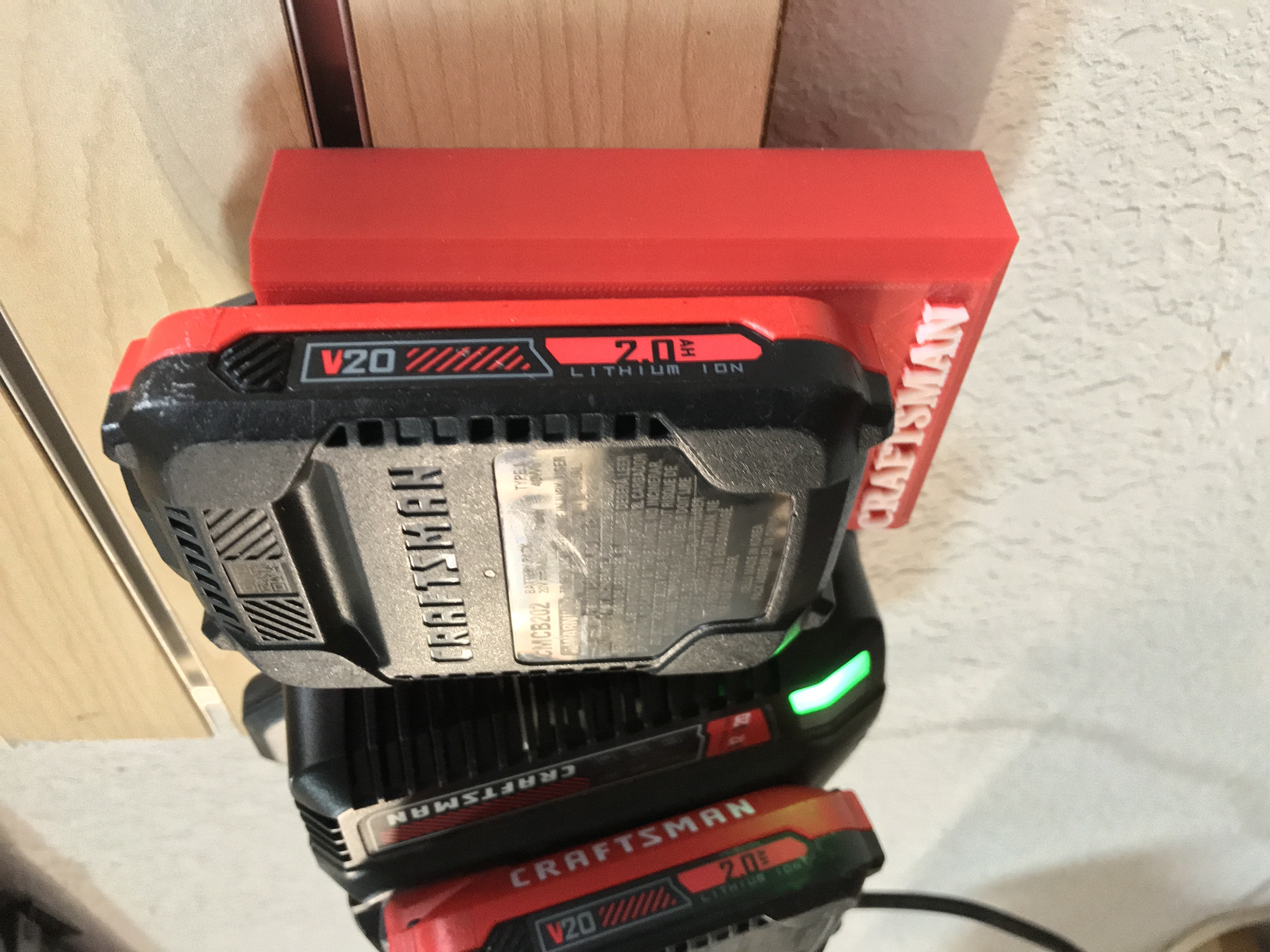

After speaking to some friends I have removed the text from the design. It wasn't "Craftsman" font just a generic multi-language font but it wouldn't be worth getting sued over. So if you want you can just add the text to the bottom of the design using www.Tinkercad.com if you like. So the photos of the completed build is what you could do if you edit the design and add the simple text, but it is not the design you will get if you purchase. The designs you will get are shown from the screenshot from tinkercad.

3D printing settings

I printed this using the Creality CR-10 printer. I printed it using PLA+. The printer I have is a single extruder so I added a pause code to line 30mm to change the color from red to white. I printed this with a brim to prevent curling on the corners and with supports for the groove on the battery. The infill was 10% which is sturdy enough and the print time was just under 5 hrs.

  • 3D file format: STL
  • Last update: 2020/05/19 at 21:29
  • Publication date: 2020/04/27 at 04:32
