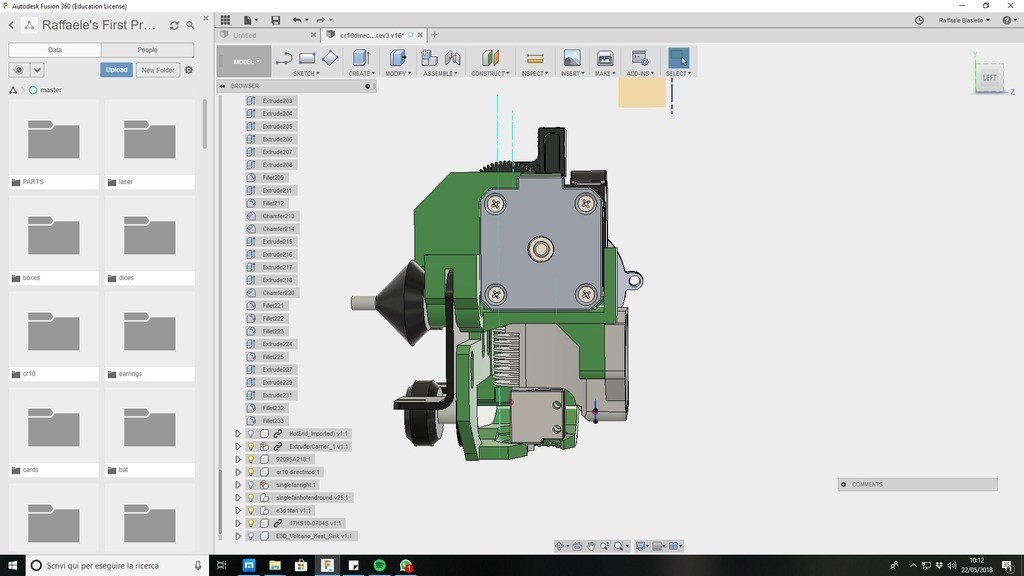

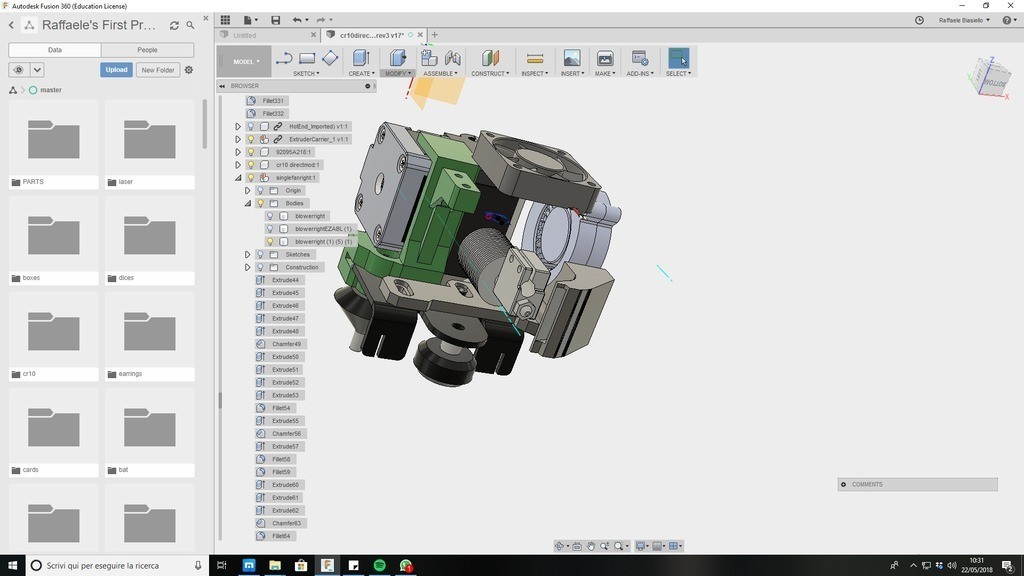

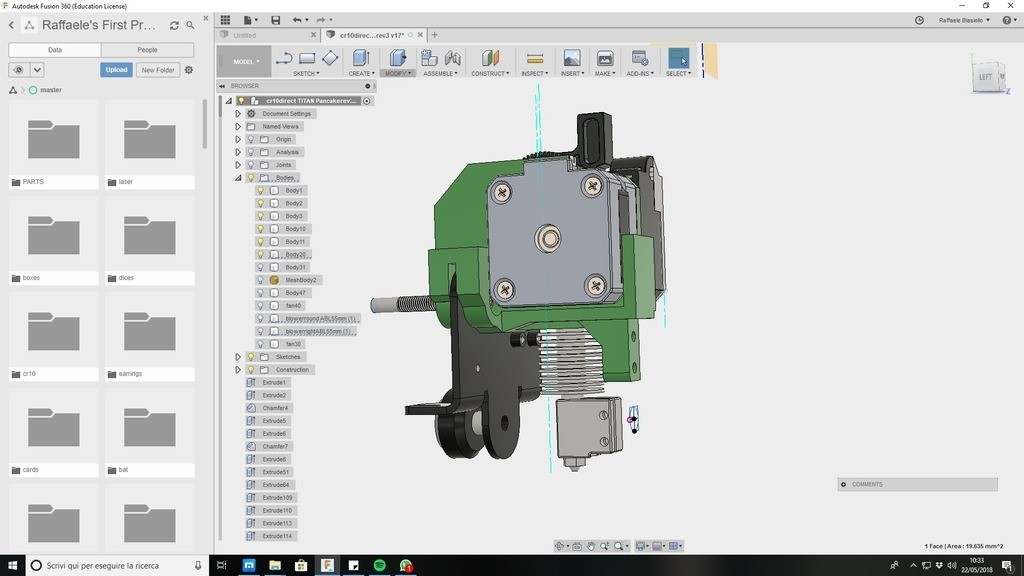

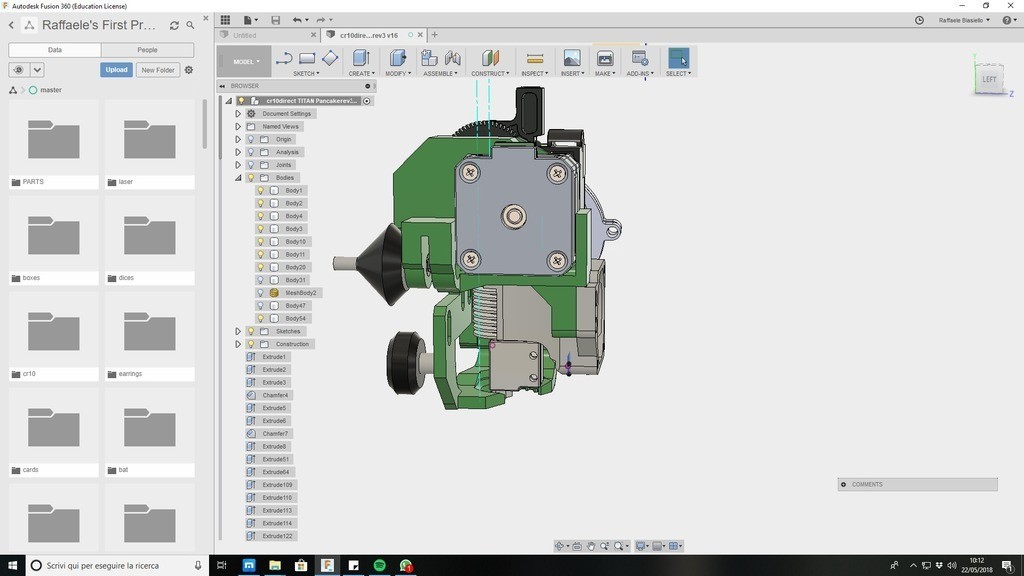

CR10 direct heavy duty mod, titan + v5heatsink+volcano/ or / v6heatsink + pancake motor BETA

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.5k views
  • 8 likes
  • 134 downloads

3D model description

as in the title this is a beta mod, need testers, on request of Rasmus Schmeer ender 2 group user.

UPDATE (ver2):
-improved fan mounts for easier fit.
-reduced mount gap between motor and titan from 4mm to 3mm. should work with standard screws

UPDATE:
as a friend made me notice it, this work will work with:
a volcano nozzle+ v5 heatsink
or a V6 standard e3d nozzle, cose is longer about 8mm

NOTE this is for a volcano, I'll work for a standard v6 soon THIS IS A BETA MOD; not tested, so if there are testers would be great

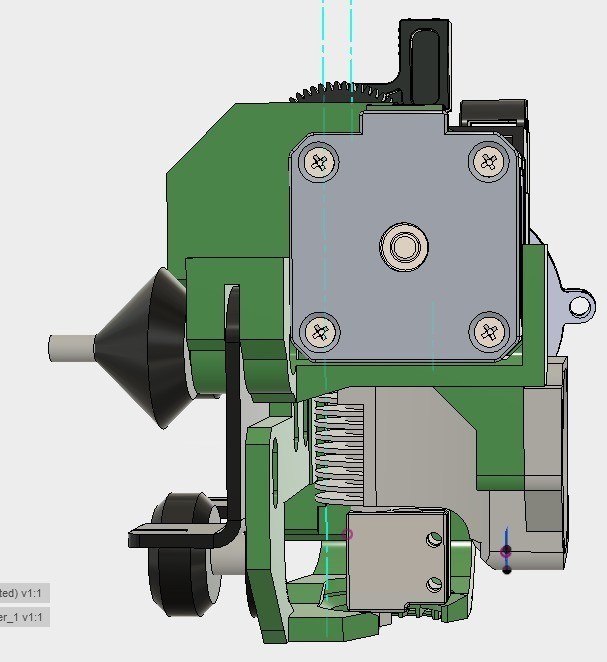

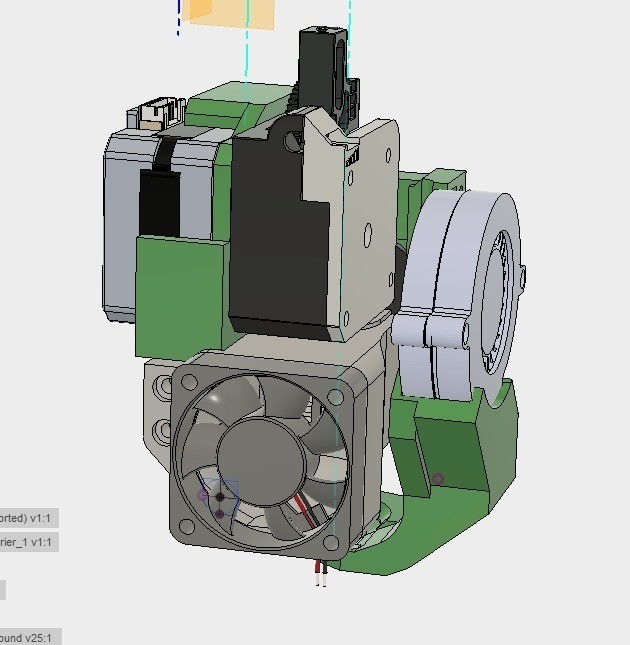

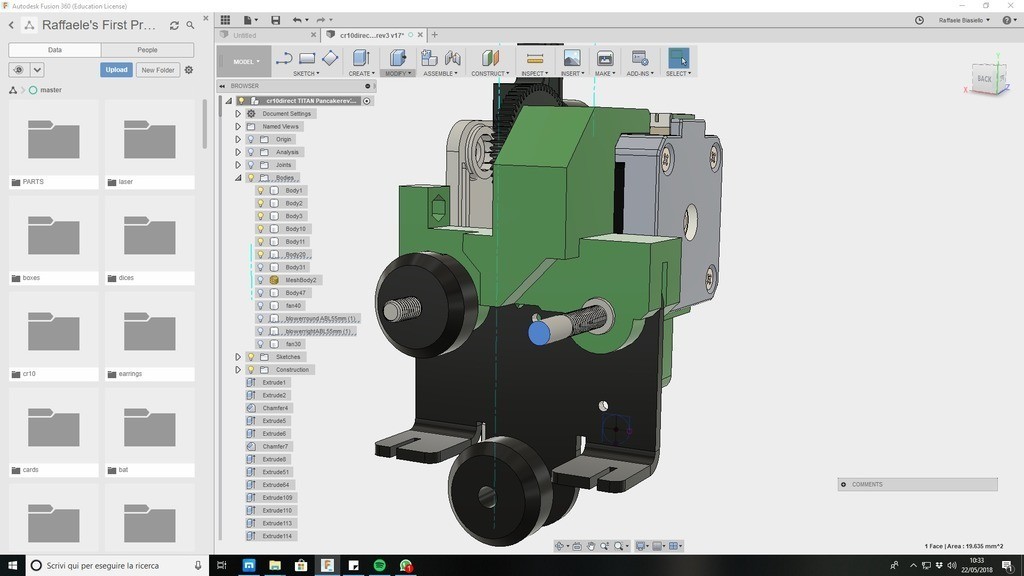

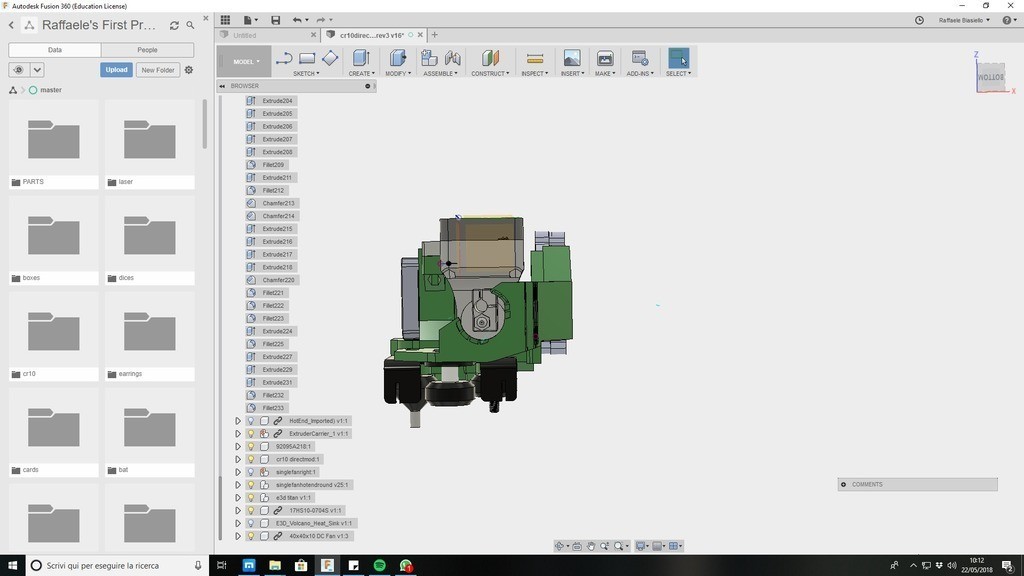

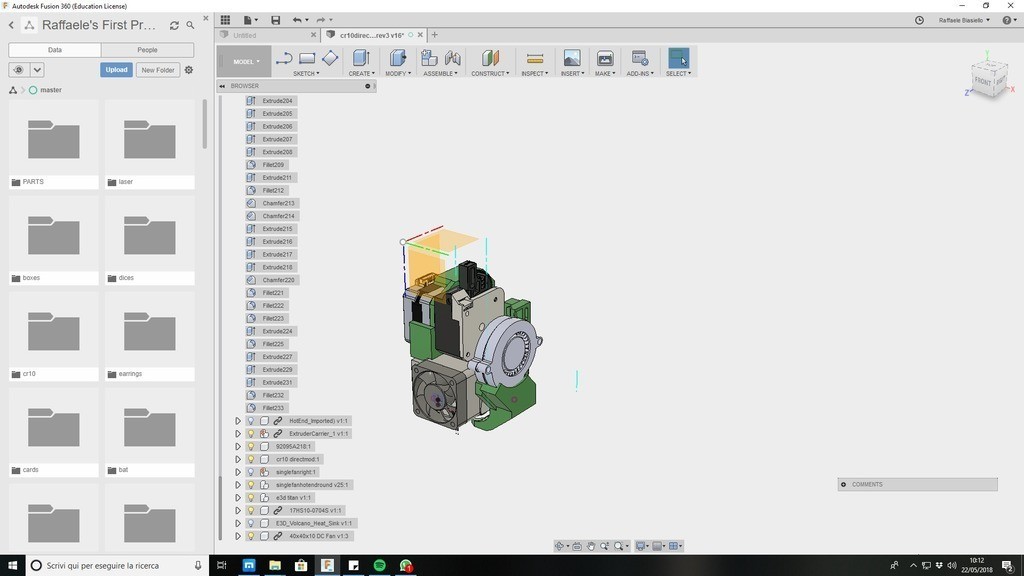

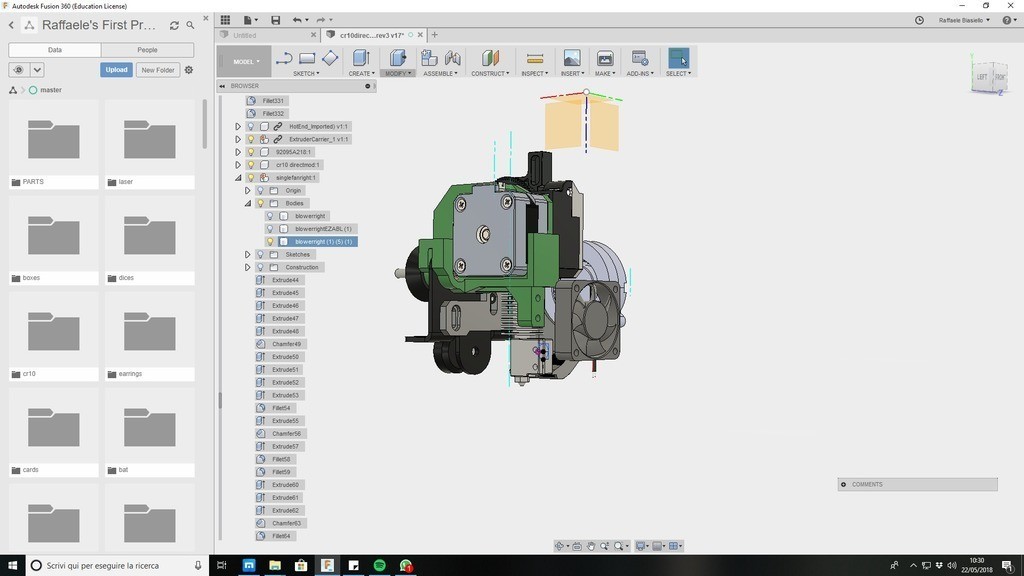

it's a fork from another my direct design, this fork is studied to use a titan feeder in combination witha volcano+v6 hoitend and a pancake motor.
should be really stable and wth the little motor a low weight carriage mod.

files:

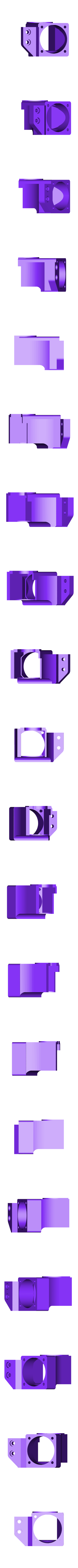

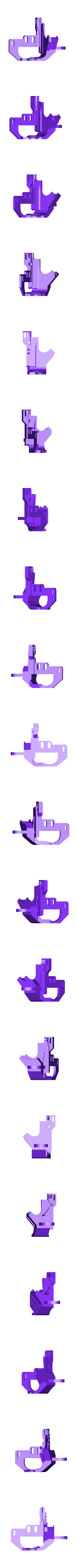

- motor mount

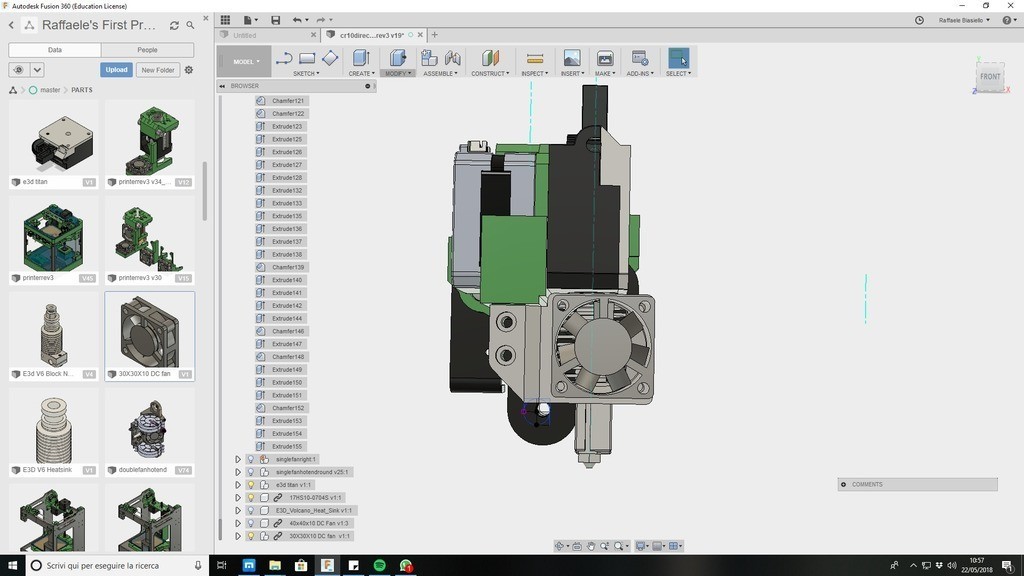

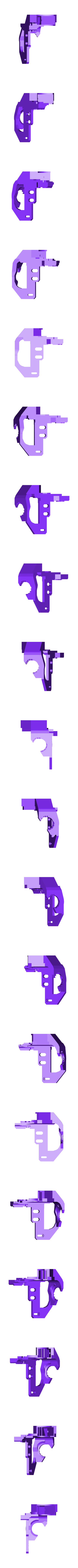

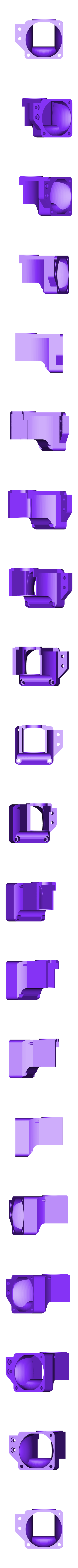

- 2 cooling fan mount for the hotend, one for a 40mm fan, one for a 30mm/fan, i think also a standard e3d fan should fit without problem

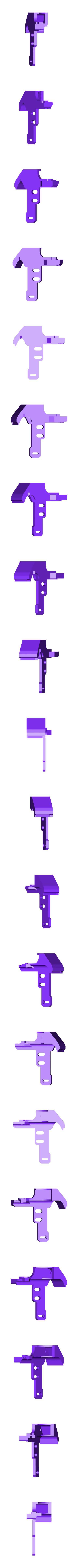

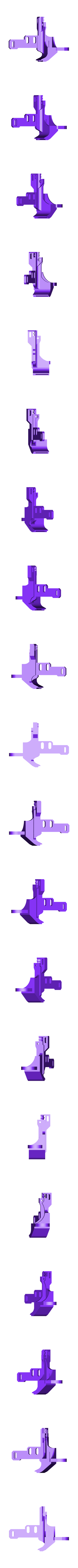

- 2 cooling mount for the print, one standard on the right, and another on round on the hotend, each use only one 5015 blower, also there will be a proximity sensor versions

proximity sensor hole 18.5mm as the ABL from th3d, distance from the nozzle 56mm on the X axis

cooling mounting.
hot end: 2 m3 x12-15 bolts and nut
print: ignore the 2 old heeatsink mopunting holes, just use a 3mm bolt on the right most and one with bolt on the opper rear part of the direct mod m3x15+nut

parts still not arranged for printing

V6 version: https://www.thingiverse.com/thing:2924585

  • 3D file format: STL
  • Publication date: 2018/08/24 at 16:07
