CR 10s Pro Linear Rail Adapter

rail-original-hotend.jpg Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
rail-modified-backplate.jpg Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
rail-spacer.jpg Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
rail-with-supports-only.jpg Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
rail1.jpg Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
BLTOUCHMOUNT.stl Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
spacer.stl Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
adapter.stl Free STL file CR 10s Pro Linear Rail Adapter・Template to download and 3D print
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

robareeno

robareeno

3D model description

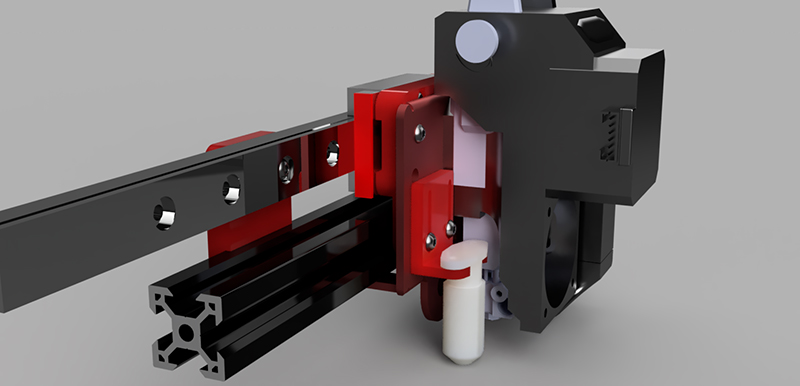

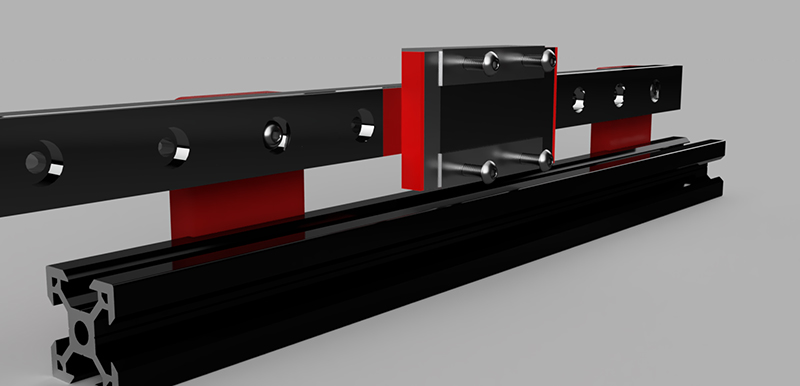

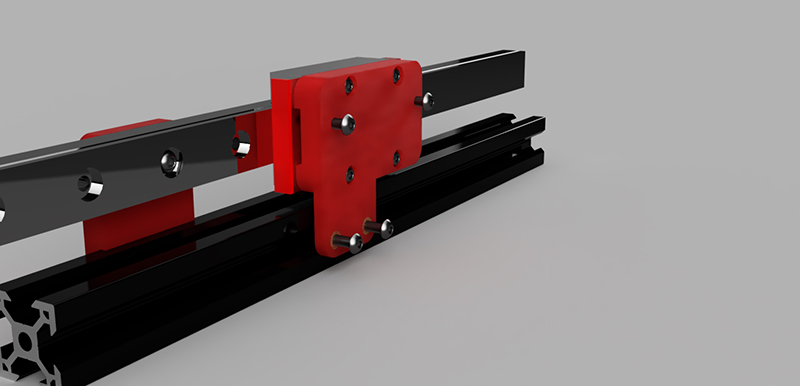

Upgrade your CR 10s pro to use a linear XY rail. This completely removes the slop from the original wheel system and eccentric nut tightener without having to modify your existing rails. This is a bolt on system that will keep your print carriage in exactly its original place. using T nuts and 3mm round head hex bolts. There is no modification to your frame.
This is the Linear Rail to use:
https://www.amazon.com/gp/product/B07PWDZKV3/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

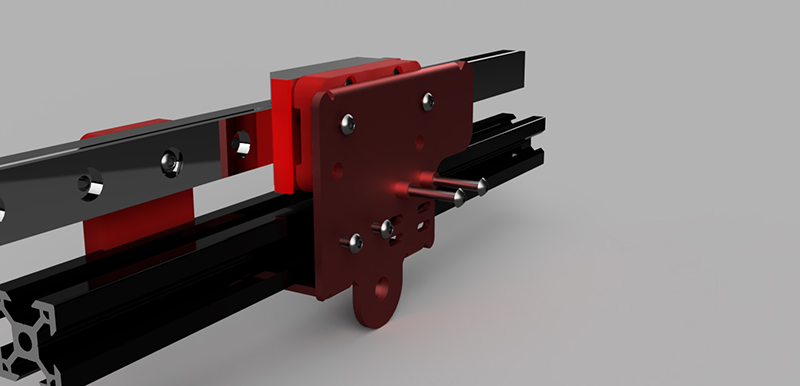

You can use your original hot end mounting plate with only slight modification. see the instructions below.

3D printing settings

The parts are all designed to stay away from the hot stuff so PLA will work just fine. Definitely use 100 percent infill. As for modifying the original mounting plate, see instructions here:
https://www.redbaronrc.com/post/creality-10s-pro-linear-rail-upgrade-instructions
