Covid 19 Mask with/without Exhale Valve (2hrs print, no support)

Advertising
Share
Add to
Make
?
Creation quality: 3.8/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.4k views
  • 23 likes
  • 449 downloads
  • 1 collection
  • 1 comment
Licence CC BY-NC
Publication date 2020-04-15 at 11:59
Design number 135075
3D design format
STL Folder details Close

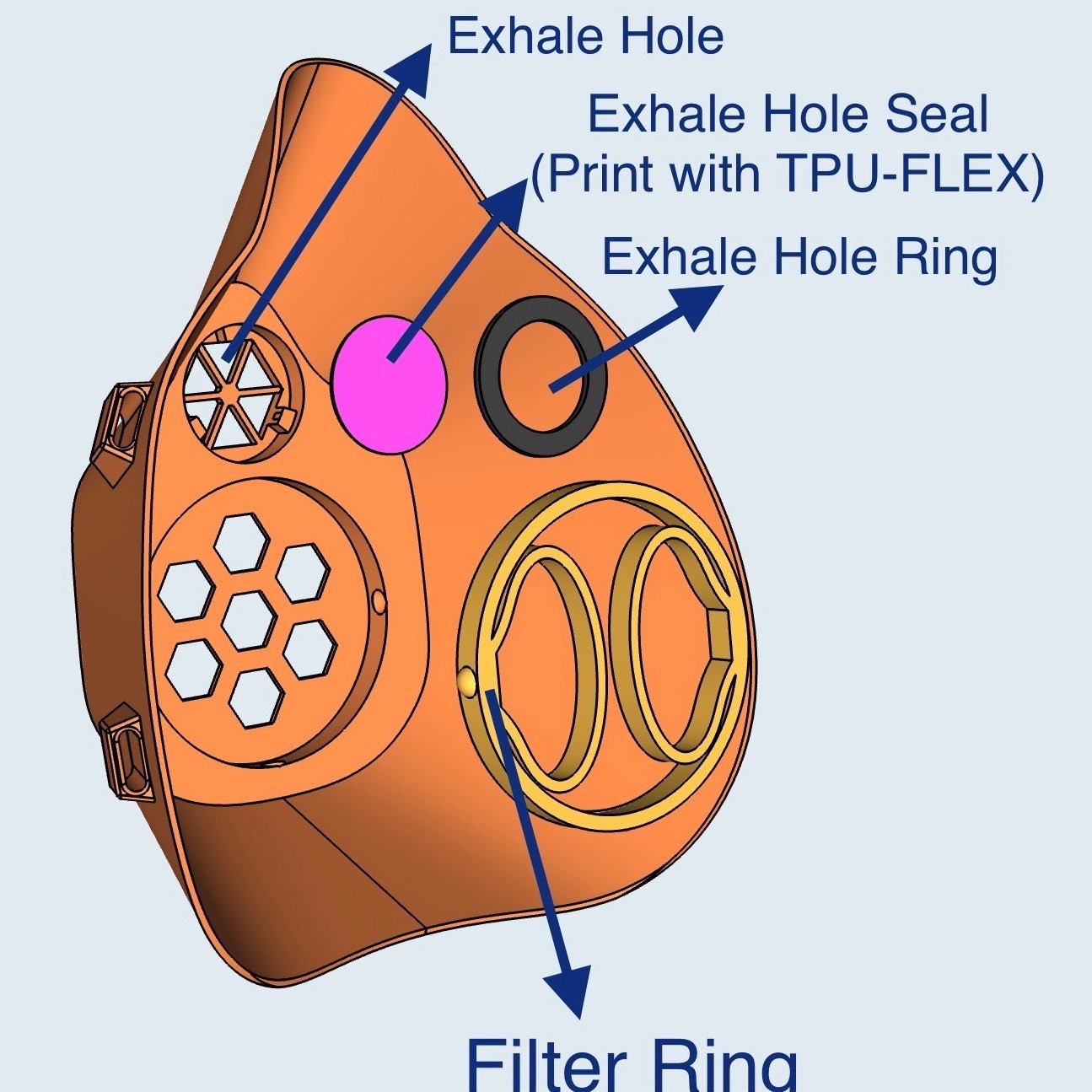

  • Mask v10 Pro Exhale Hole Ring.stl
  • Mask v10 Pro Exhale Hole Seal.stl
  • Mask v10 Pro Filter Ring.stl
  • Mask v10 Pro Main Body No Exhale Valve.stl
  • Mask v10 Pro Main Body.stl

Learn more about the formats
cagriahiskali

cagriahiskali

3D printer file info

3D model description

This model is a modified version of LAFACTORIA3D s v2 design.

I elongated the mask to provide more space for your mouth and chin.

Reduced the seperate print parts, combined the filter connector to the body.

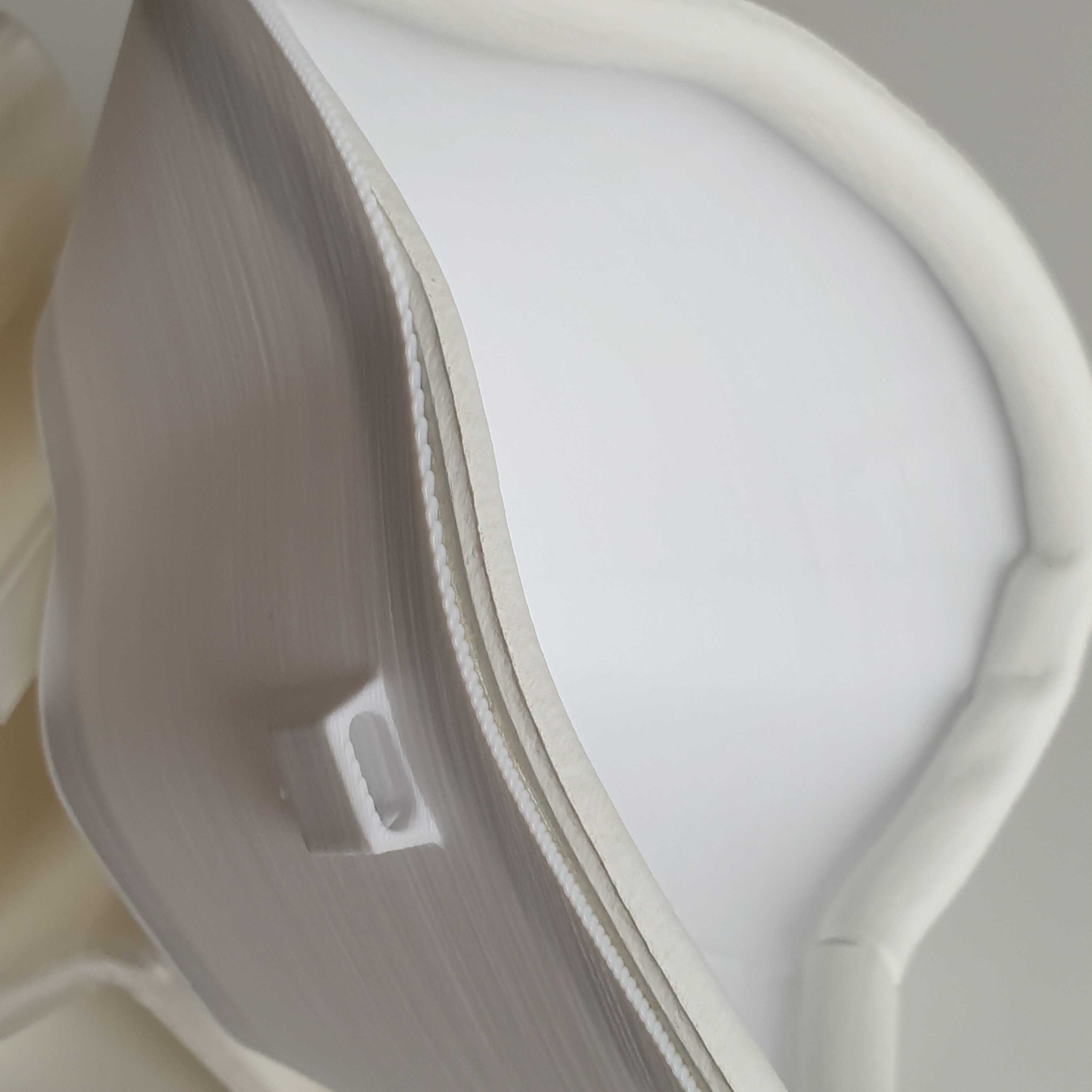

Use window/door rubber seal tape for the mask edges.

3D printing settings

No support
No Horizontal Expansion (set it to 0 zero) for all parts
Print 0.5 line width for all parts
Fill between walls : nowhere
PRINT THE EXHALE HOLE SEAL WITH TPU/FLEX FILAMENT 15 mm/s speed no retraction, no cooling
Print exhale hole ring and the seal without raft, let them stick directly to the print bed to achive smooth polished surface, then you need to face that polished faces together while montage process. So you can get air tight sealant.
