Ventilated lid for Raspberry Pi 4B case314

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 354 views
  • 3 likes
  • 8 downloads

3D model description

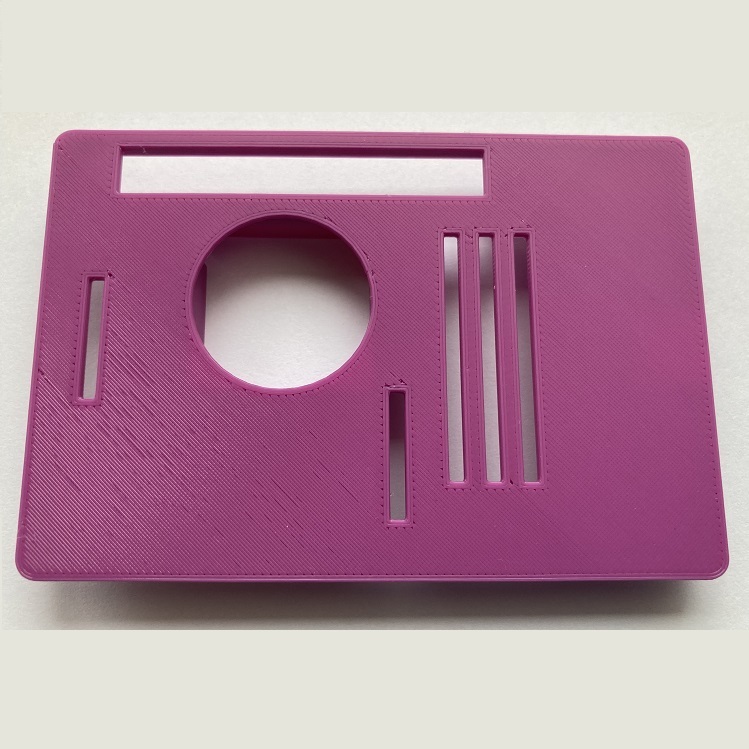

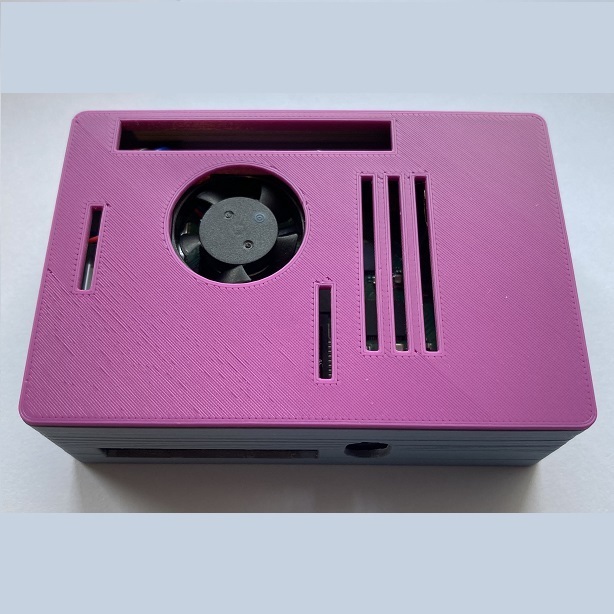

A variation of my simple cover with a place for an official fan, and always ventilation slots, GPIO access, screen and camera, to complete the Raspberry Pi 4B case proposed by François Mocq for his FreeCAD tutorial on Framboise314.

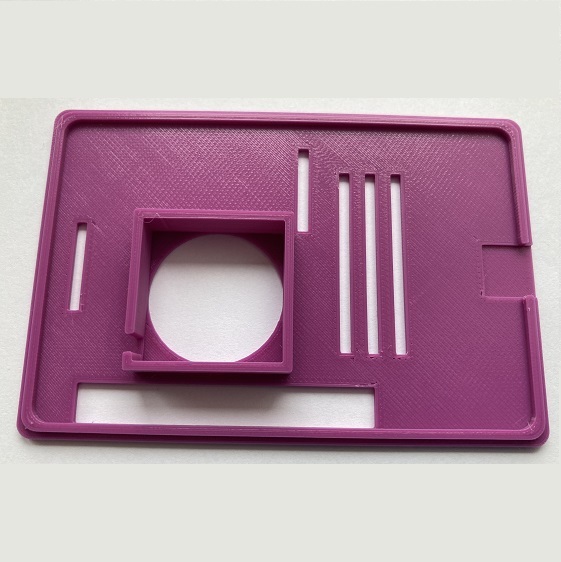

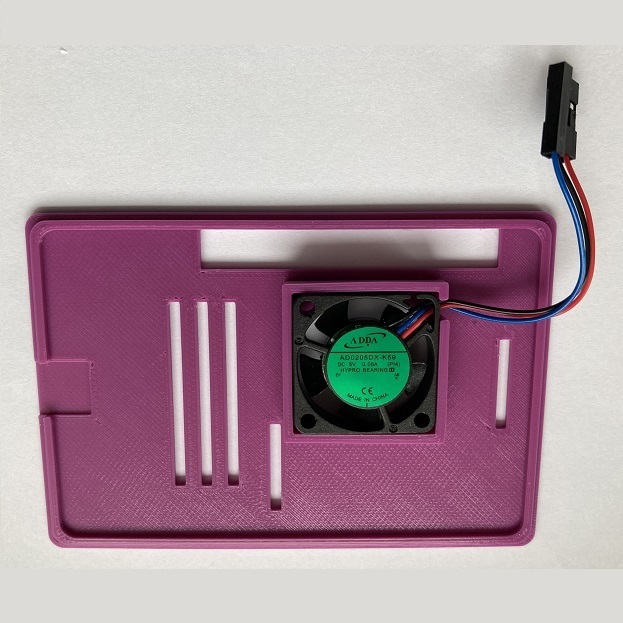

The fixing is done by embedding, with a slot for easy reopening. The fan can also be installed in a recessed position, without screwing. ATTENTION: do not press the central part of the fan to install it, but on its corners! The fan must be purchased separately...

https://www.framboise314.fr/un-boitier-de-raspberry-pi-4-avec-freecad/

https://www.thingiverse.com/thing:4041825

https://www.kubii.fr/accessoires-officiels-raspberry-pi/3080-ventilateur-pour-boitier-officiel-raspberry-pi-4-728886755172.html

3D printing settings

Die-cut with PrusaSlicer 2.3.0 and printed in PLA with "Print settings = 0.15mm QUALITY", "Media = None" and "Fill = 20%".

  • 3D file format: STL
  • 3D model size: X 94 × Y 64 × Z 8.9 mm
  • Last update: 2021/02/16 at 21:20
  • Publication date: 2021/01/24 at 16:04

Tags

Creator

Designs 5
Downloads 43
Followers 2

License

CC BY
