Cooling fan attachment for Sony Alpha 6300 digital camera
:strip_icc():blur(20)/https://files.cults3d.com/uploaders/13299557/illustration-file/6cd6acdd-4b02-4072-9d31-cf82f6c86ec1/CCE%20-%20Ter%20Bas%20en%20Ev%20-%20011.jpg)
?
Creation's quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 2.5k views
- 1 like
- 3 downloads
3D model description

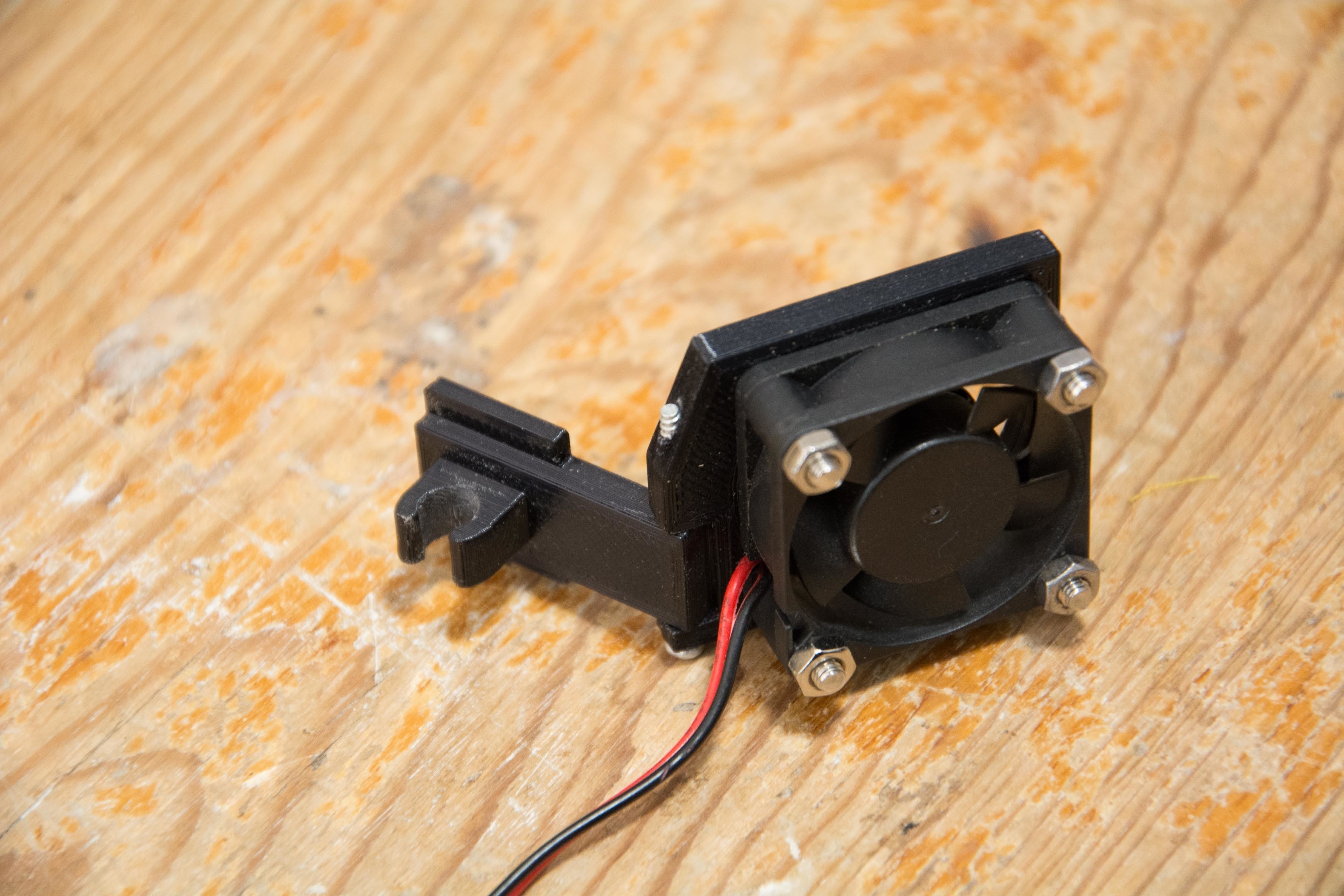

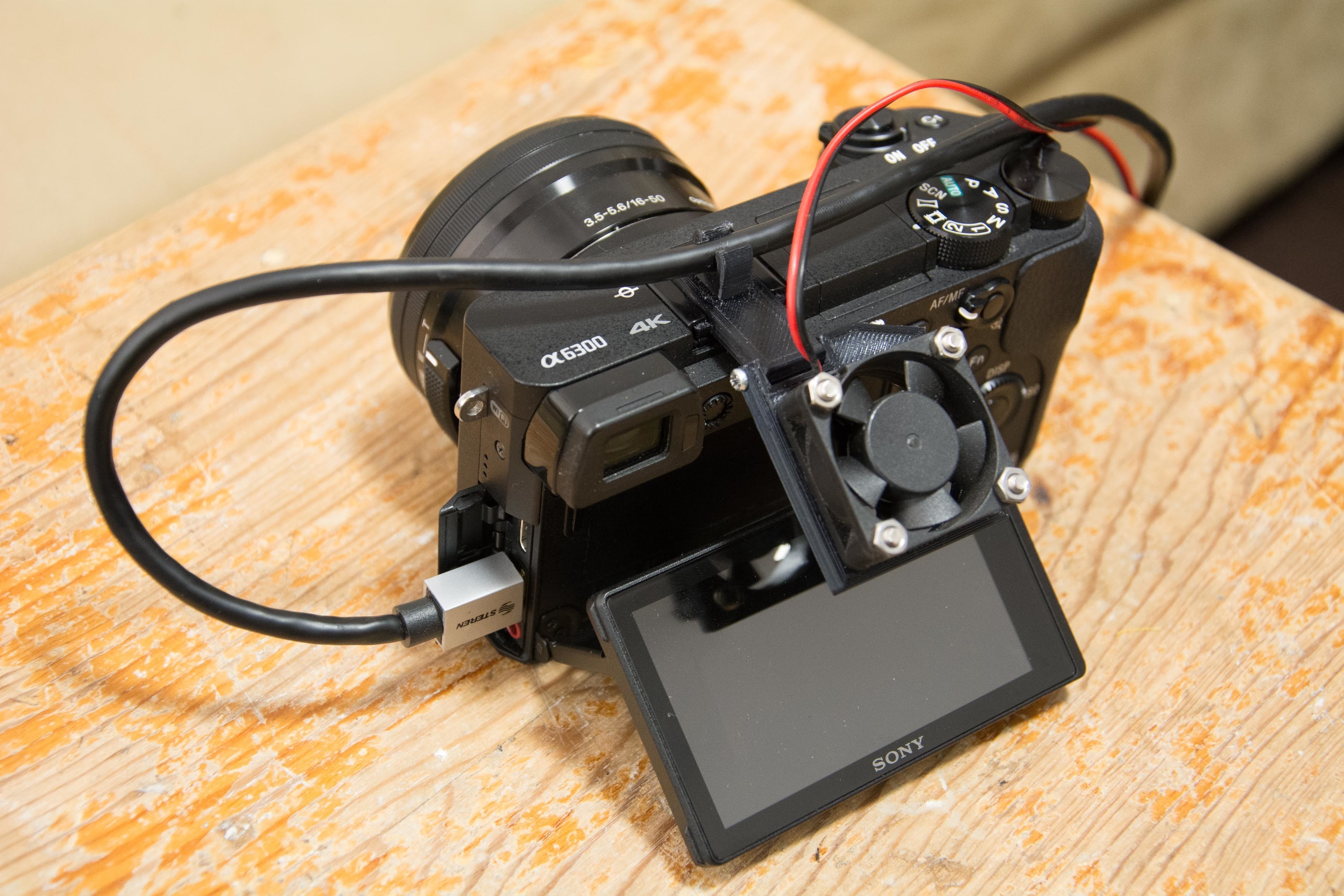

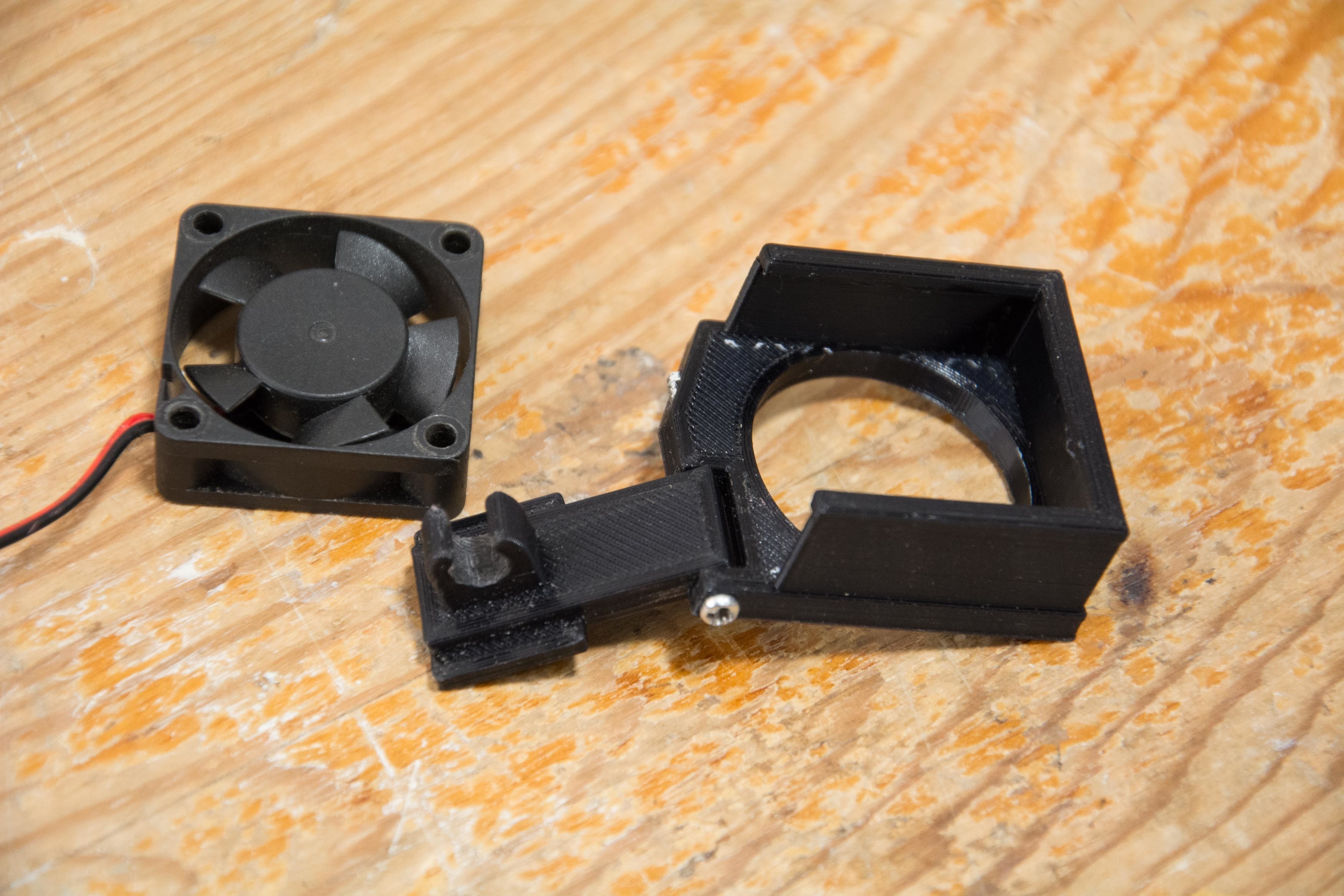

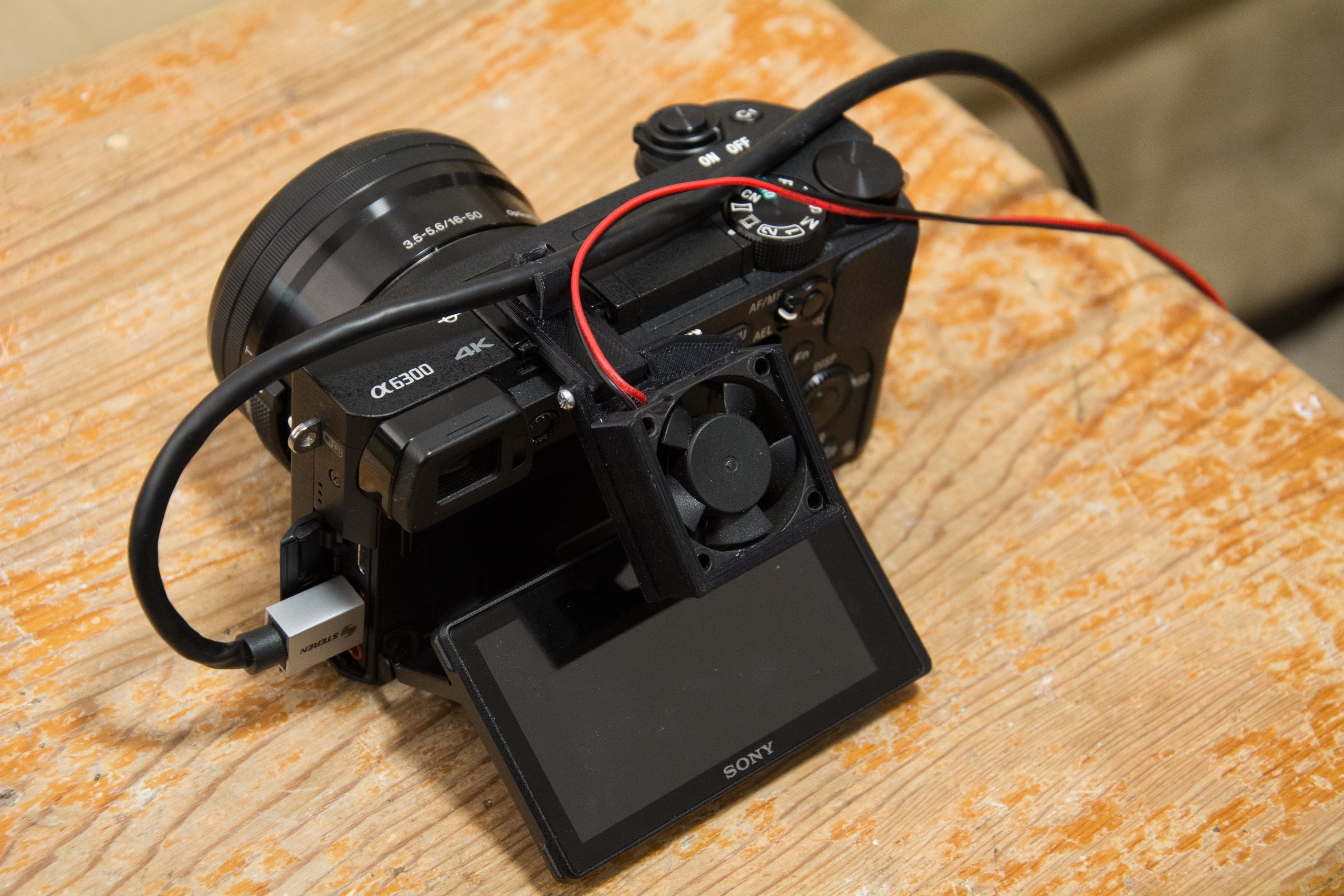

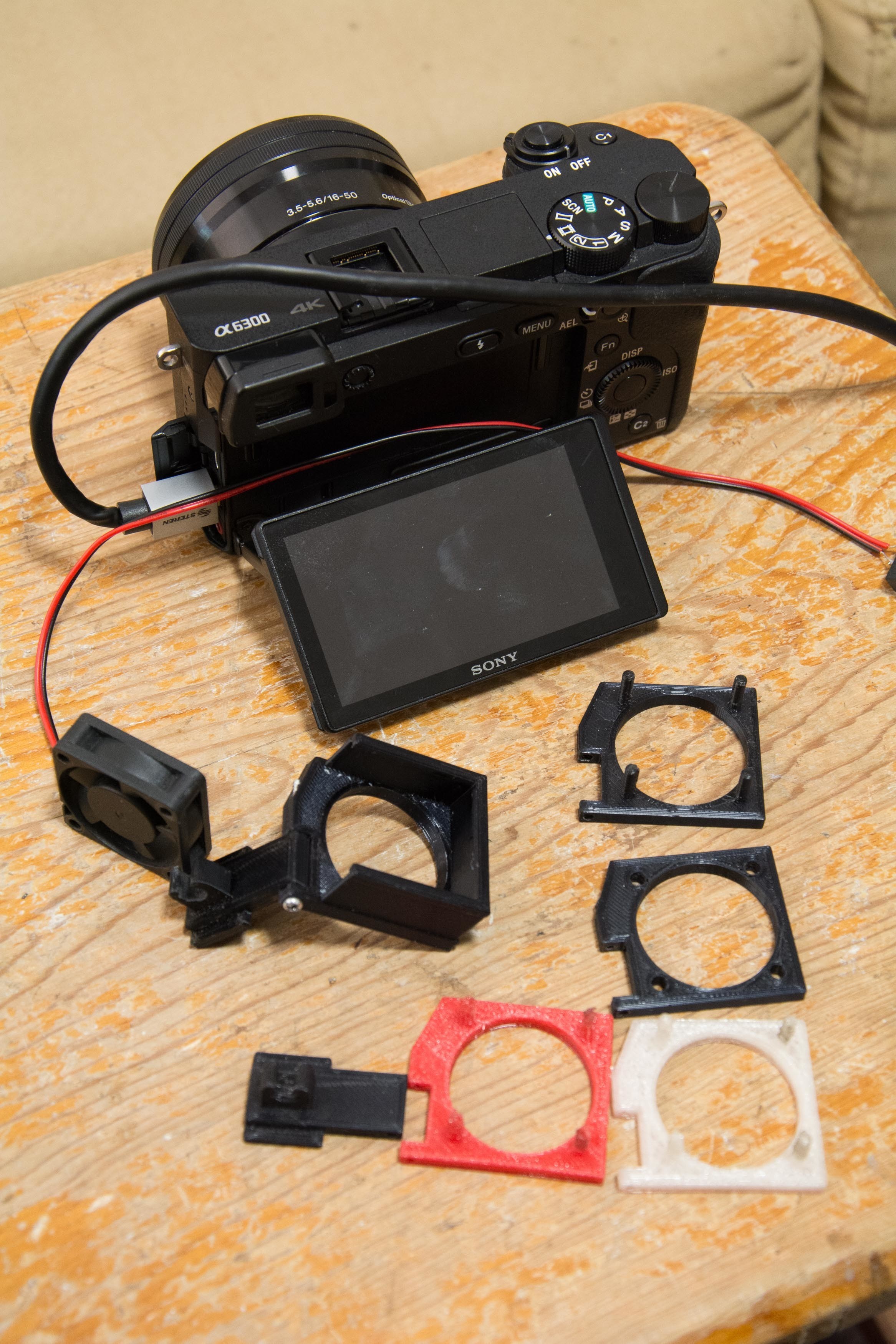

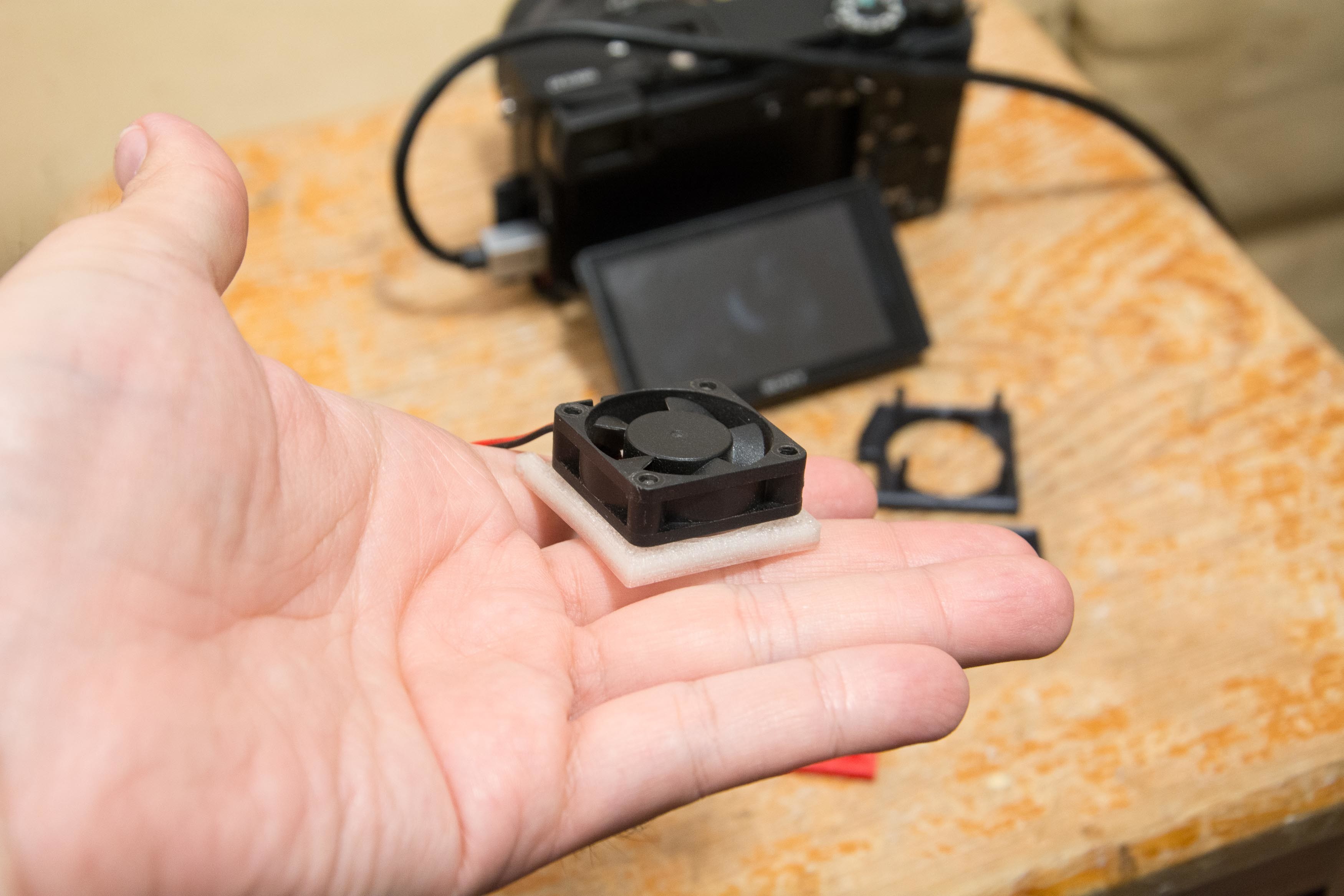

This is a cooling fan attachment for a Sony Alpha 6300 (also Alpha 6000 and Alpha 6500) that uses the hotshoe slot to mount. The surface under the view screen can overheat with extended use.It has an adjustable angle and uses a standard 30x10mm radial fan. Although the fan normally operates at 12V, it works well and quiet at 5V. There is also a clip to hold the HDMI cable if used. Provided are several variations of the fan mount- slide in, post mount for printing in flex, one for 3mm bolts, and another to be tapped for 3mm bolts. All were printed with PLA without issue. Needed also is a 2mm x 20-25mm bolt/screw.
3D printing settings
.2 layer, 30% fill, 190 degrees (or as required for your filament), 40 mm/s speed, support
- 3D file format: STL
- Last update: 2018/05/21 at 21:53
- Publication date: 2018/04/25 at 23:39
