Convert 2D SVG to 3D SCAD models

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 404 views
  • 1 like
  • 6 downloads

3D model description

Edit

  • Edit 2021/01/24:
    • I removes all my scripts because now i use the plugin from this thing: https://www.thingiverse.com/thing:25036,
    • But the thing is no longer maintained this is the reason why i forked it from a more recent version,
    • My version of the plugin is paths2openscad

Introduction

  • The plugin from paths2openscad is an Inkscape plugin,
  • When installed:
    • Select the shapes you want to export,
    • Go to menu "Extensions / Generate from path / paths to OpenSCAD..."

Installation

  • From github repository paths2openscad:
    • Copy files paths2openscad.py and paths2openscad.inx to inkscape extensions folder,
    • On linux this is ~/.config/inkscape/extensions/

Generated names

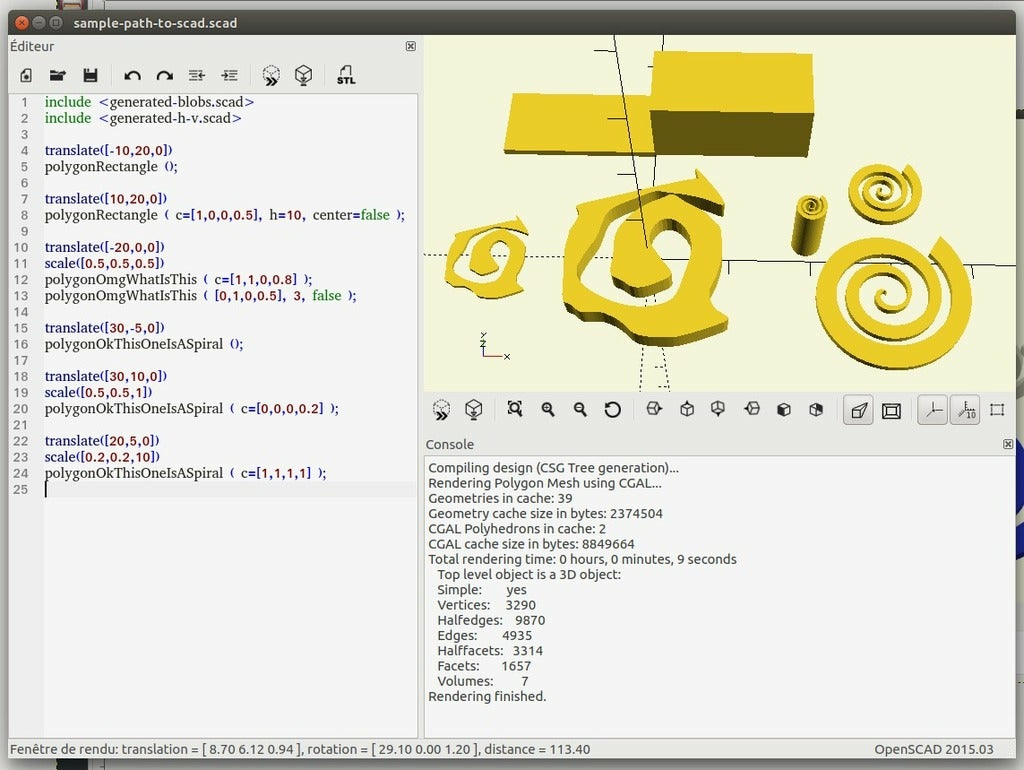

  • The plugin generates openSCAD modules from selected shapes,
  • The modules are names poly_{shape-ID} (),
  • Then you can control the module name in Inkscape:
    • Contextual menu on the shape / Object properties,
    • Change shape ID as you want,
    • Better change label with the same value to have a consistent display,
    • Button Apply.
  • 3D file format: SCAD
  • Publication date: 2021/01/26 at 05:38
