Slat contacts for arcade button or Pincab

Download free 3D printing files Slat contacts for arcade button or Pincab, NussssDownload free 3D printing files Slat contacts for arcade button or Pincab, NussssDownload free 3D printing files Slat contacts for arcade button or Pincab, NussssDownload free 3D printing files Slat contacts for arcade button or Pincab, NussssDownload free 3D printing files Slat contacts for arcade button or Pincab, NussssDownload free 3D printing files Slat contacts for arcade button or Pincab, Nussss

Did you 3D print this model?

3D model description

** Replace the noisy microswitches of the arcade buttons with homemade slat contacts! **

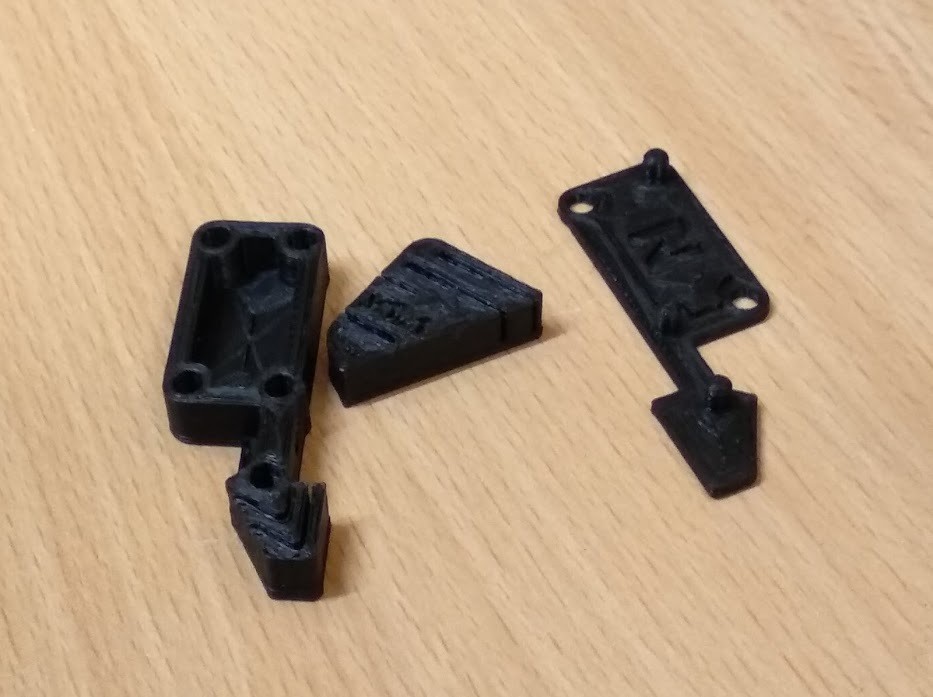

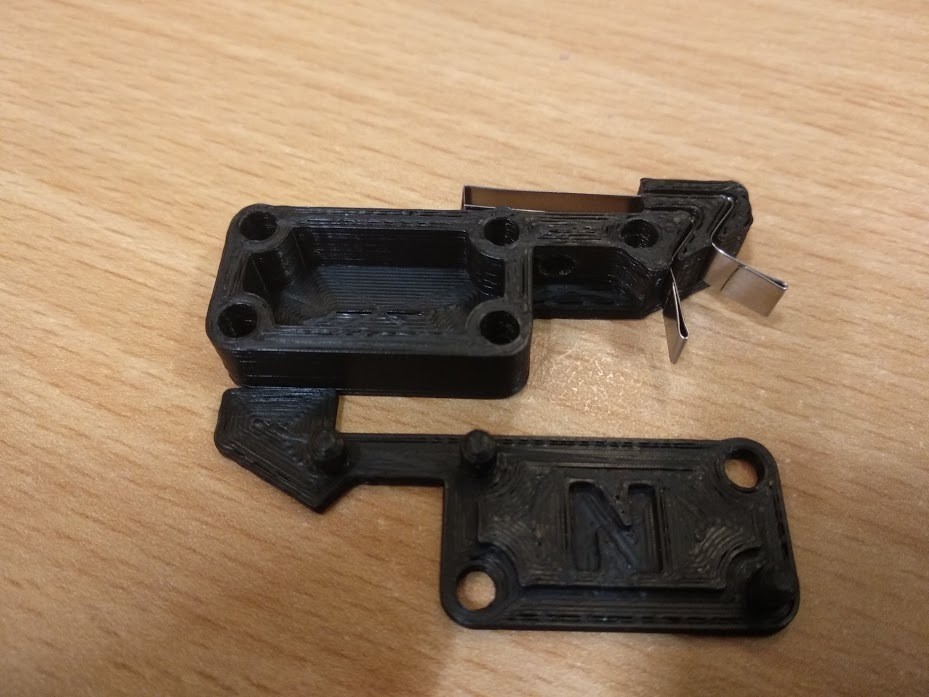

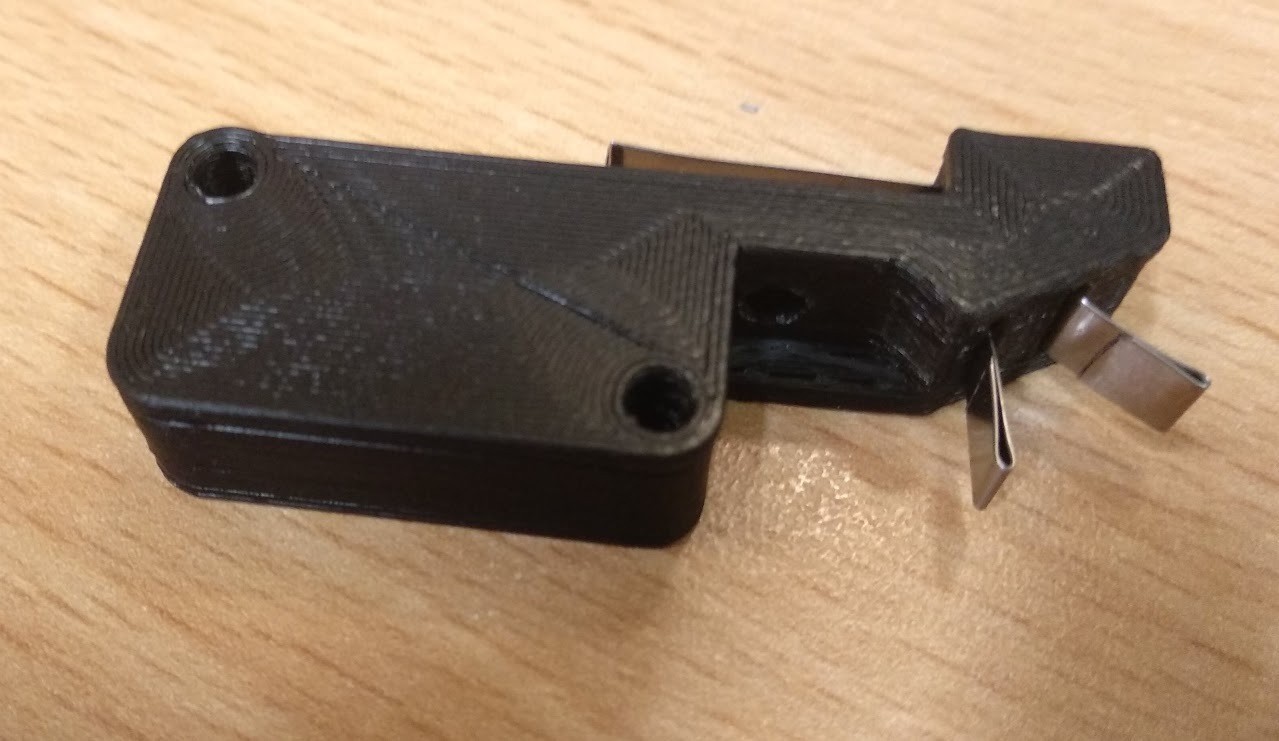

2 main files: the body of the switch and the lid.

  • 1 file of a small tool that facilitates the cutting and folding of the slats.

for the slats I used AERZETIX hose clamps: 4.6mm x 350mm (search for ref C17074)

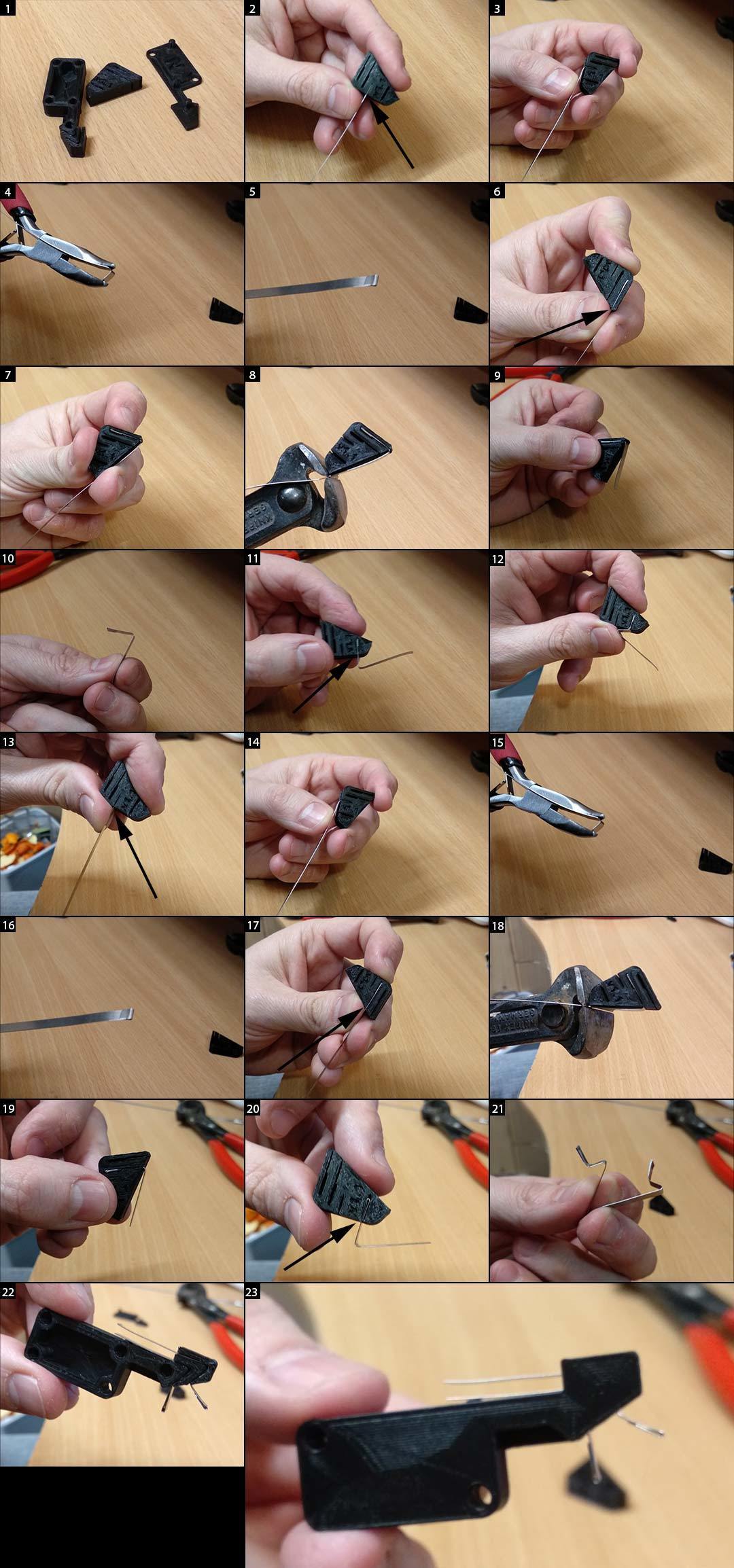

To cut and assembage, follow the tutorial (see pictures)

** Updated on 15/03/2018 **

  • version 1.2 *

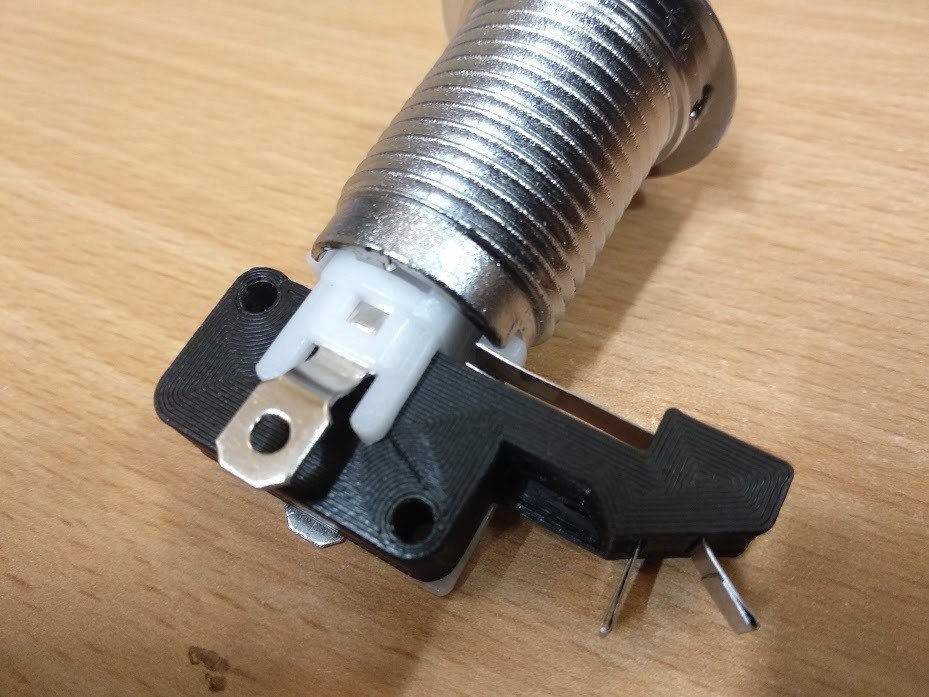

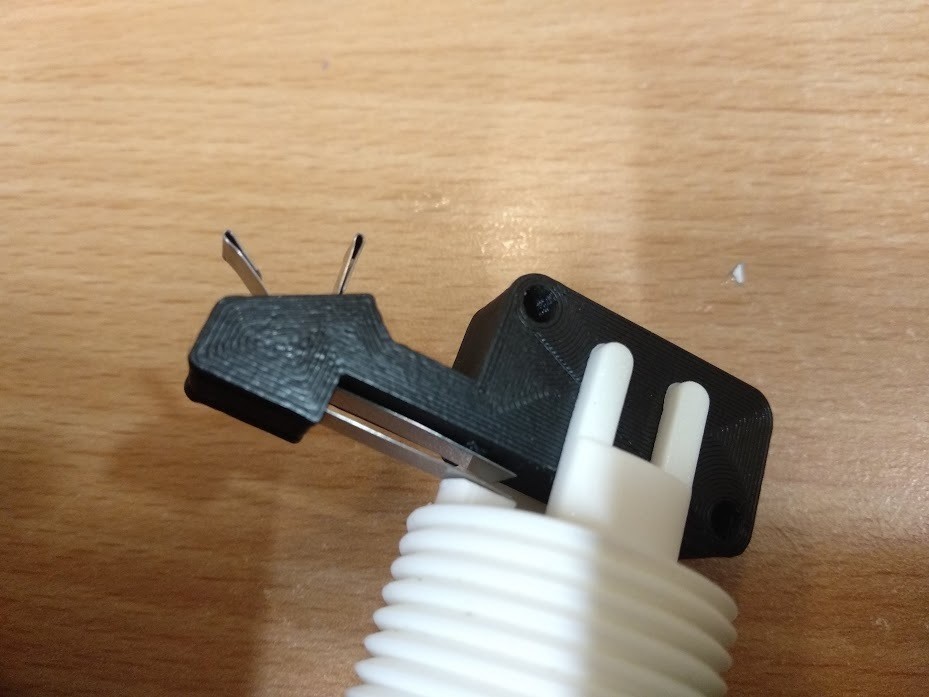

  • The holes now completely cross the switch for better compatibility with different arcade buttons

  • The slats are a little longer, in order to have a little more flexibility

  • Evolution of the tool to fold and cut the slats, and allow to double the thickness on the contacts of the lugs.

  • 3D model format: STL
