DRILL COLUMN

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 4 likes
  • 73 downloads

3D model description

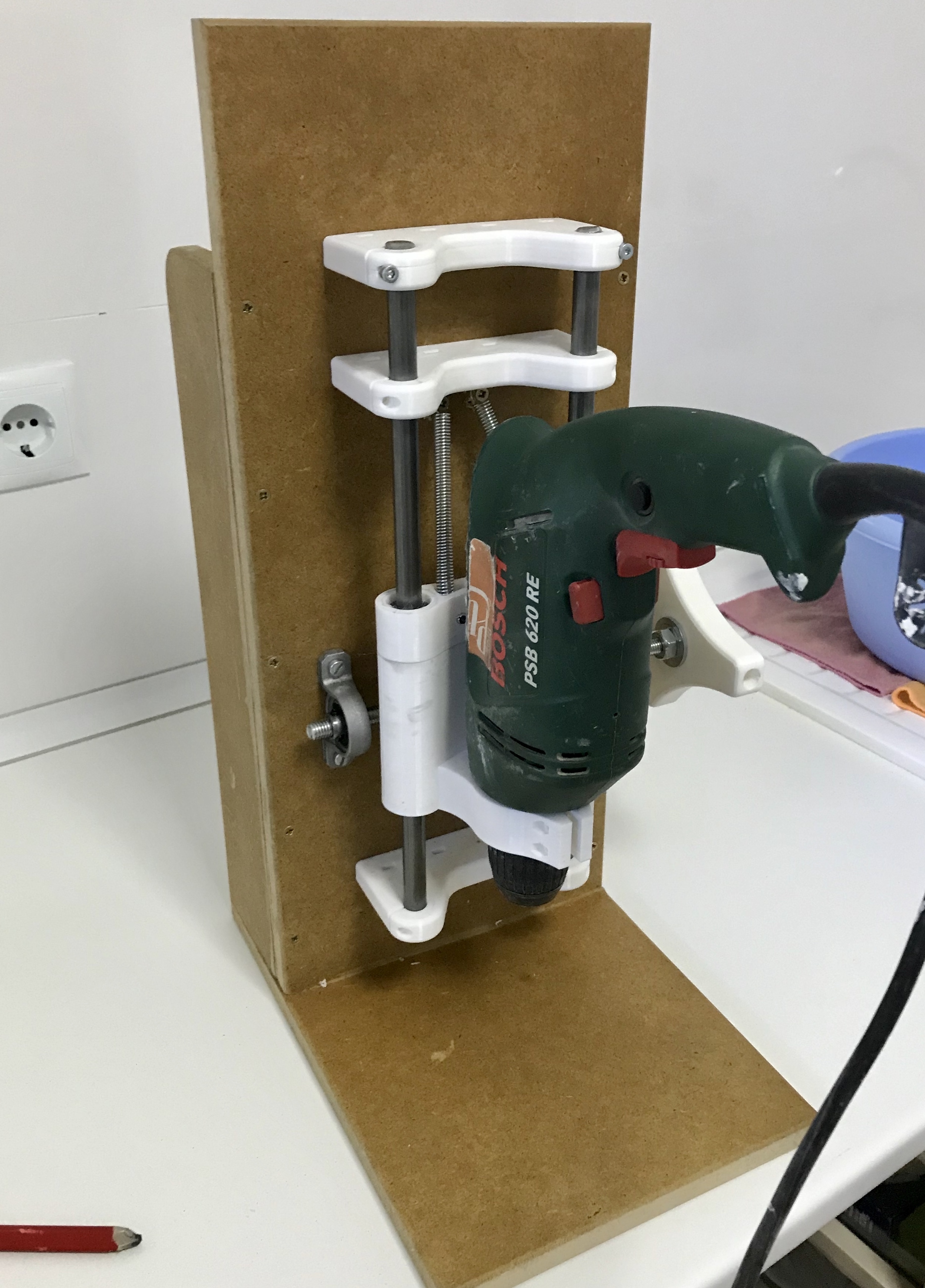

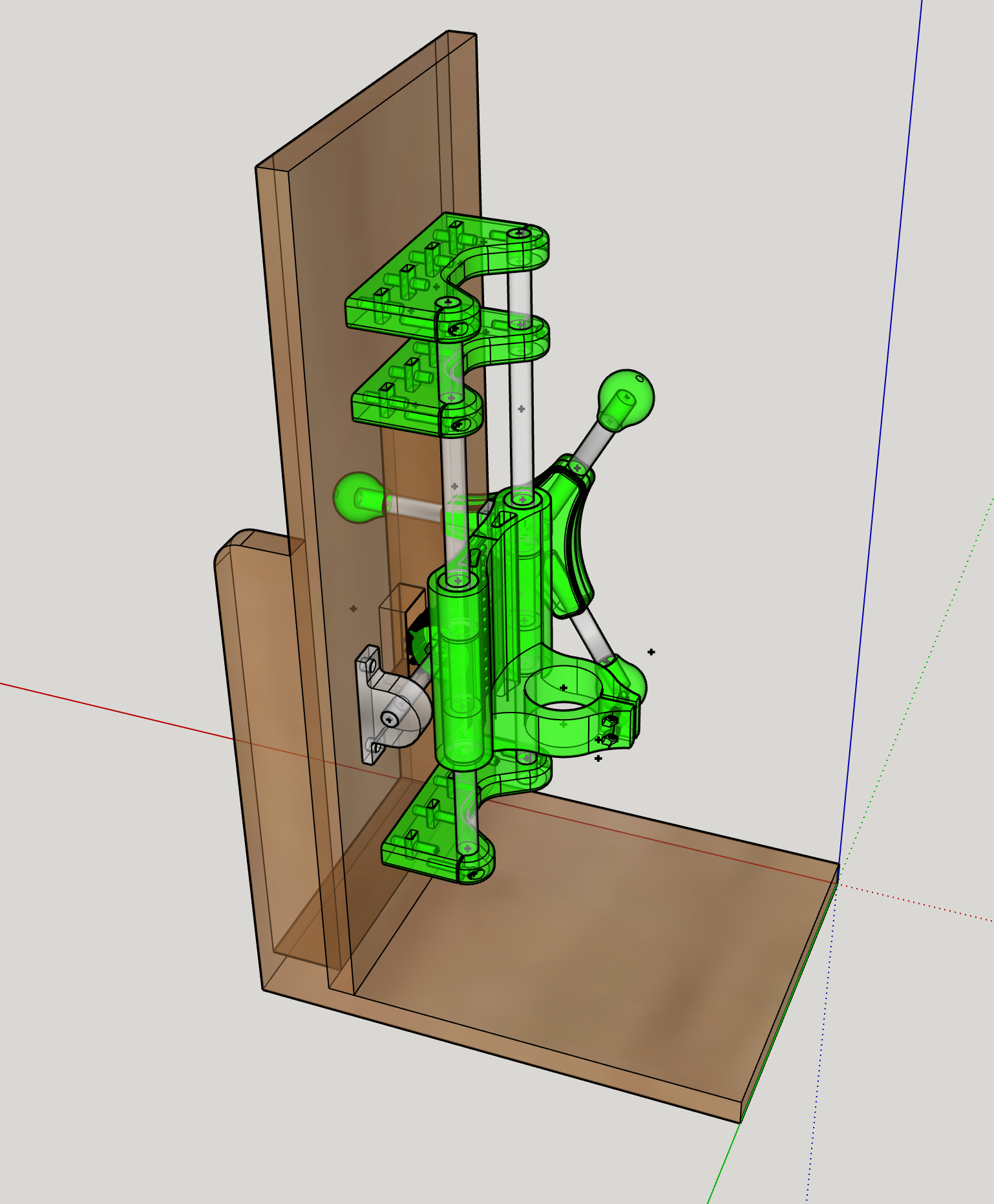

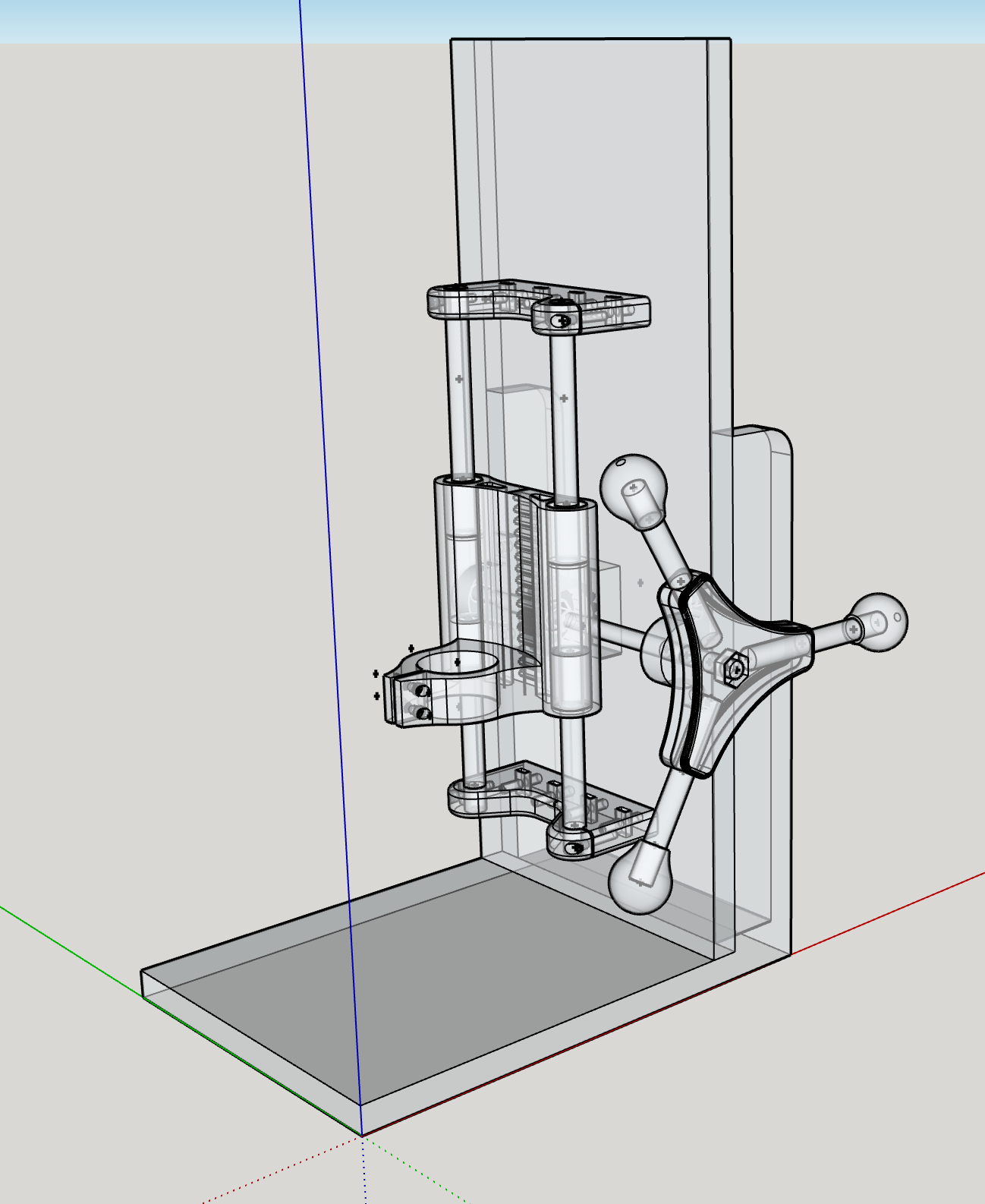

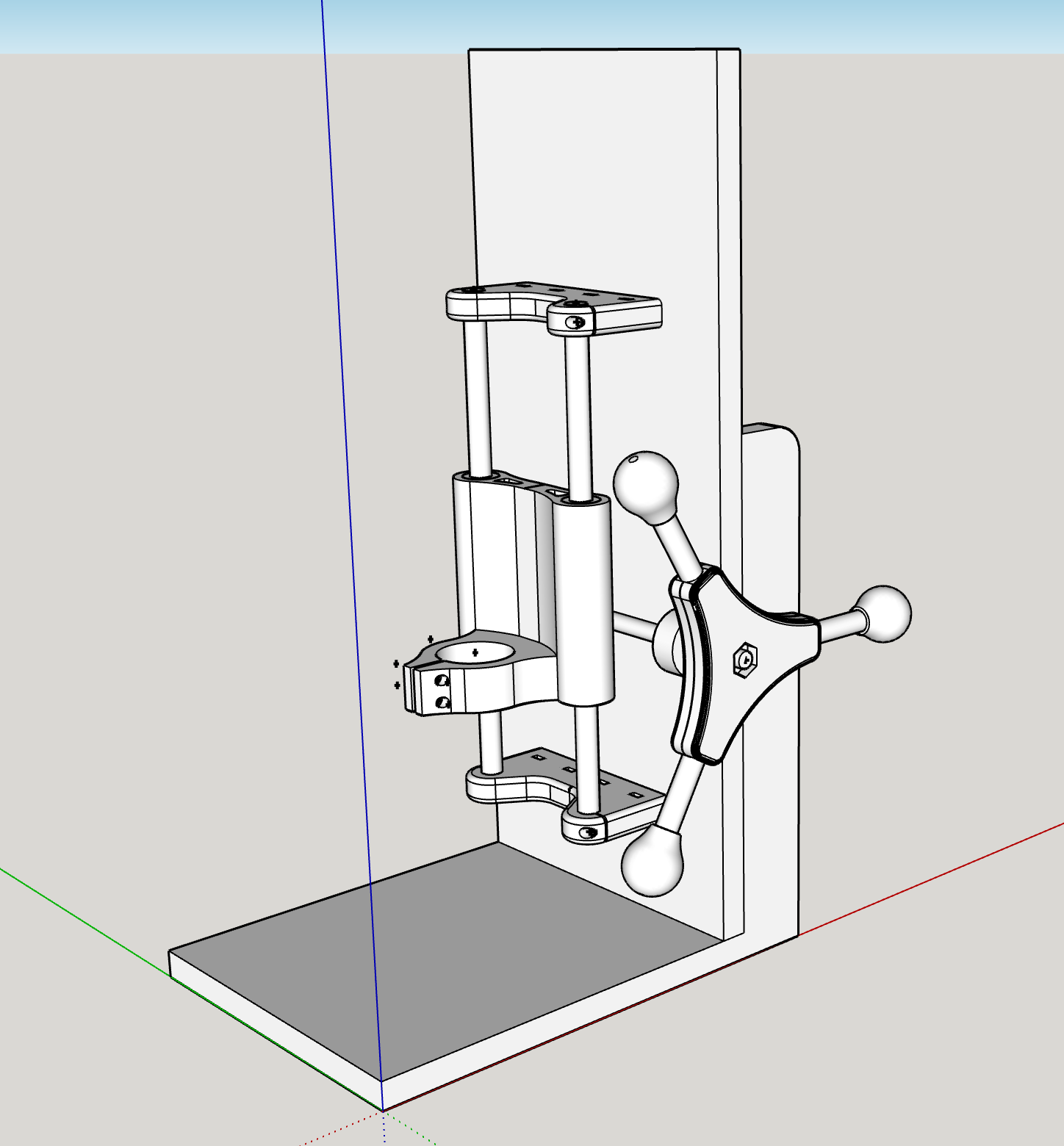

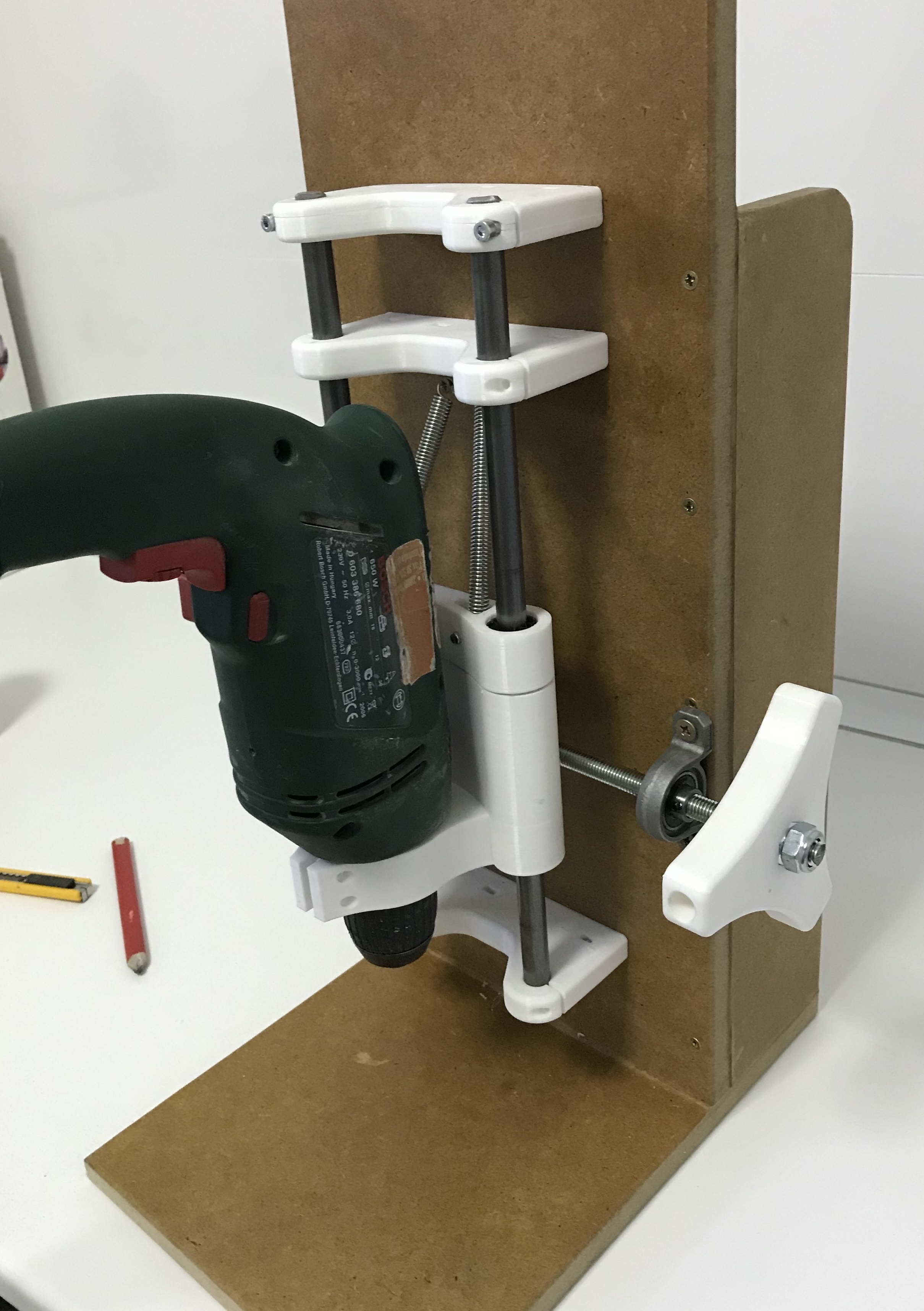

SIMPLE BUT ROBUST DRILL COLUMN FOR ANY B&D, BOSCH, MAKITA MACHINE

IN ADDITION TO THE PRINT MODELS IS NECESSARY:

  • BOARD DM 490X210X16MM

  • BOARD DM 290X210X16MM

  • 2X DM BOARD 290X44X16

  • 2X STEEL ROD 350X12MM

  • 4X LINEAR BEARINGS 12MM

  • 2X BASE BEARINGS 10MM

  • THREADED ROD M10 210MM

  • 3X NUT M10

  • 3X STEEL ROD 100X12MM

  • 12X SCREWS M5 40MM

  • 12X NUT M5

  • 6X M4 SCREWS ALLEN 30MM

  • 6X NUT M4

  • 2X COMPRESSION STEEL SPRINGS 40X1.5 14MM

3D printing settings

20% BICUBIC INFILL

  • 3D file format: STL

Tags

Creator

License

CC BY
