Cleaning station for Anet A8 Plus

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.2k views
  • 6 likes
  • 6 downloads

3D model description

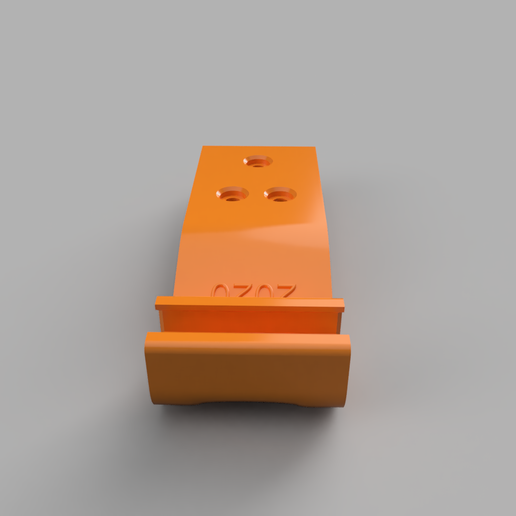

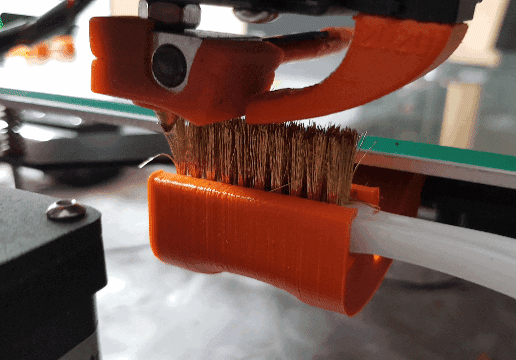

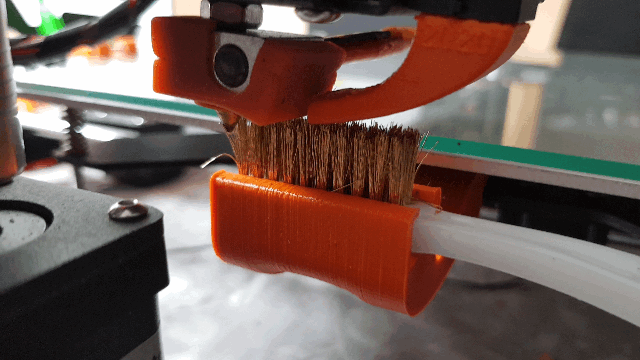

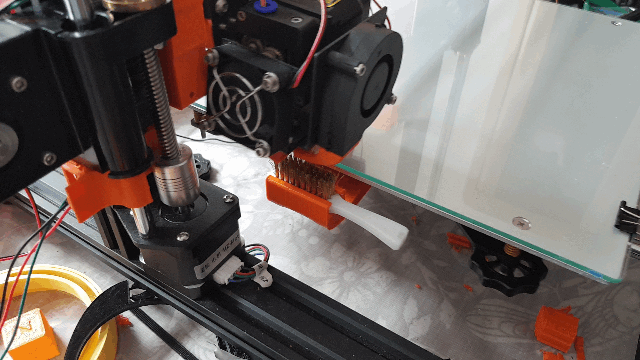

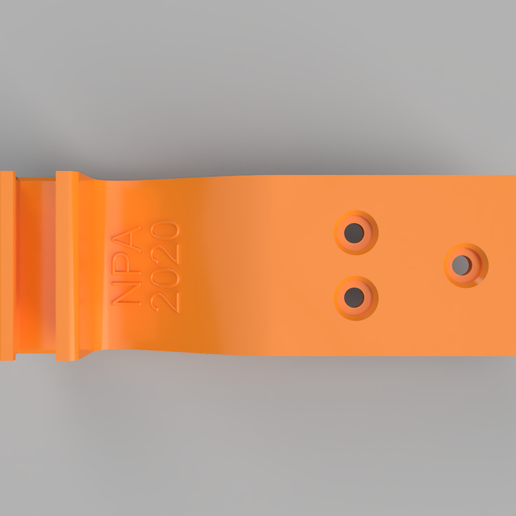

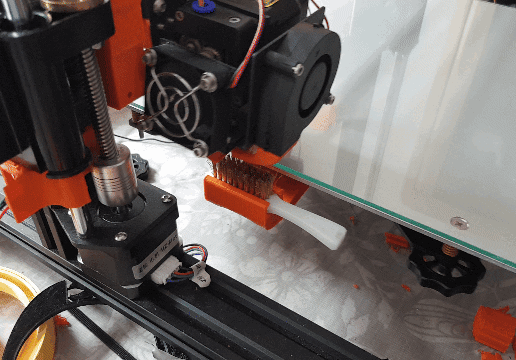

This is a mount which allows an automated nozzle cleaning station for the Anet A8 plus. It uses the head of a cheap copper brush which simply slides into place.

If you have a later (v2 or later) version of Marlin, you can use the built-in G12 command to run a clean. If not, you can easily enough create a few lines of GCODE to integrate into your prints to perform the cleaning cycle.

The brushes used were these from AliExpress. You just need to cut off most of the handle, leaving some to more easily replace the brush

https://www.aliexpress.com/item/4000800461237.html

See my blog for more details

https://a8plusupgrades.blogspot.com/p/contents.html


3D printing settings

This was printed in PET-G with 0.125 layer height and 25% infill. It should be printed on its side for maximum strength and is likely to need support.

3D printer file information

  • 3D design format: STL Folder details Close
    • Brush Mount.stl

    Learn more about the formats

  • 3D model size: X 115 × Y 40 × Z 24 mm
  • Publication date: 2020/08/04 at 16:33

Copyright

©

Tags

Creator

Designs 130
Downloads 6.9k
Sales US$177
Followers 71

I am very much an enthusiastic amateur when it comes to designing. My designs tend to have two things in common

1) They serve a purpose. I like to design functional objects which have a real-world use. 3D printing for art is fine, but it's its real-world application which will take the technology forward
2) Wherever possible I design to be easy to print and try to eschew supports or complex printing; modifying the design where necessary and possible to achieve this.
