Triangle key

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 474 views
  • 15 downloads

3D model description

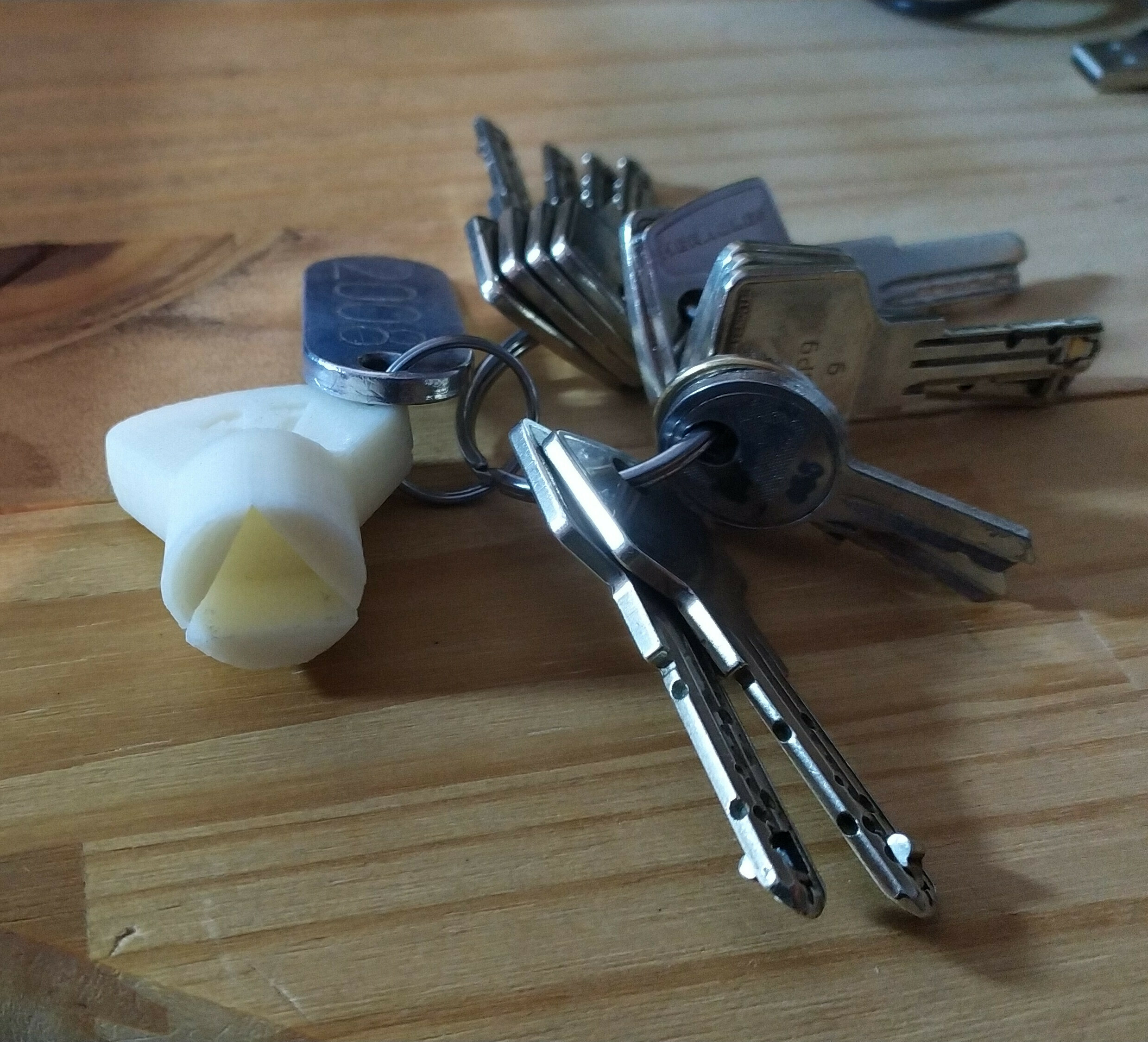

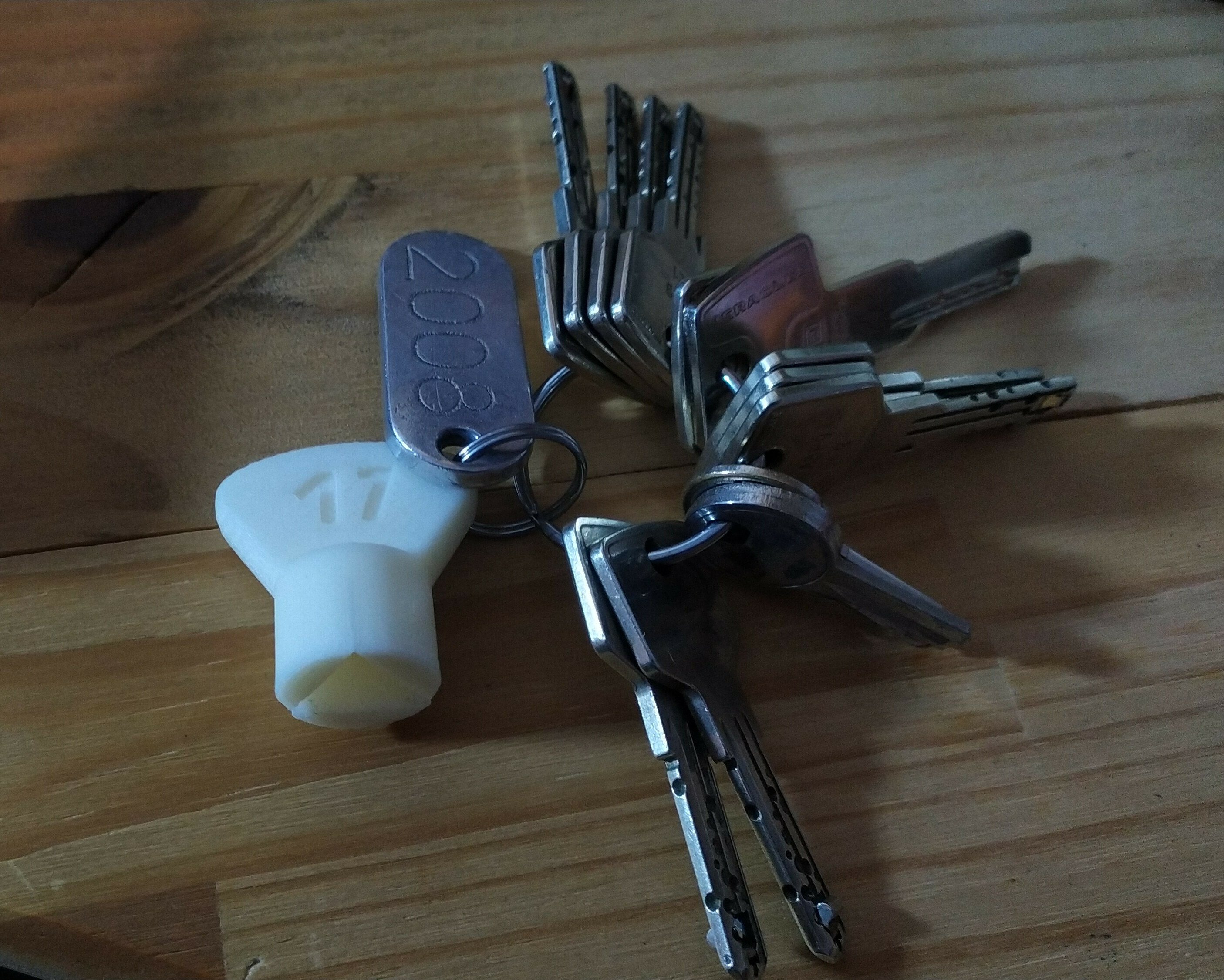

Key usable for a lock in the shape of an equilateral triangle of 17 mm sides, 10 mm height placed in a cylinder of 20 mm diameter.

I provide 2 models:

  • the one for an ABS print, with support cylinders to increase the grip of the key handle

  • the one for PLA printing, without support cylinder

Dimensions: (Dim X)35 x (Dim Y)35 x (Dim Z)20 mm


3D printing settings

Material used: ABS ivory.

Nozzle temperature: 250 °C

Plate temperature: 70 °C

Glue stick used to increase adhesion to the tray.

Feed speed: 50 mm/s

Filling at 25%.

Print pass thickness: 0.1 mm

Edge thickness: 0.8 mm

Added several 2 mm diameter cylinders to avoid deformation of the key handle, located 5 mm away from the platen.

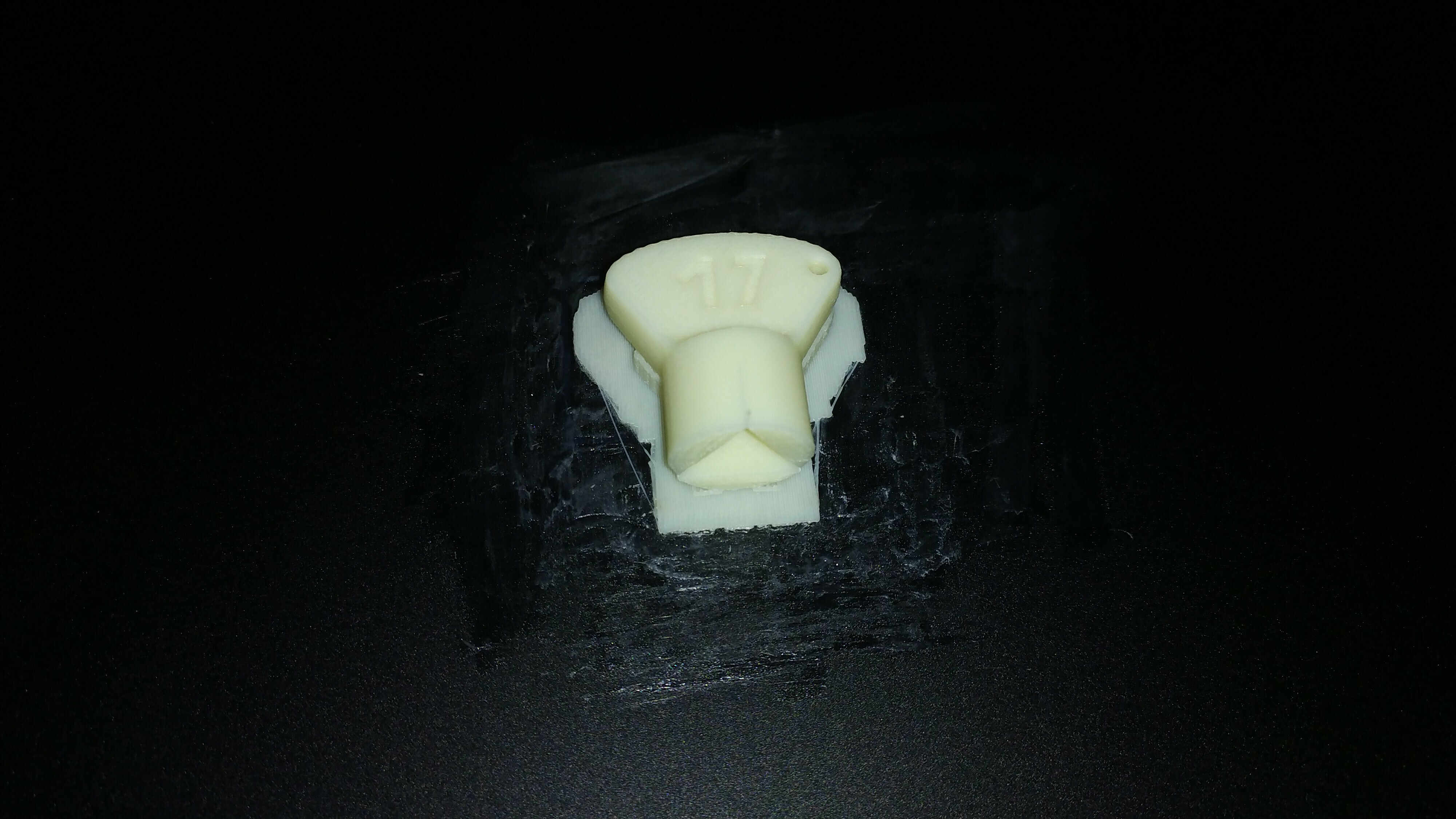

Addition of a 1 mm support for printing (see photo)

3D printer file information

  • 3D design format: STL Folder details Close
    • Cle_triangle.stl
    • Cle_triangle_V2.stl
  • Publication date: 2021/03/24 at 19:05

License

CC BY NC SA
