Tride Cases for Swiss knives

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Licence CC BY-NC-ND
Publication date 2021-09-22 at 13:38
Design number 526142
3D design format
STL Folder details Close
  • Swiss Camper Case by Tride.Design.stl
  • Swiss Champ Case by Tride.Design.stl

Learn more about the formats

3D printer file info

3D model description

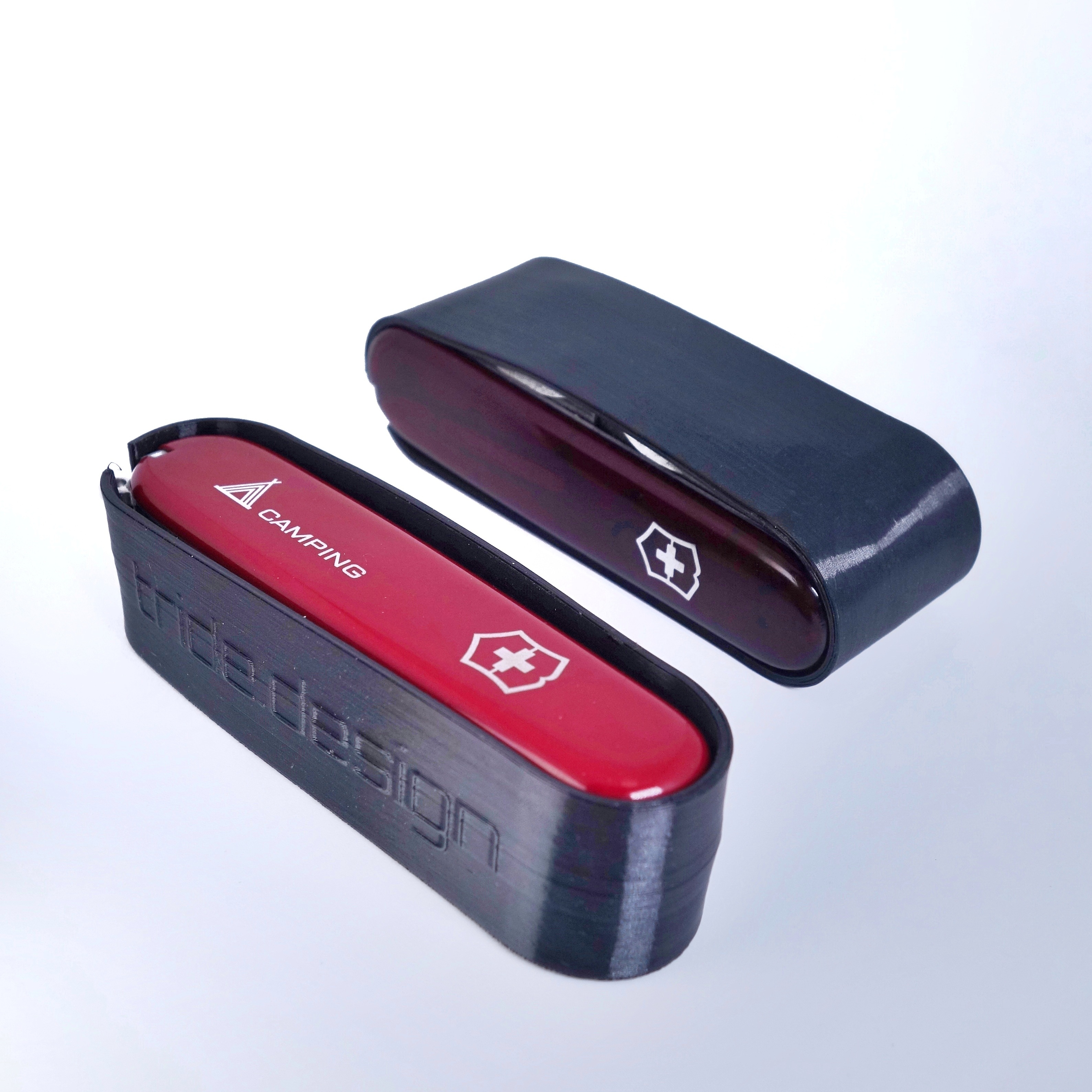

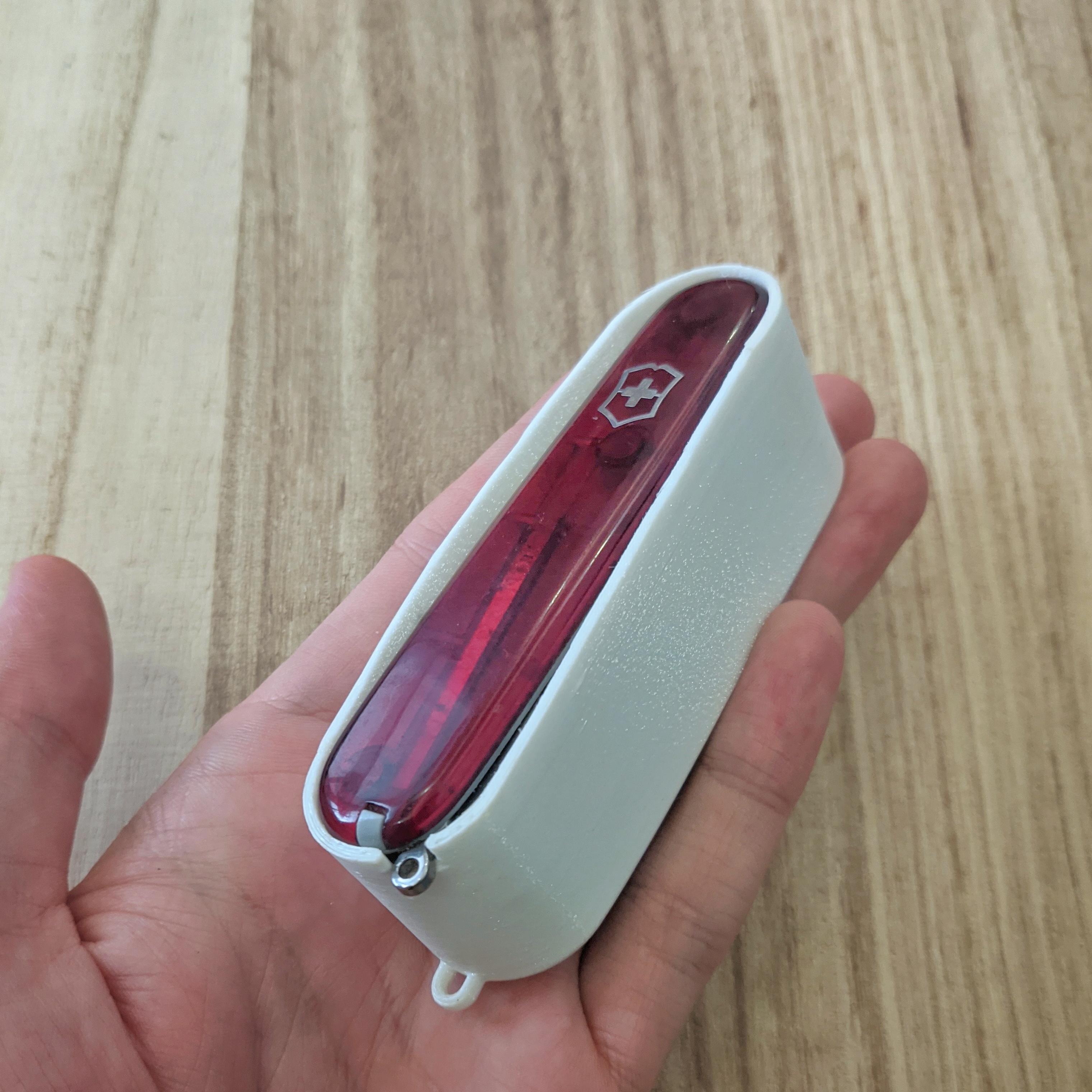

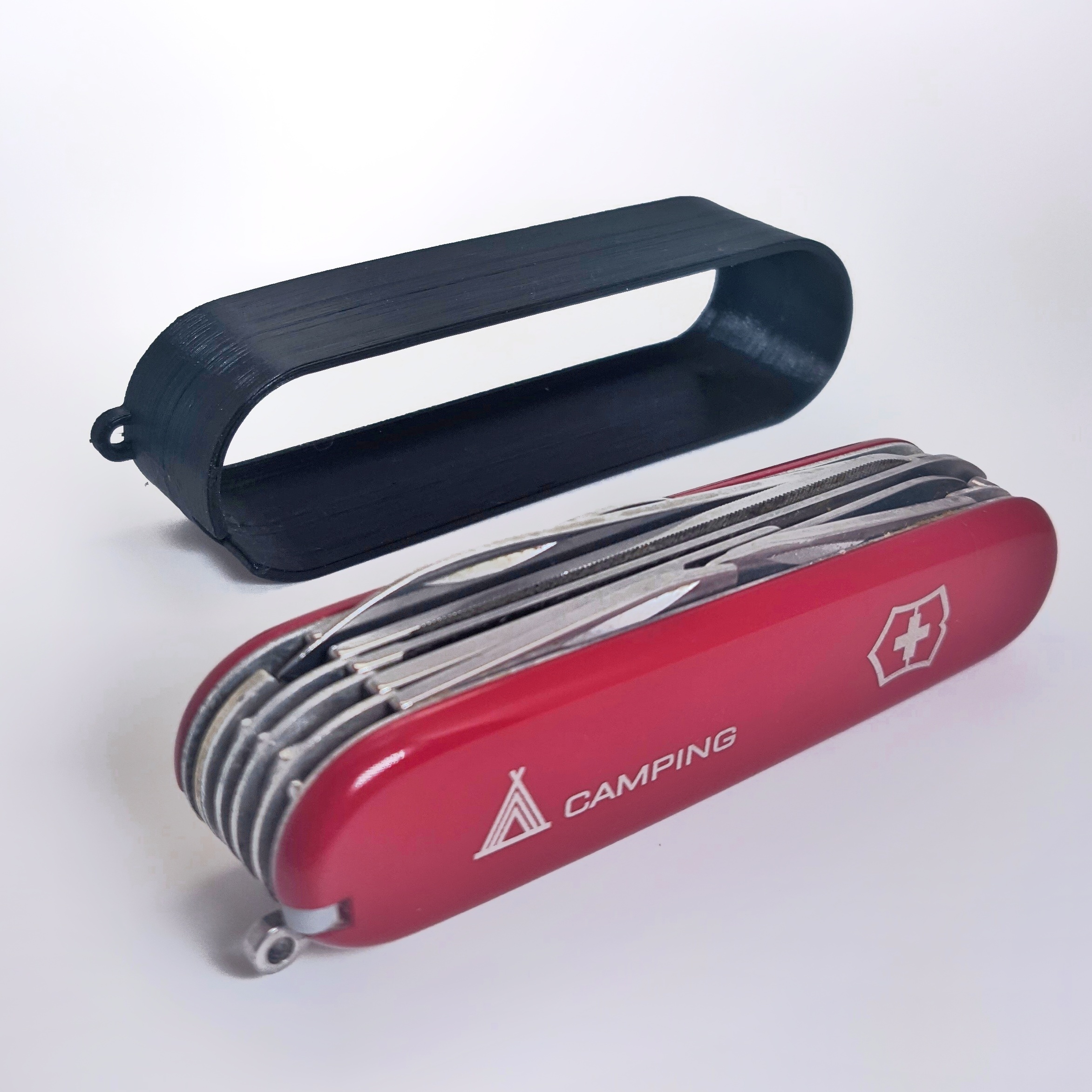

Cases for Victorinox Swiss knives (Camper and Swiss Champ), designed to be printed with elastic materials (TPU on FDM, elastic resin on SLA 3D printers).

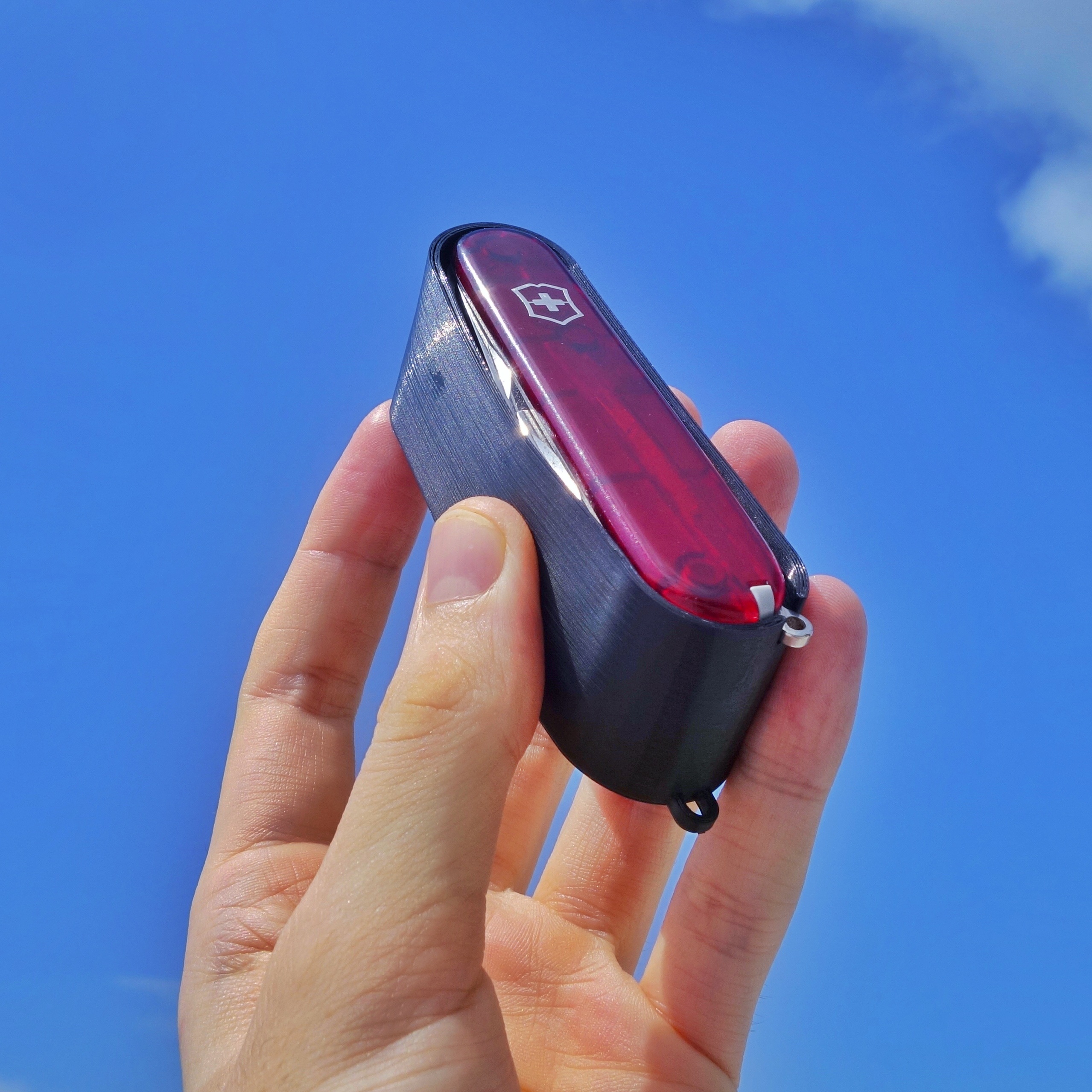

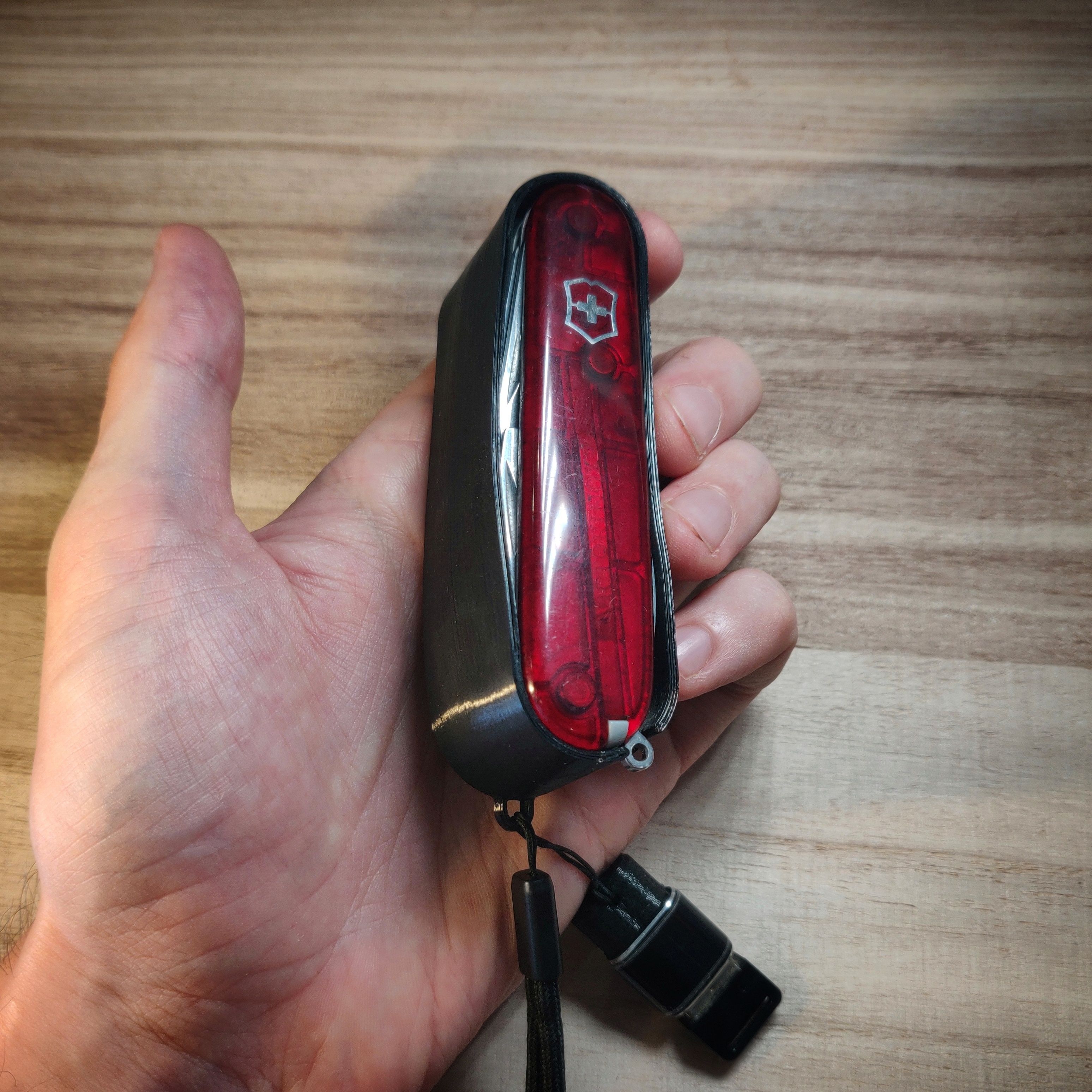

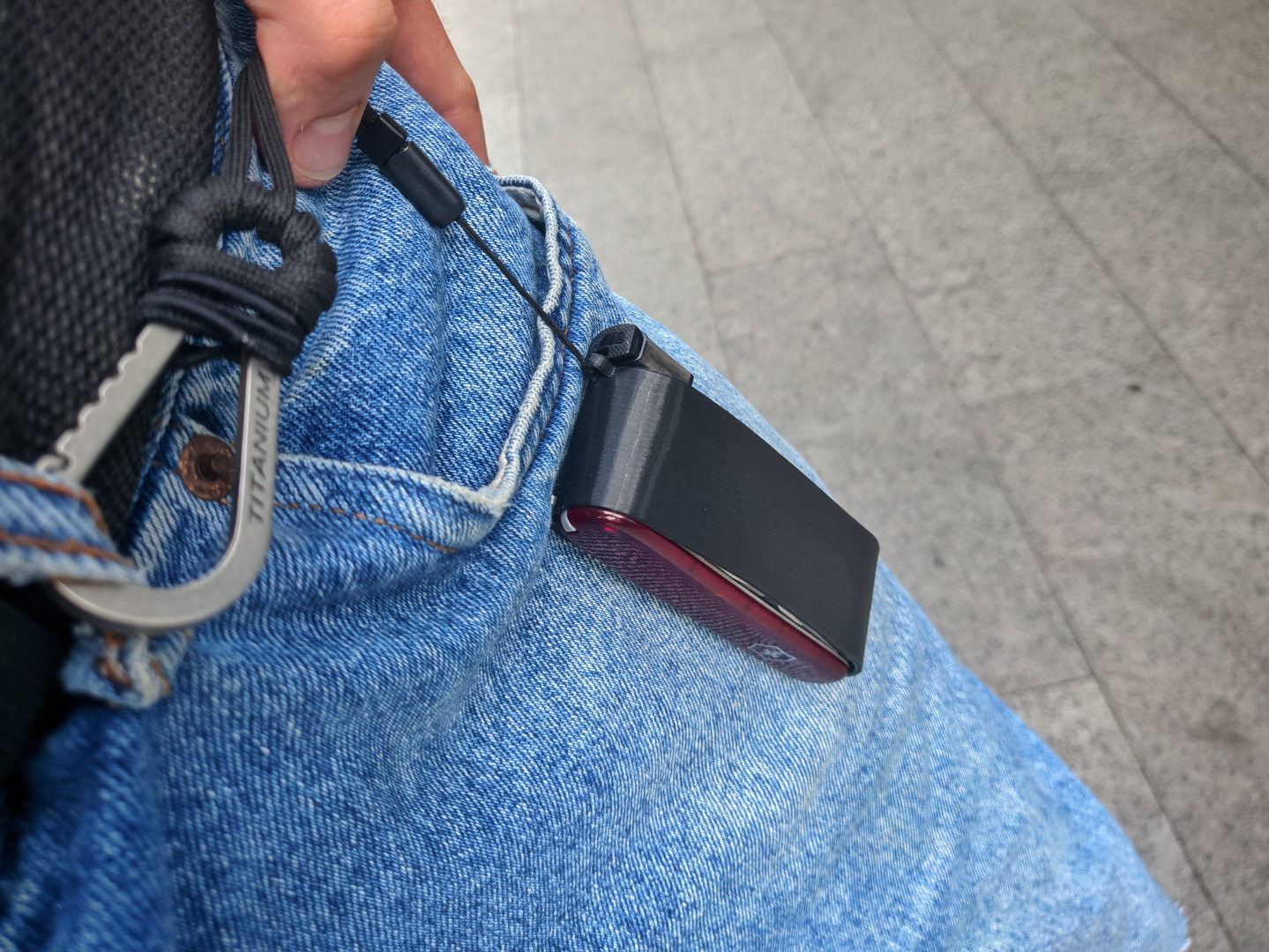

It is designed to be carried vertically in the front pocket, by hanging from a lanyard on a carabinier for easy access and convenience. It keeps the Swiss knife dust-free while protecting other things in your pocket from scratching

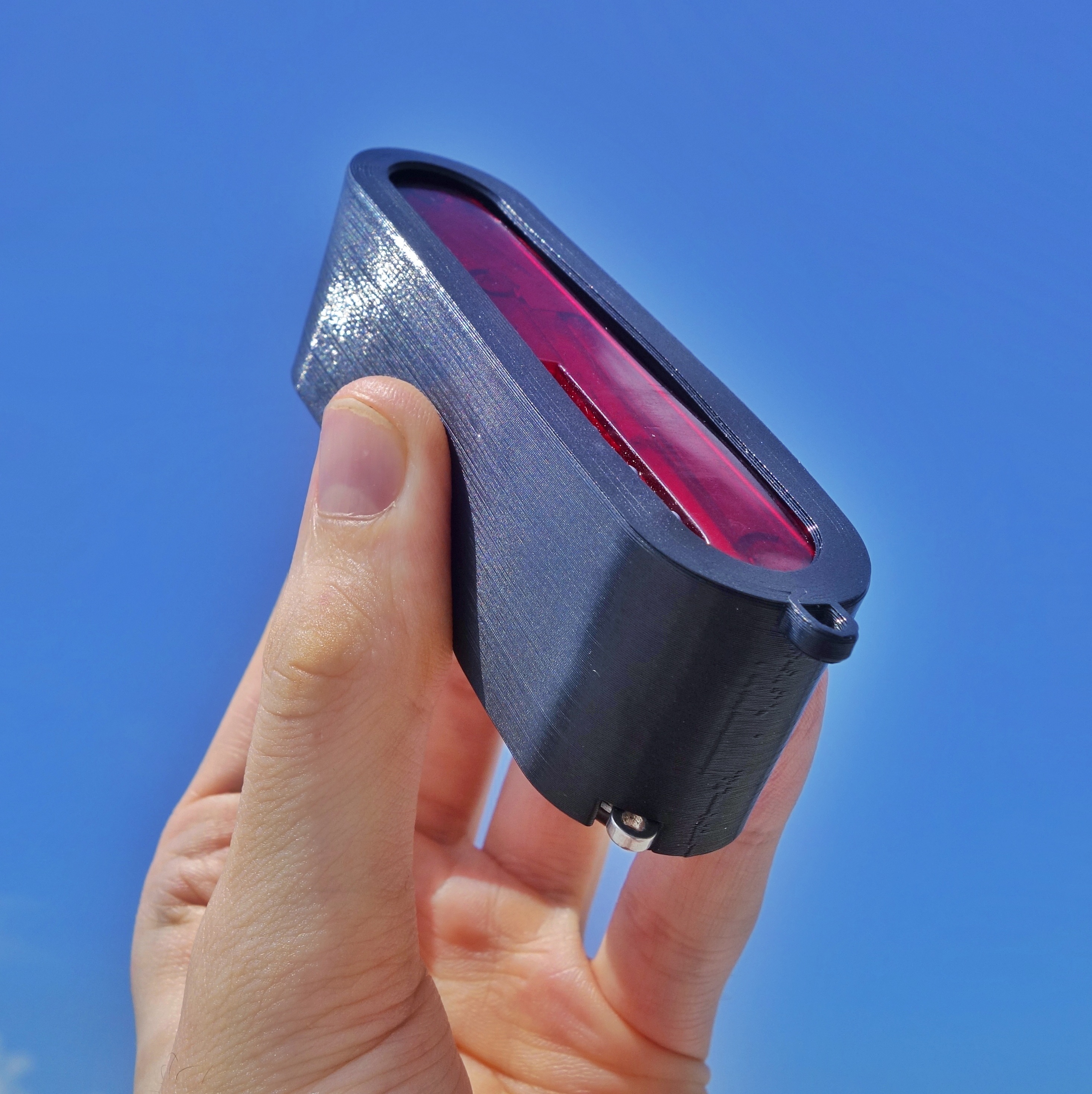

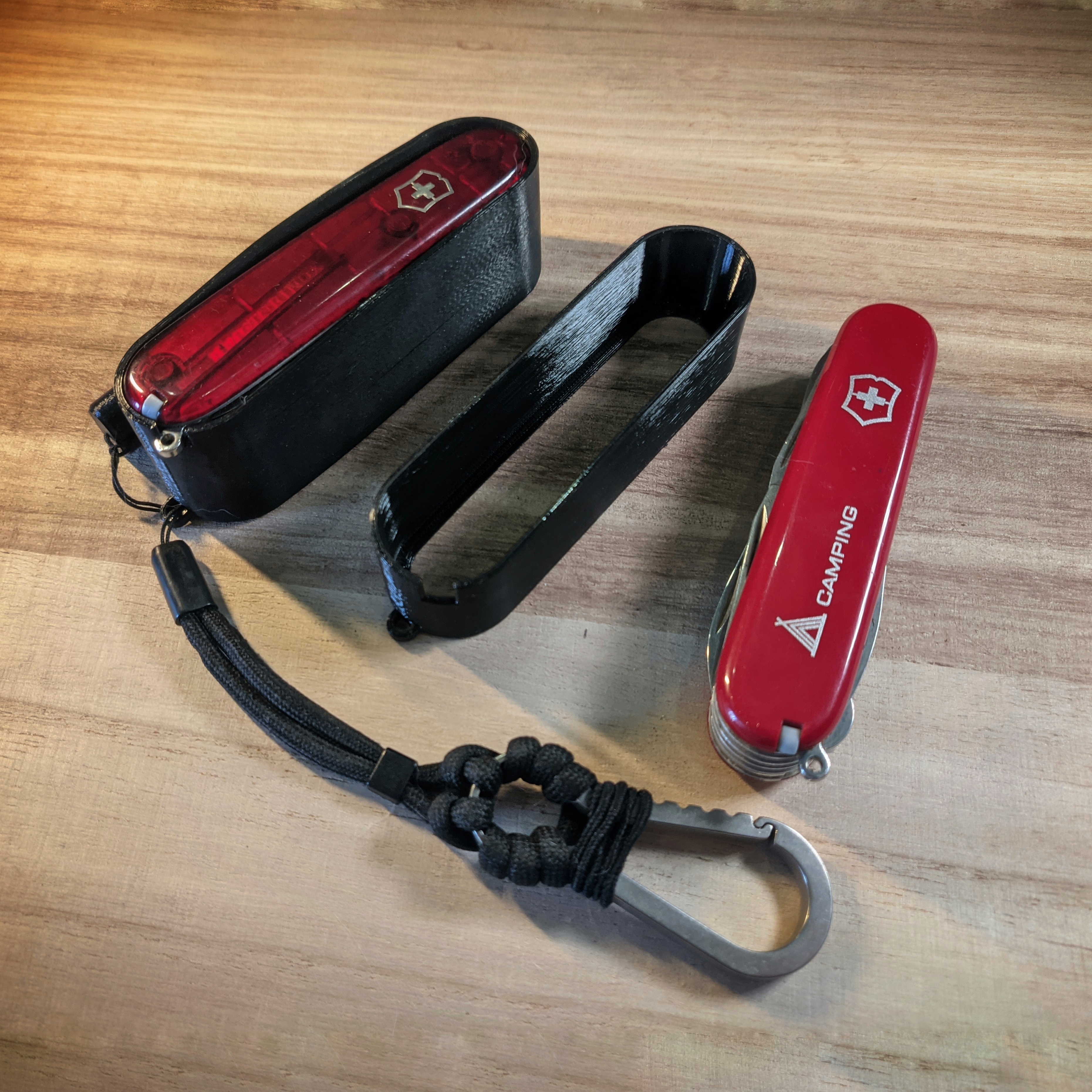

Samples on photos are printed with Cura slicer on Snapmaker 2.0 with Polymaket TPU on a 0.4mm nozzle.

If you have any questions or suggestions feel free to leave a comment, we will do our best to improve our products and services with all the respect for the 3D printing community here.

At your request, we will also consider including cases for other popular Victorinox Swiss knives within this project.

3D printing settings

For the best surface quality please make Z-seam aligned with the orientation of the keychain hole, use smart hiding option if available, and make sure that your TPU filament is properly dried to avoid printing failures.

Also please consider printing it on any textured surface to achieve better adhesion, use few skirt lines to make sure that the filament is flowing with proper pressure.

The cases printed here were printed by using:

Polymaker TPU filament

0.4mm nozzle

0.2 mm layer height

nozzle temperature 225 degrees C

heated bed 50 degrees C

print speed 30mm/s per second

fan speed 100%
