Case with switch for 24-36w (12-24v) AC-DC PSU

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 6 likes
  • 88 downloads

3D model description

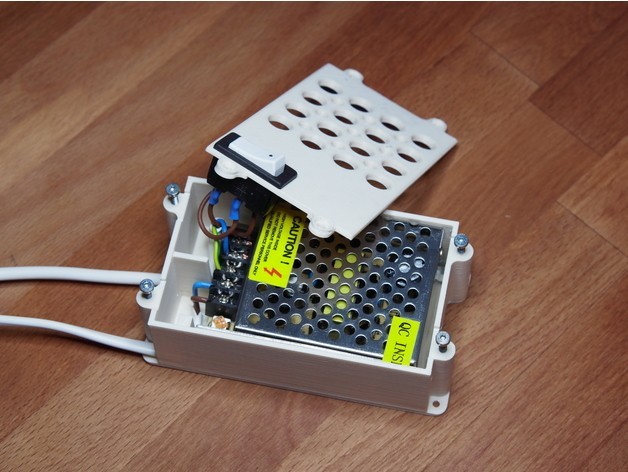

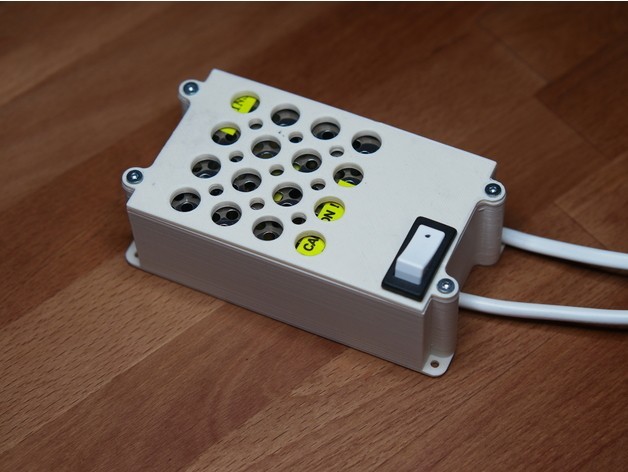

This is a box for popular AC-DC PSU size 86x58x33mm with switch 28x12mm
It's possible to find PSU in these size with 5/12/24 output (power will vary 20-36w)
High and low voltage sides are separated,
Two parts are screwed together with 4 3x16mm with flat head
Example on 24v 1a on aliexpress

3D printing settings

Printer:

Rebel II

Rafts:

No

Supports:

No

Resolution:

.2

Infill:

doesn't matter

Notes:
Fireproof material is recommended, like Smartfil ABS F.P.

  • 3D file format: STL
  • Publication date: 2018/03/23 at 15:42
