Case for the Full Graphic Smart LCD Controller

Capture_d__cran_2015-08-18___13.03.35.png Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Capture_d__cran_2015-08-18___13.03.52.png Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controller2cd37f625341e2f322037f8e481c930e-Case_Clamp.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controller7ebdcd3d9c1ac24230e75d1677798959-Spacer_FGD.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controller6b8d711566f4440f03e314ffa0c05256-Top_Case_FGD.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controller6970ce52c4a6201186ce8303b1a55a79-Bottom_Case_FGD.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controllerc6db1aa75bd7a810293caaac59e8b937-Bottom_Case_FGD-_pockets.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controllercca8cef89d02b981842008f8ac074b13-controller_knob_2.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Case_for_the_Full_Graphic_Smart_LCD_Controllerf9869a9a4c4234bc72a3bfbe97b37588-Kill_Button_FGD.stl Free STL file Case for the Full Graphic Smart LCD Controller・3D print object to download
Share
Add to
Make
?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

wersy

wersy

3D model description

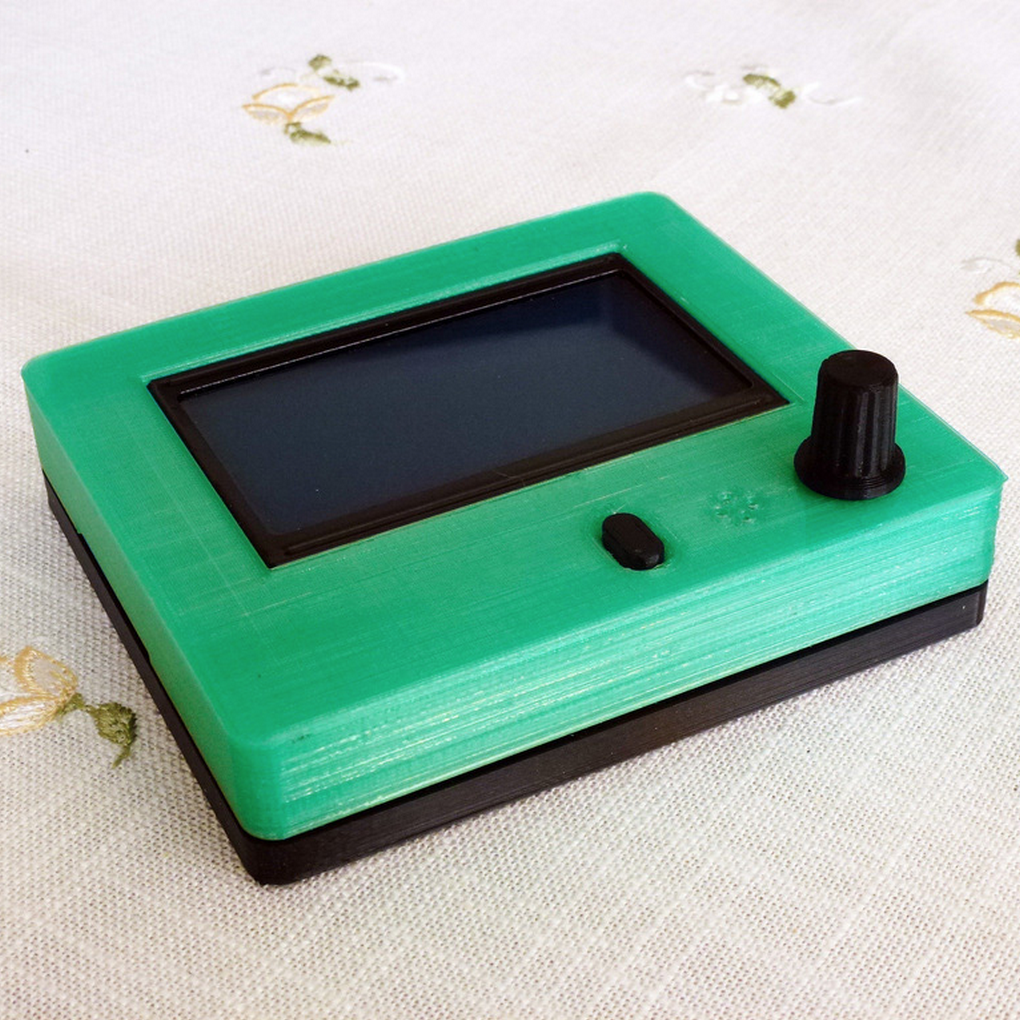

This is a case for the Full Graphic Smart LCD Controller. http://www.reprapdiscount.com/home/34-full-graphic-smart-lcd-controller.html

3D printing settings

I tried to design a slim enclosure again using a channel outside between the top and bottom part to let the case apear more flat - and, to cover possible impressisions ;-).
I recommend to print the parts in different colors.
To fasten the controller board to the bottom part, first put the distance cylinders between the boards and use metrical screws M3 x 12 (14).
Both will work without tapping before.
There is no room for hexagonal pockets in the top part. You can screw M3 x 16 directly into it.
The second bottom part contains several screw nut deepenings for fastening the case as you like. If you mount it to an 8 mm rod you can use the case clamps.

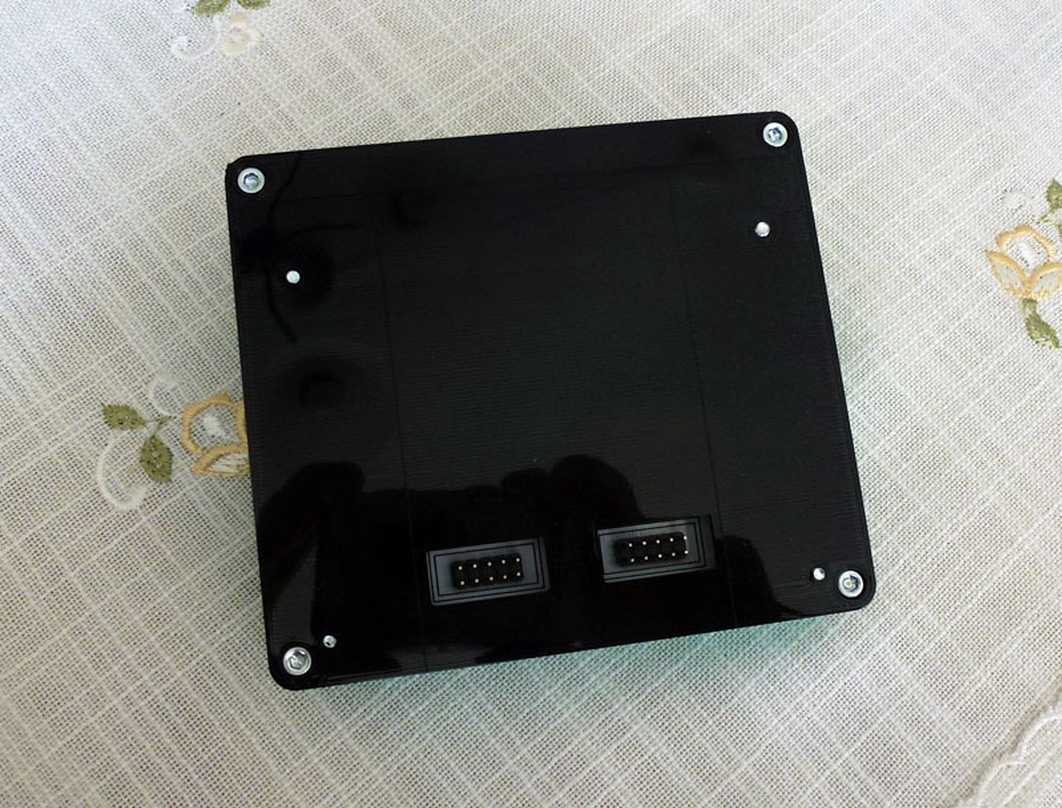

If the cables are plugged in, the case inevitably has a slope of 6°. In case you need more slope:
I'm already thinking about a base that can be screwed below the housing.
If you are interested, look out for this thing which I will publish separated.

And yes, don't forget to assemble the distance cylinders - the display's board won't like it ;-)

3D printer file information

  • Design number: 3035
  • 3D design format: STL Folder details Close
    • Case_for_the_Full_Graphic_Smart_LCD_Controller2cd37f625341e2f322037f8e481c930e-Case_Clamp.stl
    • Case_for_the_Full_Graphic_Smart_LCD_Controller6970ce52c4a6201186ce8303b1a55a79-Bottom_Case_FGD.stl
    • Case_for_the_Full_Graphic_Smart_LCD_Controller6b8d711566f4440f03e314ffa0c05256-Top_Case_FGD.stl
    • Case_for_the_Full_Graphic_Smart_LCD_Controller7ebdcd3d9c1ac24230e75d1677798959-Spacer_FGD.stl
    • Case_for_the_Full_Graphic_Smart_LCD_Controllerc6db1aa75bd7a810293caaac59e8b937-Bottom_Case_FGD-_pockets.stl
    • Case_for_the_Full_Graphic_Smart_LCD_Controllercca8cef89d02b981842008f8ac074b13-controller_knob_2.stl
    • Case_for_the_Full_Graphic_Smart_LCD_Controllerf9869a9a4c4234bc72a3bfbe97b37588-Kill_Button_FGD.stl

    Learn more about the formats

  • Last update: 2018-06-27 at 10:18
  • Publication date: 2015-08-18 at 11:04

License

CC BY - Attribution
