Case for Reprapdiscount Smart LCD Controller XXL

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.9k views
  • 3 likes
  • 63 downloads

3D model description

This is a case for the Smart LCD Controller XXL. http://www.reprapdiscount.com/home/35-smart-lcd-controller-xxl.html
With its very big display, I think it is particularly suited to watch the printer operations from a greater distance. Maybe even using a webcam.

As on my first enclosure: http://www.thingiverse.com/thing:35438
I tried to design a slim enclosure again using a channel outside between the top and bottom part.
I recommend to print the parts in different colors. To be honest, otherwise it will look a little bit clumsy ;-)

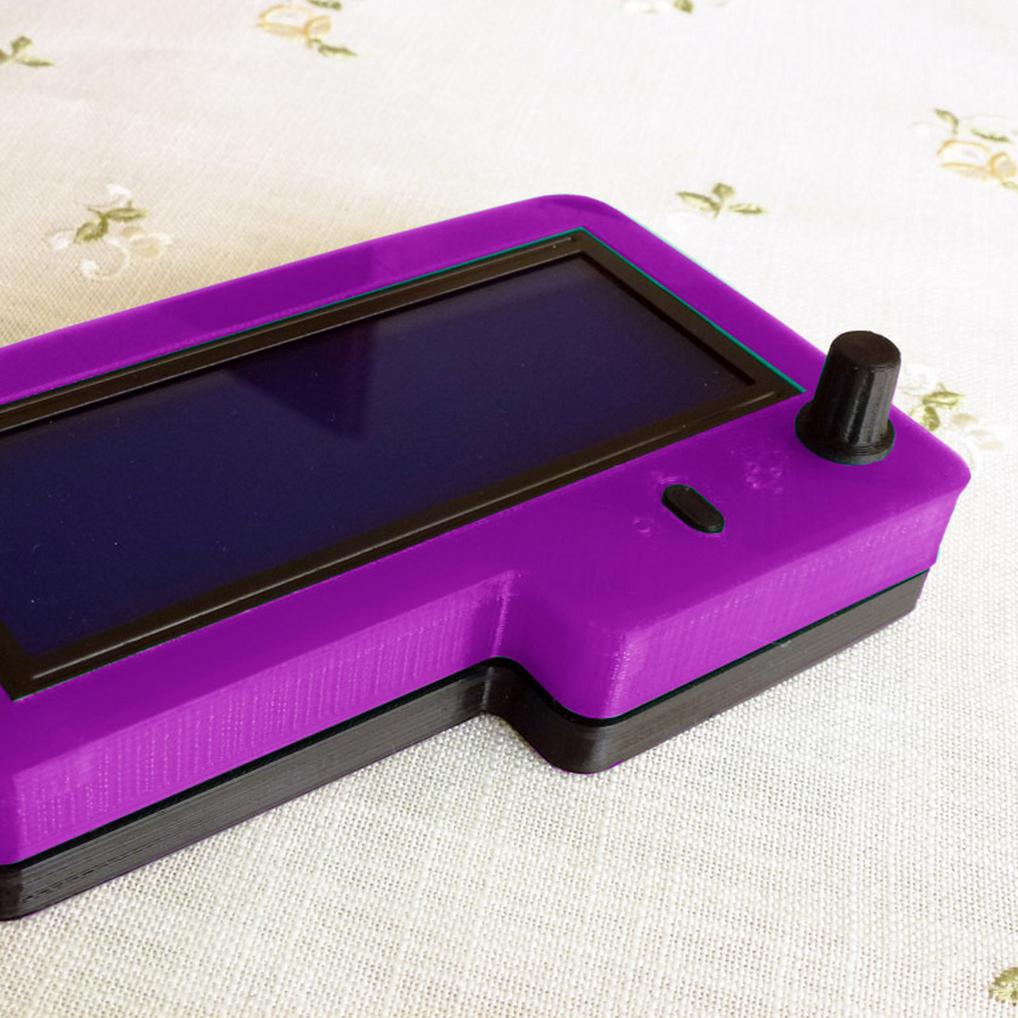

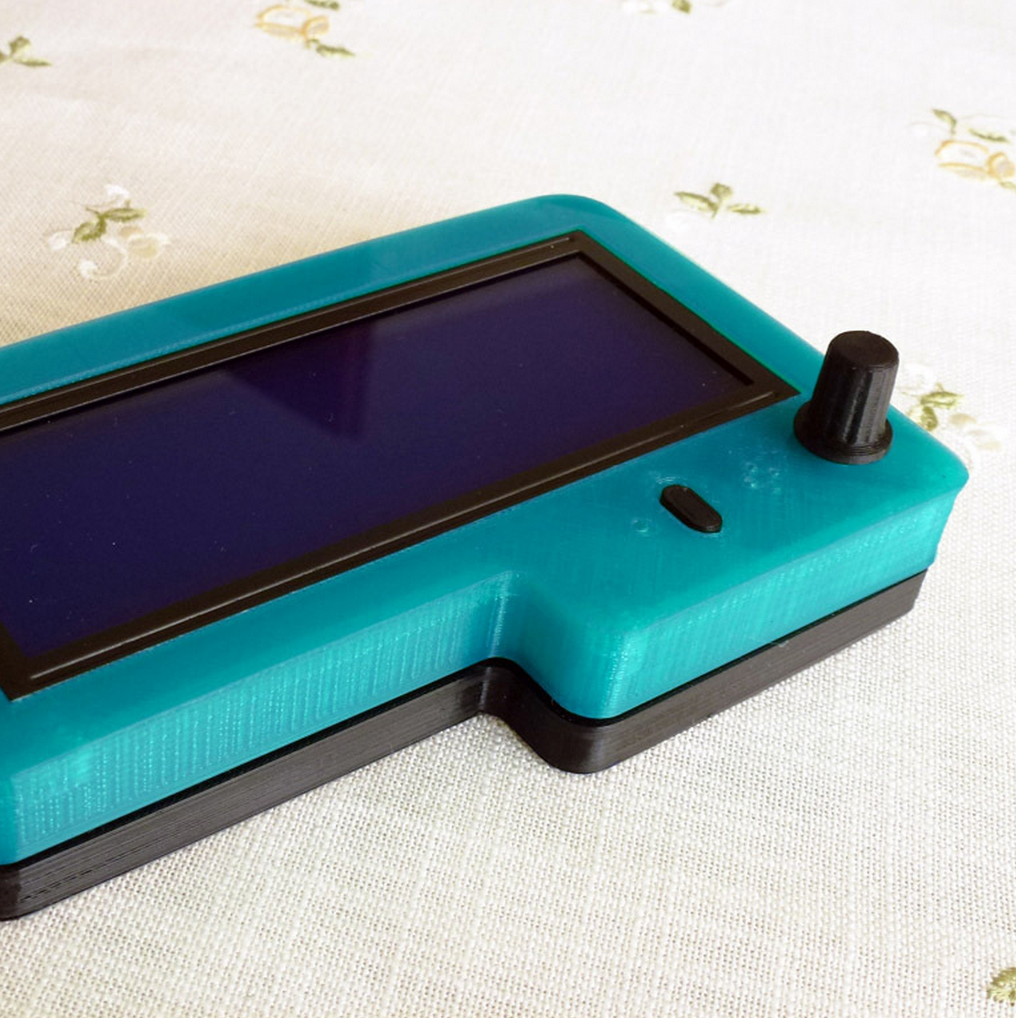

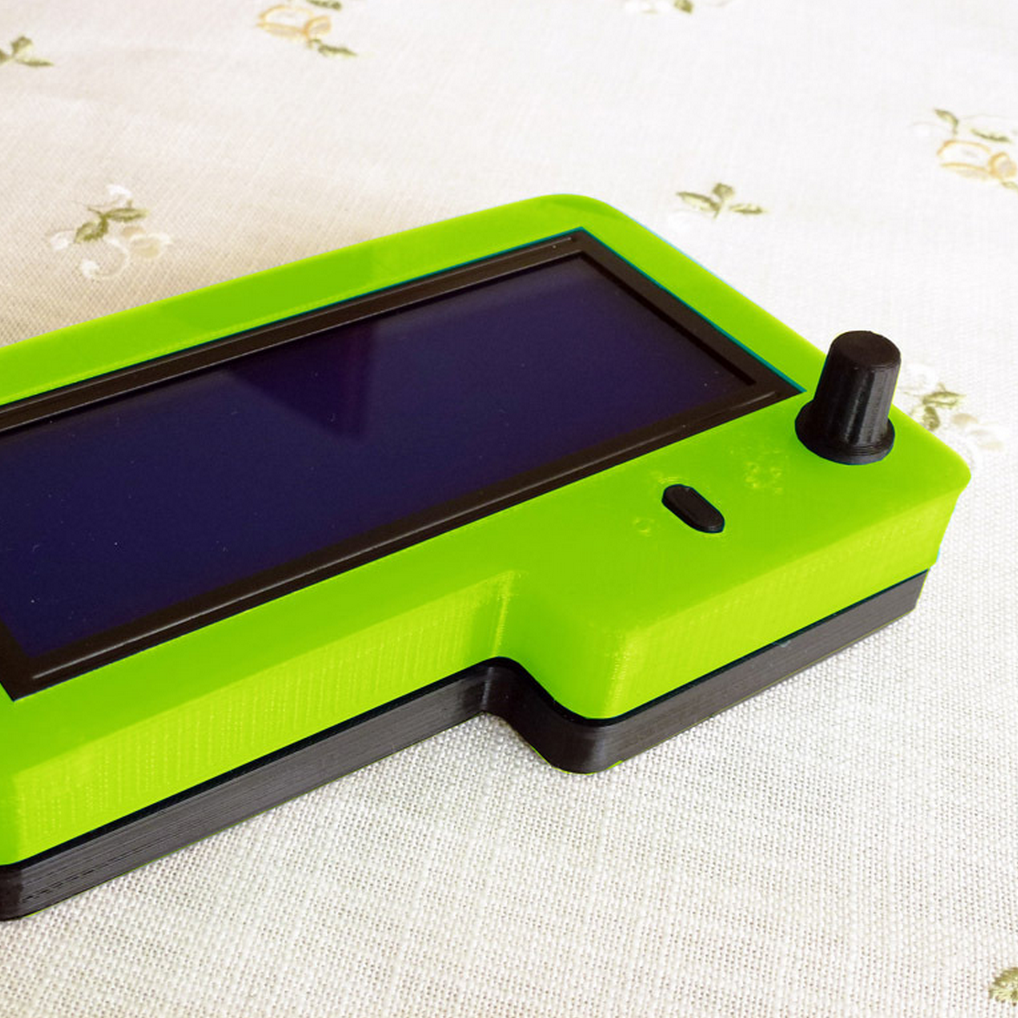

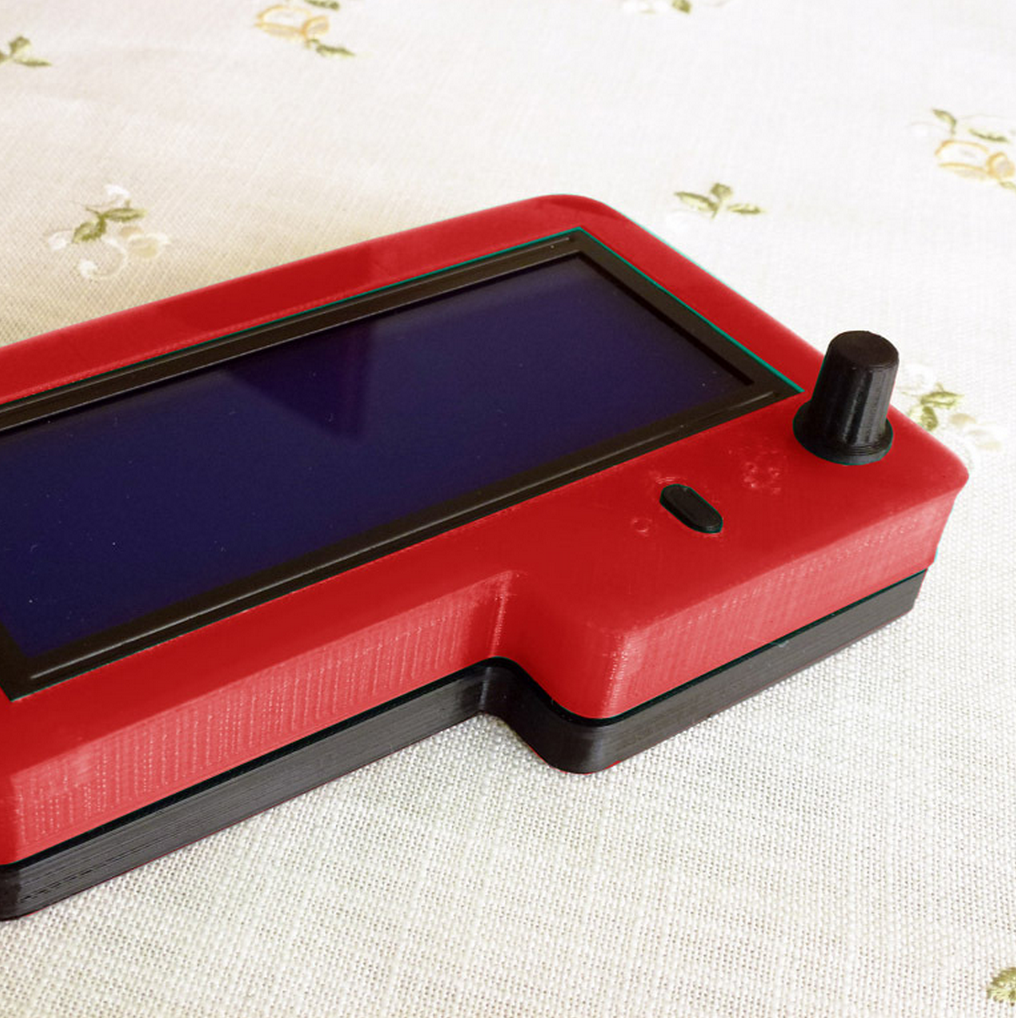

I took black and green. To see how it could look like in other colors I made some variations - just photoshop :-)

Instruktions
To fasten the controller board to the bottom part, first put the distance cylinders between the boards and use metrical screws M2 x 10 or tapping screws 2,2 x 10.
Both will work without tapping before.
There is no room for hexagonal pockets in the top part. You can screw M3 x 16 directly into it.

And yes, don't forget to assemble the distance cylinders - the displays PCB won't like it ;-)


3D printing settings

Case for Reprapdiscount Smart LCD Controller XXL

3D printer file information

  • 3D design format: STL Folder details Close
    • Bottom_Case_XXL.stl
    • Bottom_Case_XXL_pockets.stl
    • Case_Clamp.stl
    • Distance_Cylinder.stl
    • Kill_Button_XXL.stl
    • Top_Case_XXL.stl
    • controller_knob_2.stl

    Learn more about the formats

  • Last update: 2018/06/27 at 10:18
  • Publication date: 2015/08/18 at 12:54

License

CC BY

Tags

Creator

http://www.vizy.homepage.t-online.de/

I am constructing engineer for powerplants. Designing was allways my passion and I am glad, now as a pensioner, to have interesting challenges again.
