Case for ICStation Step-up module

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

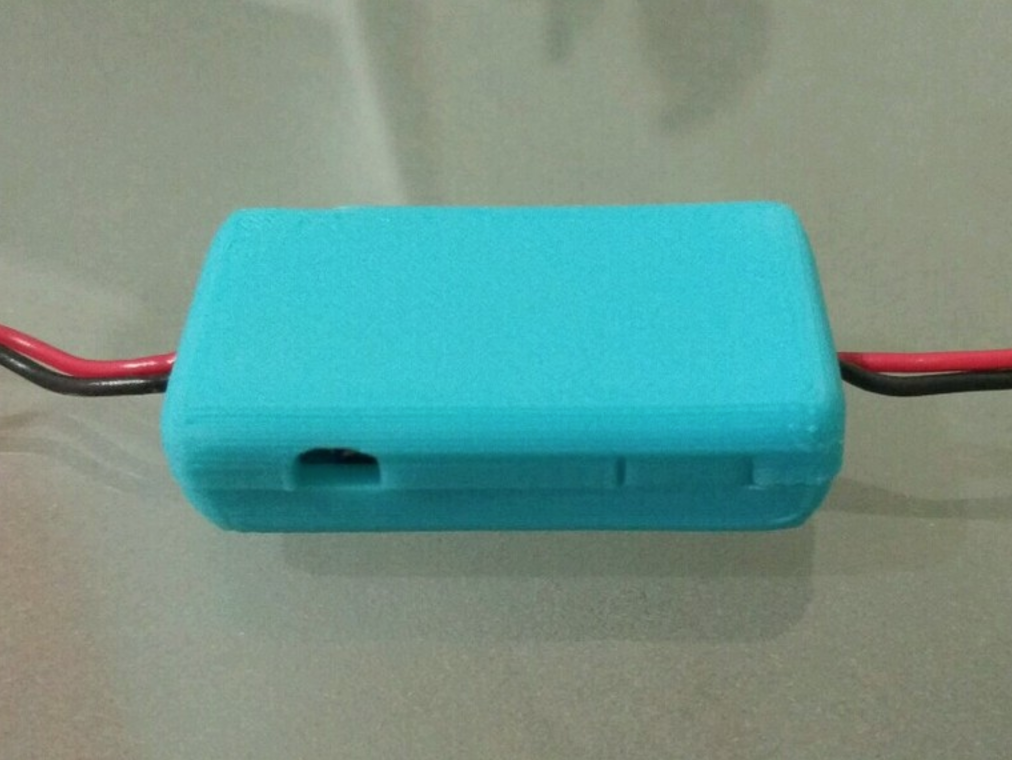

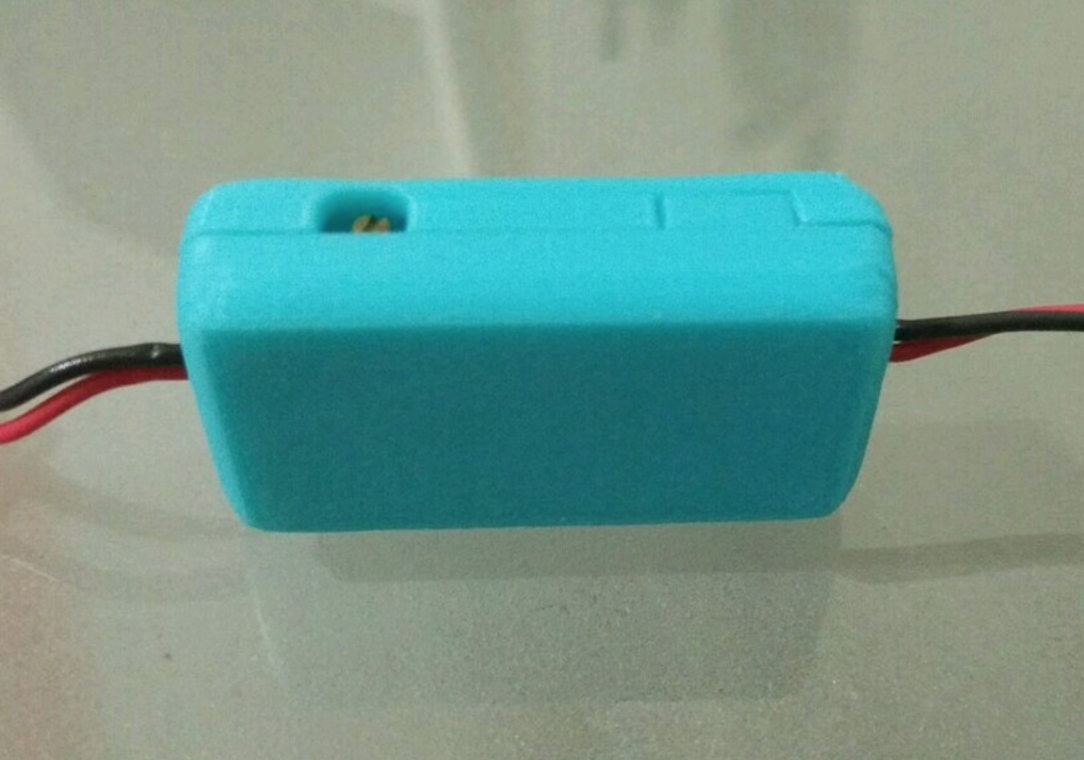

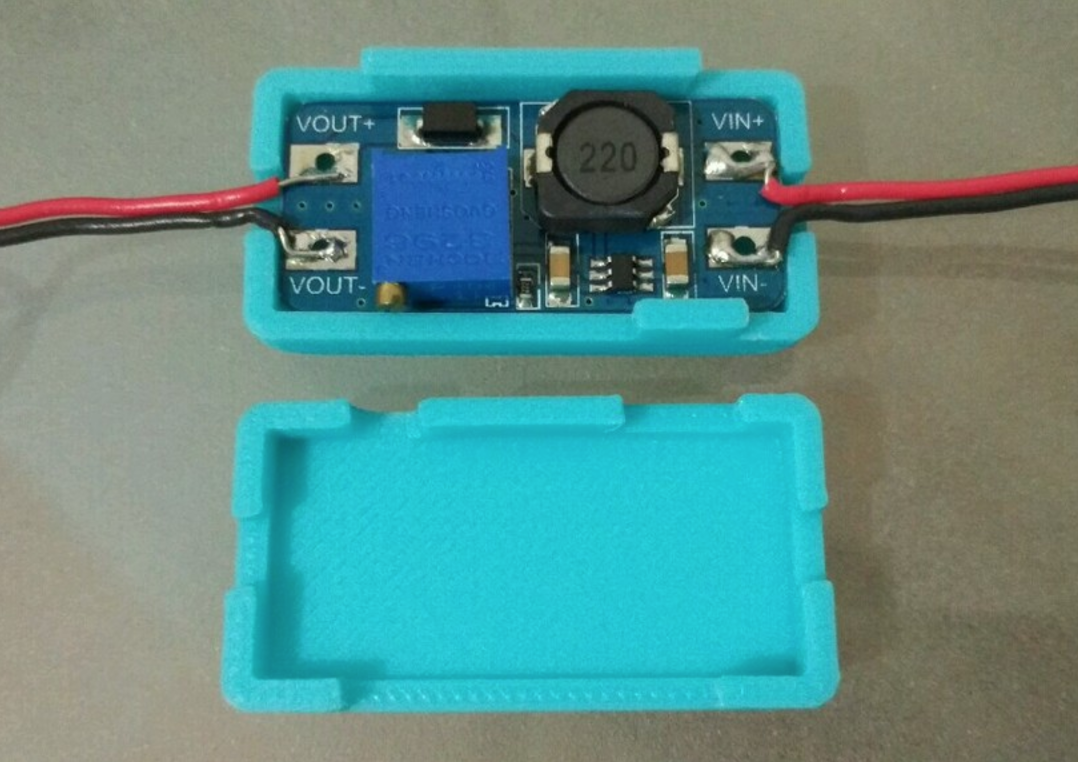

This is a case for ICStation's step-up module. The design features a hole in the side to allow easy access to the potentiometer that sets up the output voltage.

I'm currently working in a project that uses this module, and I designed a case for it in order to avoid any accidents that might arise if the exposed PCB makes contact with a conductive surface. I thought it would be a good idea to share it, as it might be useful for Makers who have this module.


3D printing settings

Printer:
FlashForge Creator Pro 2016

Rafts:
No

Supports:
No

Resolution:
0.2

Infill:
20%

Notes:
The two parts that form this case were designed to fit tightly, so it can be a bit hard to join them at first. I suggest waiting about 10 minutes after taking them out of the printer bed to give them enough time to cool down.

3D printer file information

  • Design number: 8045
  • 3D design format: STL Folder details Close
    • BsterBtm.STL
    • BsterTop.STL

    Learn more about the formats

  • Publication date: 2016-11-29 at 10:02

License

CC BY - Attribution
