Carpenter Square / Carpenter's Square

Download 3D printing designs Carpenter Square / Carpenter's Square, yannrollandDownload 3D printing designs Carpenter Square / Carpenter's Square, yannrollandDownload 3D printing designs Carpenter Square / Carpenter's Square, yannrolland
Download 3D printing designs Carpenter Square / Carpenter's Square, yannrolland

Did you 3D print this model?

3D model description

Hello!

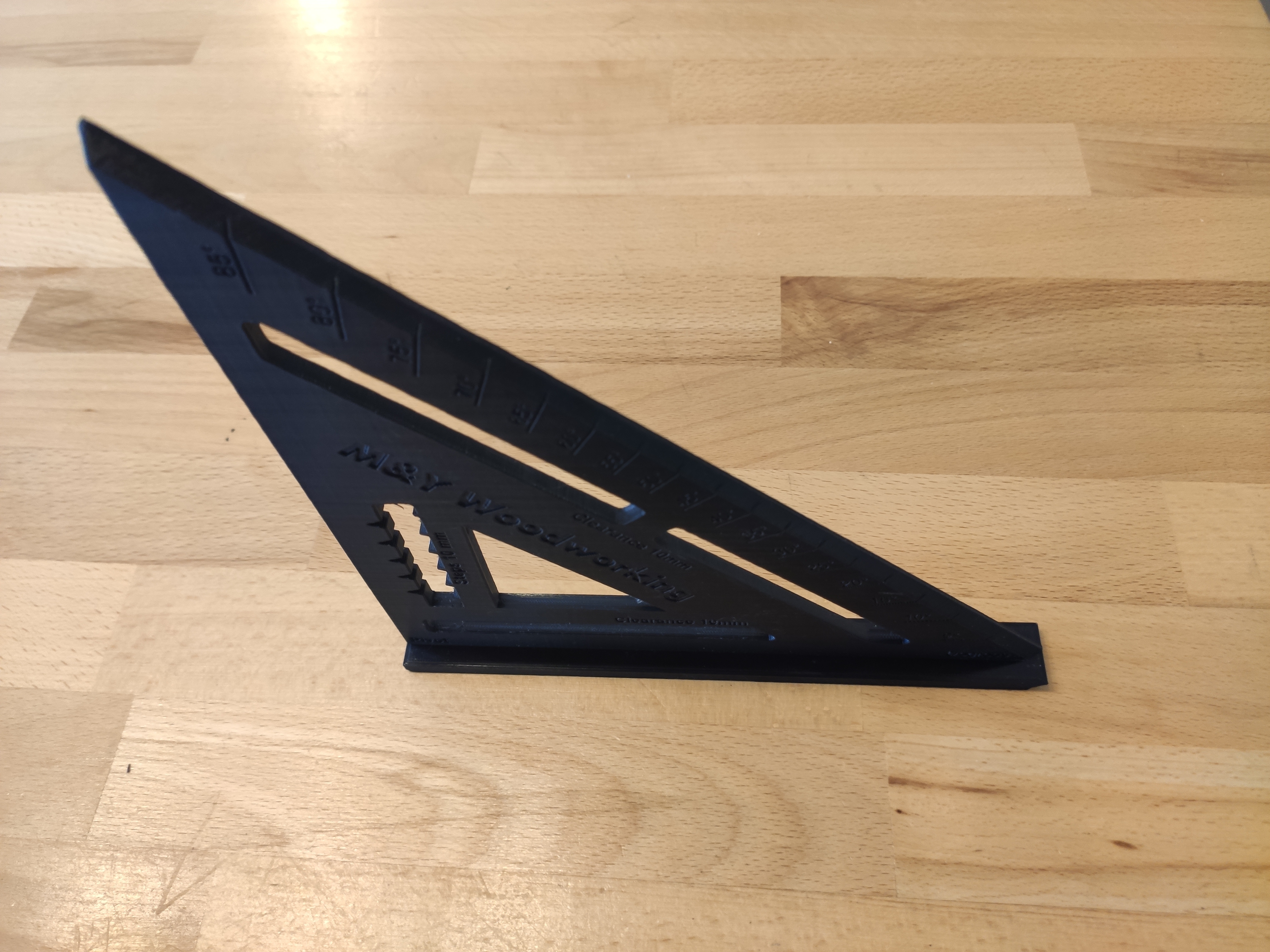

After searching for a long time for a model of a carpenter's square without finding what suited me, I finally decided to model it myself. Let's go to Fusion 360, and here's the fruit of my labor.

A pivot at the base of the bracket, angle indicators on the hypotenuse, 10mm gaps, and 10mm pitch indicators.

Don't hesitate to let me know about additions and other modifications that you think of, all ideas are good to take!

Thank you for your support.

3D printing settings

Directed on Ender 3 Pro.

Dimensions 200x200x20mm

Layer height 0.20mm

Nozzle 0.4mm

20% grid filling

Supports from 47° slope.

PLA Black. Maybe a mate would be better...

Printing time , about 14h

The tolerances are impeccable (Squareness and angle indications).
