CAPTIVE NUTS test

3D model description

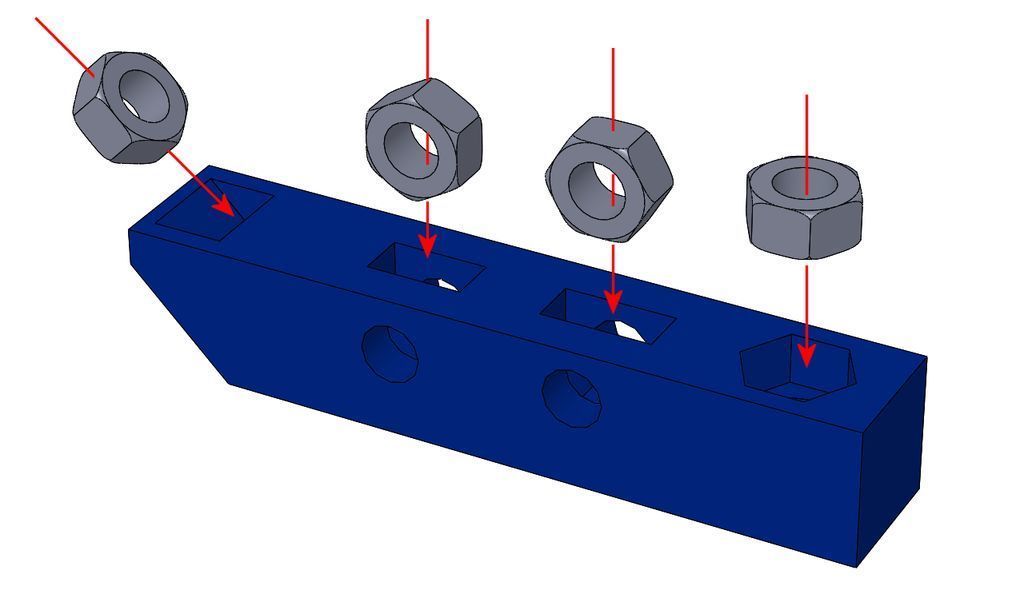

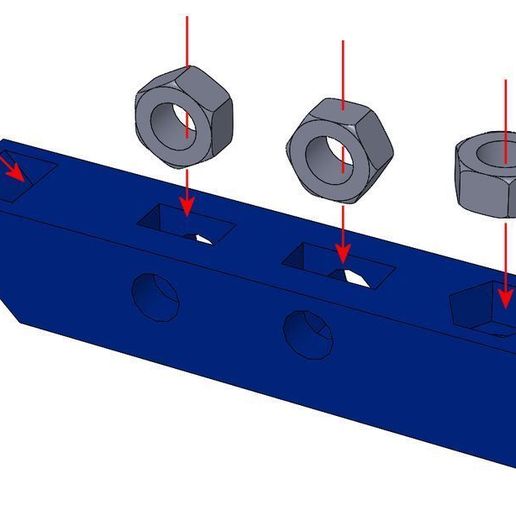

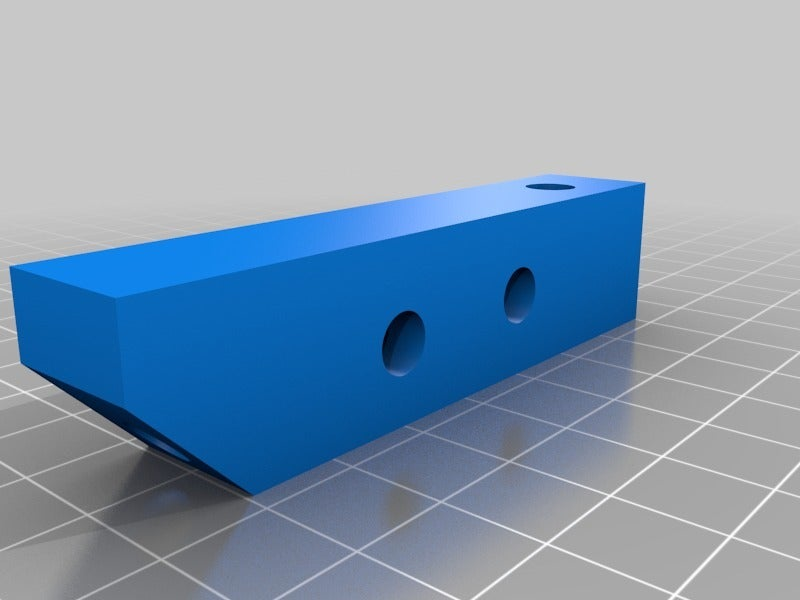

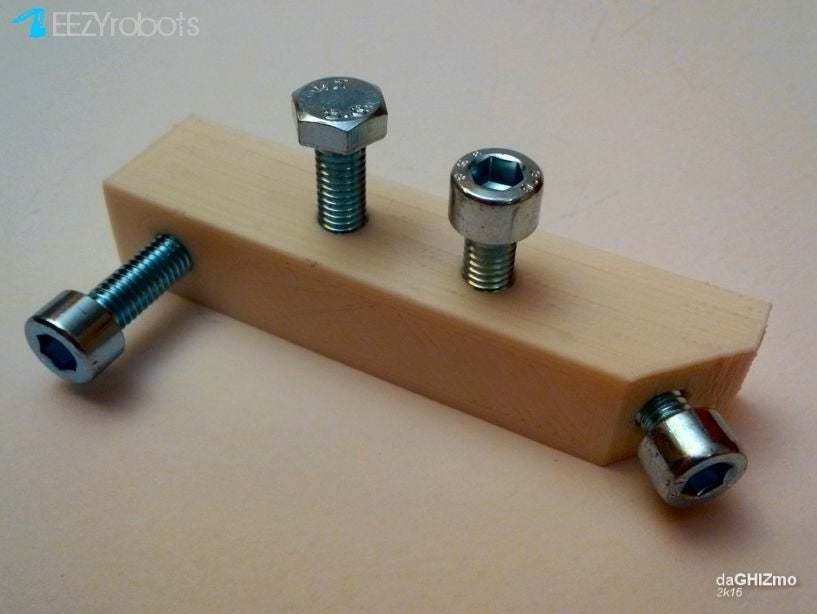

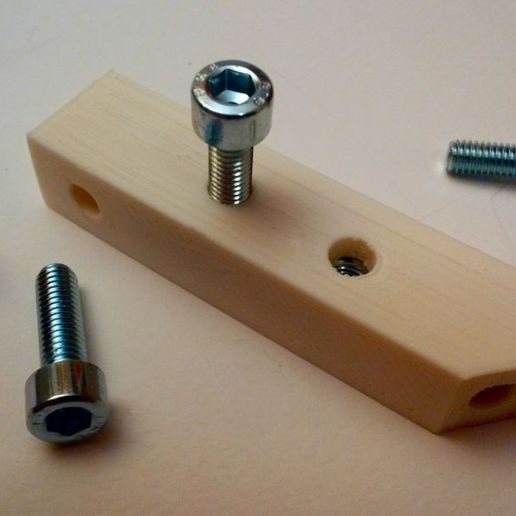

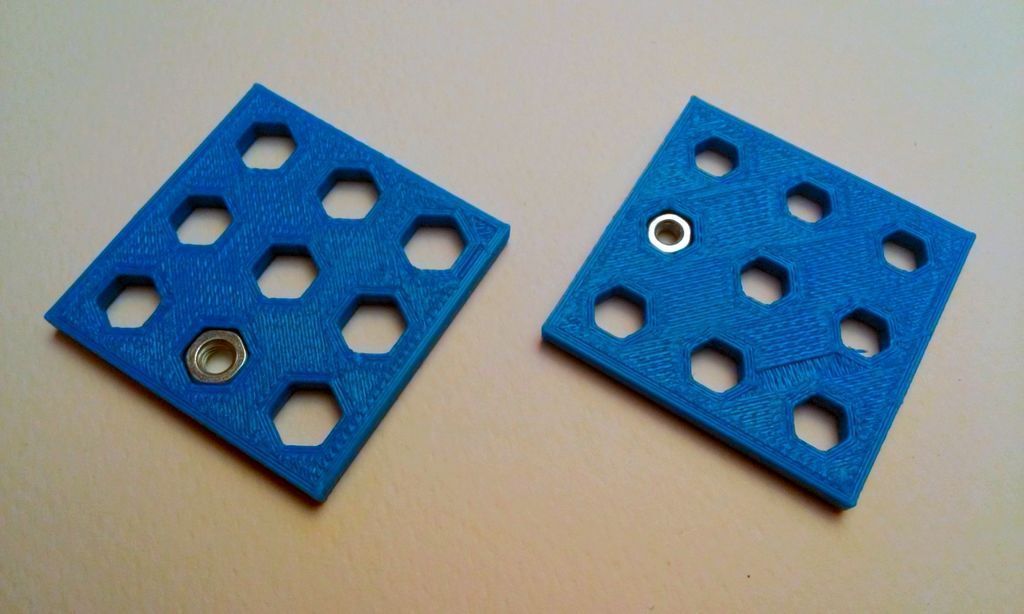

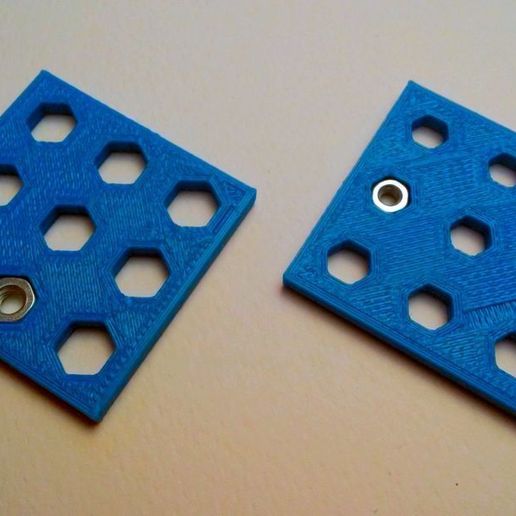

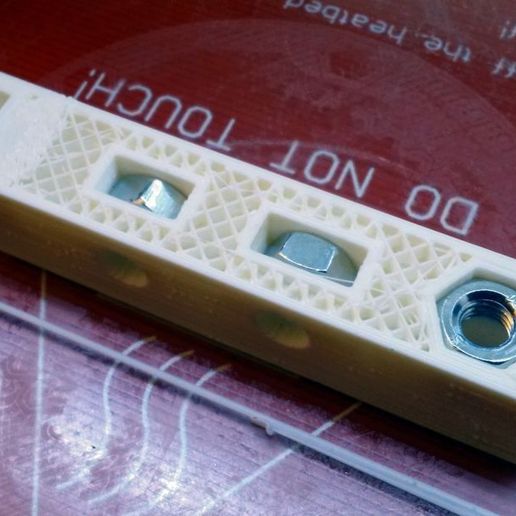

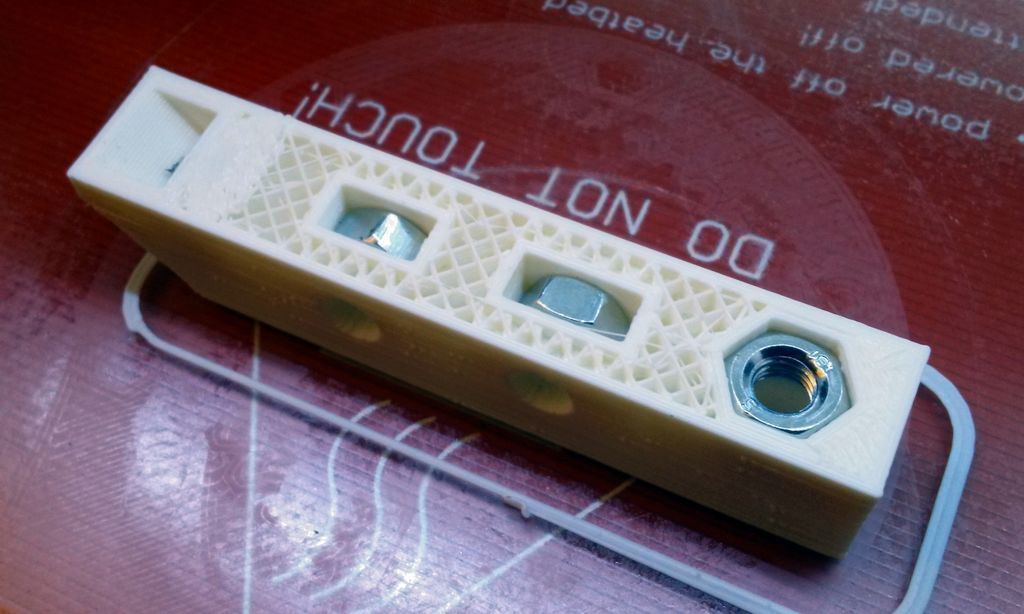

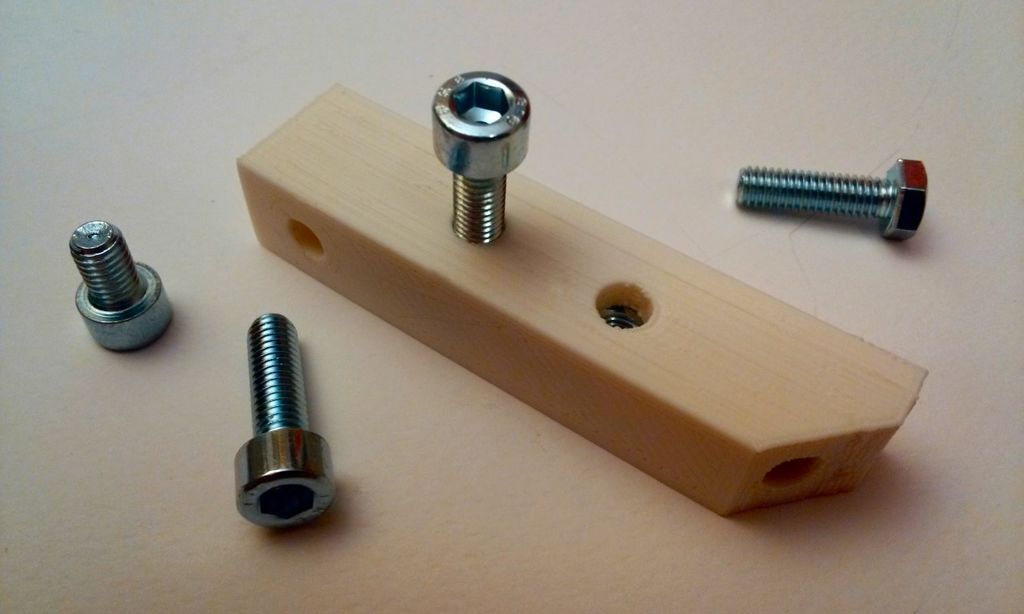

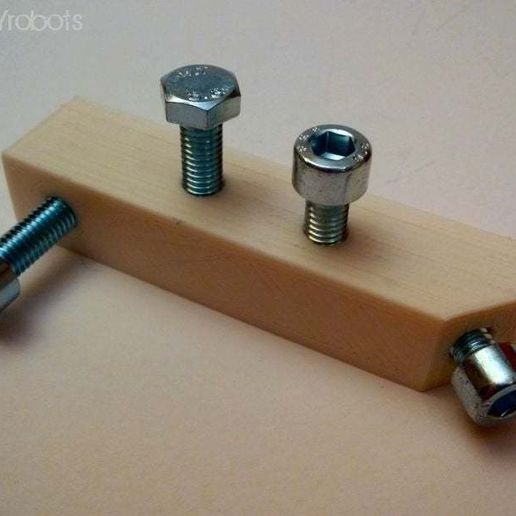

This is a 3Dmodel that allows you to test the tutorial Captive Nuts and more in 3D Printing I posted on Instructables.

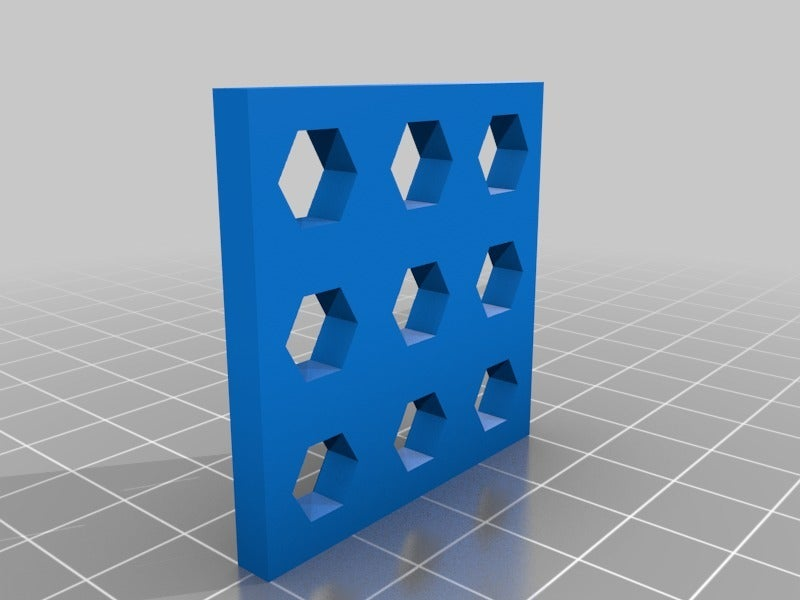

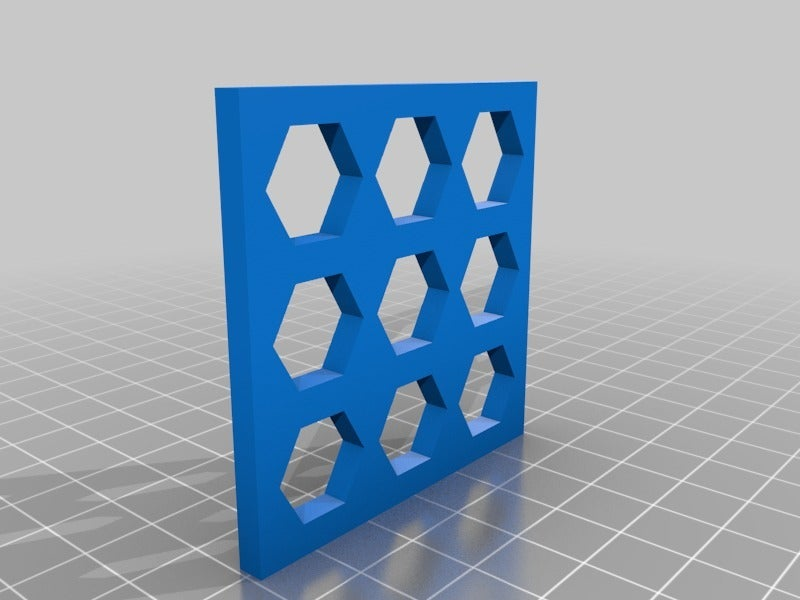

It is designed to be used with metric M6 nuts, but I have made available the source model on my Onshape account, so you can test your own variants

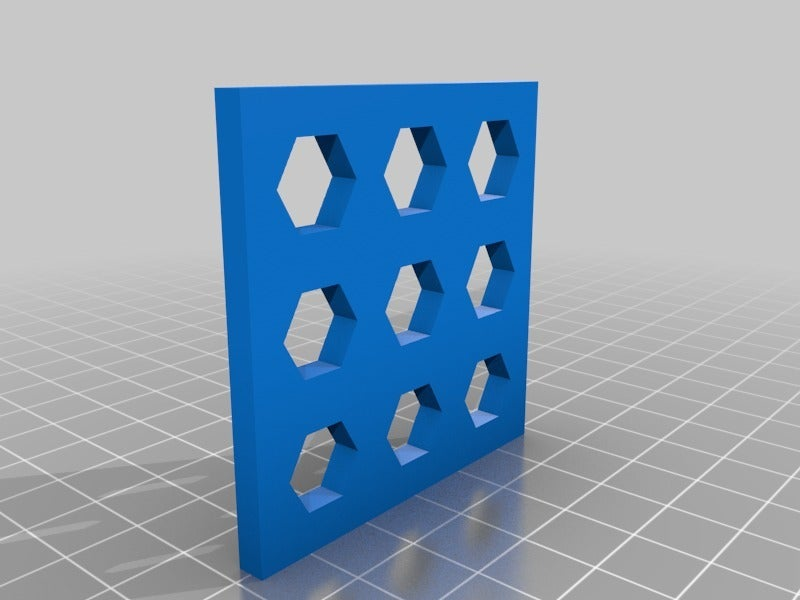

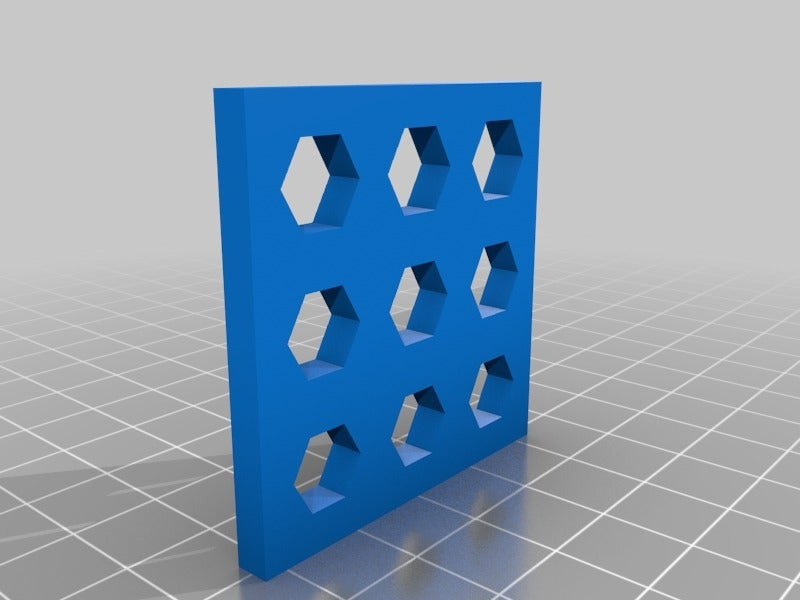

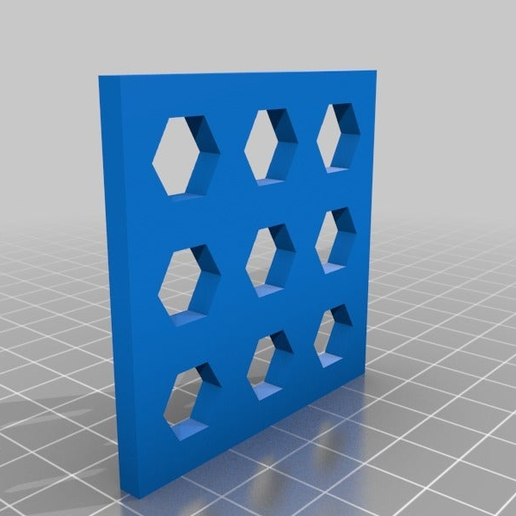

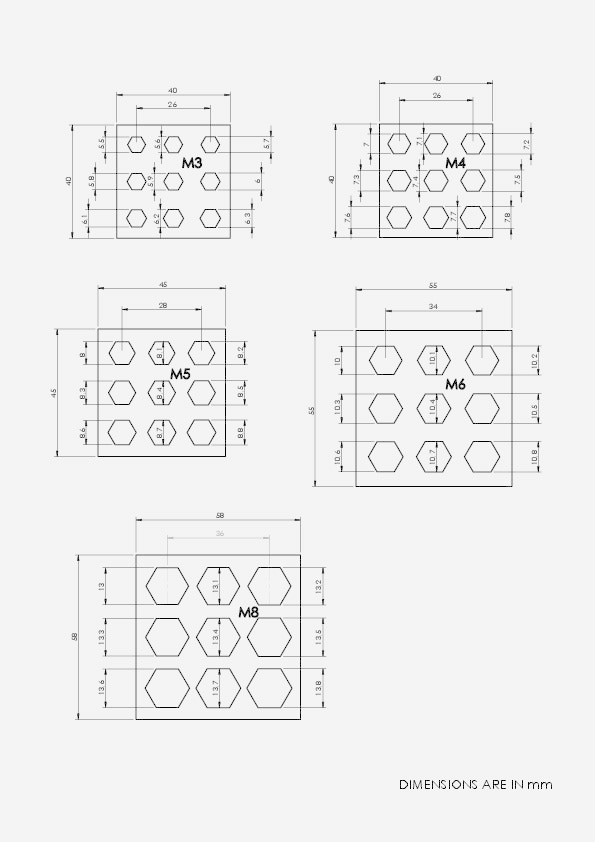

I also made available in stl, the models that I've used to determine the correct clearances to be set in the design project related to metric nuts from M3 to M8 nuts. They start from the nominal dimension and increased by step of 0,1 mm

  • 3D file format: PDF and STL
