Canon lens hood

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.8k views
  • 16 likes
  • 175 downloads

3D model description

Lens hood for Canon EF24-70mm F4 L IS USM. It has a bayonet mount to fix on the lens tight.

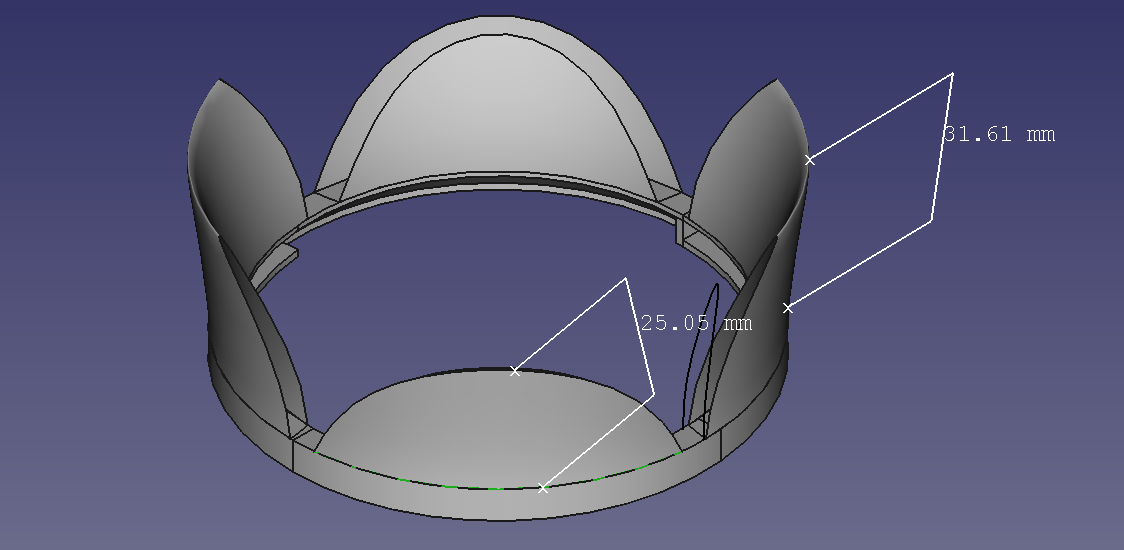

Actually, commercially lens hoods are not so expensive. But I just want to tried making for exercise. It was a good exercise to learn how to design round shaped object with such the bayonet mount for the lens by FreeCAD macro.

All parameters are defined in the macro, now we can make other types of lens hood by ourselves.


3D printing settings

  • No support is necessary for this design.
  • No raft was necessary for my printer to make, but it depends on condition and specs of printers.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Lens_hood.zip
    • hood_v7.stl

    Learn more about the formats

  • Last update: 2020/05/04 at 12:30
  • Publication date: 2020/05/02 at 15:51

License

CC BY SA
