Caliper Claws

?
Creation quality: 4.3/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

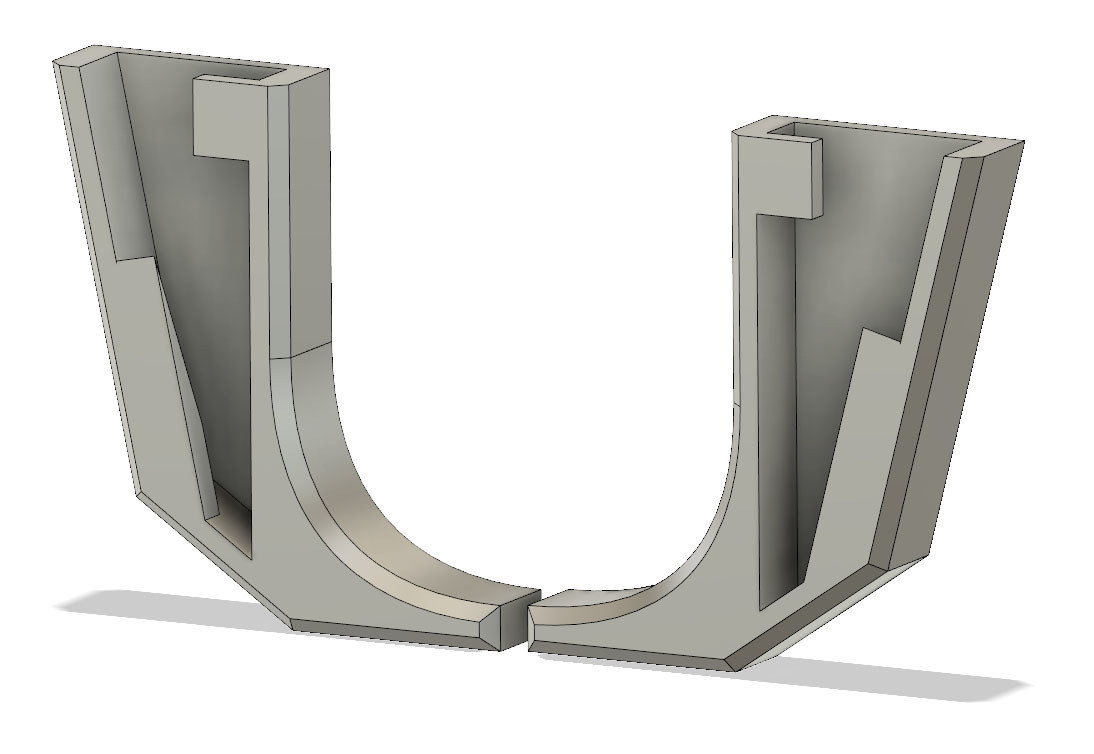

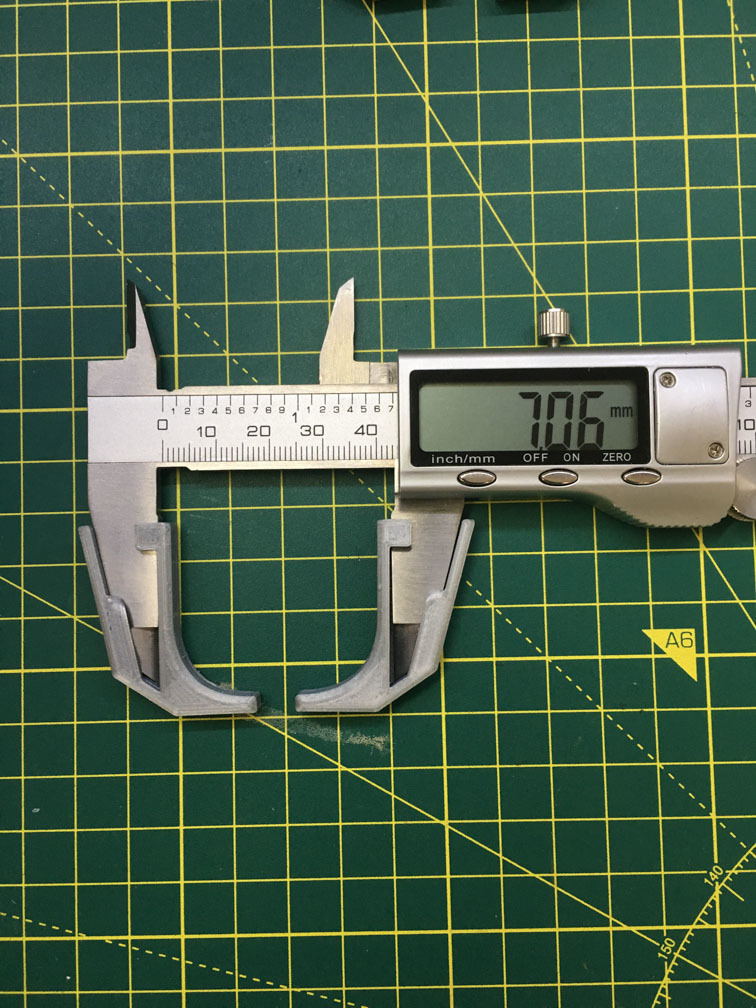

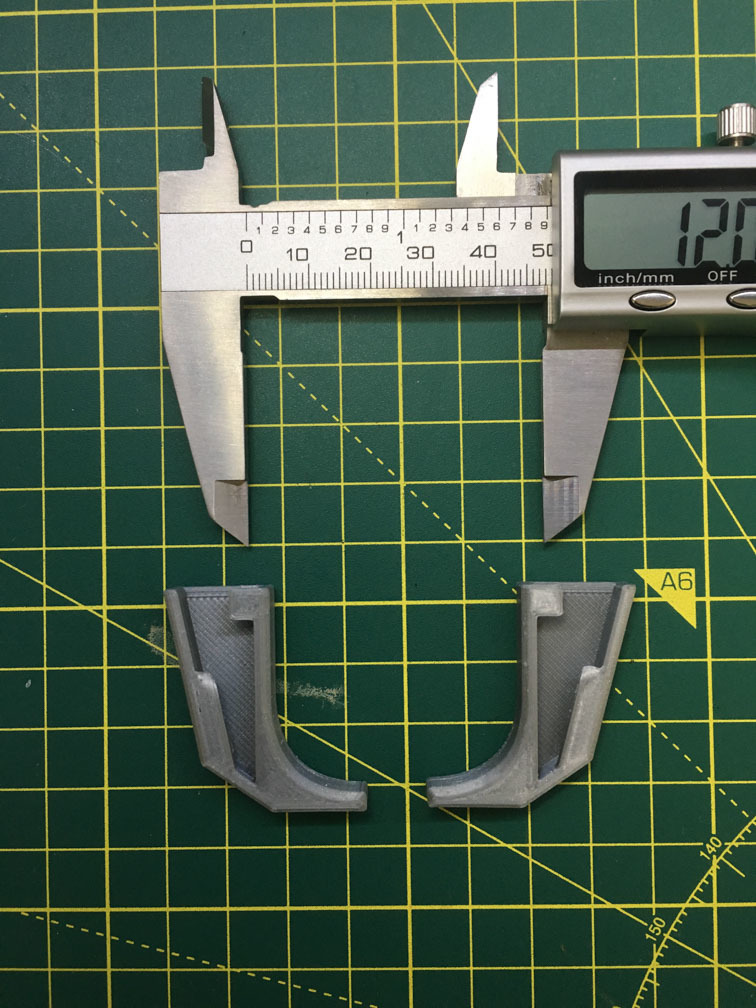

I needed to measure the inside walls of a vessel which had varying thickness so I designed these claws to fit to my vernier calipers to do the job. Obviously, these are a perfect fit for MY calipers. If yours are different they won't fit but if yours look similar, it might be worth a try at just under 1 hour print time for both claws. Or just print one claw and try it.

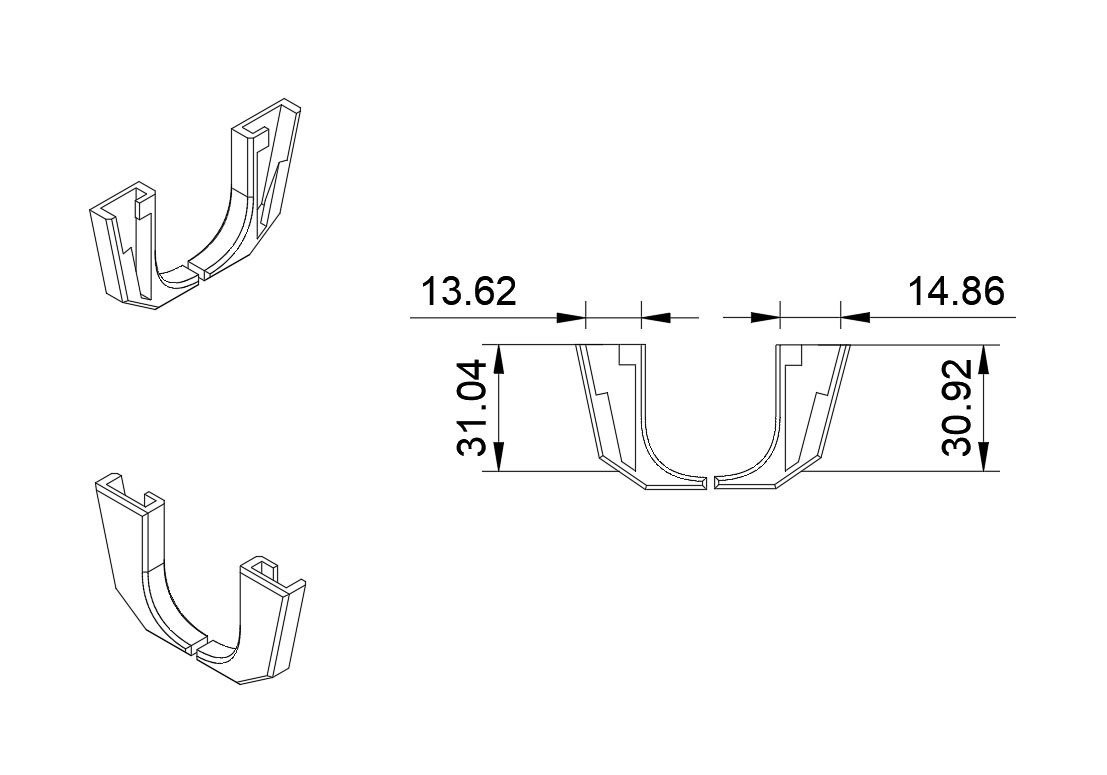

They are not a mirror image of each other i.e. the dimensions are slightly different between the left and right hand claw.

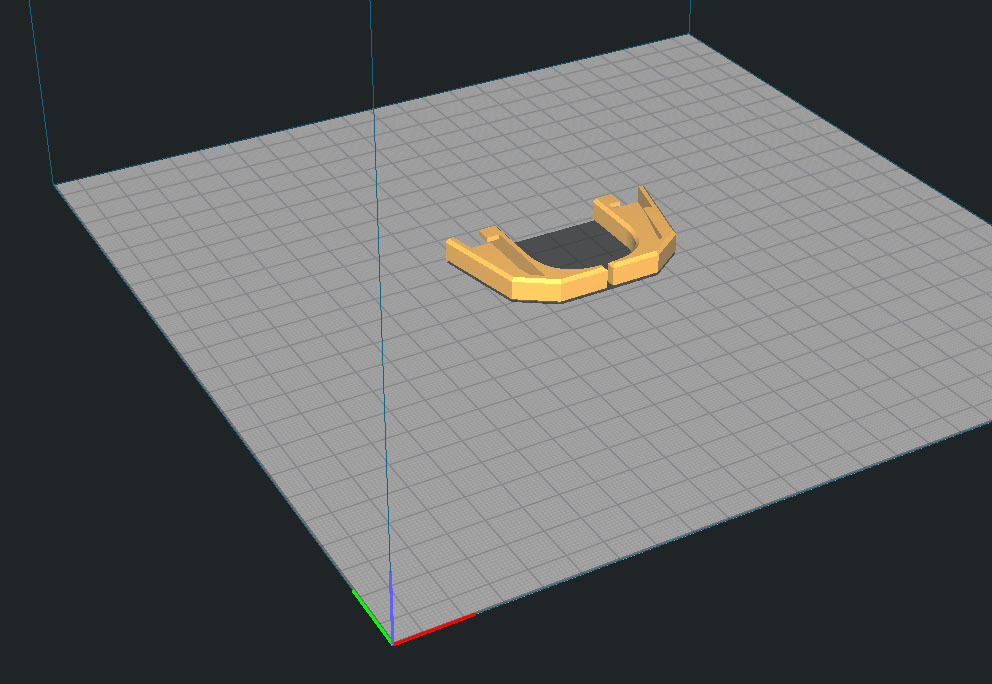

You will need to orientate the objects in your slicer so that they are flat on the bed, as shown in image 6 (my goof when creating them).


3D printing settings

Printer: Ender 3
Resolution: 0.15mm
Speed 50mm/s
Material: PLA
Nozzle Temp: 205° (210° on the first layer)
Bed Temp: 55°
Infill: 30%
Walls: 3
Top/Bottom Layers: 6

3D printer file information

  • 3D design format: STL Folder details Close
    • Both Claws.stl
    • Left Claw.stl
    • Right Claw.stl

    Learn more about the formats

  • Publication date: 2020-04-29 at 14:09

License

CC BY NC

Tags

Creator

Friends know me as Mox, I live in the UK and have been on the planet for over half a century.

Tinkering with plastic creations is one of my pastimes, along with photography and enjoying the great outdoors.
