Caliper case

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

7-11-2022

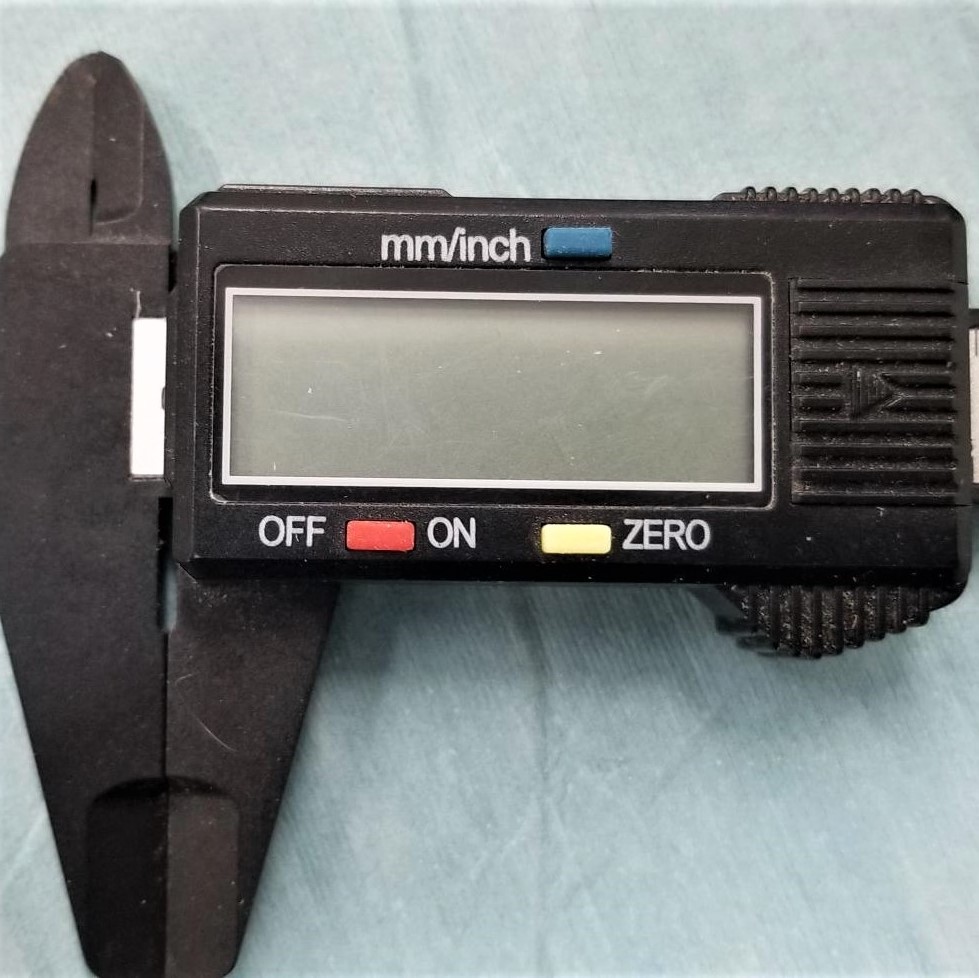

I have changed the internal design to prevent excessive movement and protect the control buttons from being accidentally activated. The new design is labelled v1.6. The size is the same and the new and old top and bottom parts are interchangeable. There is also a new top with a label (which adds about 1 hour to the print time).

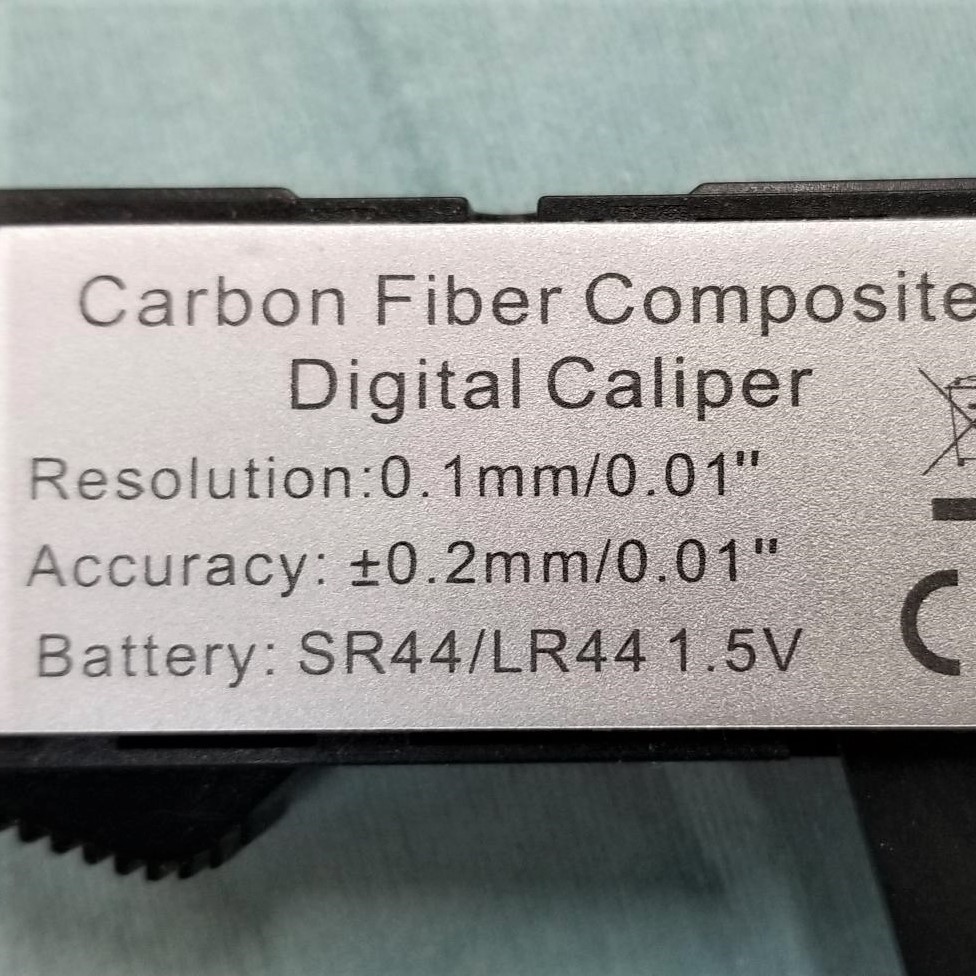

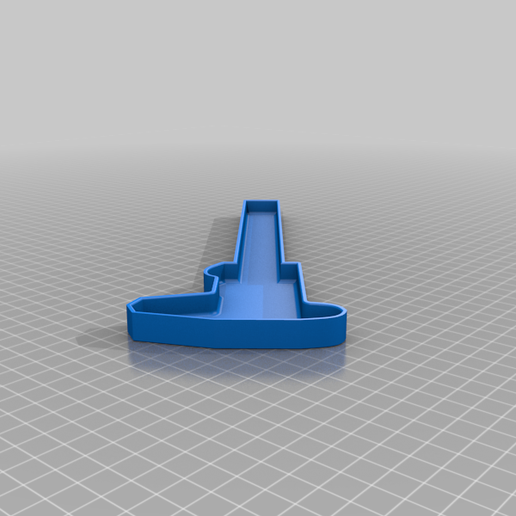

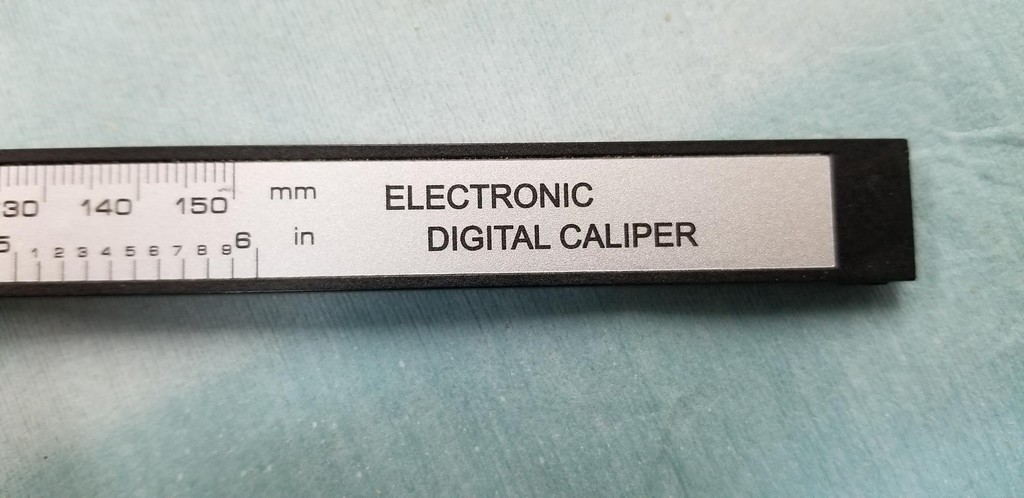

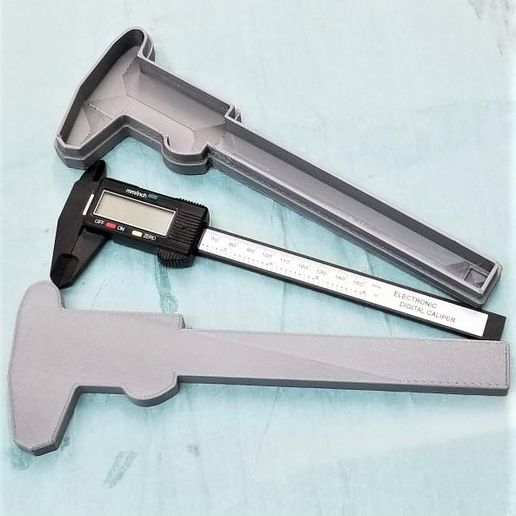

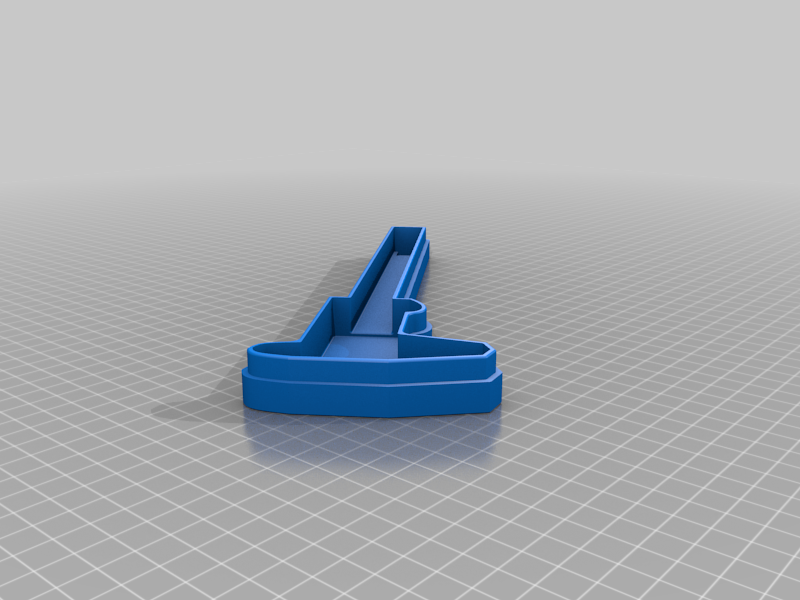

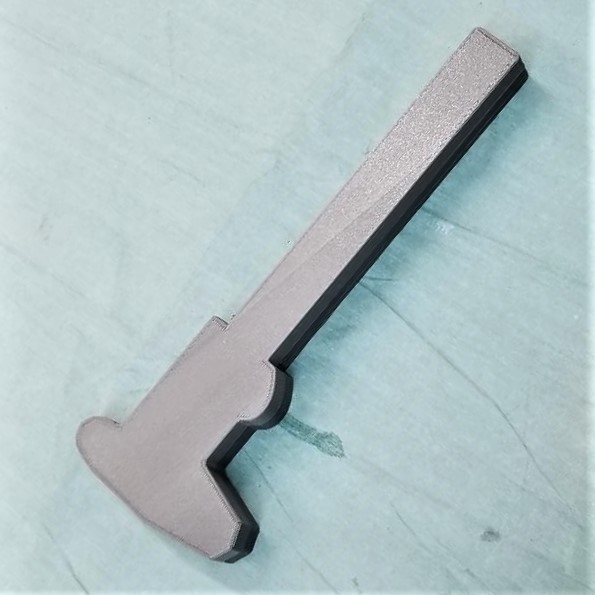

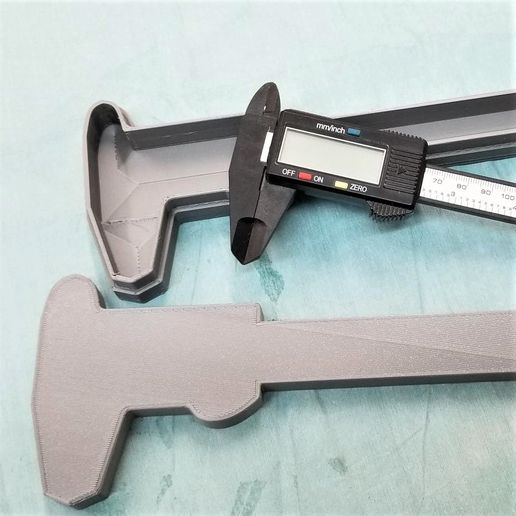

This is a case to hold an electronic digital caliper. This caliper may have several similar brothers so I have included a profile you can print to see if your caliper will fit.

You need to print this on the diagonal when using a Prusa printer because of the limited bed size.


3D printing settings

-

3D printer file information

  • 3D design format: 3MF and STL Folder details Close
    • CALIPER CASE BOTTOM v1.6.3mf
    • CALIPER CASE BOTTOM v1.6.stl
    • CALIPER CASE TOP v1.6 label.3mf
    • CALIPER CASE TOP v1.6 label.stl
    • CALIPER CASE TOP v1.6.3mf
    • CALIPER CASE TOP v1.6.stl
    • caliper_box_bottom.stl
    • caliper_box_bottom_PROFLE.3mf
    • caliper_case_top.stl

    Learn more about the formats

  • Last update: 2022-07-11 at 16:08
  • Publication date: 2021-12-19 at 01:02
    ?
    Published to Thingiverse on: 2021-12-18 at 23:15

License

CC BY NC

Tags

Creator

Retired for 20 years, moderate experience with Fusion 360, TinkerCad and Vcarve Pro. The machines I have: Prusa MK2.5S, MK3S filament printers and CNC Router Parts Pro 4X2 CNC Router.
