Calibration Bed

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 659 views
  • 3 likes
  • 11 downloads

3D model description

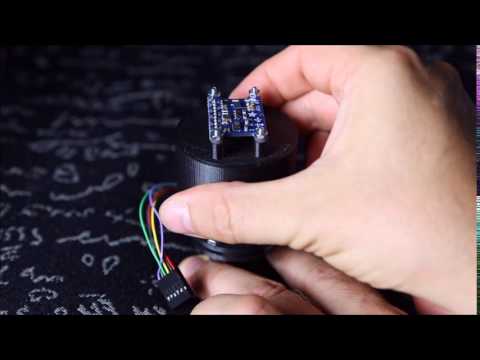

Simple calibration bed for turning something around whilst having it connected, for example a magnetometer.

Things required to make:

An Adafruit Slip Ring with flange (https://www.adafruit.com/product/736)
A couple of 6pol Du Pont connectors.
Three M4 nuts and bolts (if you're using Makeblock you already have these)
I only have one dock (fits the Adafruit 10DOF breakout board), but simply build your own dock if you want to use something else.

https://youtu.be/9CEfGWUYICo

3D printer file information

  • 3D design format: STL Folder details Close
    • calibration_dock10dof.stl
    • calibration_lower.stl
    • calibration_upper_base.stl
    • calibration_upper_top.stl
  • Publication date: 2017/06/13 at 11:19

License

CC BY NC ND
