Sanding wedge / Sanding block

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 707 views
  • 2 likes
  • 33 downloads

3D model description

Good morning, sir,

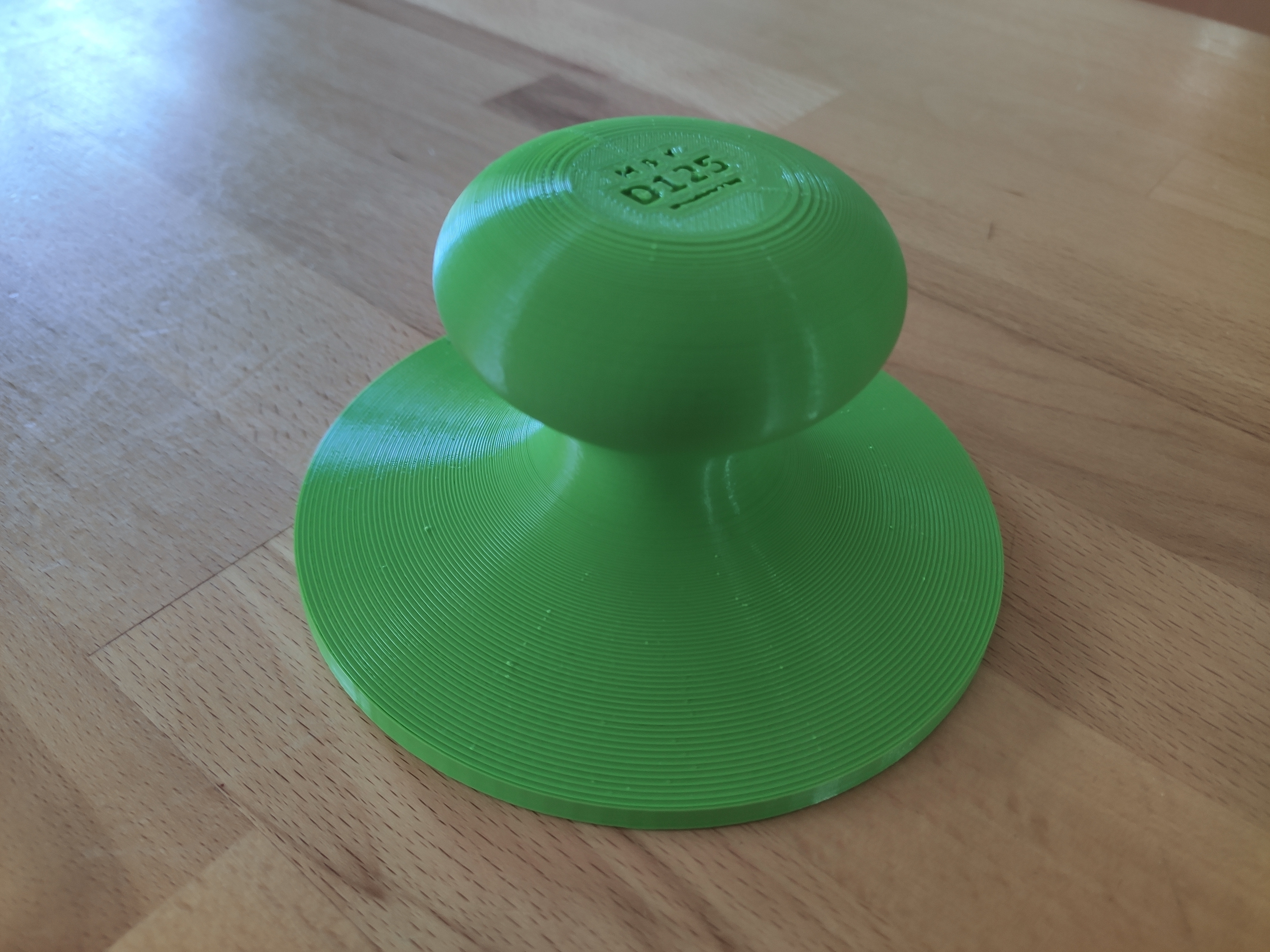

I offer you this sanding block with a diameter of 125mm to help you in your surface preparation work.

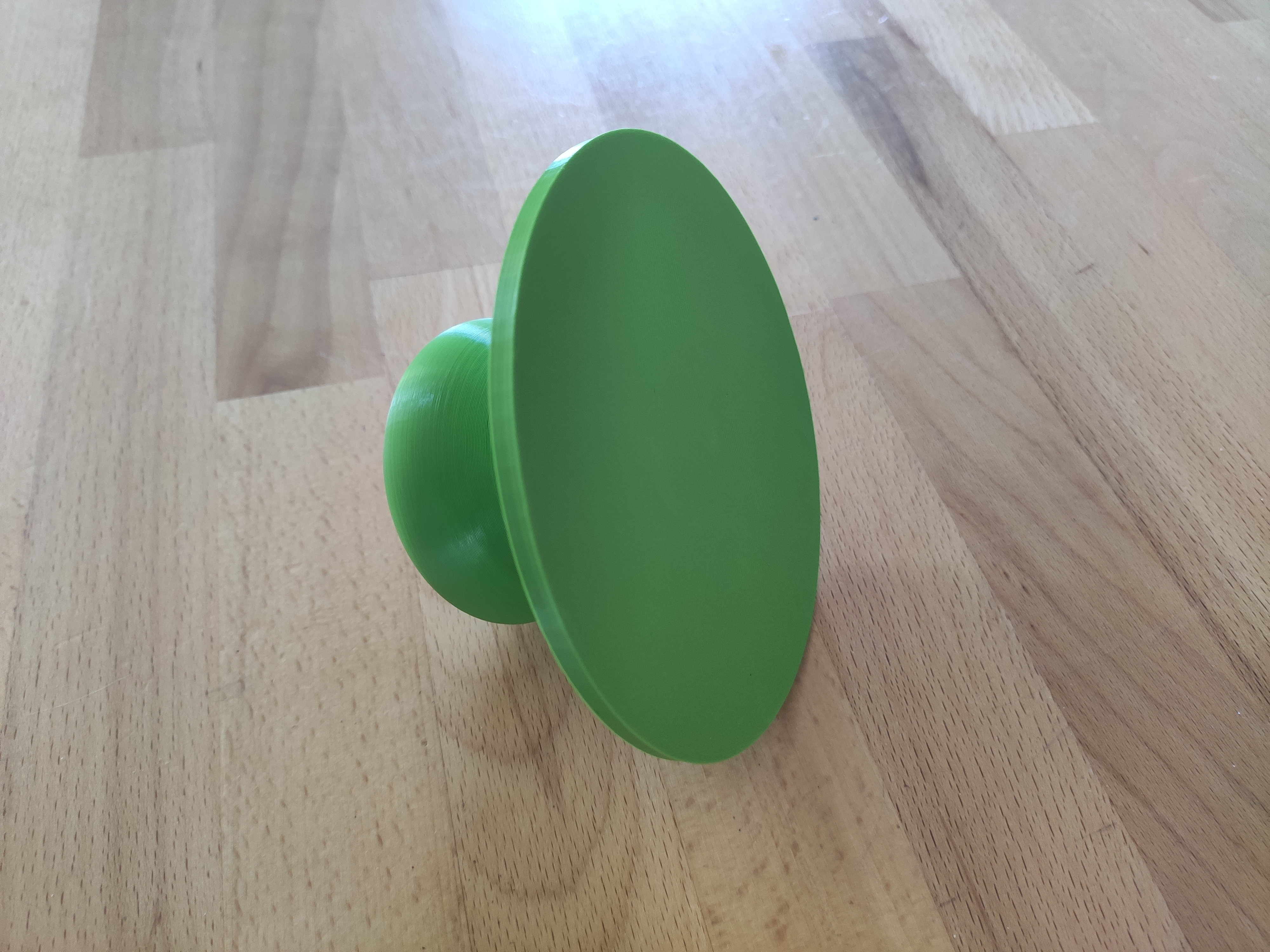

Simply glue a 125mm self-adhesive backing, and use standard sanding discs with a suitable grit!

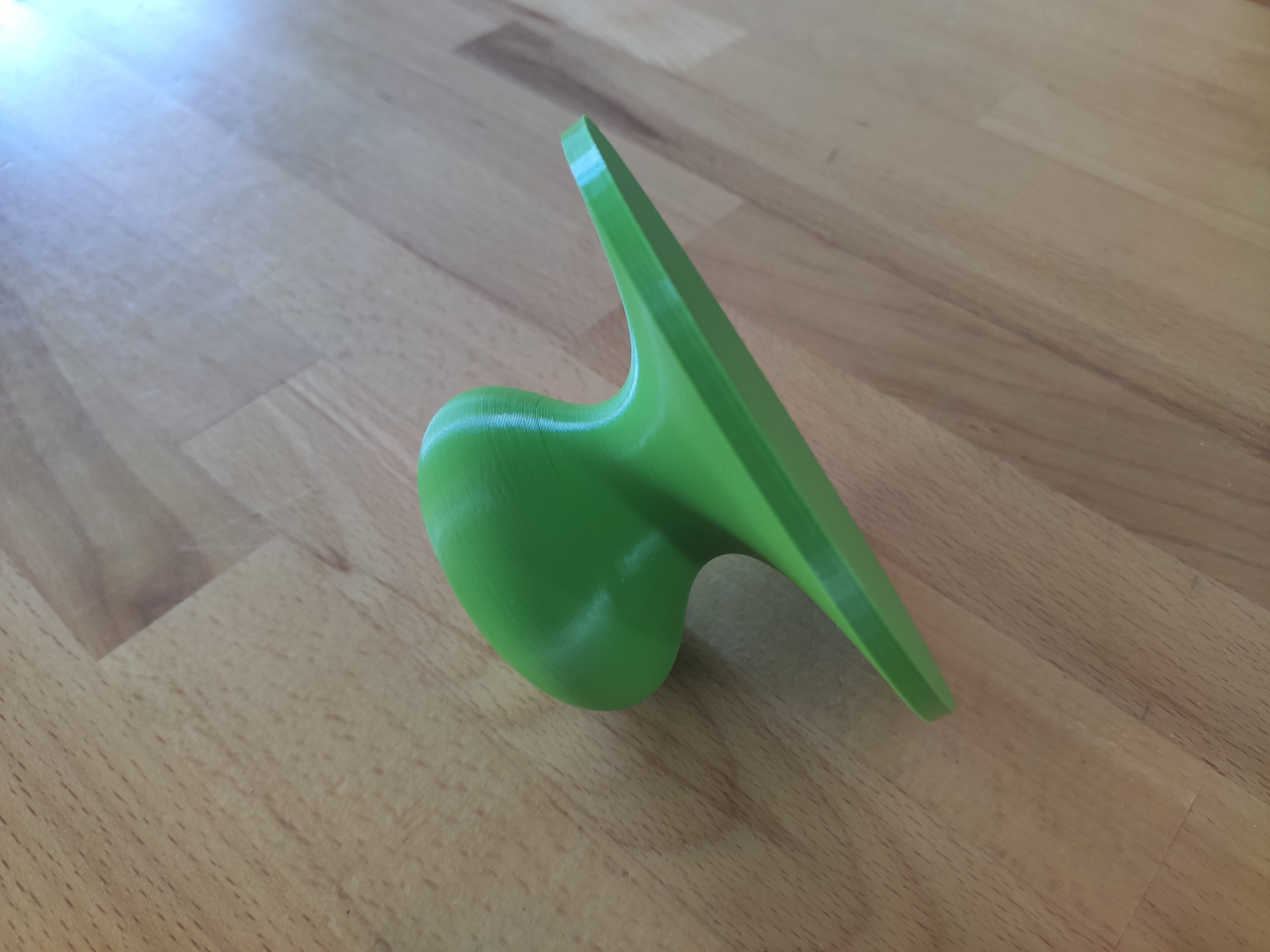

The handle fits perfectly in the hand, and allows the fingers to pass underneath it for more support force.

Hello,

I hereby propose a 125mm manual sanding block to help you grinding every type of surface. You just have to place a special adhesive support, then standard sanding disks.

The block is design to be easily used by a human hand ;-) and you'll be able to place your hand close to the surface to be sanded.

Thanks to all for your support!

3D printing settings

Size: D125 x 65mm

Printer : Ender 3 Pro

Layer height : 0.2mm ( Important for plumbing )

Filling : 20% ( Important for the rigidity of the part )

Wall thickness: x4 layers

No supports, part designed specifically to avoid them.

Printing speed: 45 mm/s

Printing time: approx. 11 hours

  • 3D file format: STL
  • 3D model size: X 125 × Y 125 × Z 65.1 mm
  • Publication date: 2020/05/04 at 09:14
