Bracket for BNC Antenna connector
:still():format(webp)/https://files.cults3d.com/uploaders/12916954/illustration-file/3b368c0c-887c-4519-b55a-19097ed75f57/Capture%20d%E2%80%99e%CC%81cran%202017-10-31%20a%CC%80%2015.54.26.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 2.2k views
- 2 likes
- 31 downloads
- 0 comments
- 0 makes
Designer
3D model description

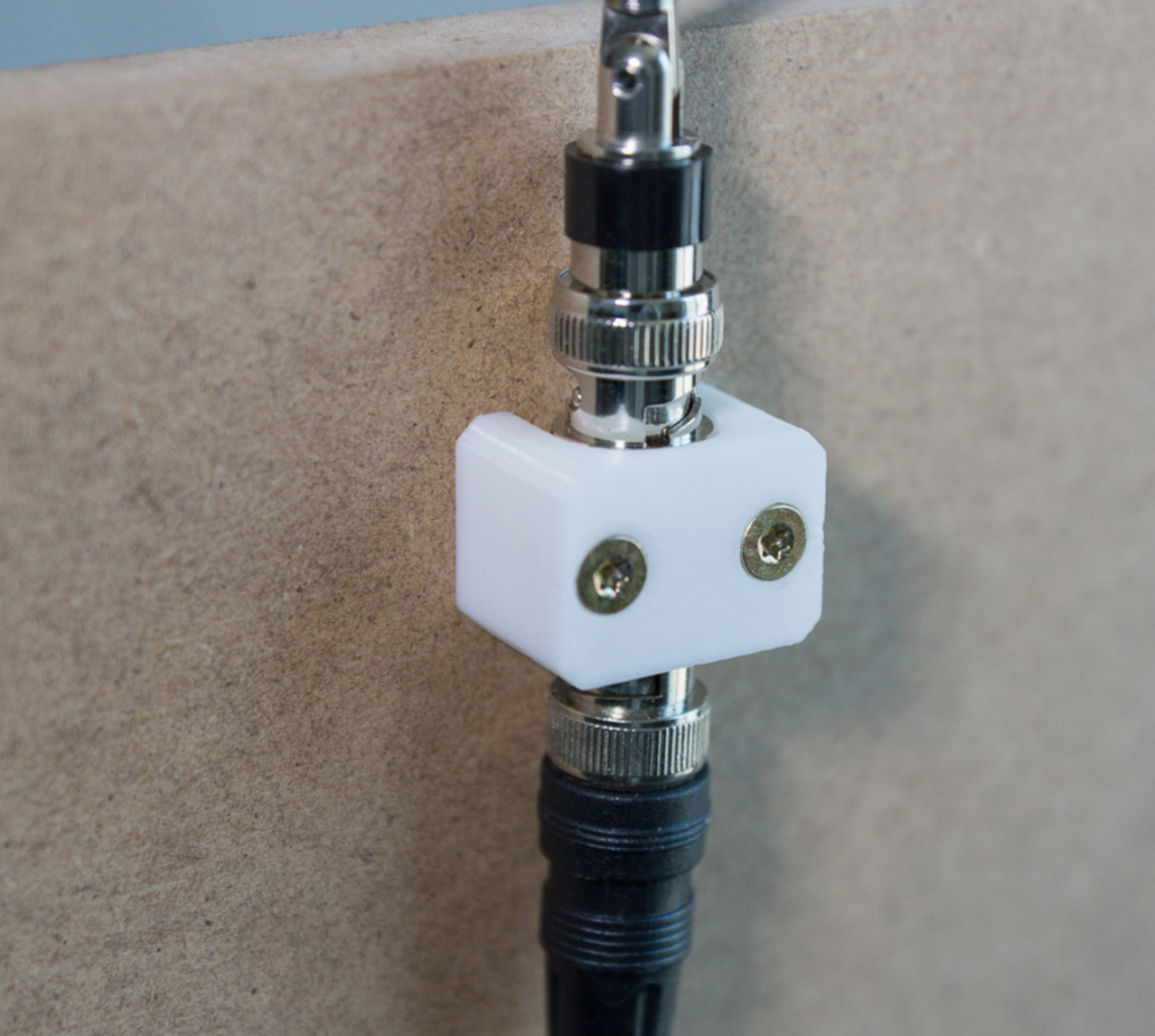

Bracket for mounting an rf-antenna to a wall.
I designed this bracket for mounting the antenna from an wireless microphone to a spot where the wireless signal is better than in the rack.

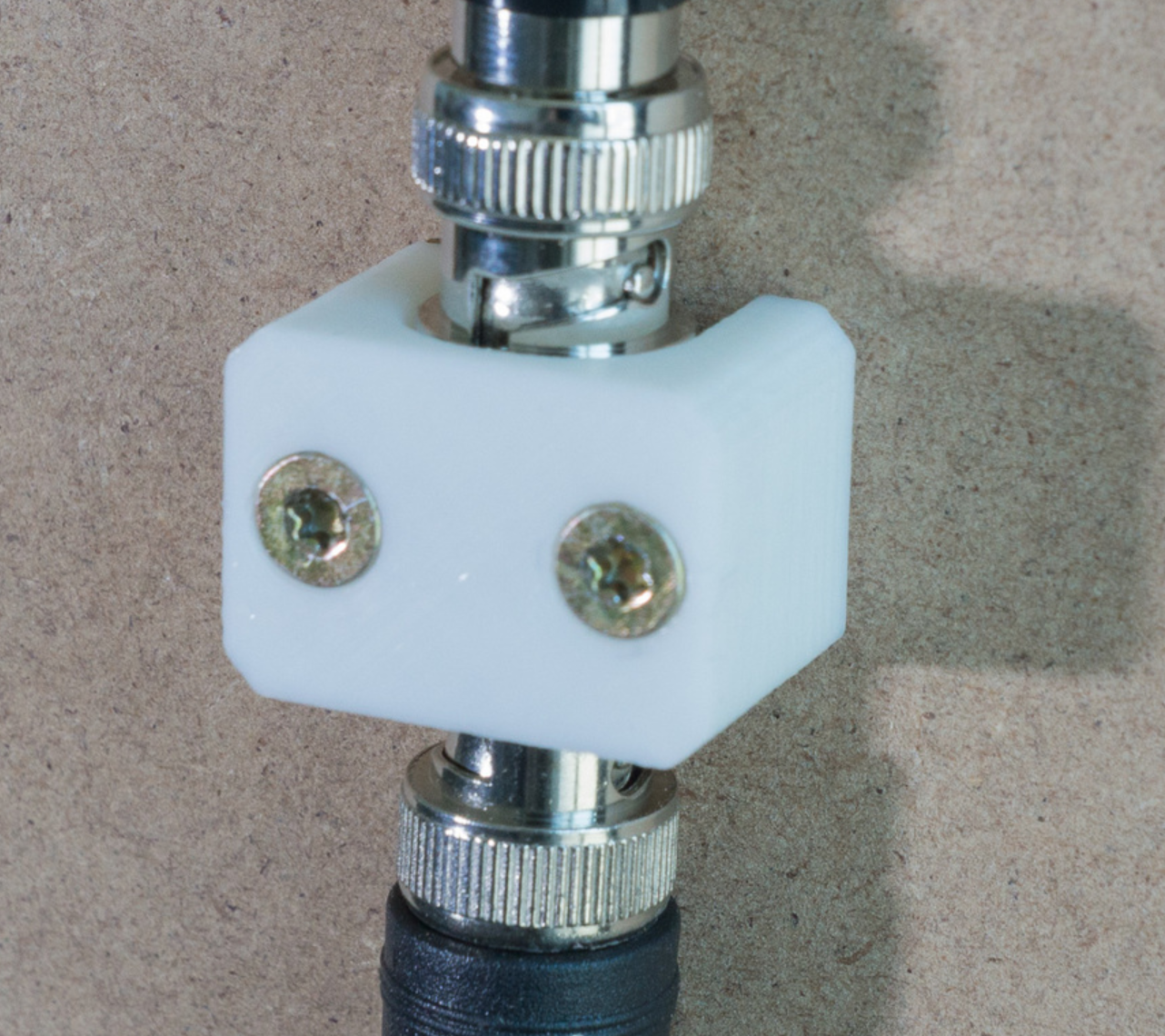

It will fit on an BNC connector coupling.
Video about the creating process in german:
https://youtu.be/3pkebUfldzM
3D printing settings
Printer Brand:
RepRap
Printer:
Prusa i3
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
20%
Notes:
Very easy to print.
3D printer file information
- Design number: 16306
- Publication date: 2017-10-31 at 15:03
License
CC BY-SA - Attribution - Share alike
Tags
- akg
- antenna
- antenna_holder
- antenna_mount
- bnc
- bracket
- connector
- microphone
- mounting_bracket
- mounting_clip
- wireless
