box for 220v extension cord with wall socket and voltage regulator

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 102 views

3D model description

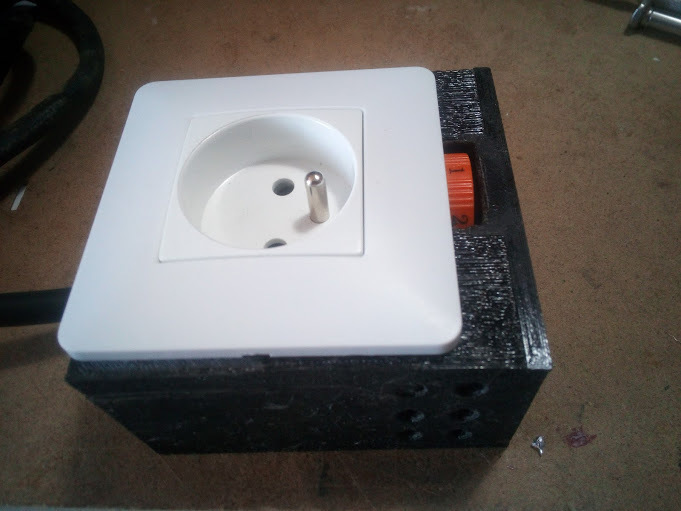

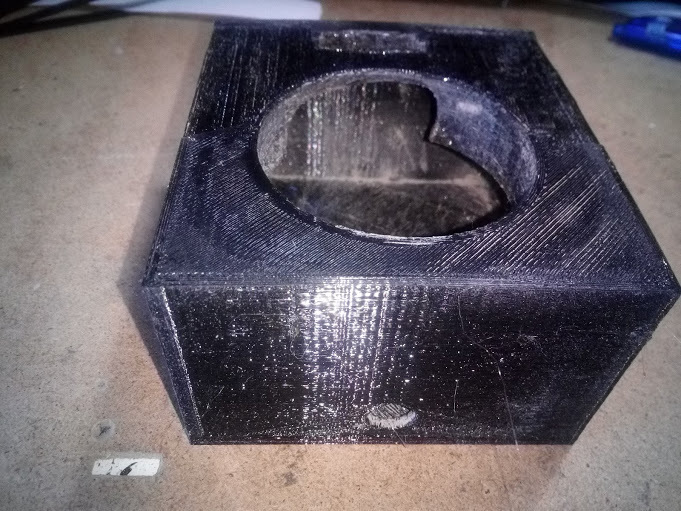

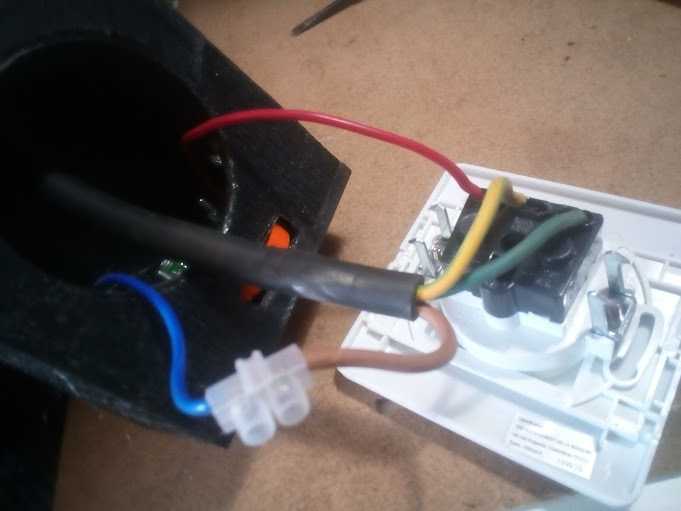

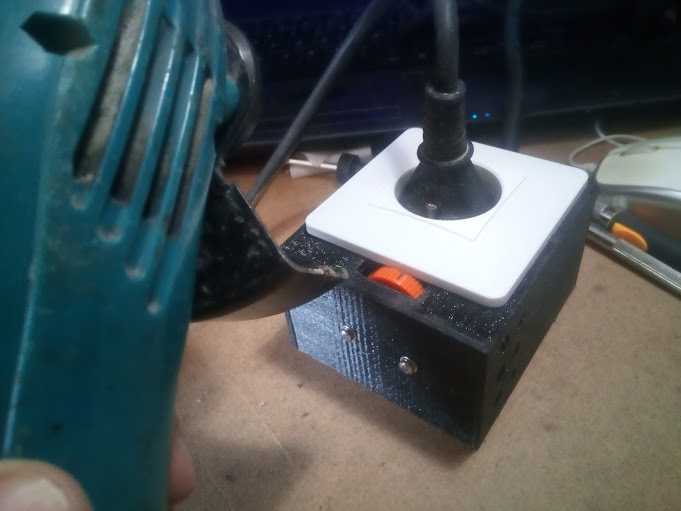

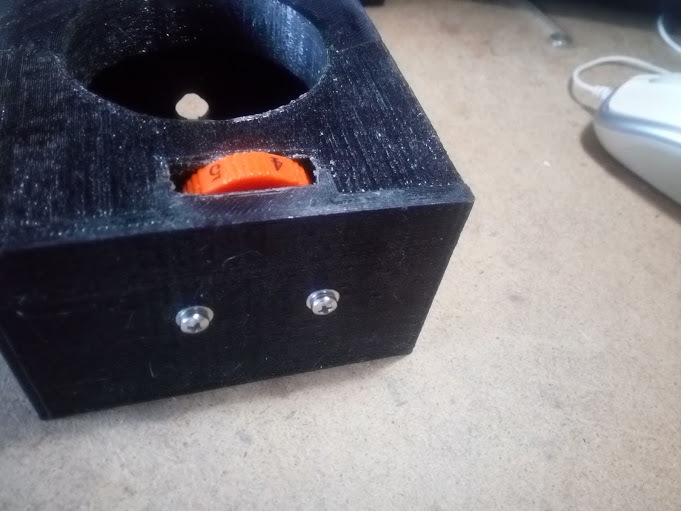

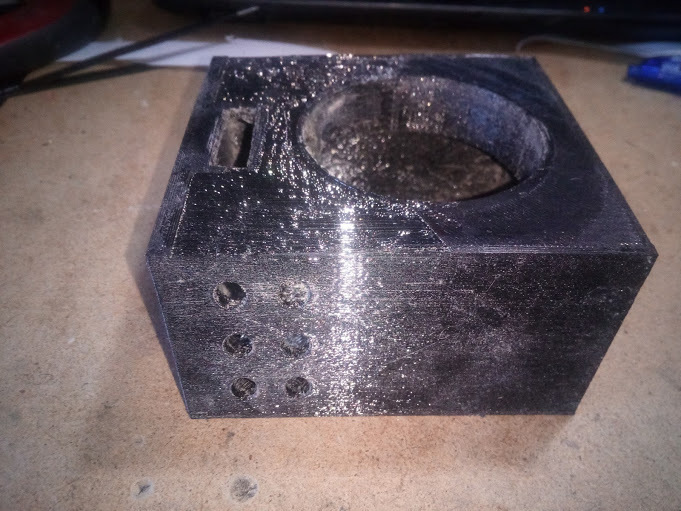

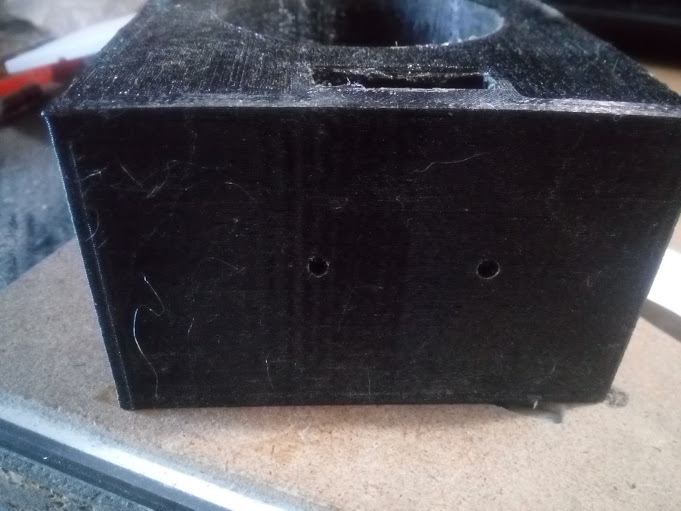

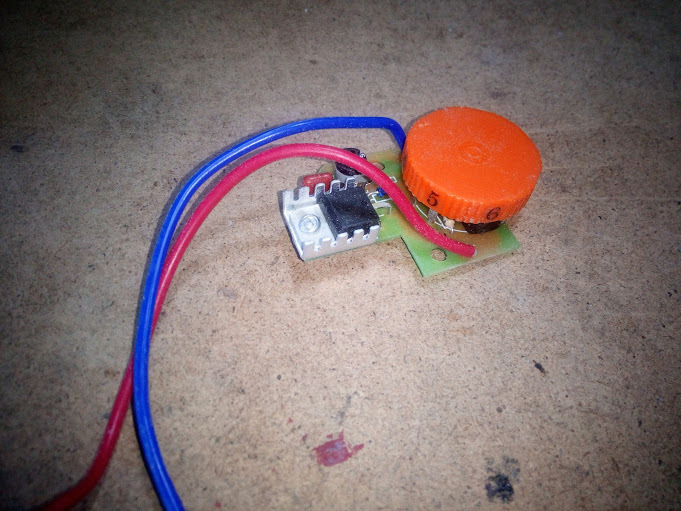

Box to be able to manufacture a voltage regulator to regulate the lighting power or the speed of any electric tool in 220v with the mounting of a standard wall socket and a small regulator in series on one of the phases and 2 screws of 3x25 or 30mm with their bolts to adjust the distance of the knurl, the plug and this type of regulator is easy to find at the DIY store near you as far as I'm concerned this type of regulator costs 2€ and the plug 5€ on Chinese import sites, the only drawback is that you have to wait about 1 month to get the order.

3D printing settings

your favourite filament will do very well for spla speed 70mm/s nozzle time 240° plate time 70° thickness outer layer 1mm filling 20% support in contact with the plate

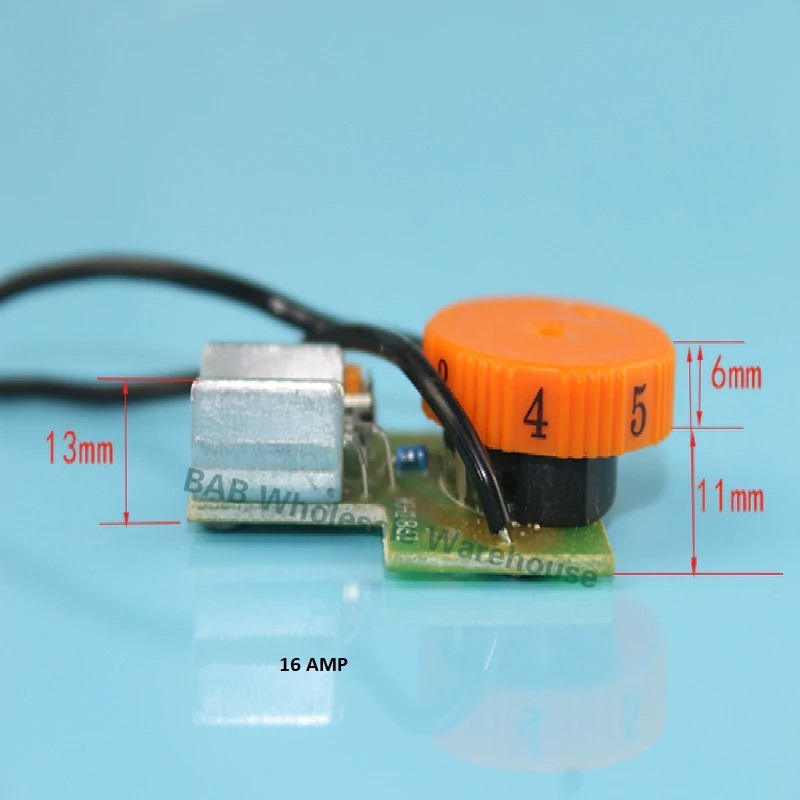

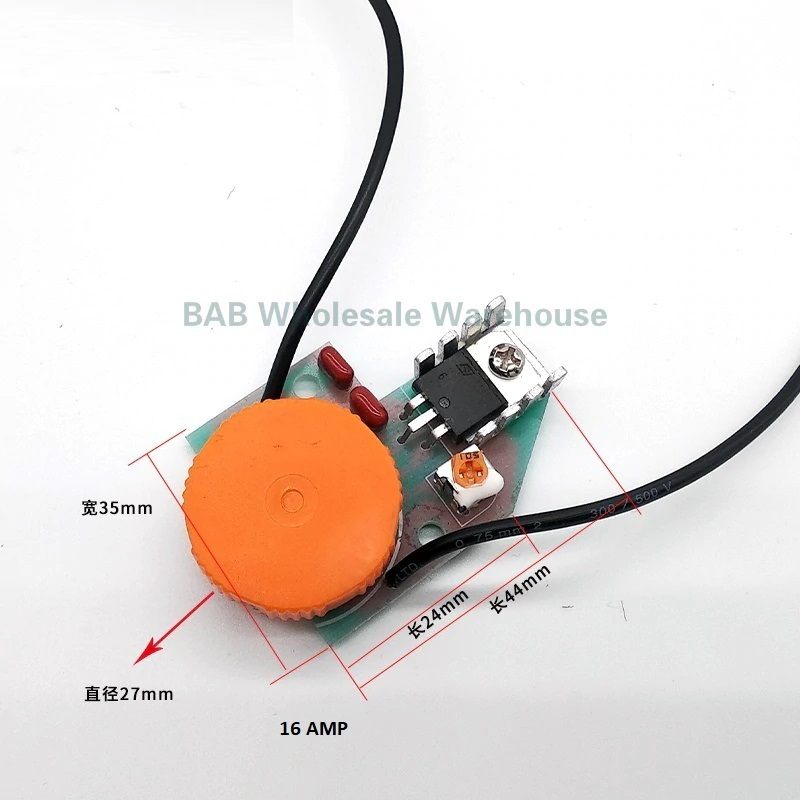

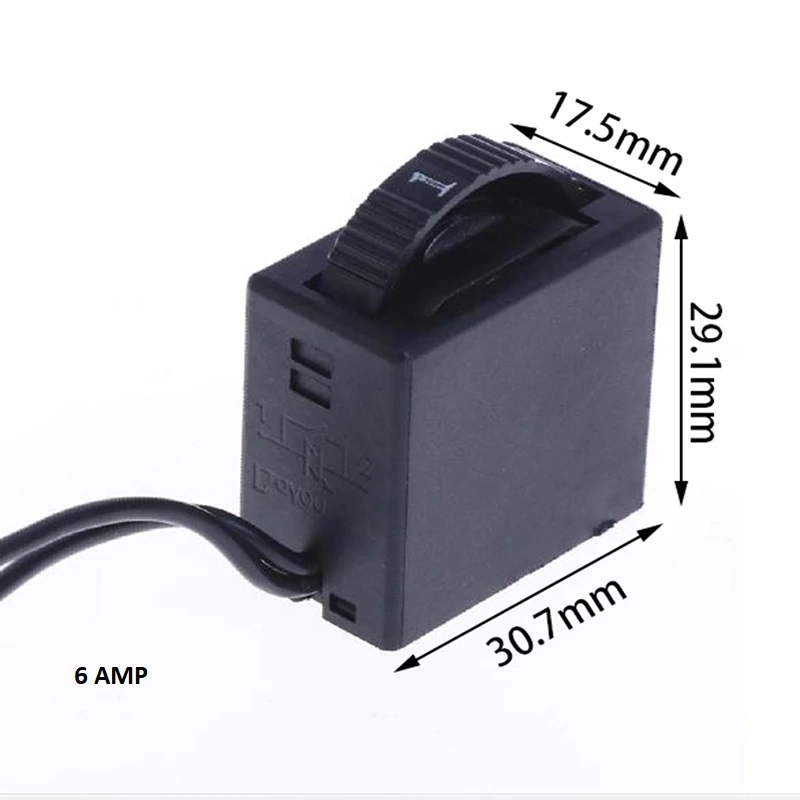

the small box is ok for small regulators of the small block type of 6A for a maximum intensity of 1300W, the large box allows to integrate a regulator of 12A so a maximum intensity of 2600W in 220V.

  • 3D file format: STL
  • Publication date: 2021/02/21 at 15:44
