Electronic case for Arduino Mega 2560 + Ramps 1.4 + LCD 2004 - 3D Modular Systems

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This case corresponds to version 2.5 of the current case.

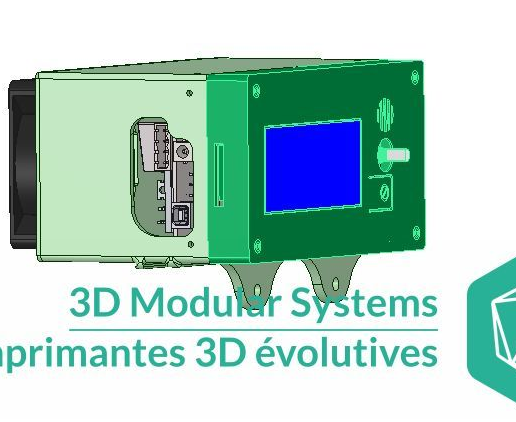

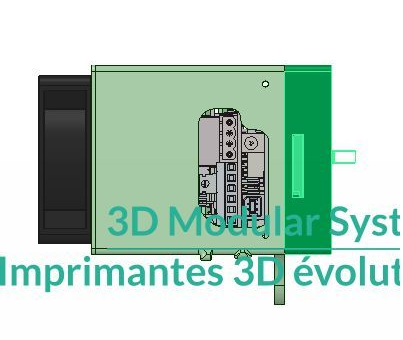

It allows to accommodate
- An Arduino Mega 2560 card
- A Ramps 1.4 card
- LCD screen RRD LCD 2004
- An 80mm fan.

This box is modular, which means that you print each facade you screw to each other using M3X8 Thermoplastic Screws.
If you want to fit one of the front panels it's very simple, you just have to unscrew one of the front and replace it with your own while retaining the other parts of your case.

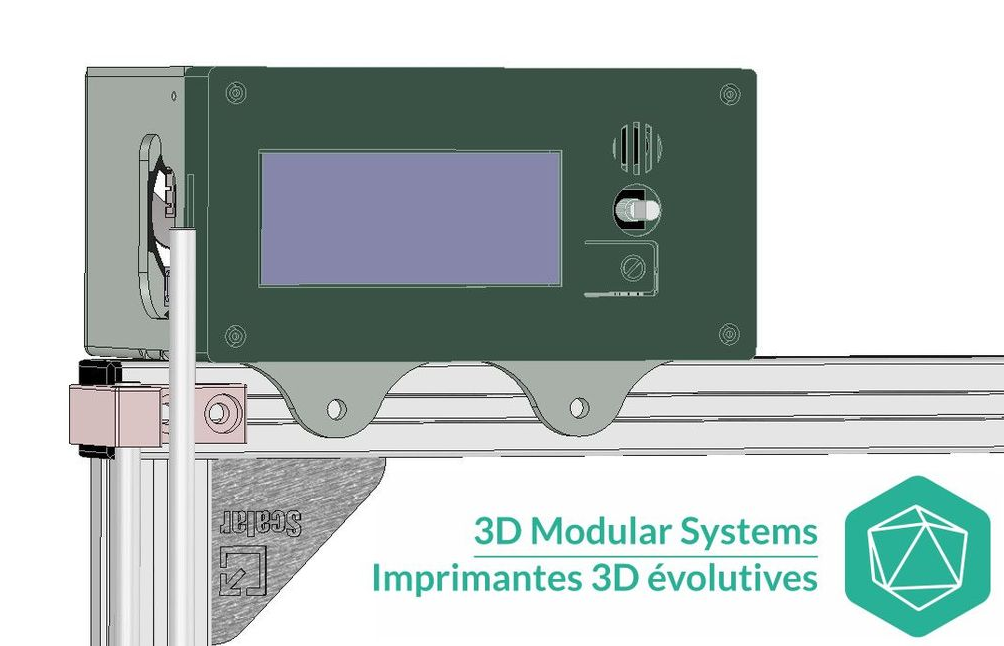

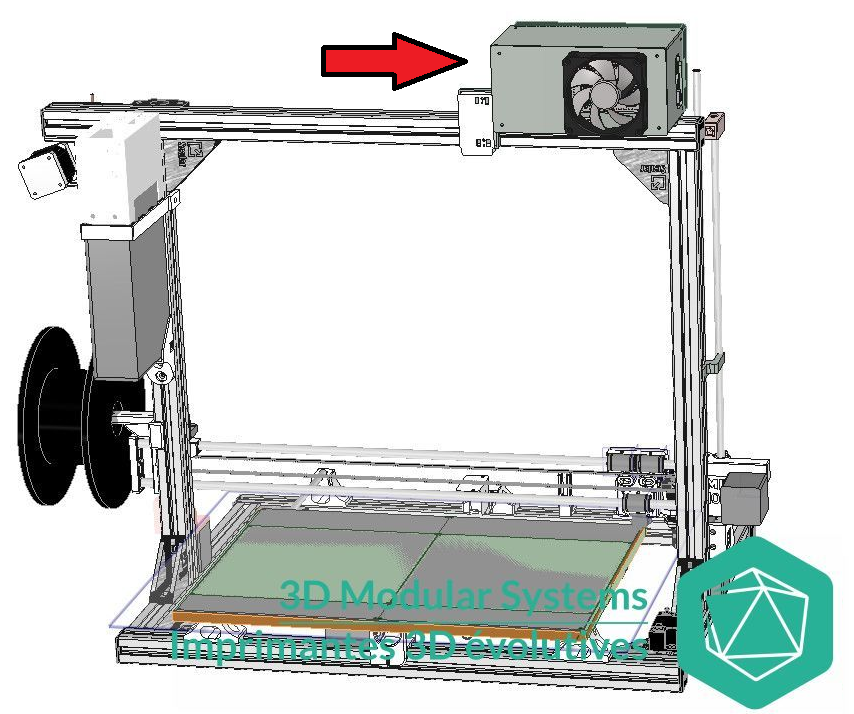

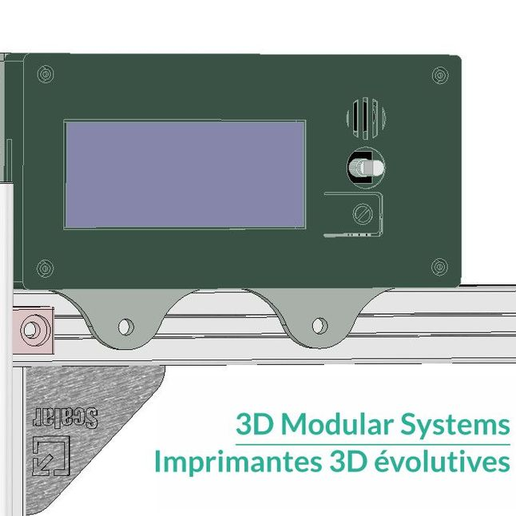

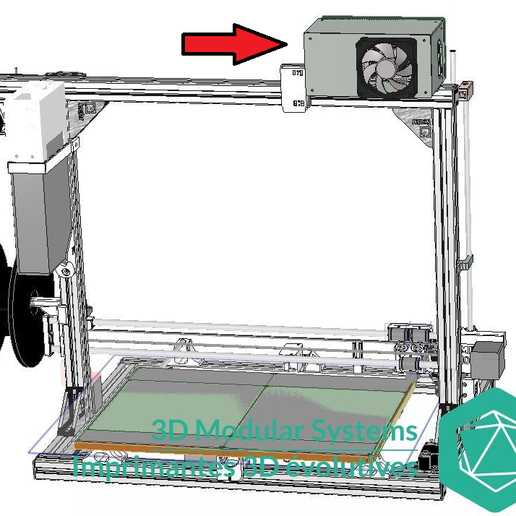

This box is designed to be fixed on aluminum profiles 30mm wide.
You will need M6X12mm screws and hammer nut to attach it to the profile.

3D Modular Systems
3D Evolutive Printer

3D printing settings

Filling 20% ​​
Print each face flat separately and assemble with M3x8mm thermoplastic screws.

3D printer file information

  • 3D design format: STL Folder details Close
    • Ramps_Box_1.4_Base_V2.stl
    • Ramps_Box_1.4_Bottom.stl
    • Ramps_Box_1.4_Fan_Front.stl
    • Ramps_Box_1.4_Left.stl
    • Ramps_Box_1.4_Left_Grid.stl
    • Ramps_Box_1.4_Right.stl
    • Ramps_Box_1.4_Top.stl
    • Scalar_-_ElectronicBox_LCD.stl

    Learn more about the formats

  • Publication date: 2016/10/04 at 17:32
