Positioning block for joinery

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 935 views
  • 2 likes
  • 64 downloads

3D model description

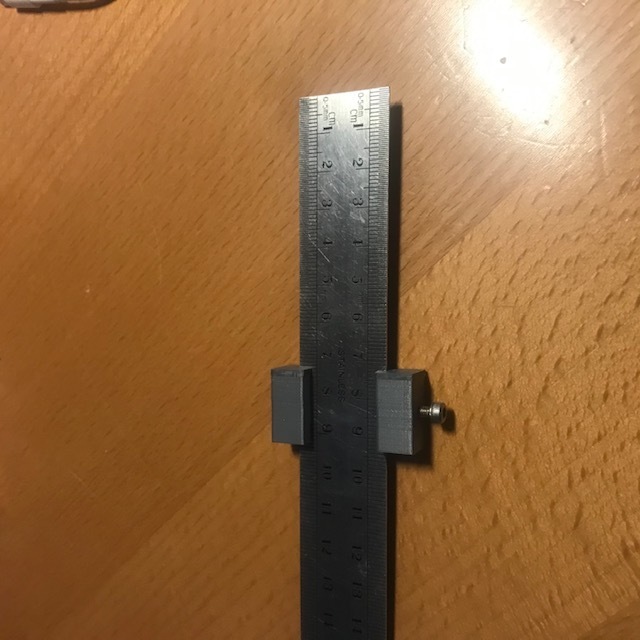

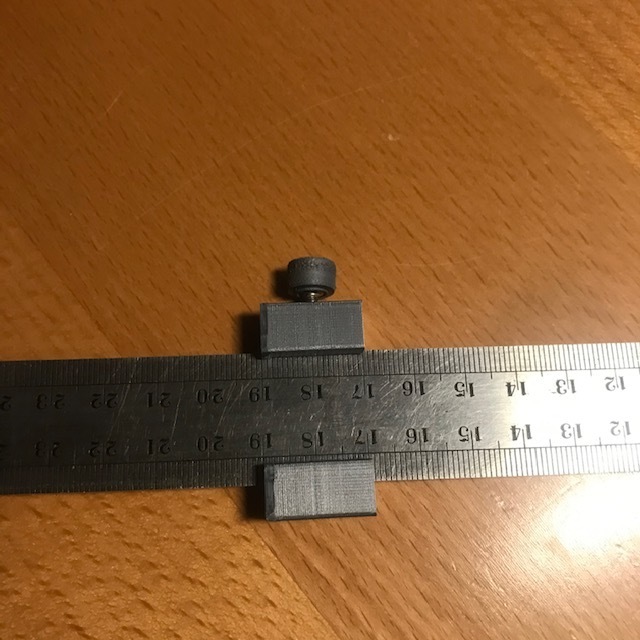

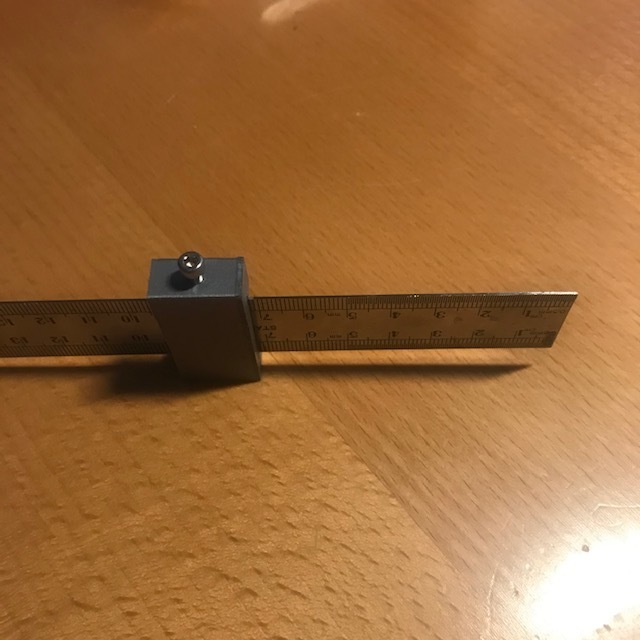

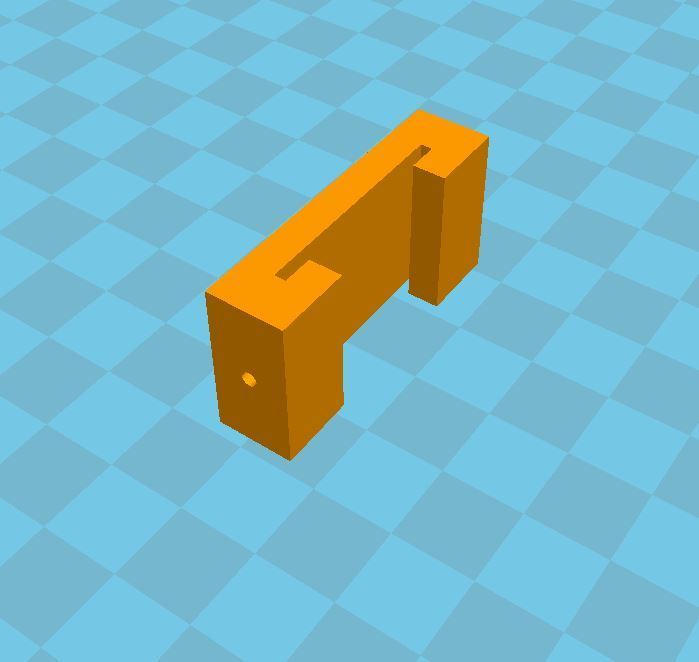

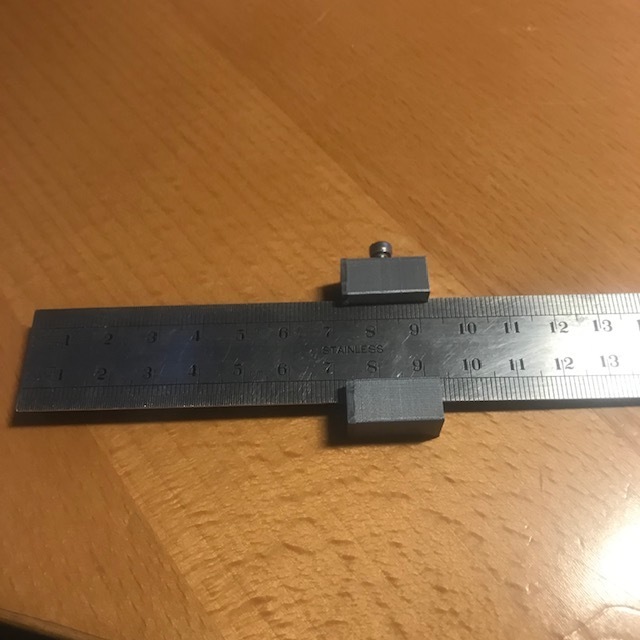

A block to be fixed on a ruler up to 27mm wide, to make a depth gauge.

An M3 screw with a minimum length of 12mm must be added.

I tapped the hole, but you can also screw the screw directly.

Very practical in the workshop!

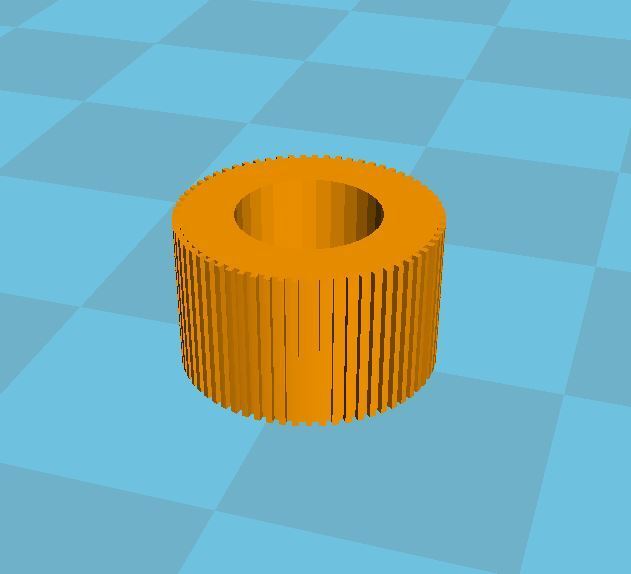

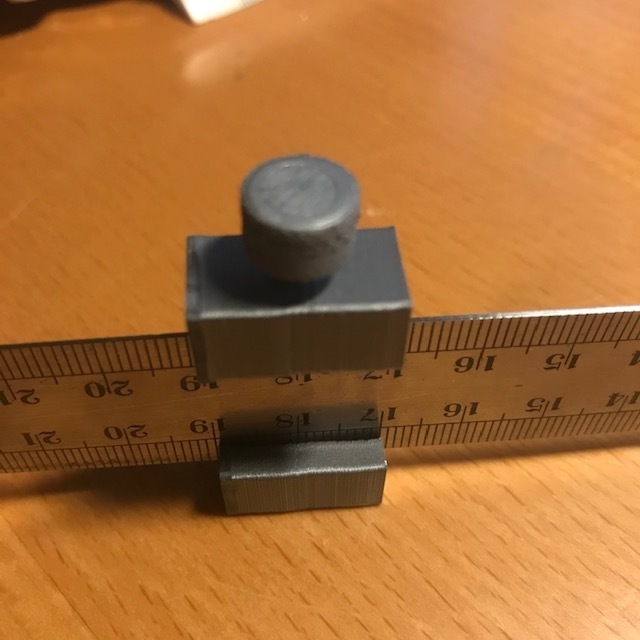

Update: I have modelled a knurl to facilitate tightening, personally I place the screw in the knurl by heating it a little with a lighter.

3D printing settings

Print in 0.10mm at 33% fill.

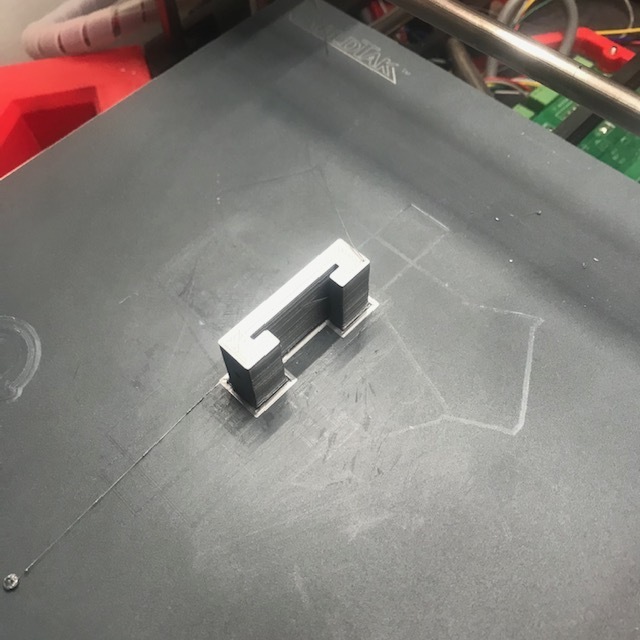

No need for support

  • 3D file format: STL
  • Last update: 2020/05/17 at 09:13
  • Publication date: 2020/05/16 at 01:50
