BL-Touch Nozzle Calibration Aid

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

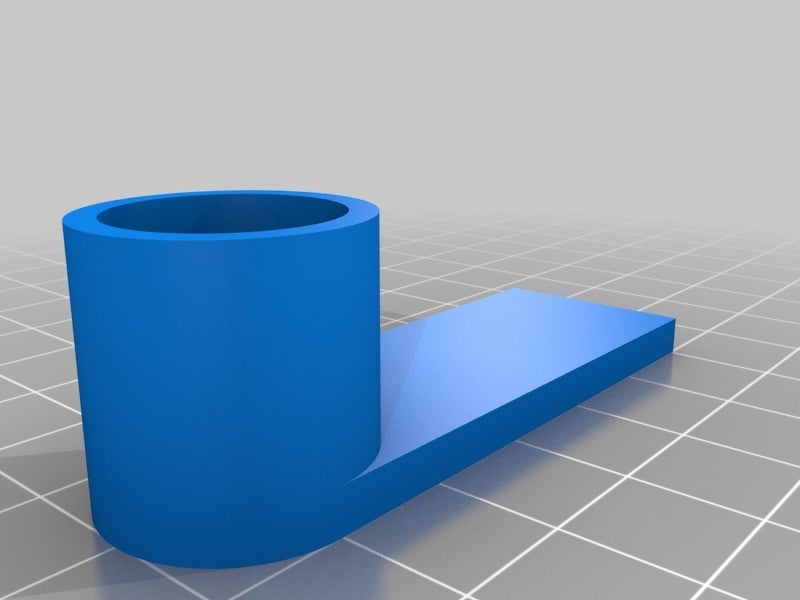

I created this BL-Touch Nozzle Calibration Aid to assist you in adjusting the BL-Touch automatic bed leveling probe to the correct height above the tip of the nozzle - 8 mm from the bottom of the body of the probe (not the tip of the probe itself) to the tip of the nozzle.
You should be able to use this guide with any printer the BL-Touch is installed upon.

Using this tool is very easy. Just put the tool around the bottom of the BL-Touch and the surface of the tool should be touching the nozzle. Adjust the BL-Touch accordingly to make the nozzle tip touch the tool.

3D printer file information

  • 3D design format: STL Folder details Close
    • BL-Touch_Depth_Gauge.stl

    Learn more about the formats

  • 3D model size: X 60 × Y 20 × Z 20 mm
  • Publication date: 2020-06-06 at 11:22

License

CC BY NC ND
