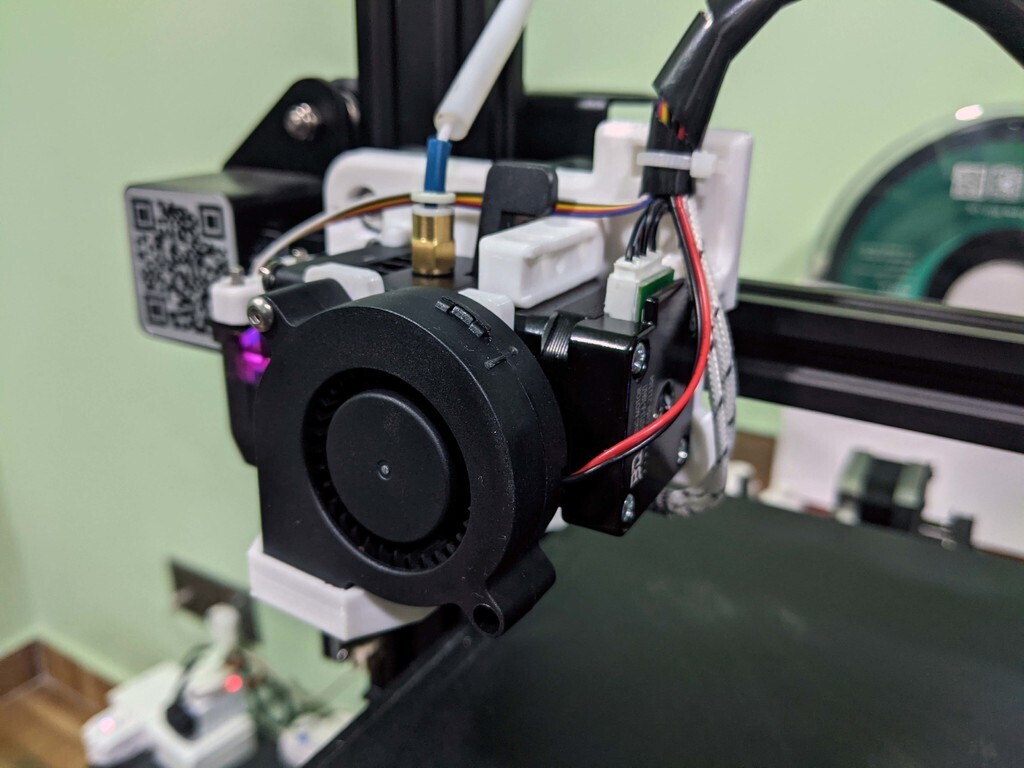

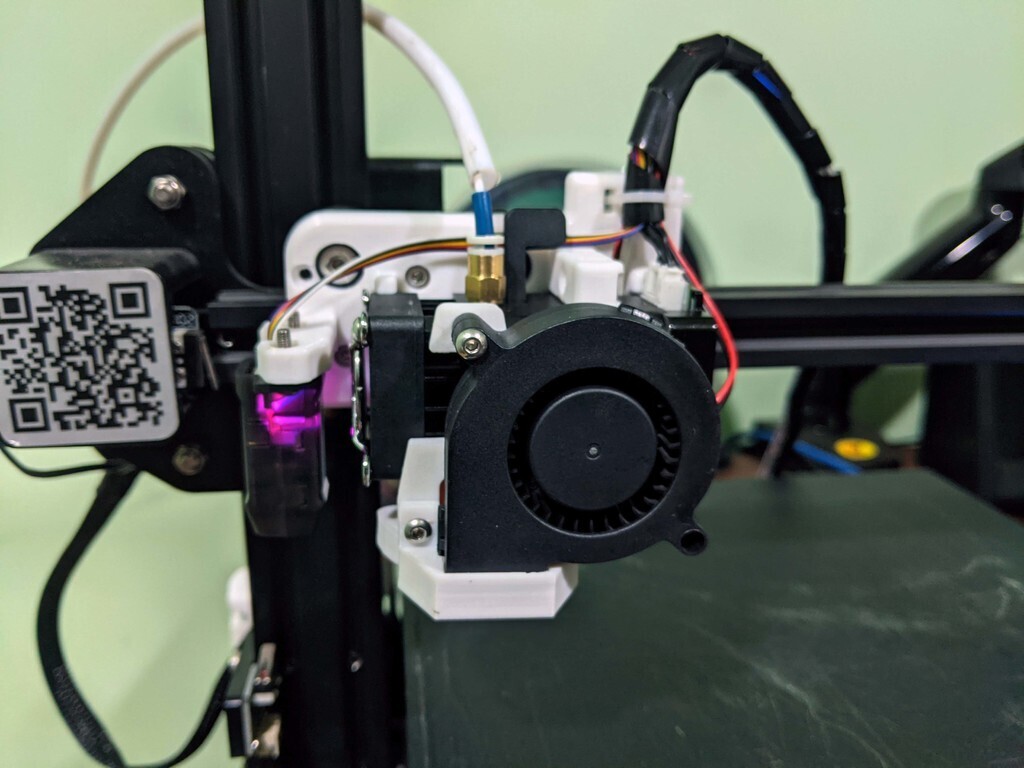

Biqu H2 V2 Mount - Ender 3 / Pro - with CR Touch

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is a remix of the designs from:
https://www.thingiverse.com/thing:4740250
https://www.thingiverse.com/thing:4966561
https://www.thingiverse.com/thing:4749419

I have updated the following:

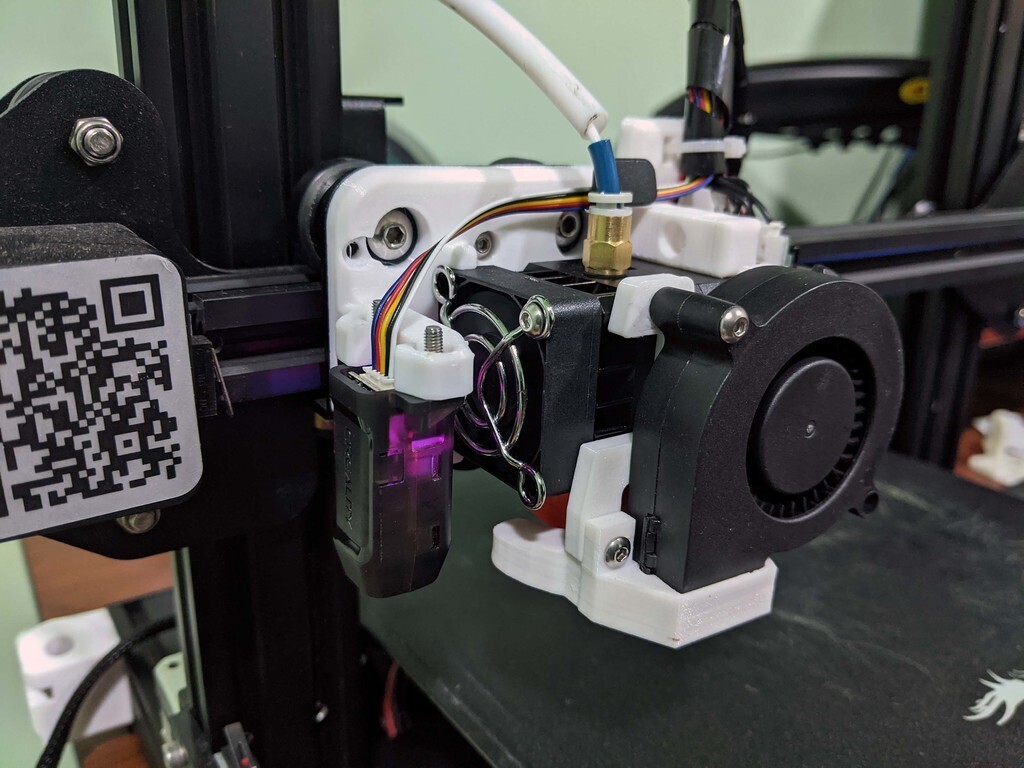

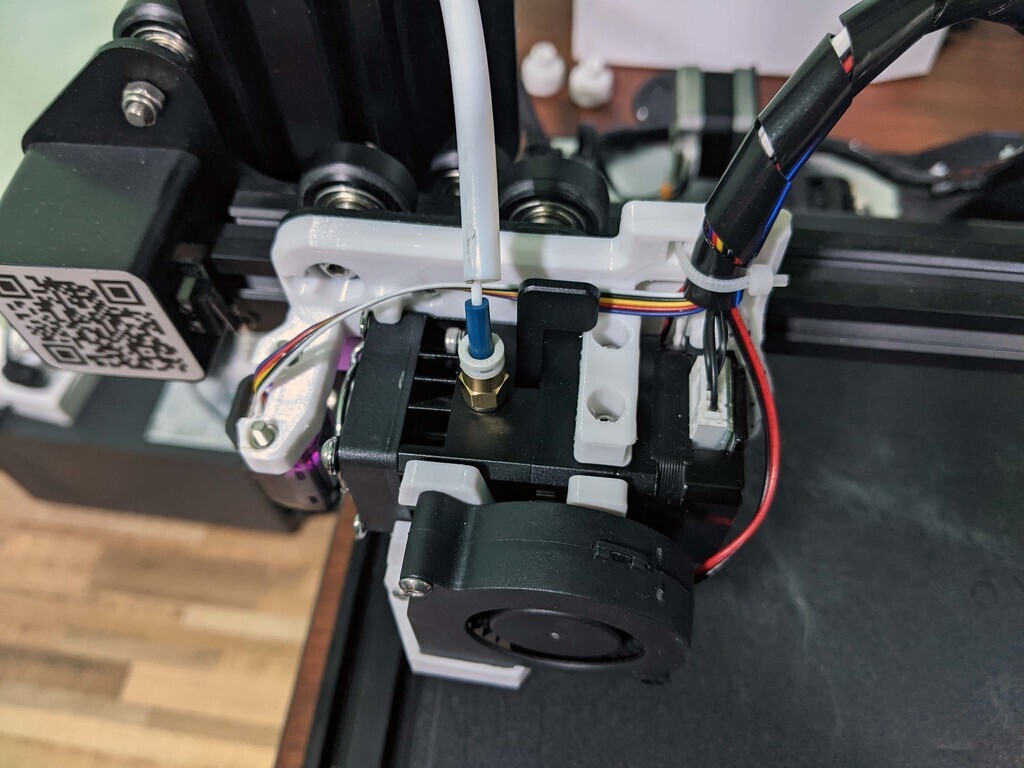

- Updated the components to work with the Biqu H2 V2 with proper nozzle clearance

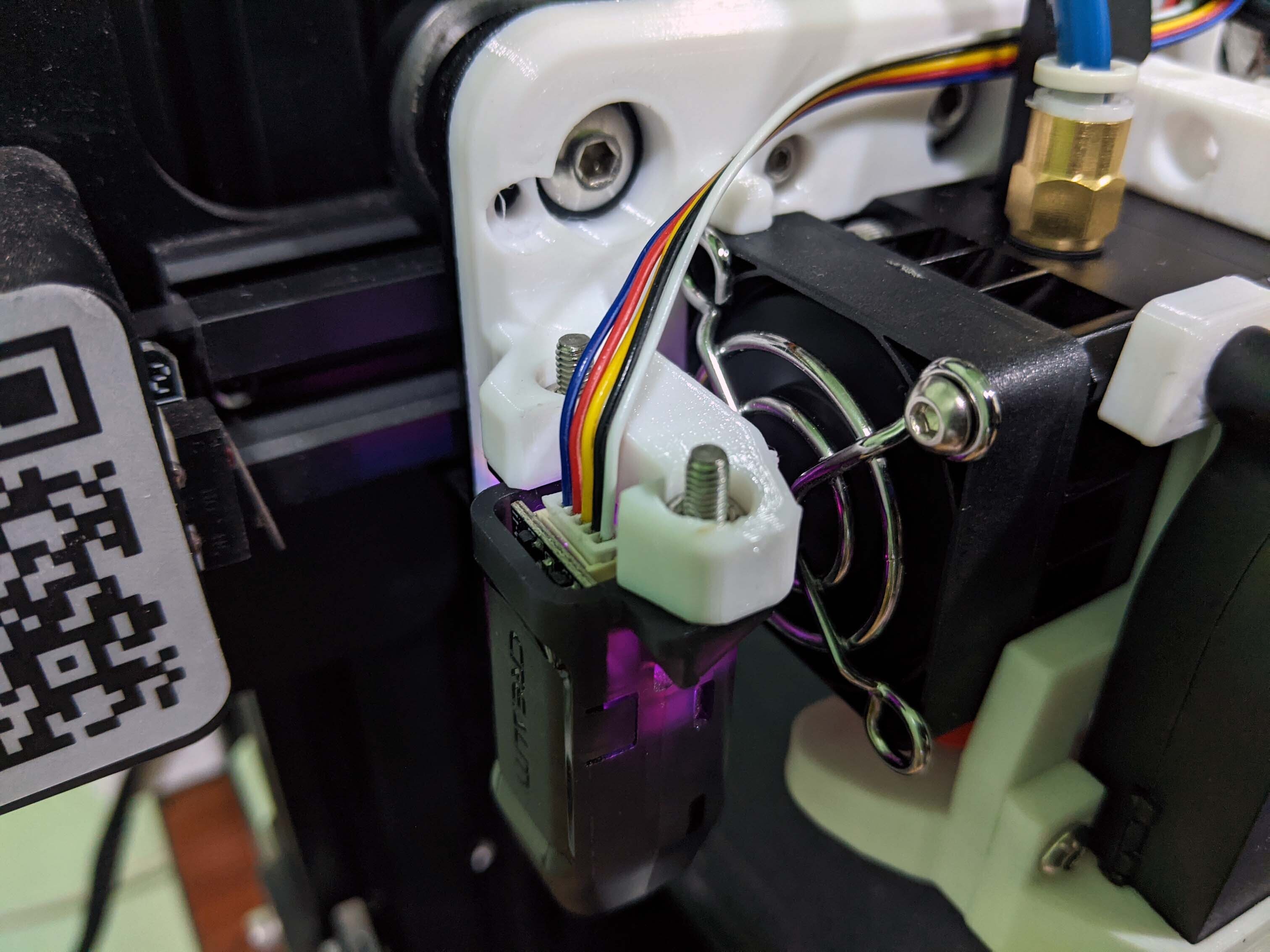

- Modified the mount to support the CR Touch with a gap to plug in the cable

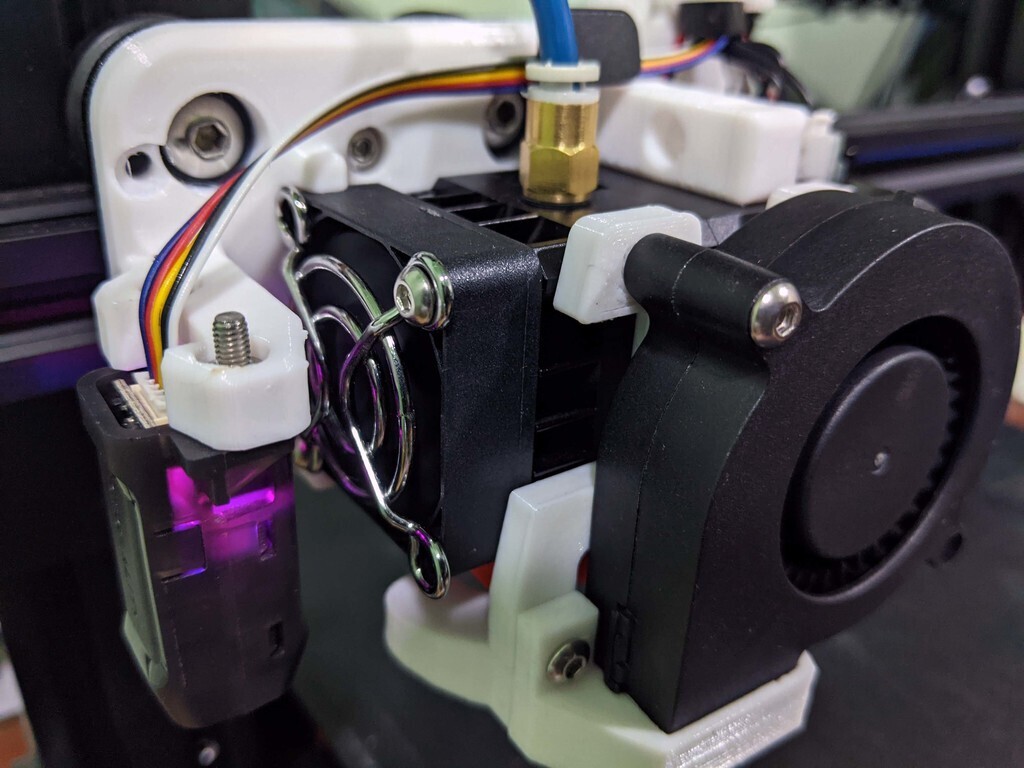

- Added an airgap to the fan mount so that it will not obstruct the airflow of the hotend fan

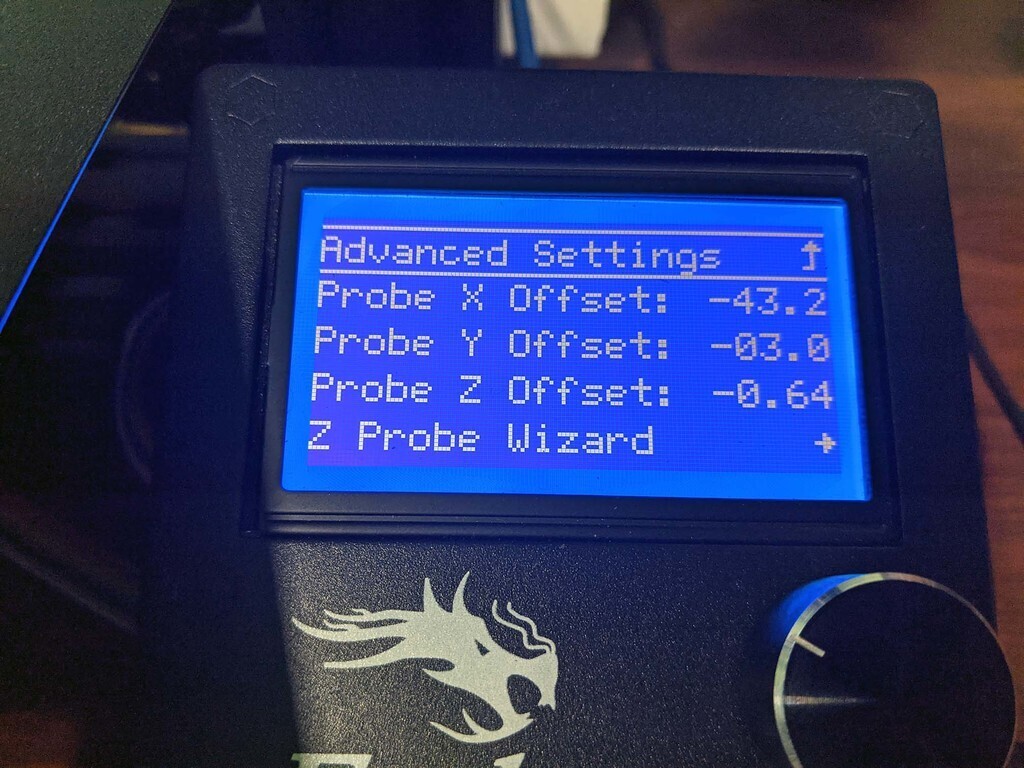

The Probe offsets for this are:
X: -43.2, Y:-3.0

The z-offset was around -0.64 in my setup. But, please verify for your setups.

This can be printed in PLA. But PETG is recommended for longevity.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

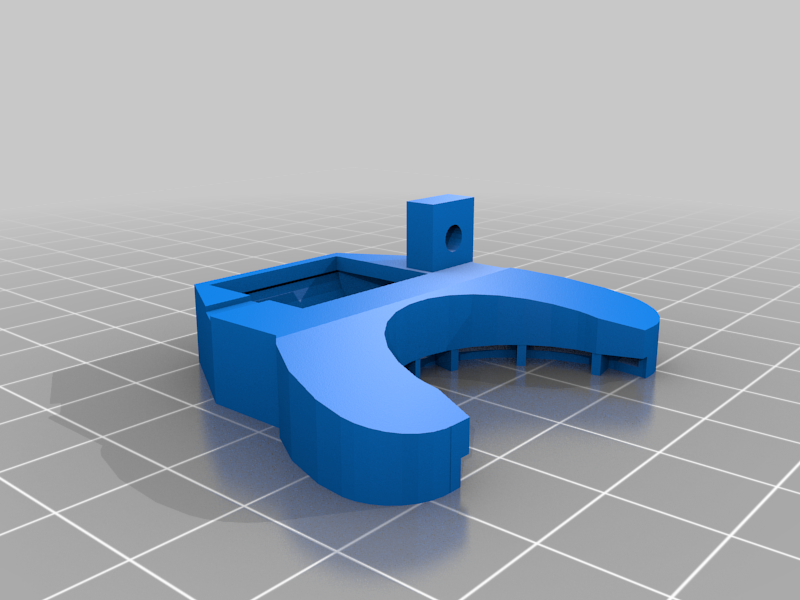

    • Fan_Duct.stl

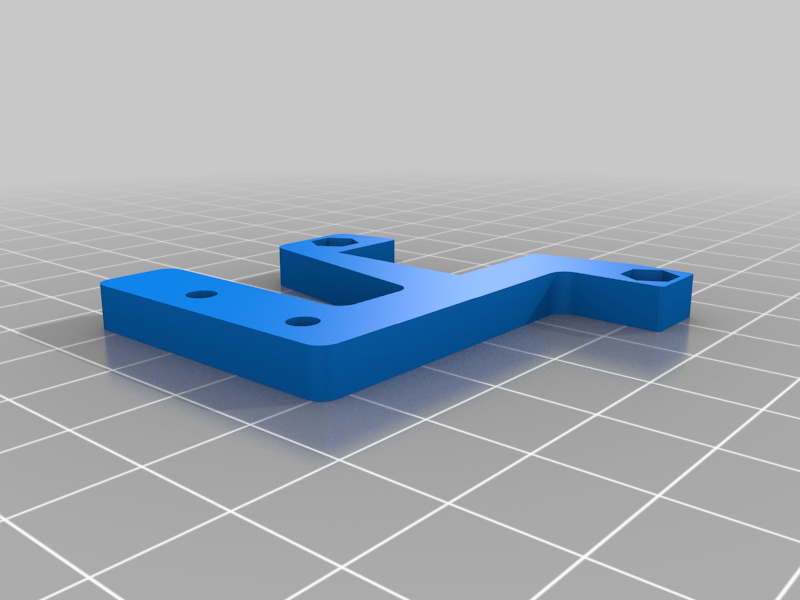

    • Fan_Mount_w_Air_Gap.stl

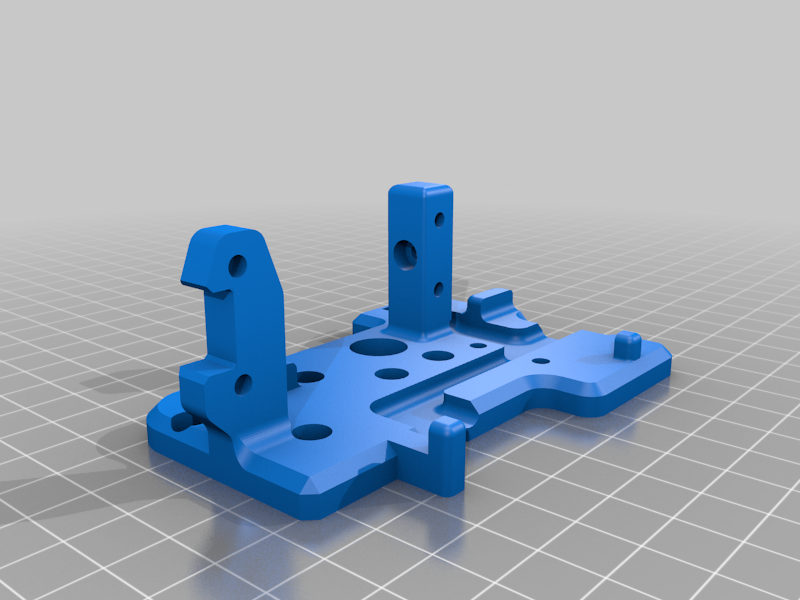

    • Mounting_Plate_w_CR-Touch.stl

    Learn more about the formats

  • Publication date: 2022-02-13 at 01:03
    ?
    Published to Thingiverse on: 2022-02-12 at 21:03

License

CC BY
