Bigtreetech SKR V1.4 Mount for 2040 Extrusion

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 3 likes
  • 58 downloads

3D model description

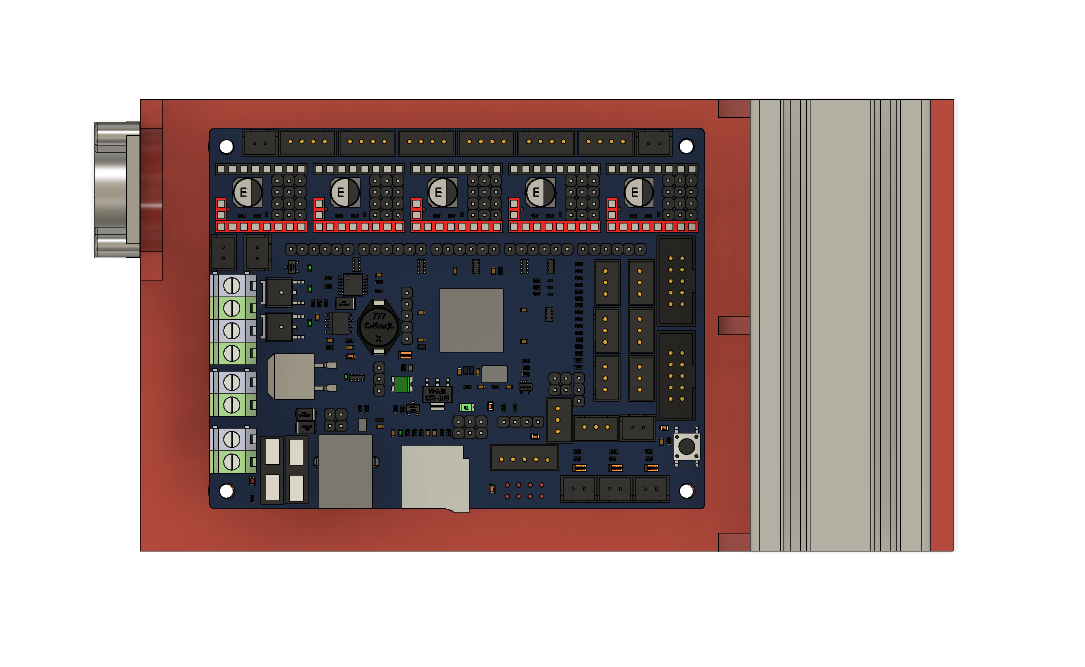

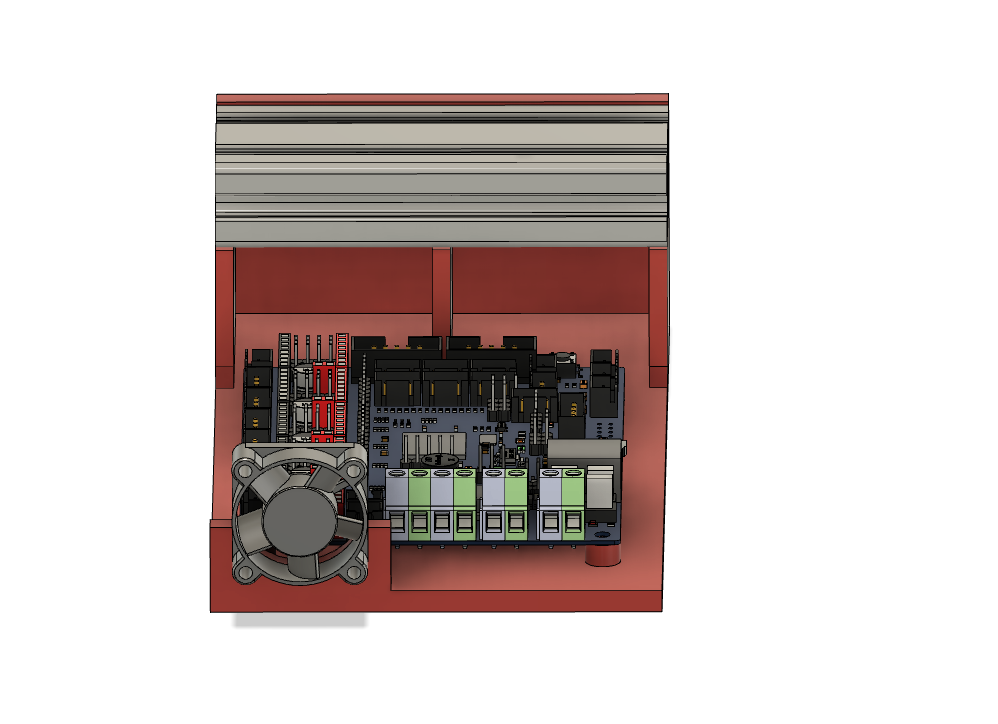

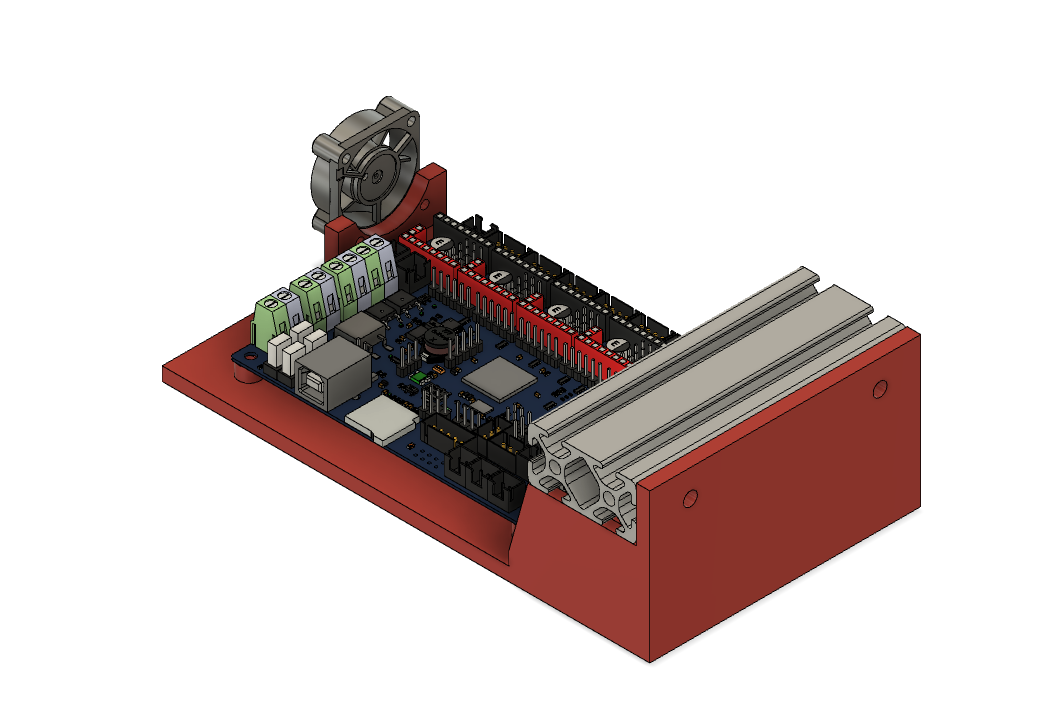

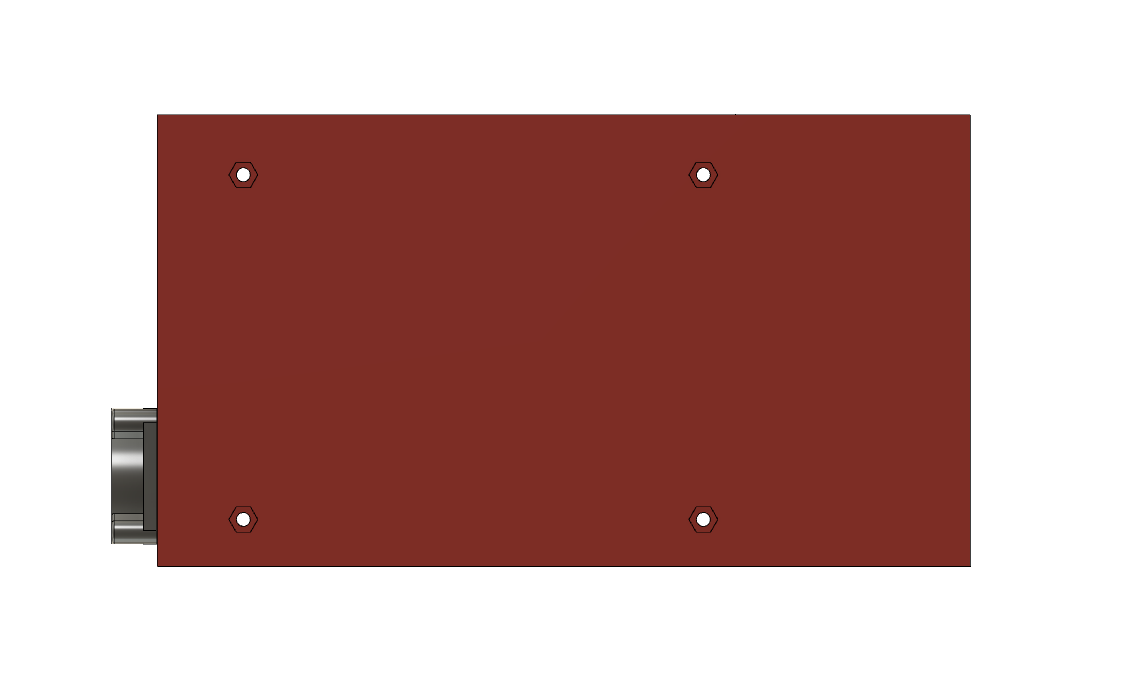

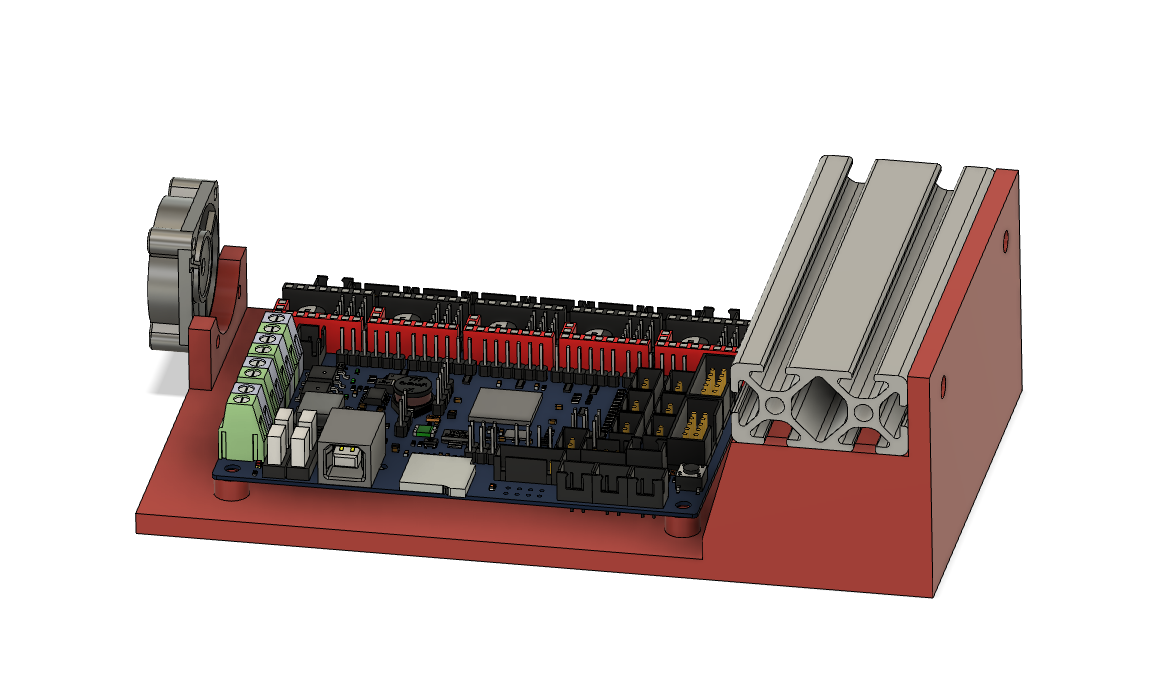

Just a simple undermount for 2040 extrusion printers. I made this to fit my Eryone Thinker S but should fit similar style printers as well as long as there is clearance below the 2040 extrusion.

This will fit the Bigtreetech SKR v1.4, v1.3, and MKS Gen L control boards as they all have the same mount hole spacing.

#Parts Needed
##Control Board to Mount:
4@ M3 x 10 Bolts(Control Board)
4@ M3 Nyloc Nuts

##Fan to Mount:
2@ M3 x 15 Bolts

##Mount to 2040 Extrusion:
2@ M5 x ~10 Bolts
2@ M5 T-Nuts

  • 3D file format: STL
  • 3D model size: X 180 × Y 100 × Z 55 mm
  • Publication date: 2020/01/14 at 16:18

Tags

Creator

License

CC BY NC SA
