3D model description

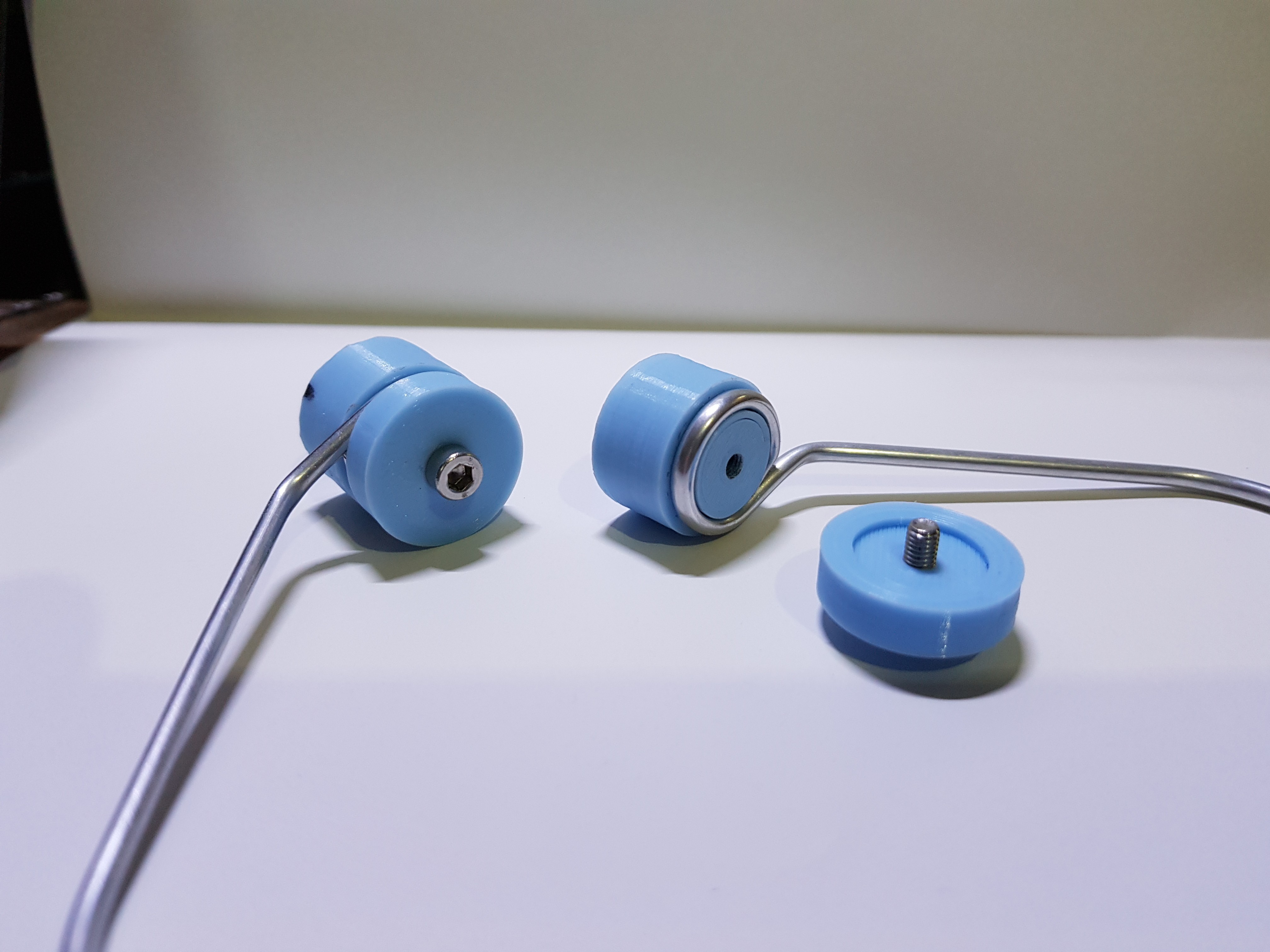

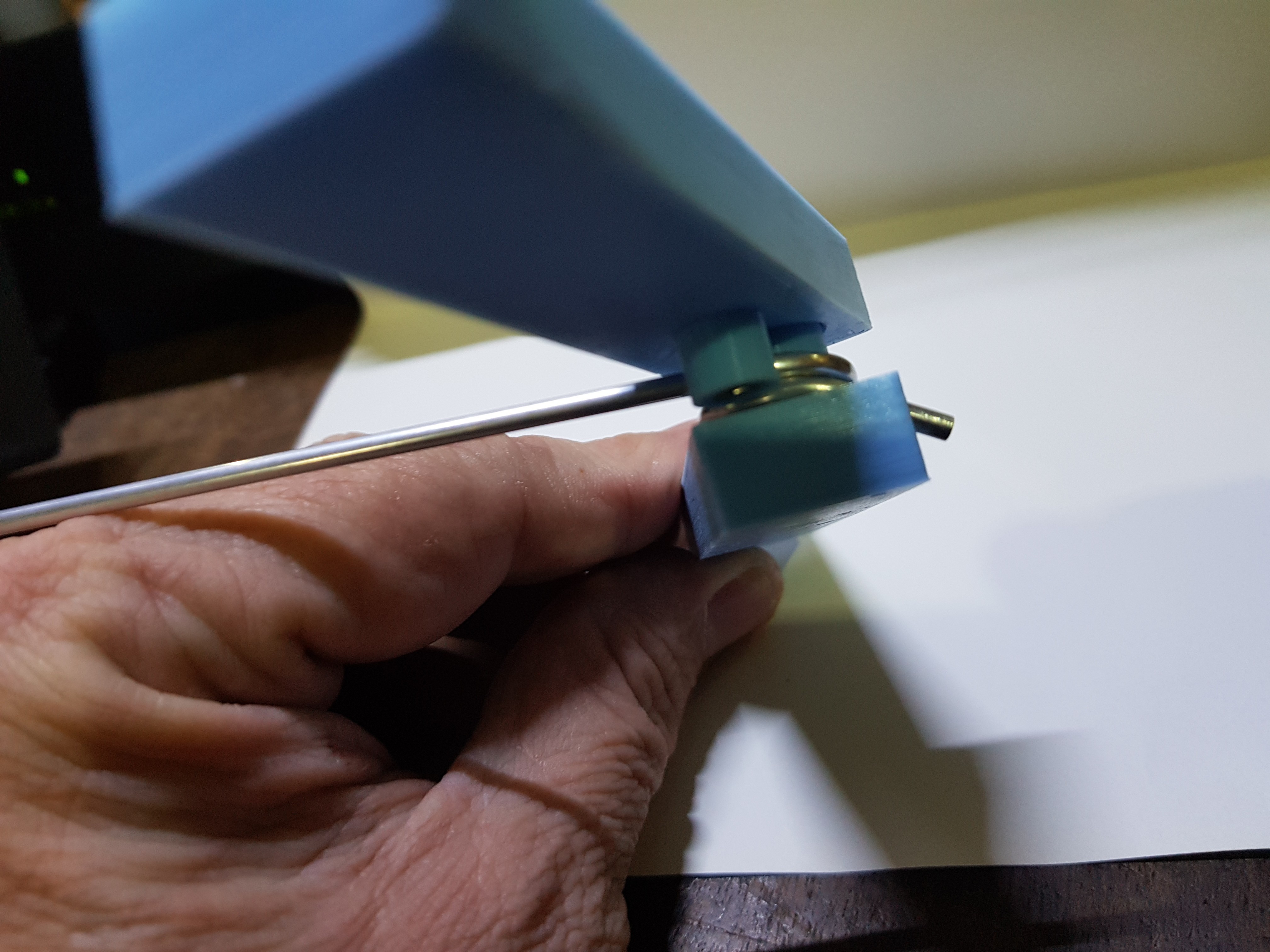

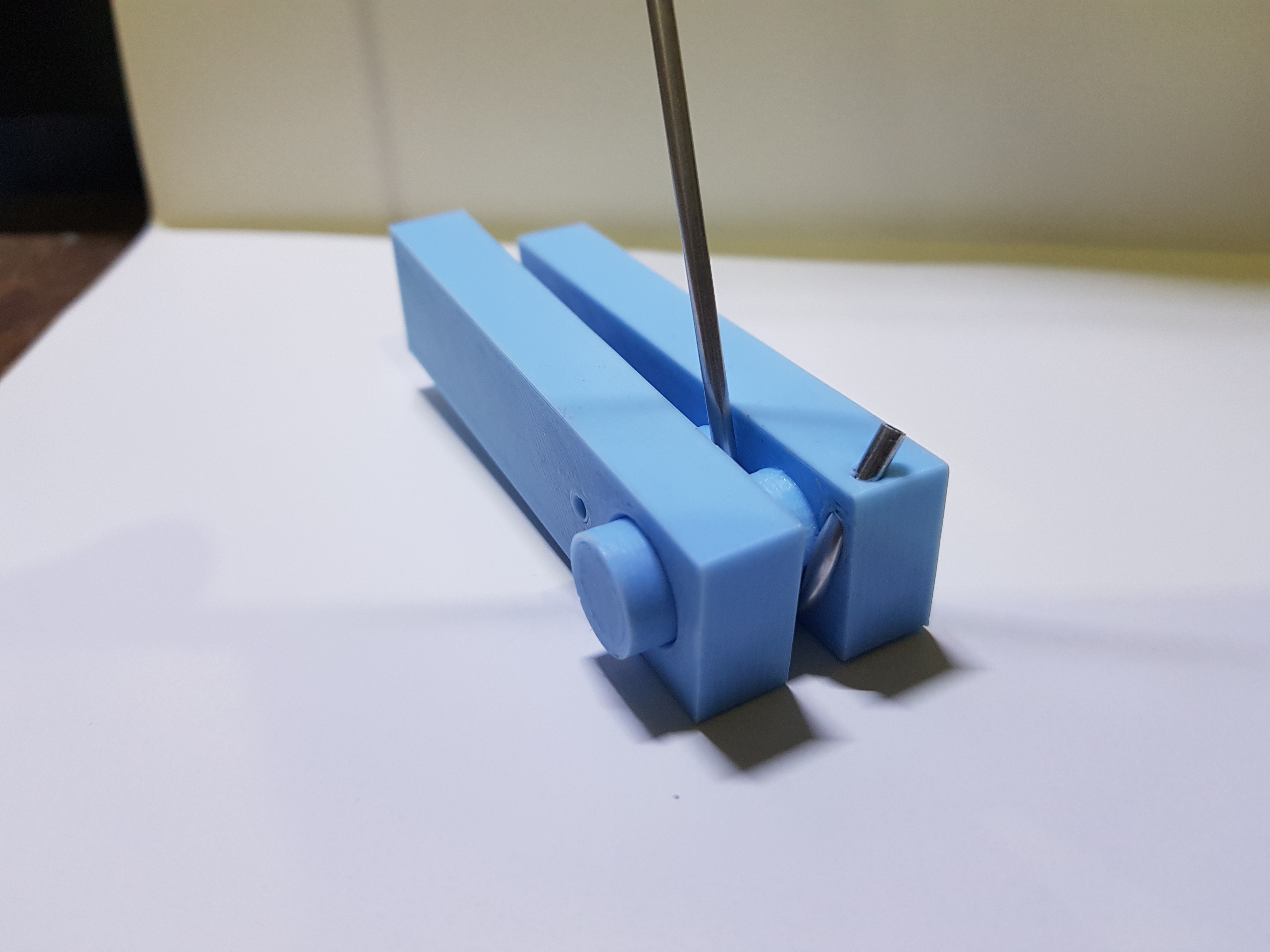

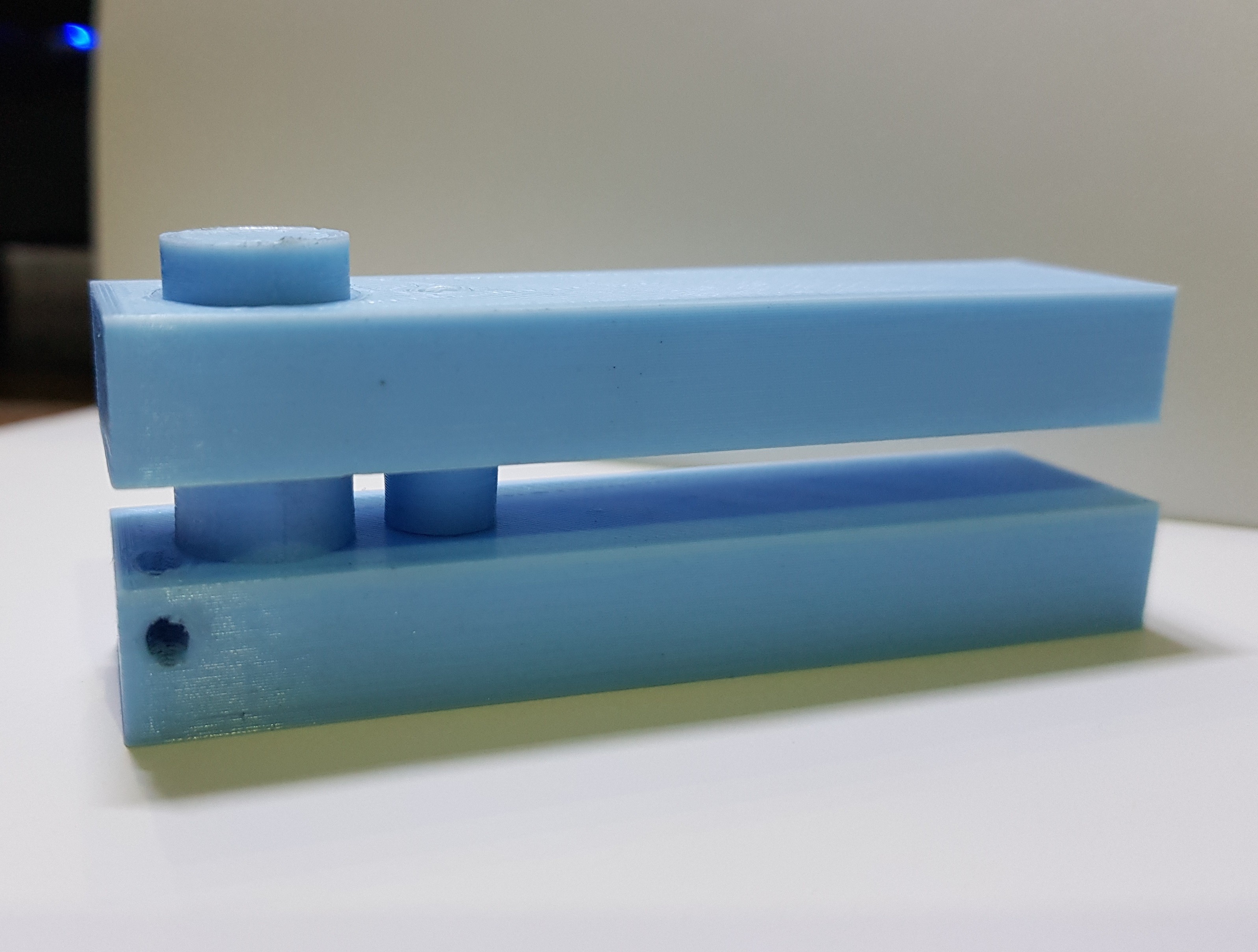

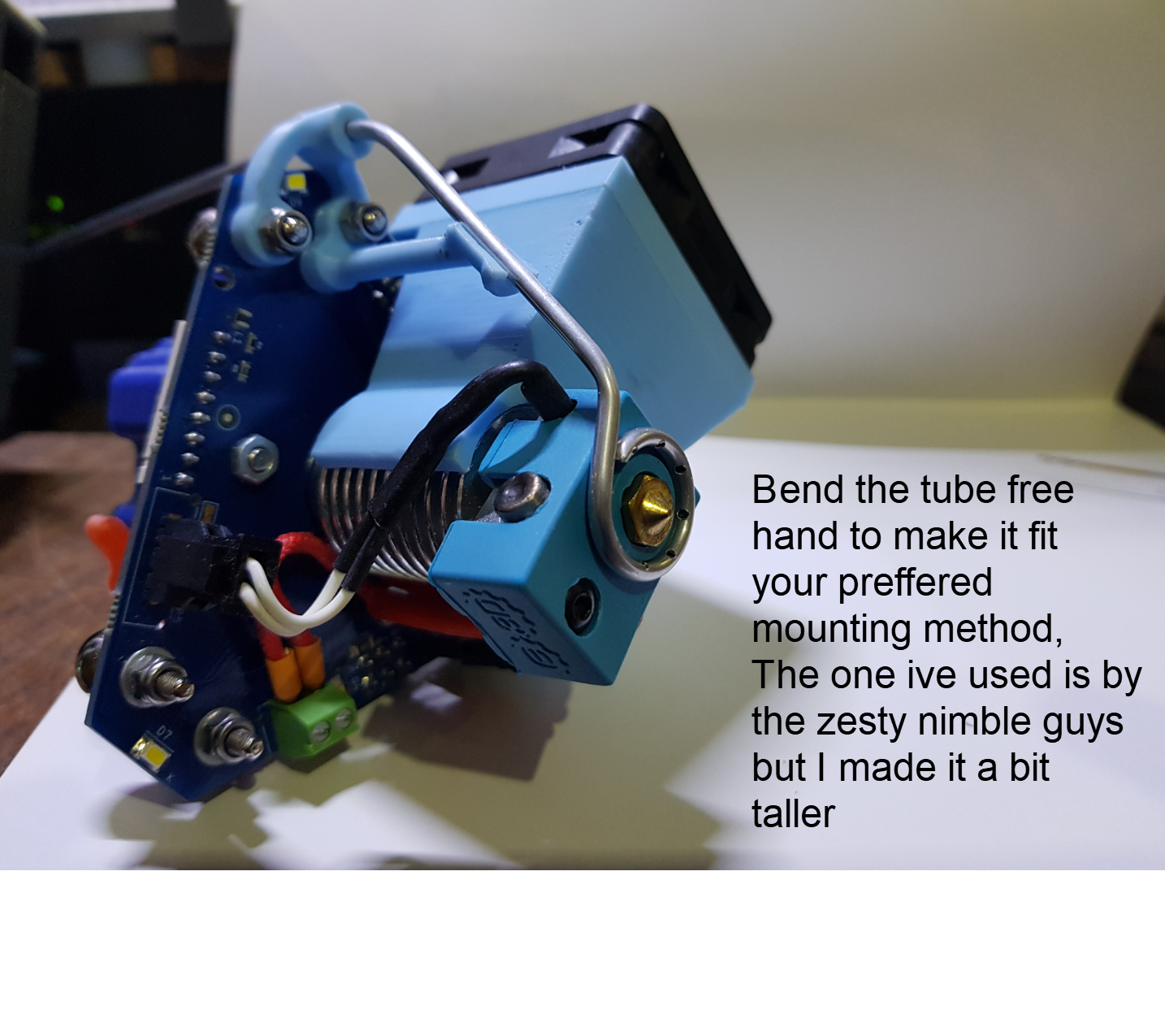

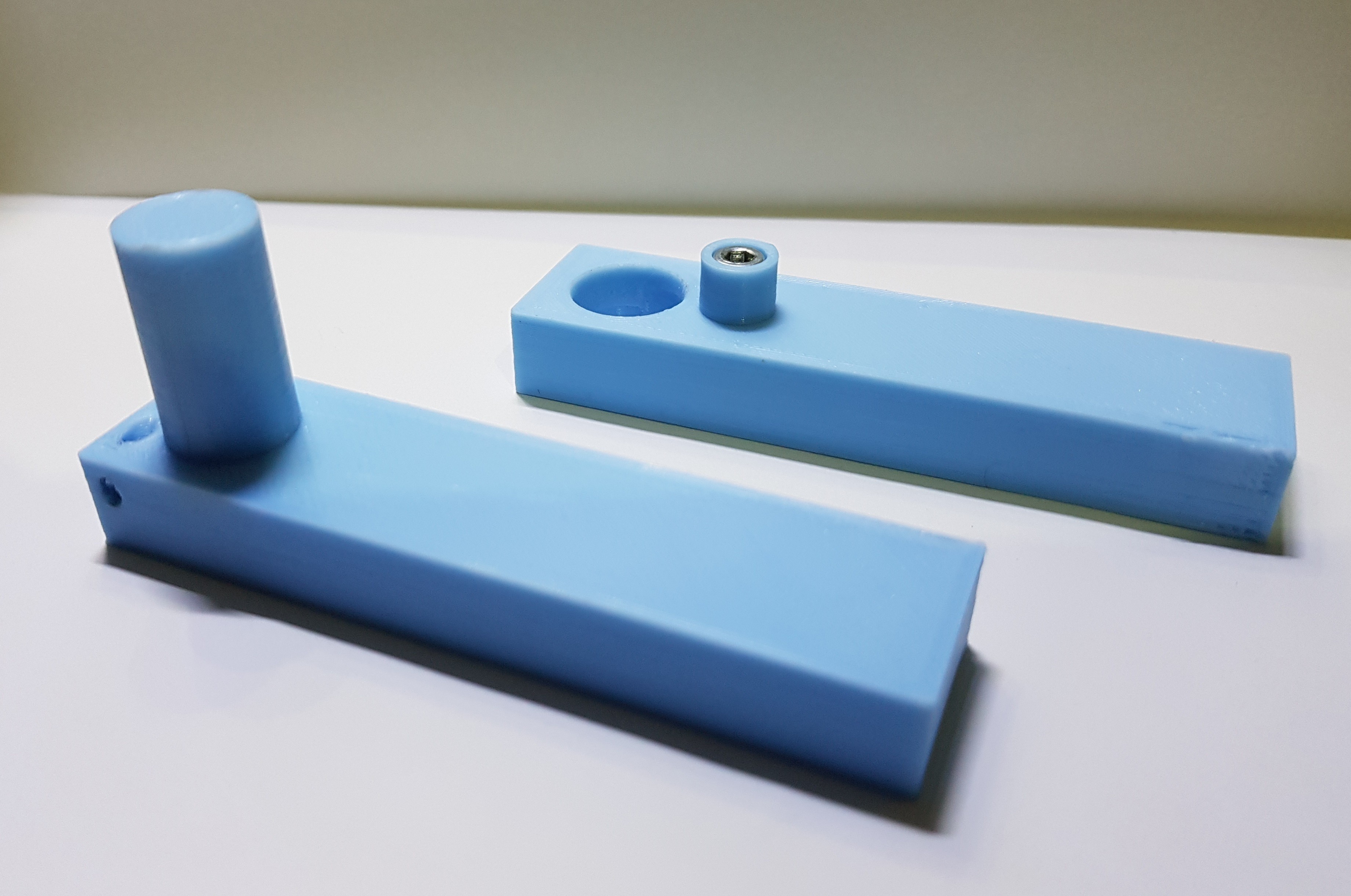

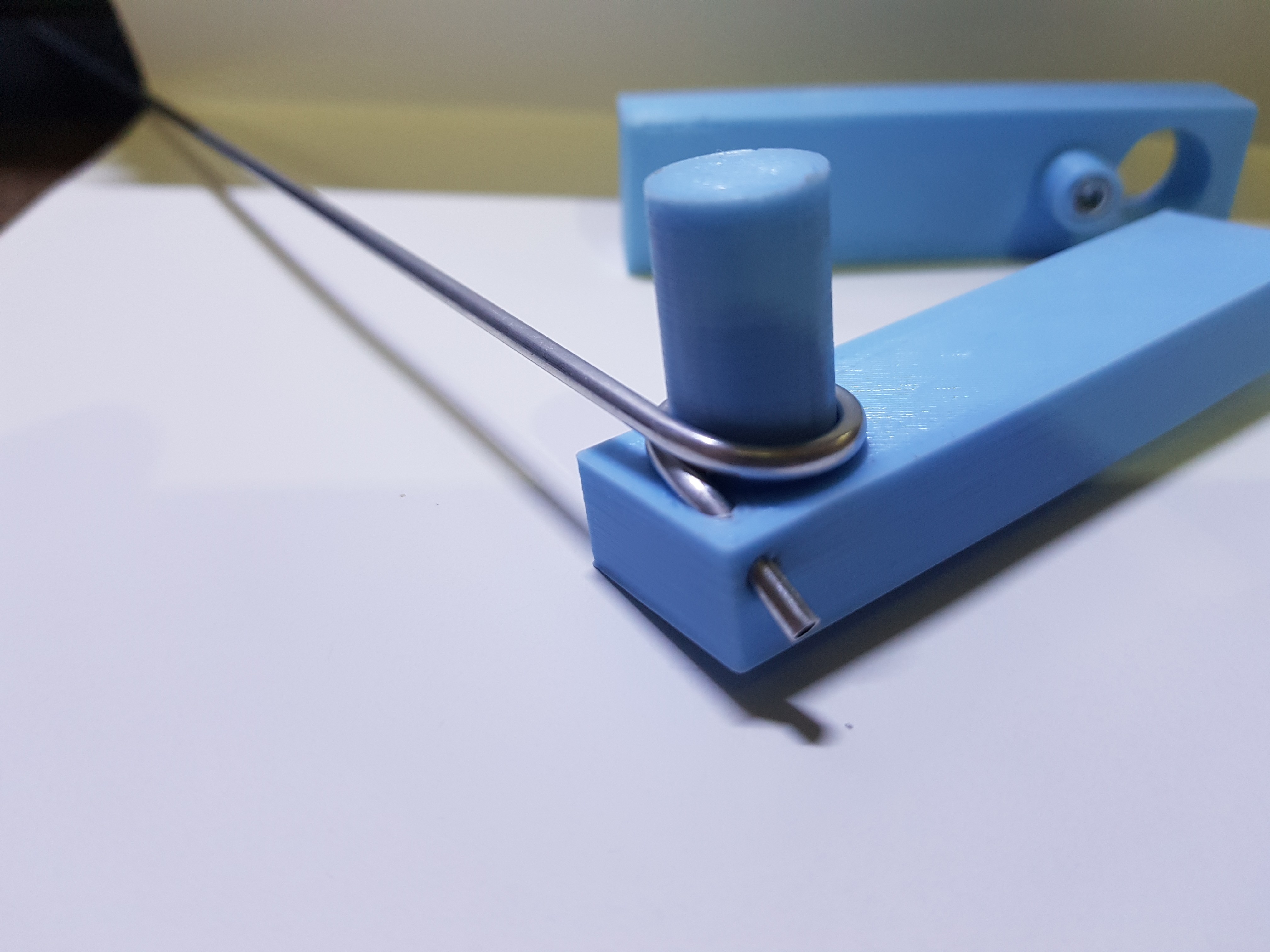

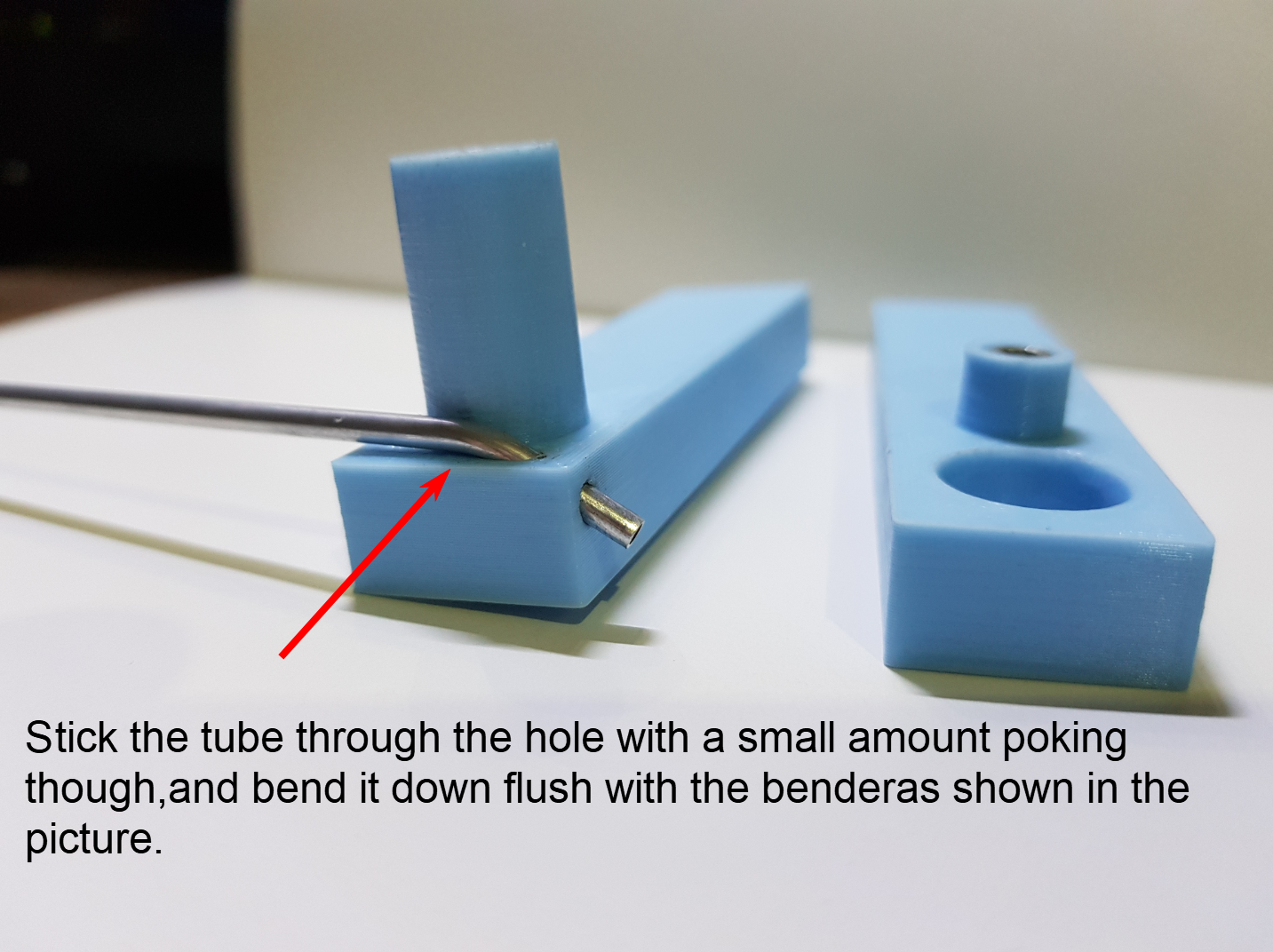

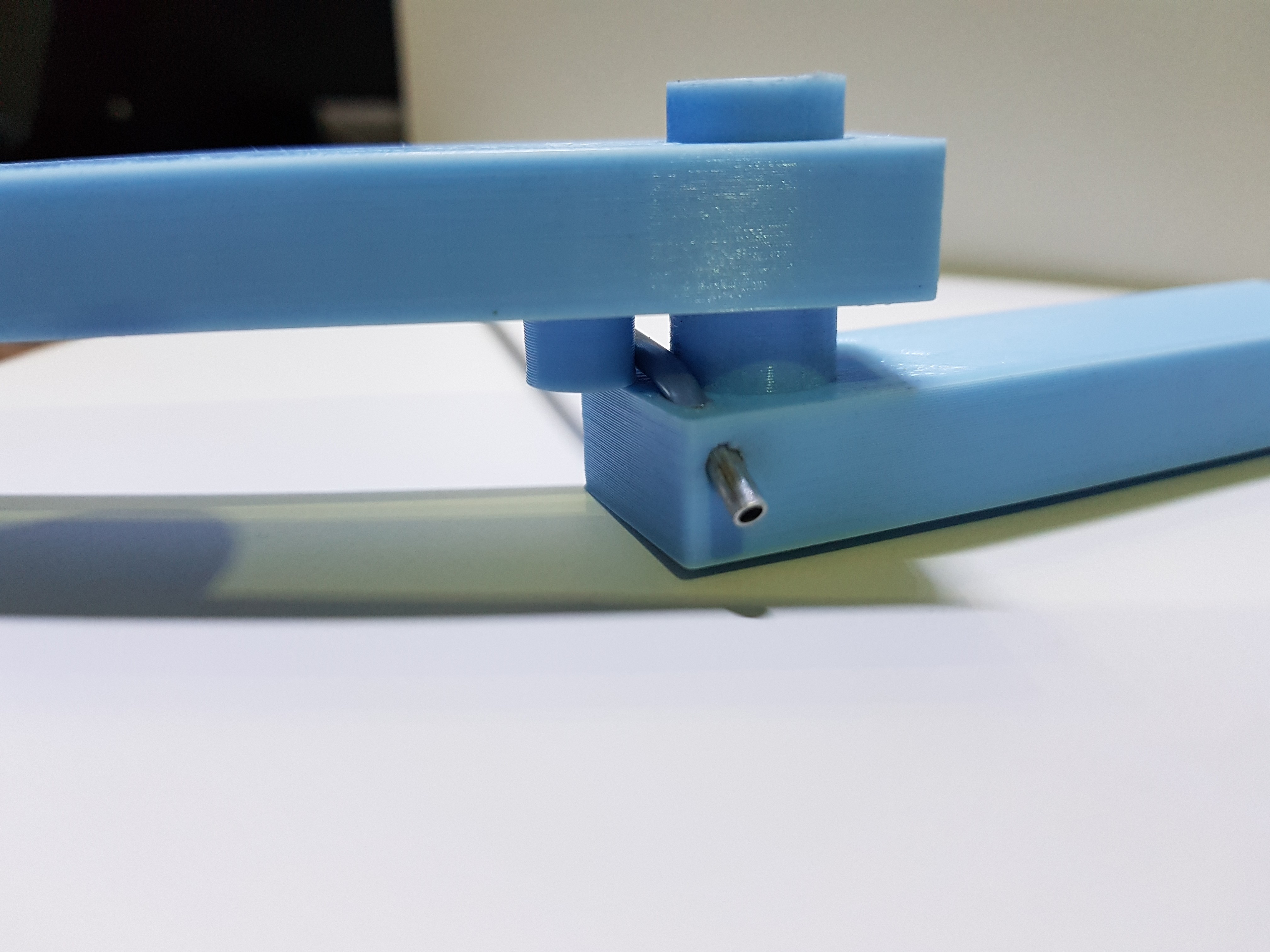

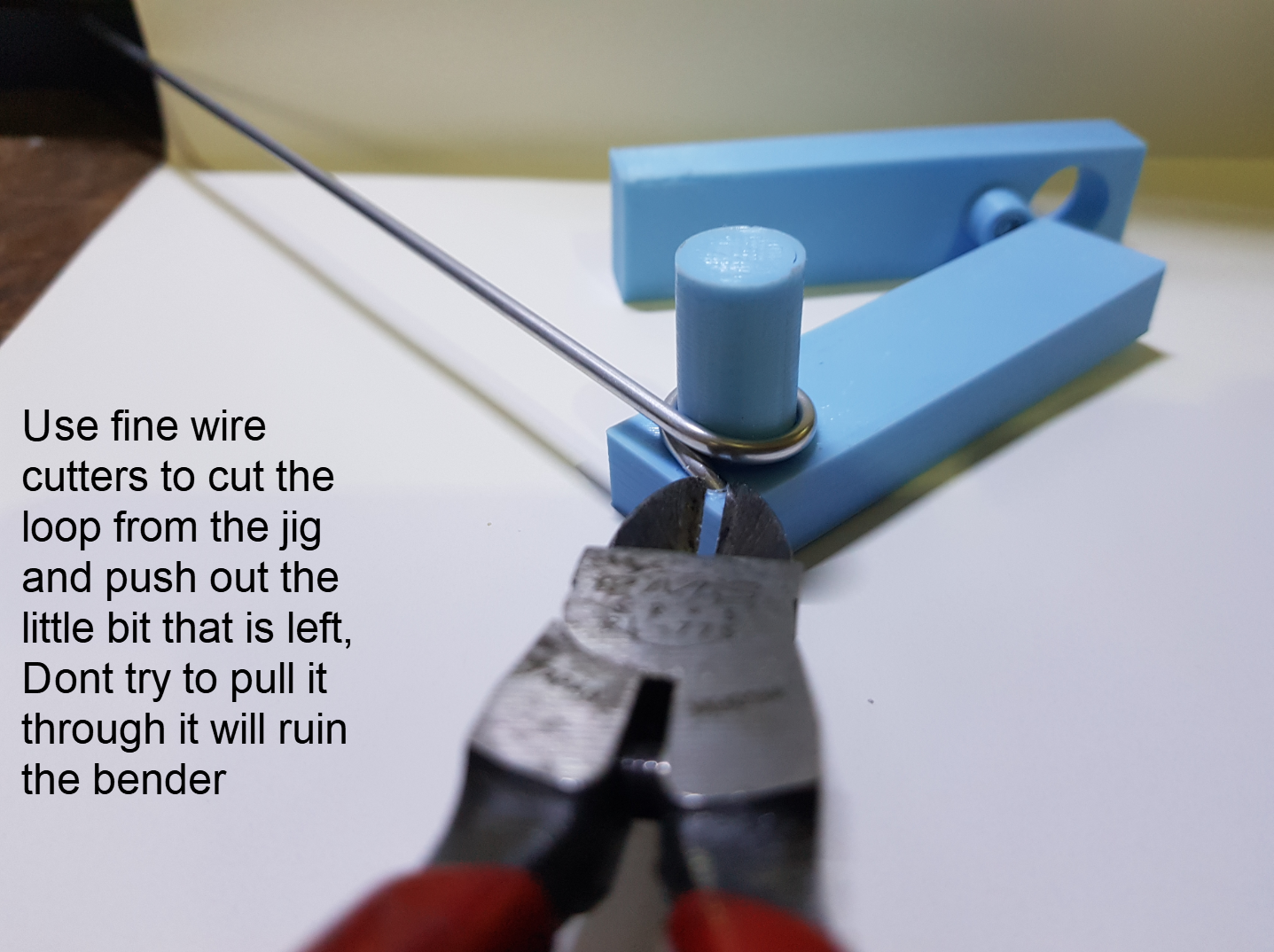

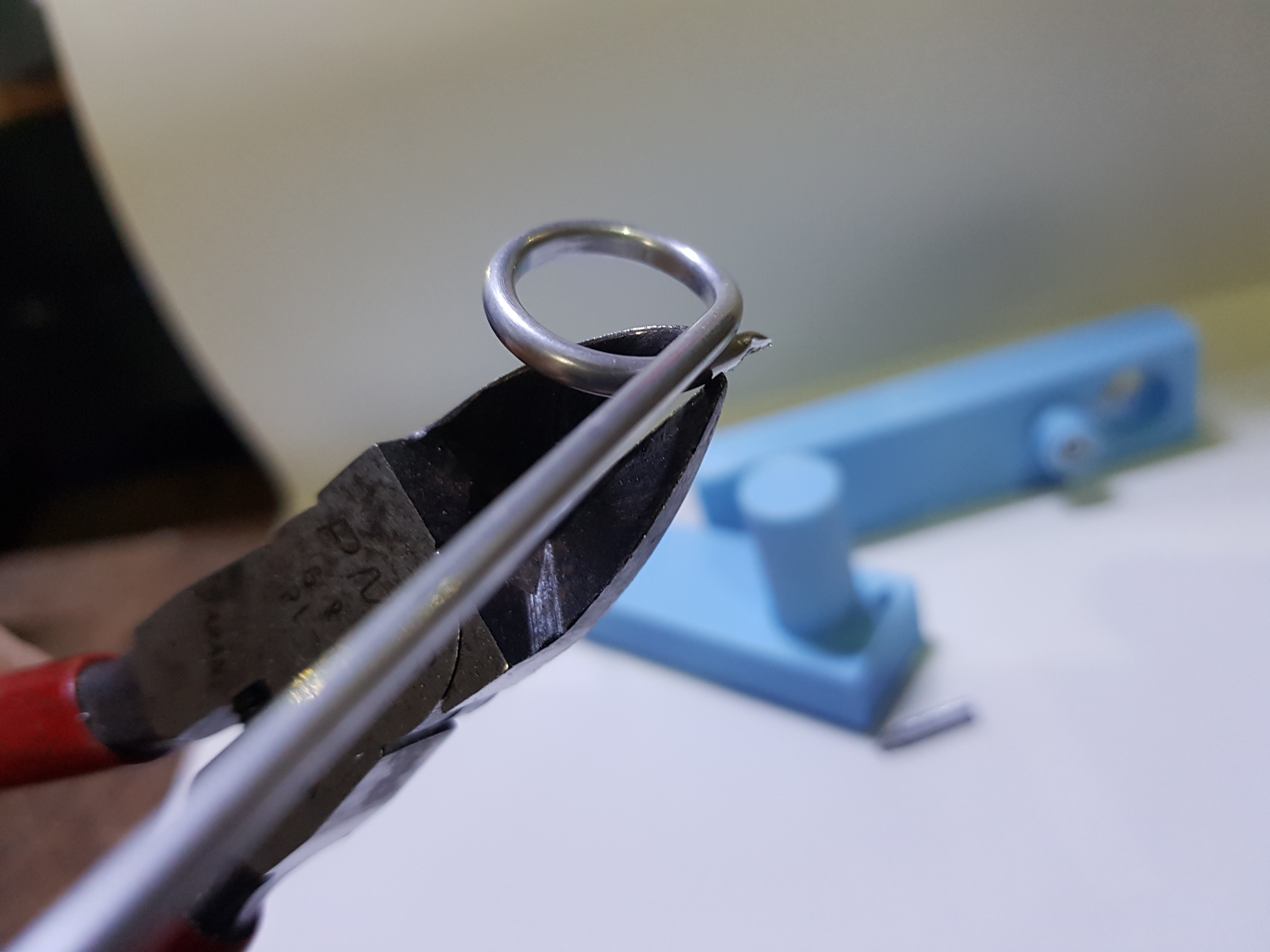

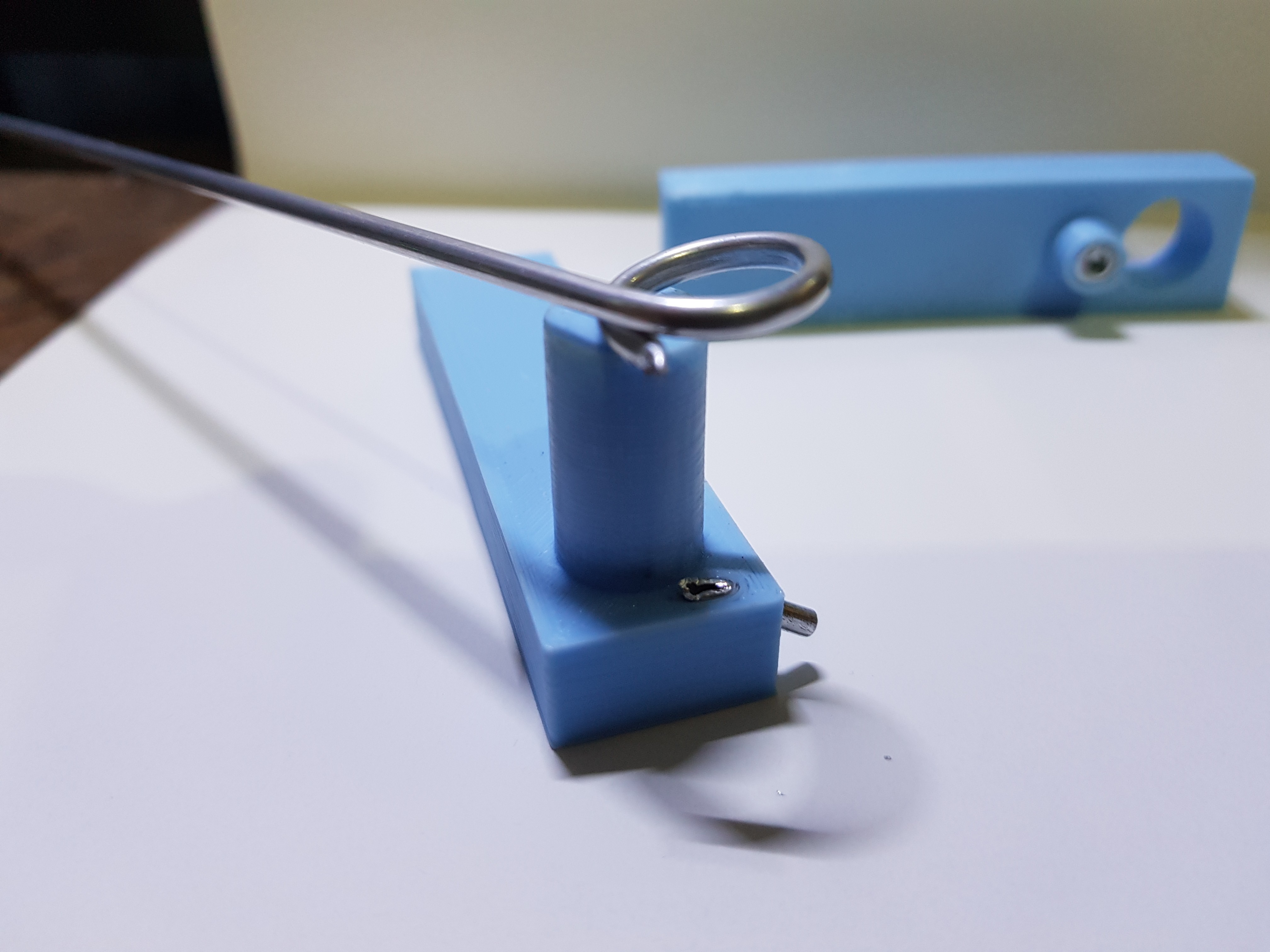

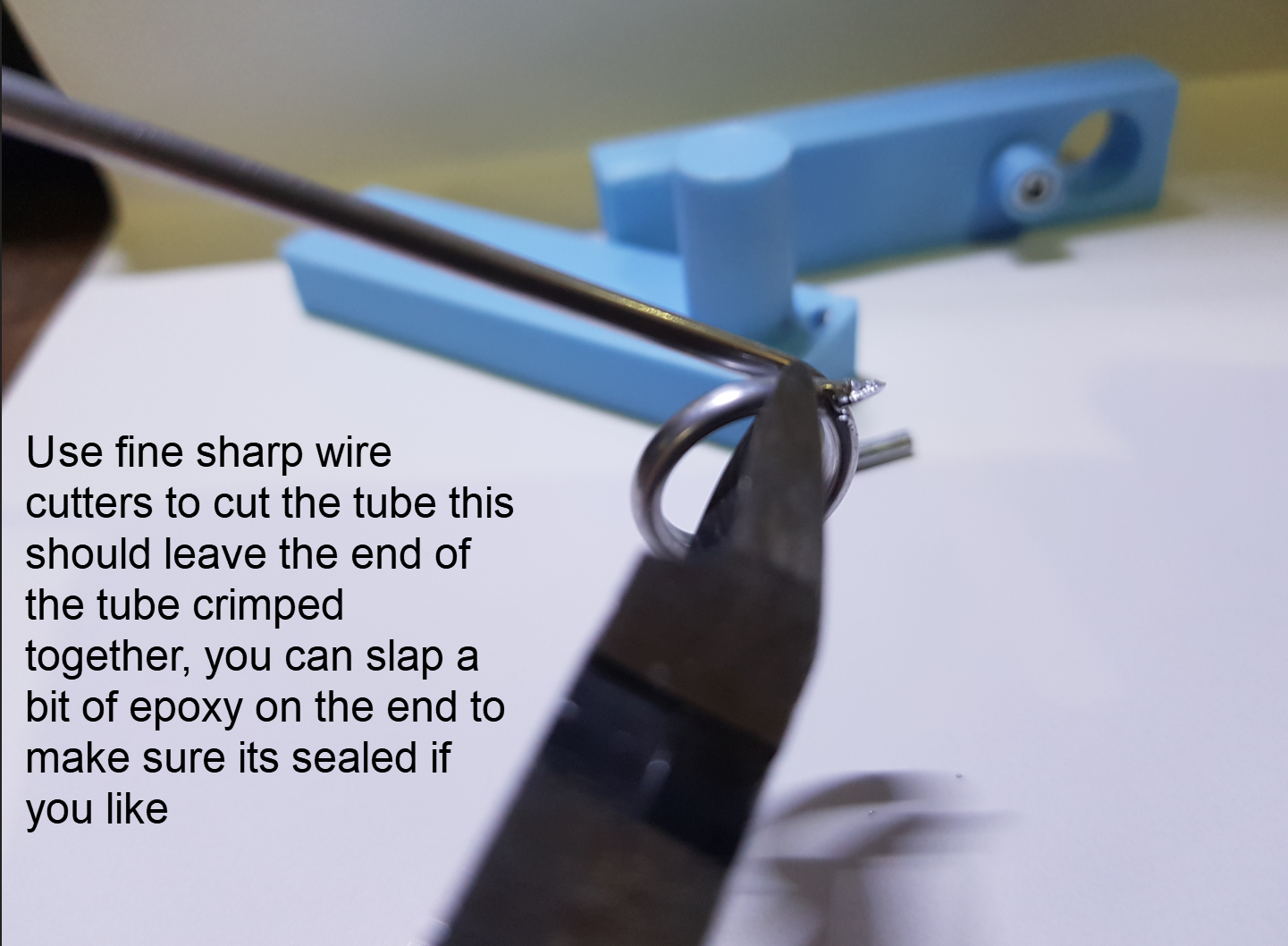

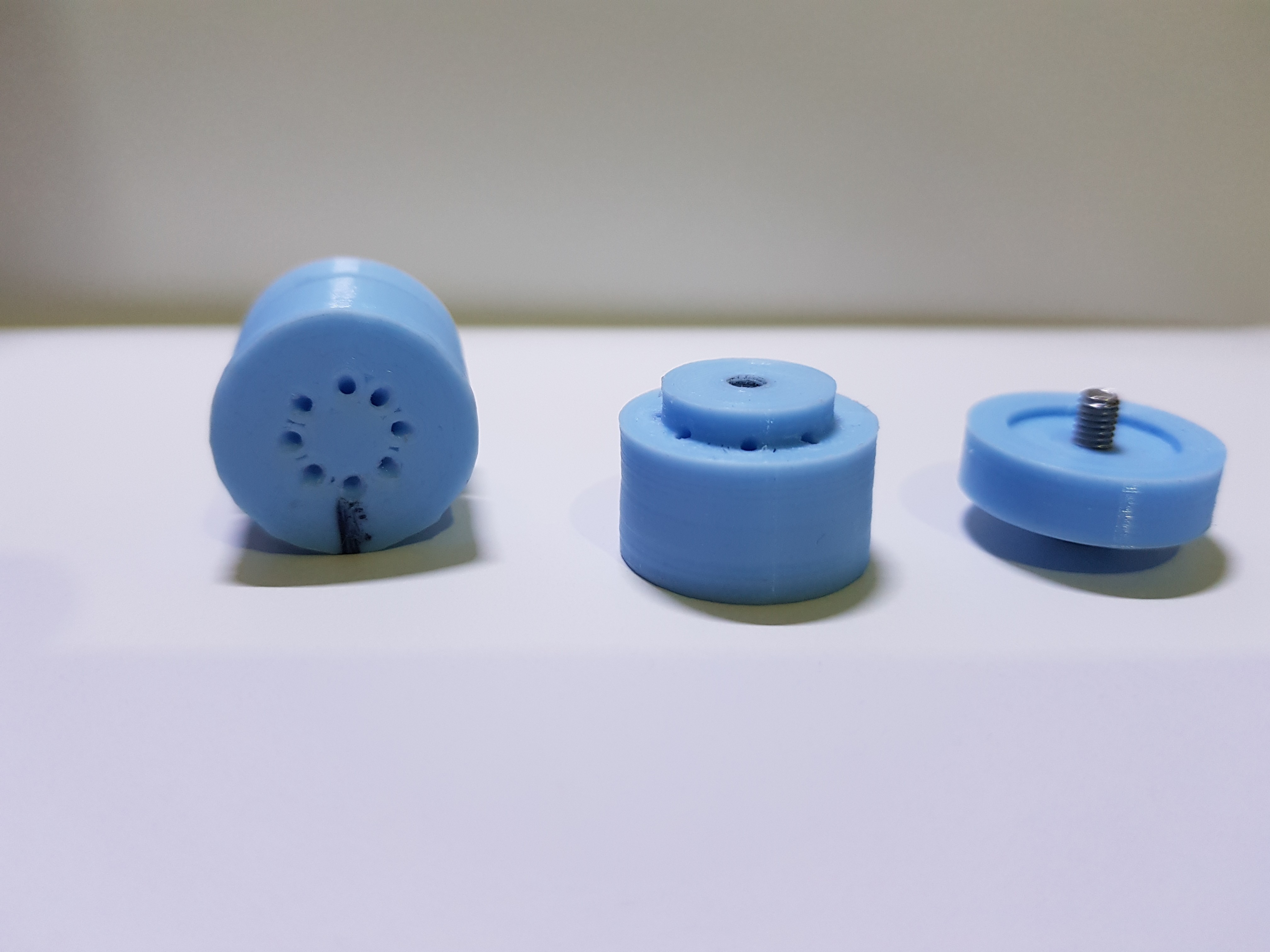

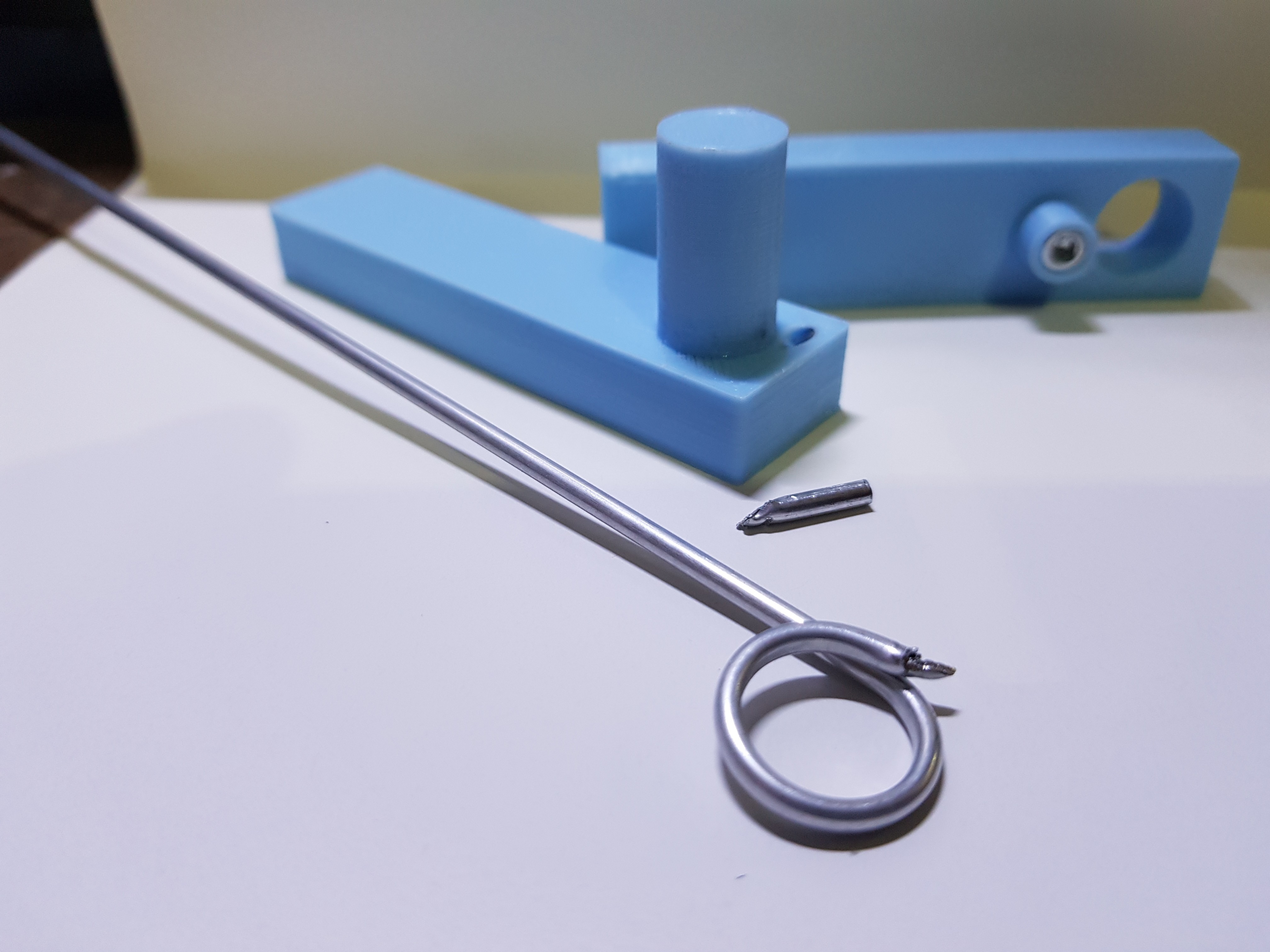

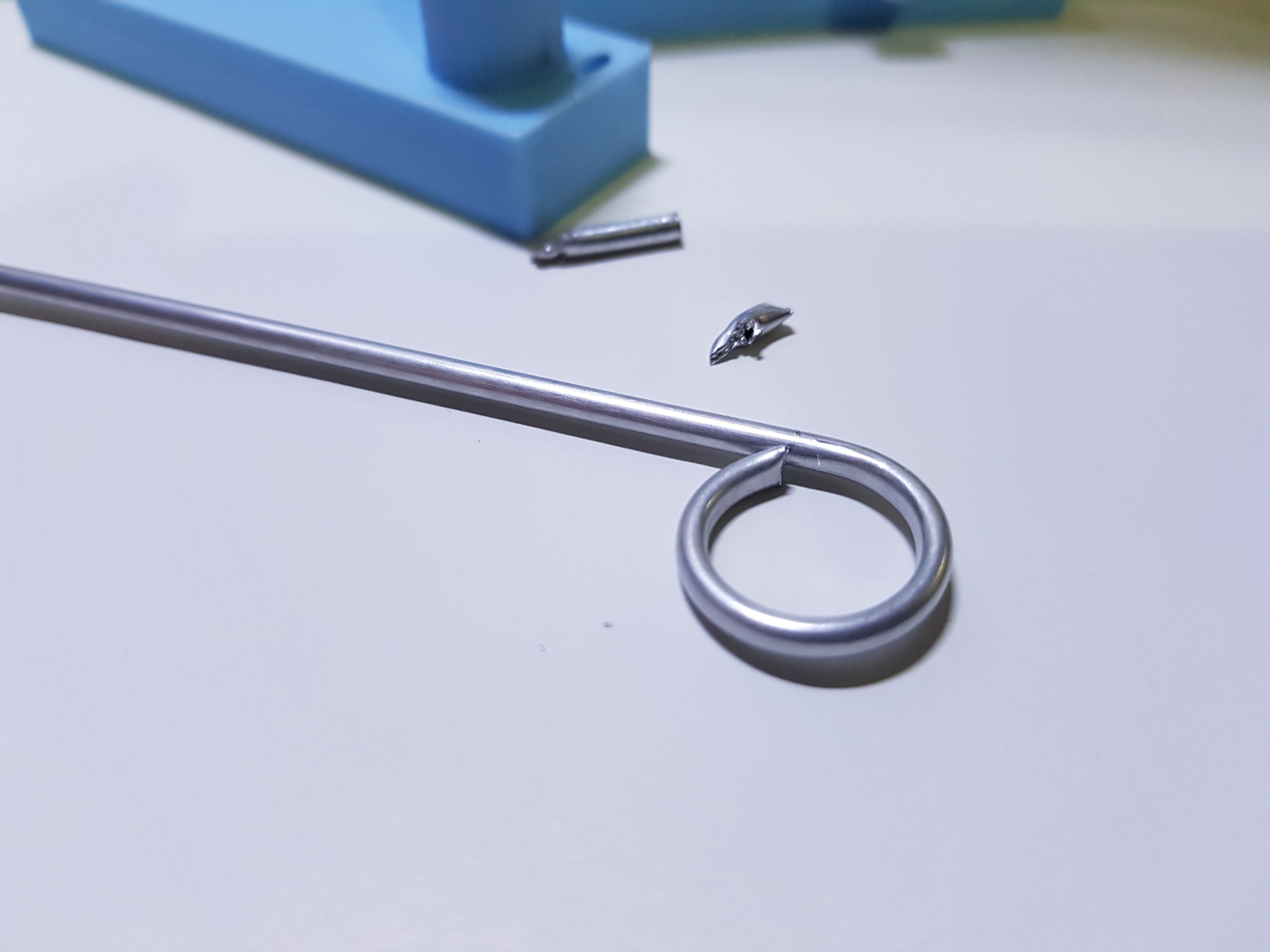

This is my own design of a berd air bending and drilling jig, I have included several pictures to show how it is used,

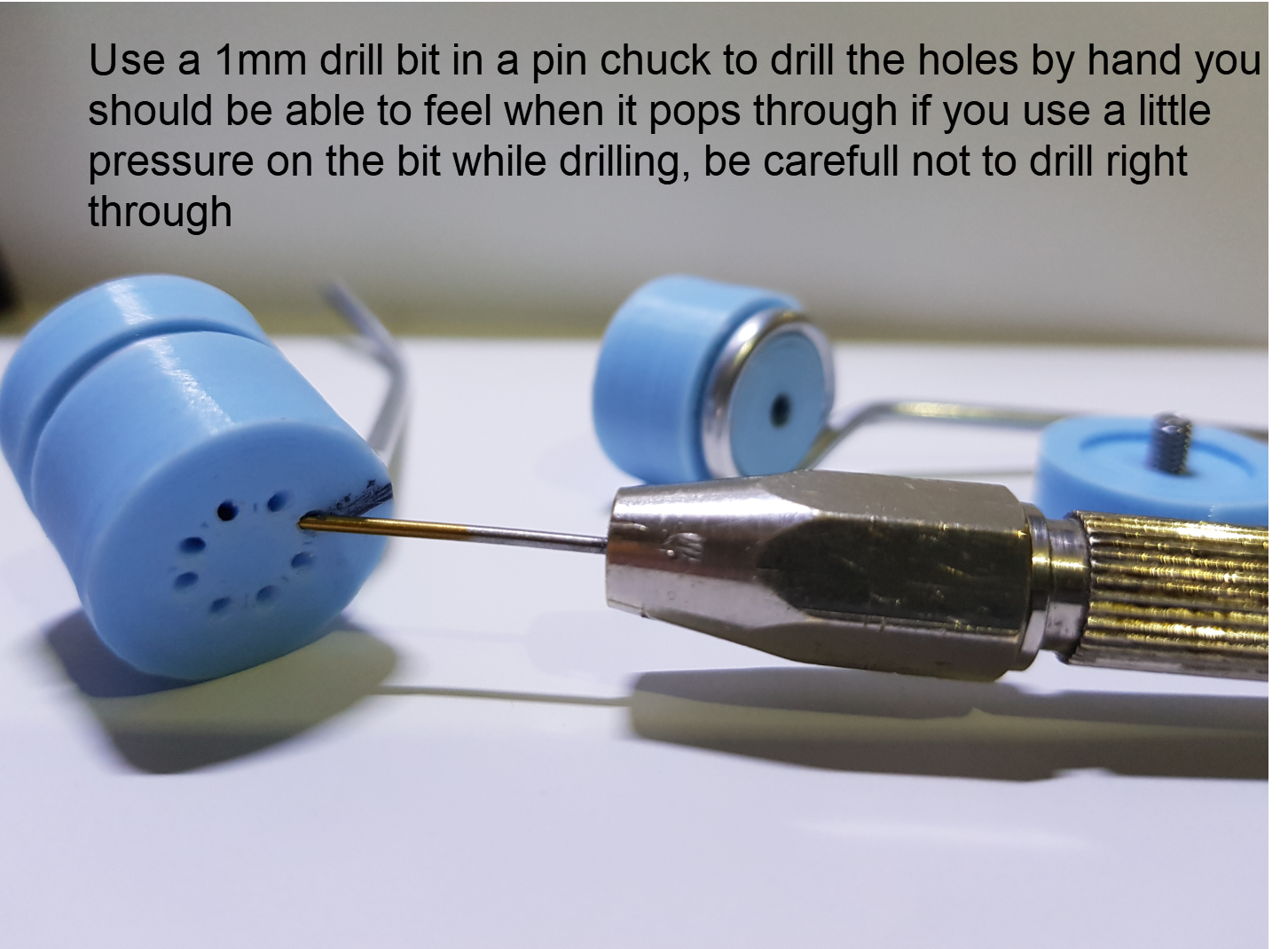

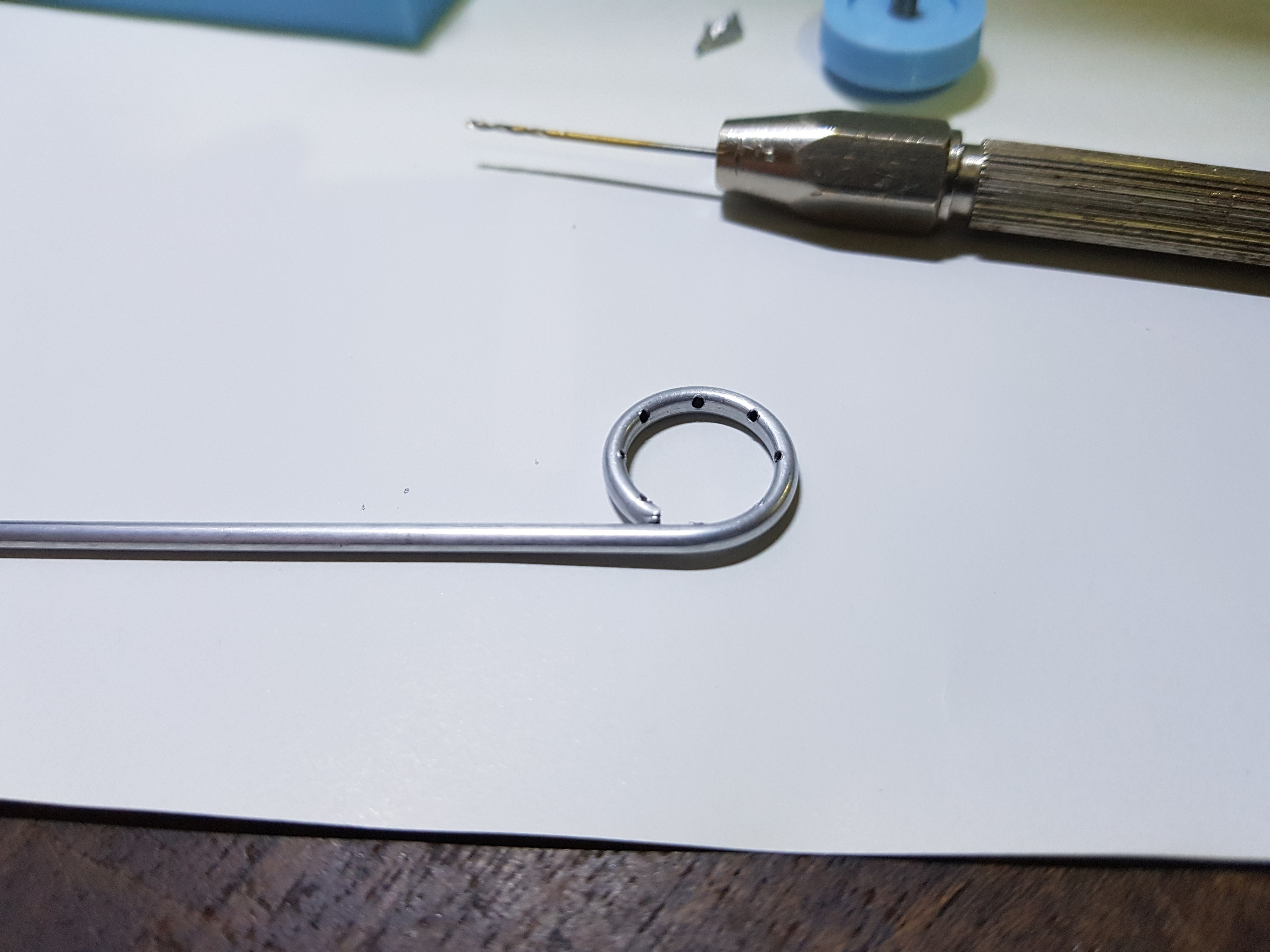

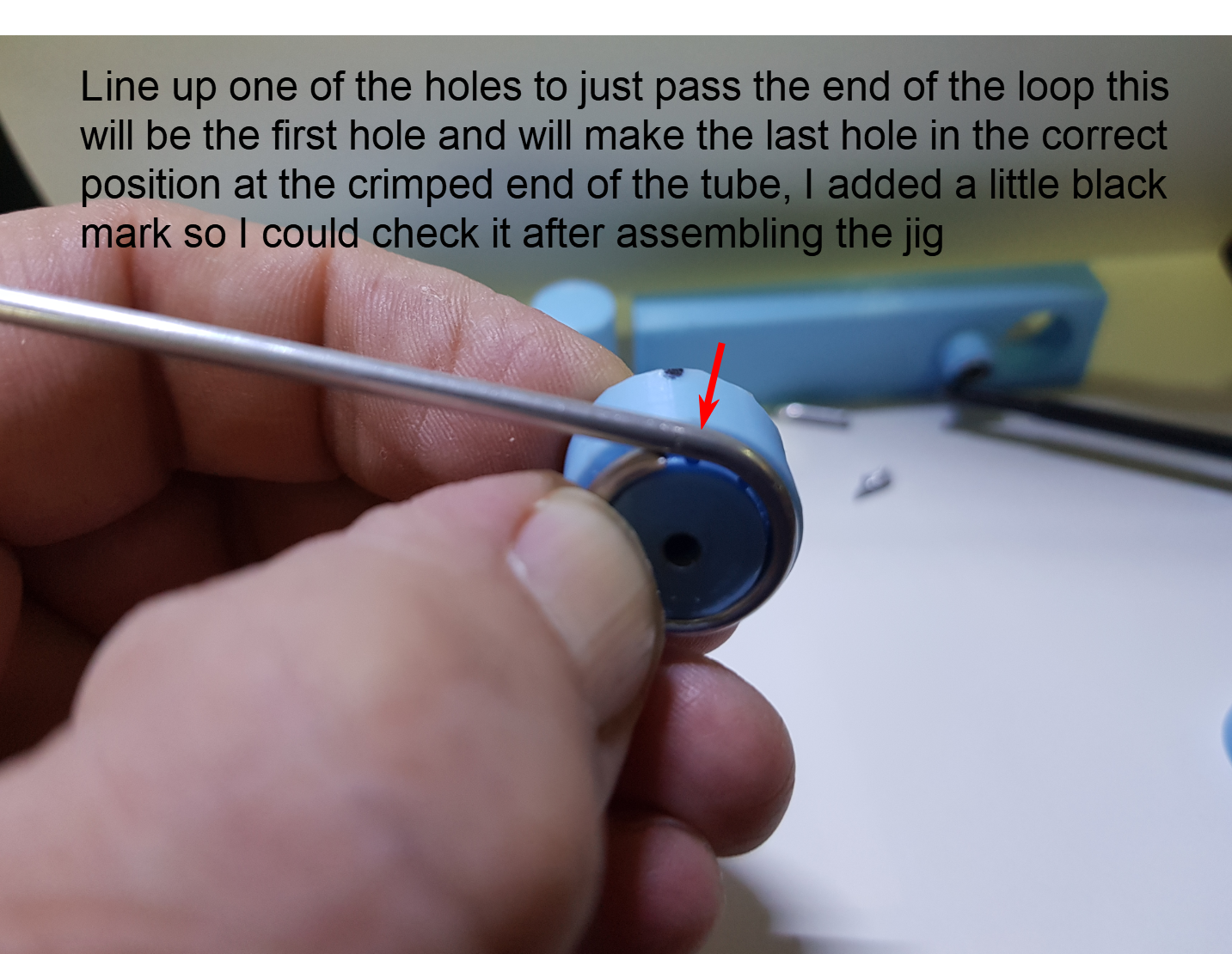

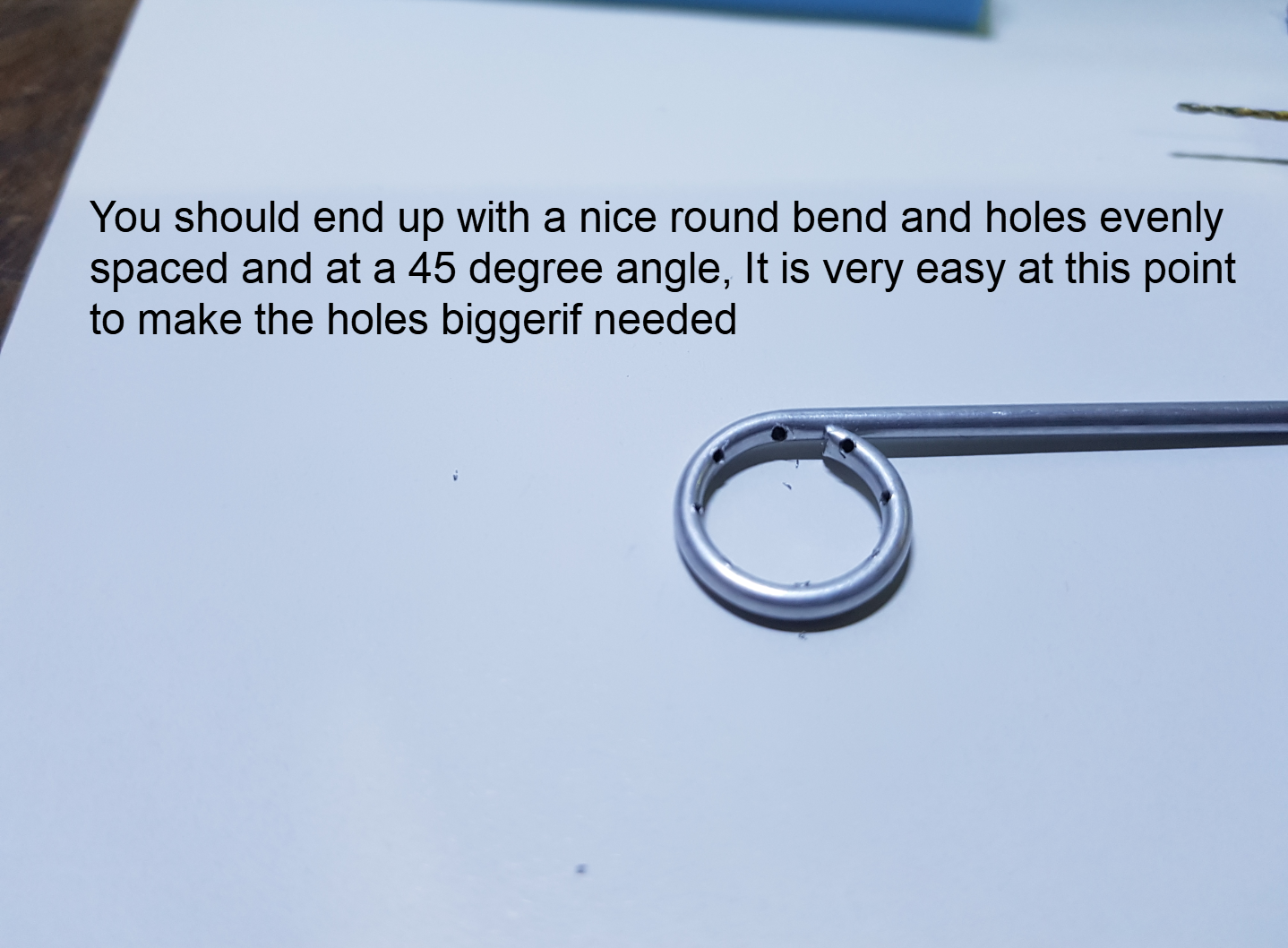

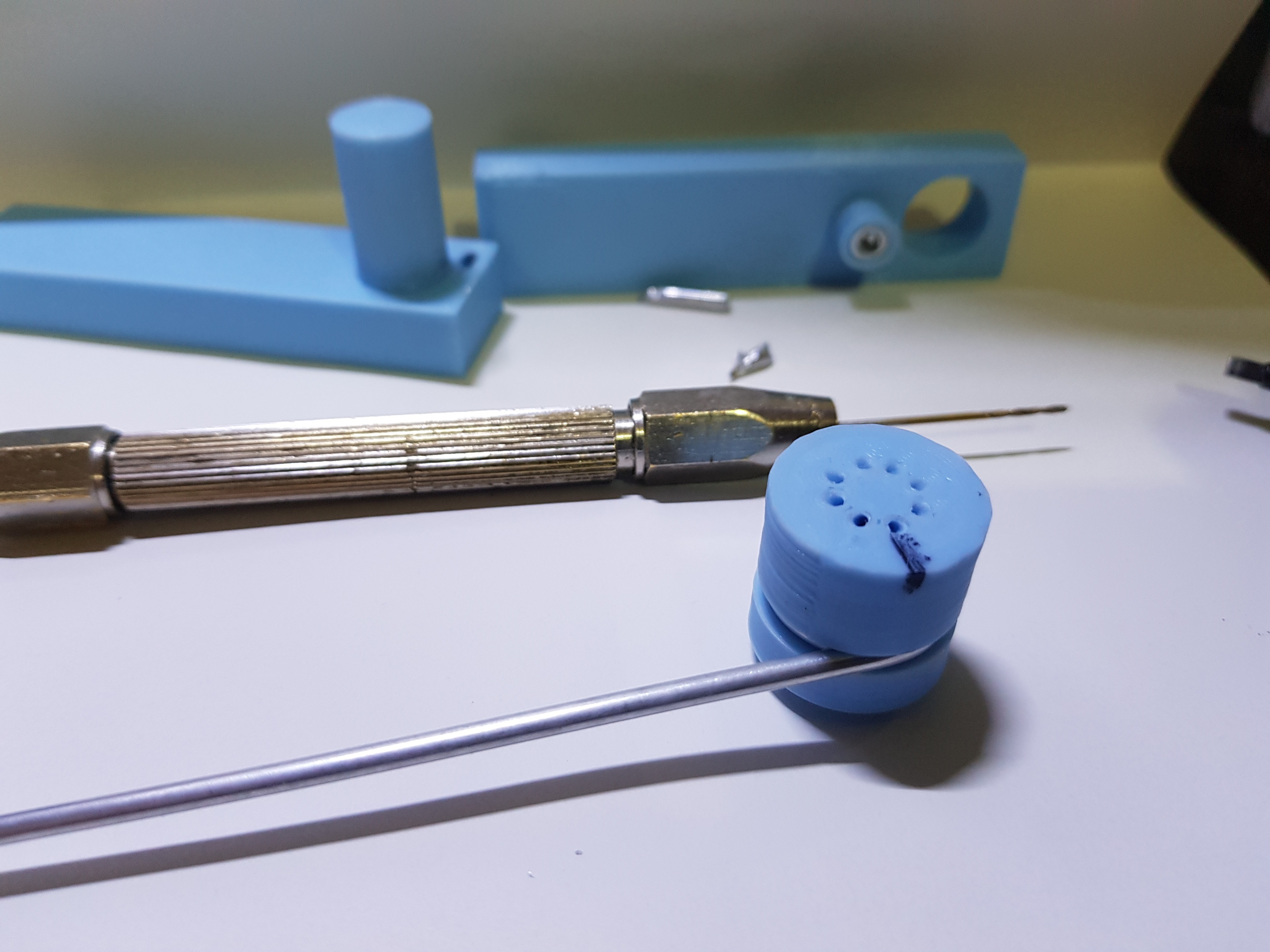

The holes in the tube are at 45 degrees the reason for this was because I found the normal straight drilled tubes didn't cool fine points to well and the nozzle heat would spoil the finish,
The aluminium tube used was K & S 8101 Round Aluminium Tube (Pack of 3) 3/32" Dia x0.014" Wall and can be found here

https://www.ebay.co.uk/itm/K-S-8101-Round-Aluminium-Tube-Pack-of-3-3-32-Dia-x0-014-Walls-x12-Long1st/361287460750?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649

NOTE:

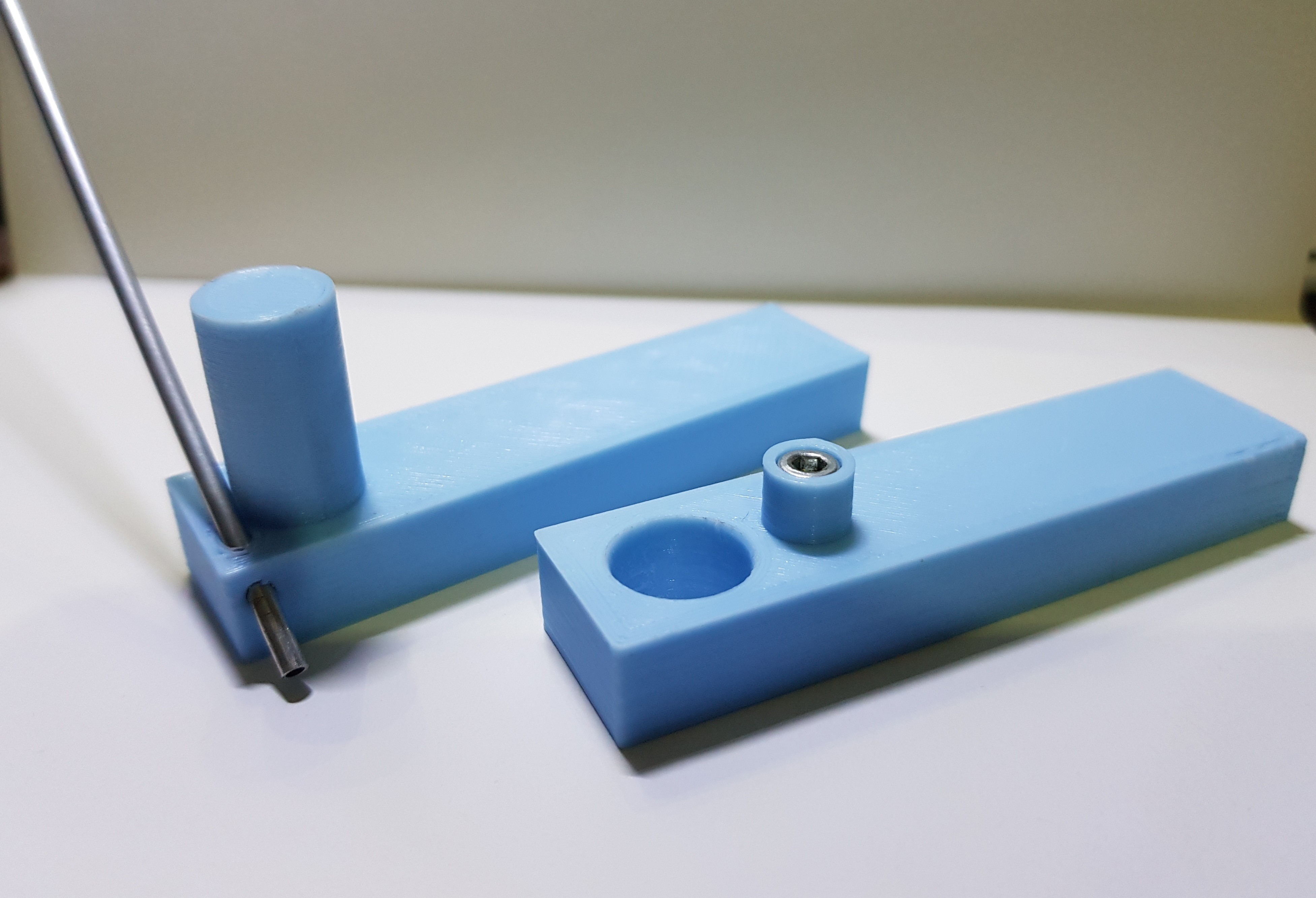

You may need to use a little wet and dry to sand the bender centre pin to a nice fit or ream the hole

I have just added two new drill jgs to this design a new 45 degree jig and a straight hole jig for those that don't like the 45 degree option.

Tube support can be found here https://www.thingiverse.com/thing:3044295

I run a small chat room on discord which can be found here if anyone fancies a chat
https://discordapp.com/invite/yQp2e4A


3D printing settings

0.2 Layer height
20% Infill
No Raft
No Support

3D printer file information

  • 3D design format: STL Folder details Close

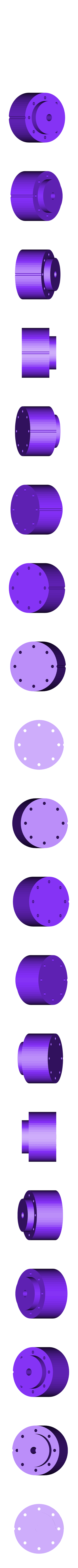

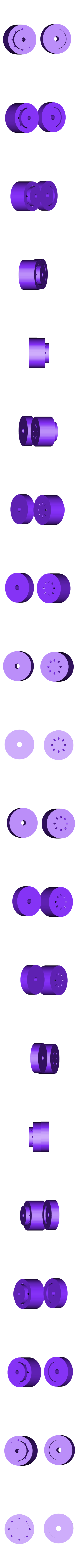

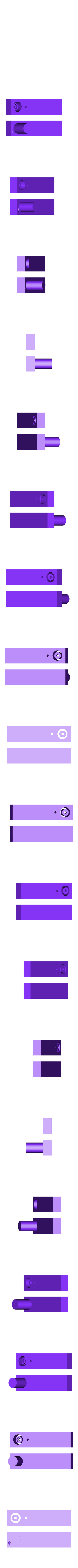

    • Bending_Jig.stl
