Bed Upgrade for Prusa i3

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

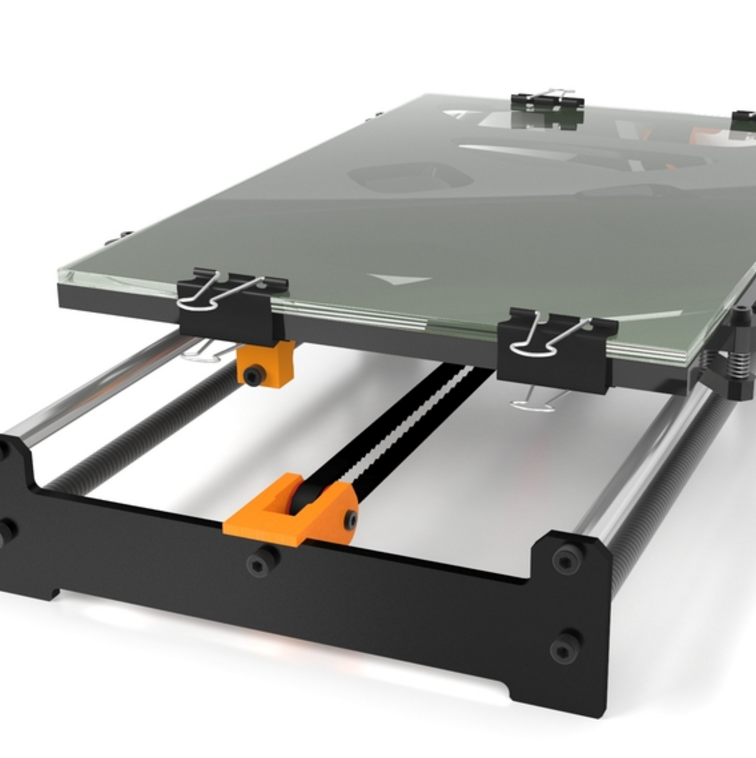

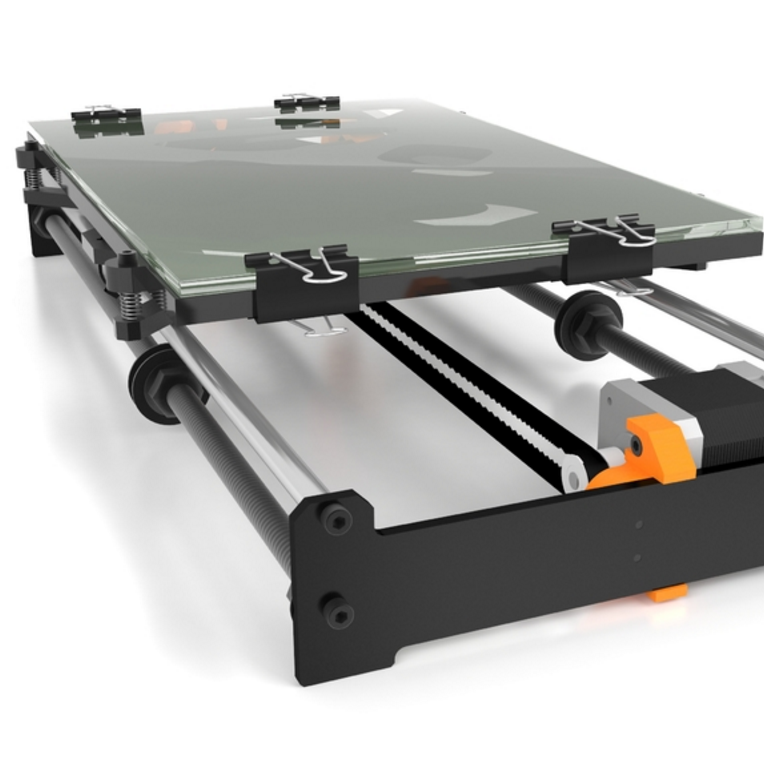

Bed 20x30cm Upgrade for Prusa i3.

3D printing settings

Bill of materials:
-1 x GT2 pulley (20 theet)
-1 x GT2 belt 6mm x m
-4 x Standard Spring 30.5x4.5x0.45
-2 x Ø8X440MM-CROMAD Smooth rod M4 Inner threaded )
-2 xThreaded rod M10 x440 mm with M4 innerthreaded (.dxf attached)
-1 x 200x300x8mm black acrylic printing bed (.dxf attached)
-1 x Glass 200x300x5mm (.pdf attached)
-1 x Black aluminum 4mm front (.dxf attached)
-1 x Black aluminum 4mm back (.dxf attached)
-8 x M4 Washer Nylon - DIN 125N-4 White
-8 x M4x16 Screw
-5 x M3x25 Screw
-4 x M3 x10 Screw
-2 x M3 x20 Screw
-3 x M3 Nut
-4 x M10 serrated Nut
-Y Axis printed tensor (STL attached)
-Y Axis printed motor (STL attached) )

3D printer file information

  • 3D design format: STL Folder details Close
    • EjeY_final_carrera_base_larga.stl
    • Frontal_base_larga.stl
    • Posterior_base_larga.stl
    • Sujeta_motor_base_larga.stl
    • Tensor_base_larga.stl

    Learn more about the formats

  • Publication date: 2016/02/02 at 17:57





BQ es una de las principales tecnológicas europeas. Su objetivo es ayudar a las personas a entender la tecnología, animarles a utilizarla e inspirarles a crearla. BQ aplica esta filosofía a sus dispositivos (smartphones, impresoras 3D o robótica, entre otros) y trabaja para hacer de la tecnología una herramienta que mejore el mundo y la vida de sus usuarios.

BQ is one of the leaders in European technology. Their objective is to help people understand technology, inspire them to use it and develop it. BQ applies this philosophy to its products (smartphones, 3D printers, and robotics, amongst others), working towards making technology a tool that improves the world and the life of their users.

All the things and all the published material cannot be considered as a final product of BQ and BQ takes no responsibility of its use.

It must be considered as an experimental and early released product developed with the intention to share it and test it as soon as possible within the community.

Final release of all products will be published on and
