Bed levelling Z9M3

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 267 views
  • 1 like
  • 16 downloads

3D model description

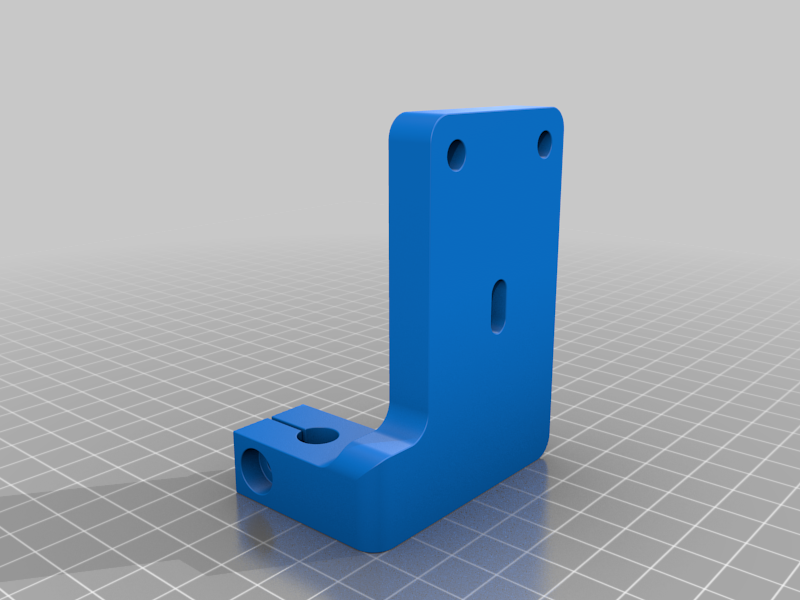

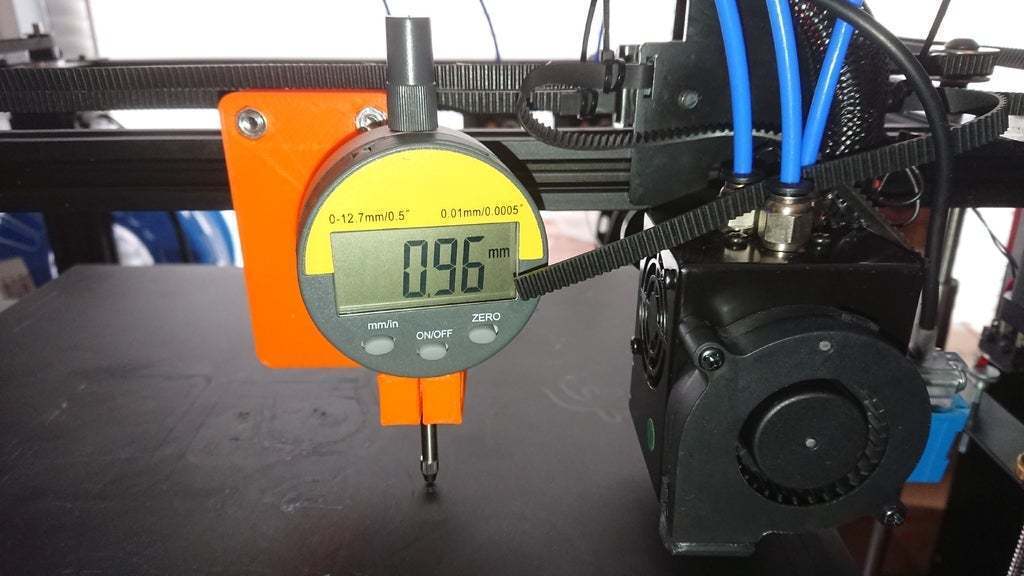

I made this little holder for easier, being able to level the bed on my 3D printer Z9M3.
Although the Z9M3 has auto leveling it is important that the bed is set correctly in relation to the nozzle, before using auto leveling, it will give the best result.
When you mount it make sure it is tight to the profile, so that it can be pushed back and forth on the alu profile without tilting from side to side.
It will most likely also fit other 3D printers that have 20x20 aluminum profiles where the printer head is mounted, should it be, please leave a message in the comments.

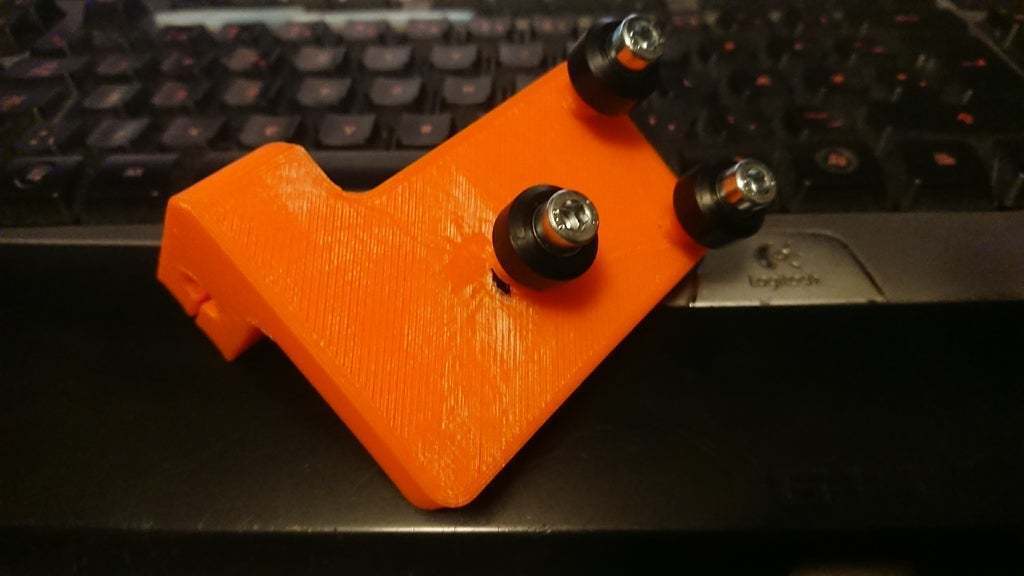

In addition to the print, you will need:

3 pieces. Wheel V-slot MINI
3 pieces. M5 20mm machine screws
and
3 pieces. M5 nut.

Wheel: https://www.aliexpress.com/wholesale?catId=0&initiative_id=SB_20200512124653&SearchText=Wheel+V-slot+MINI

Have fun!

  • 3D file format: STL
  • Publication date: 2020/12/08 at 21:32

License

CC BY NC ND
