Bearing block for 8mm (or 5/16") shafts/round rails

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.2k views
  • 16 likes
  • 255 downloads

3D model description

NEWS:

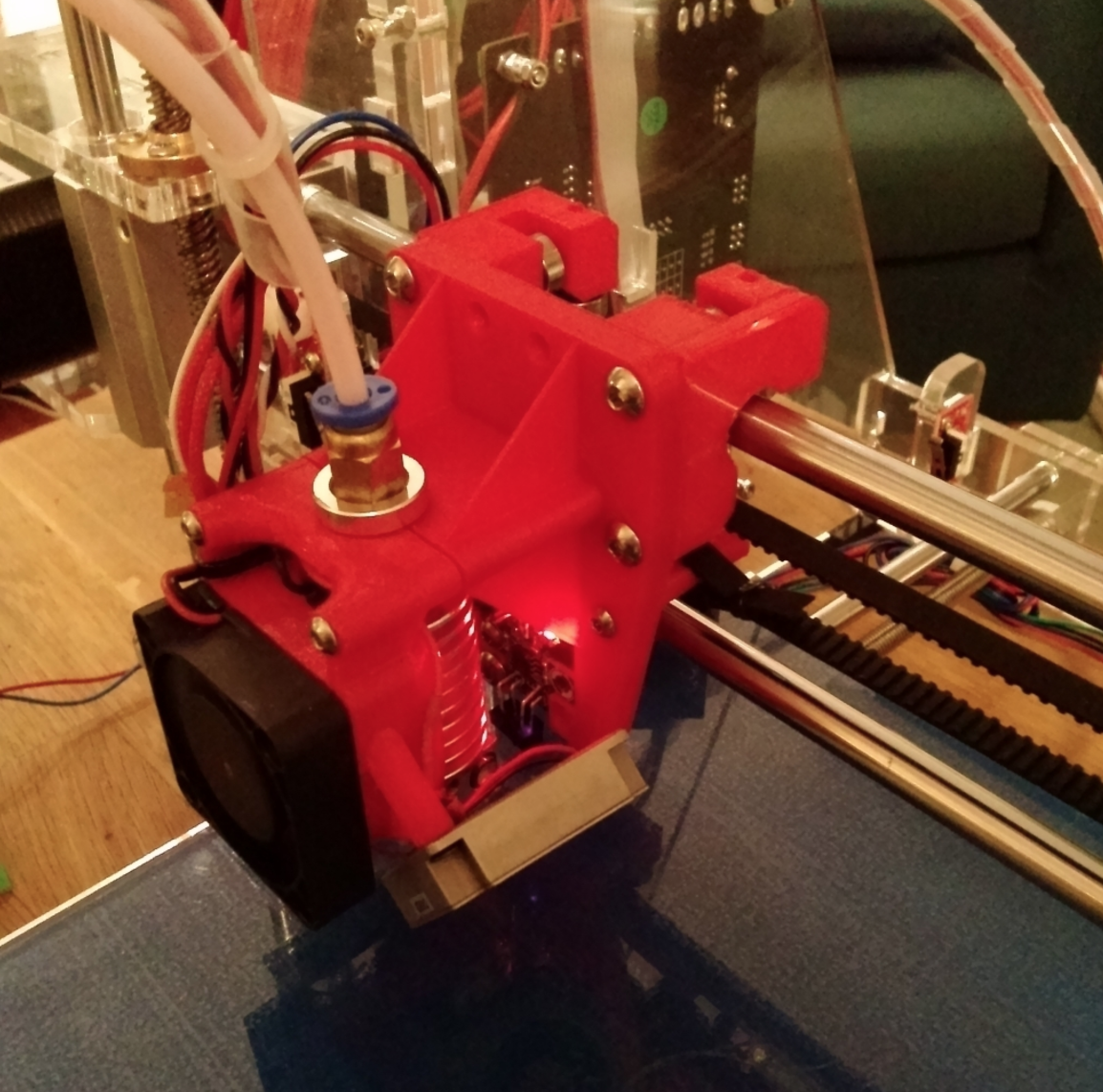

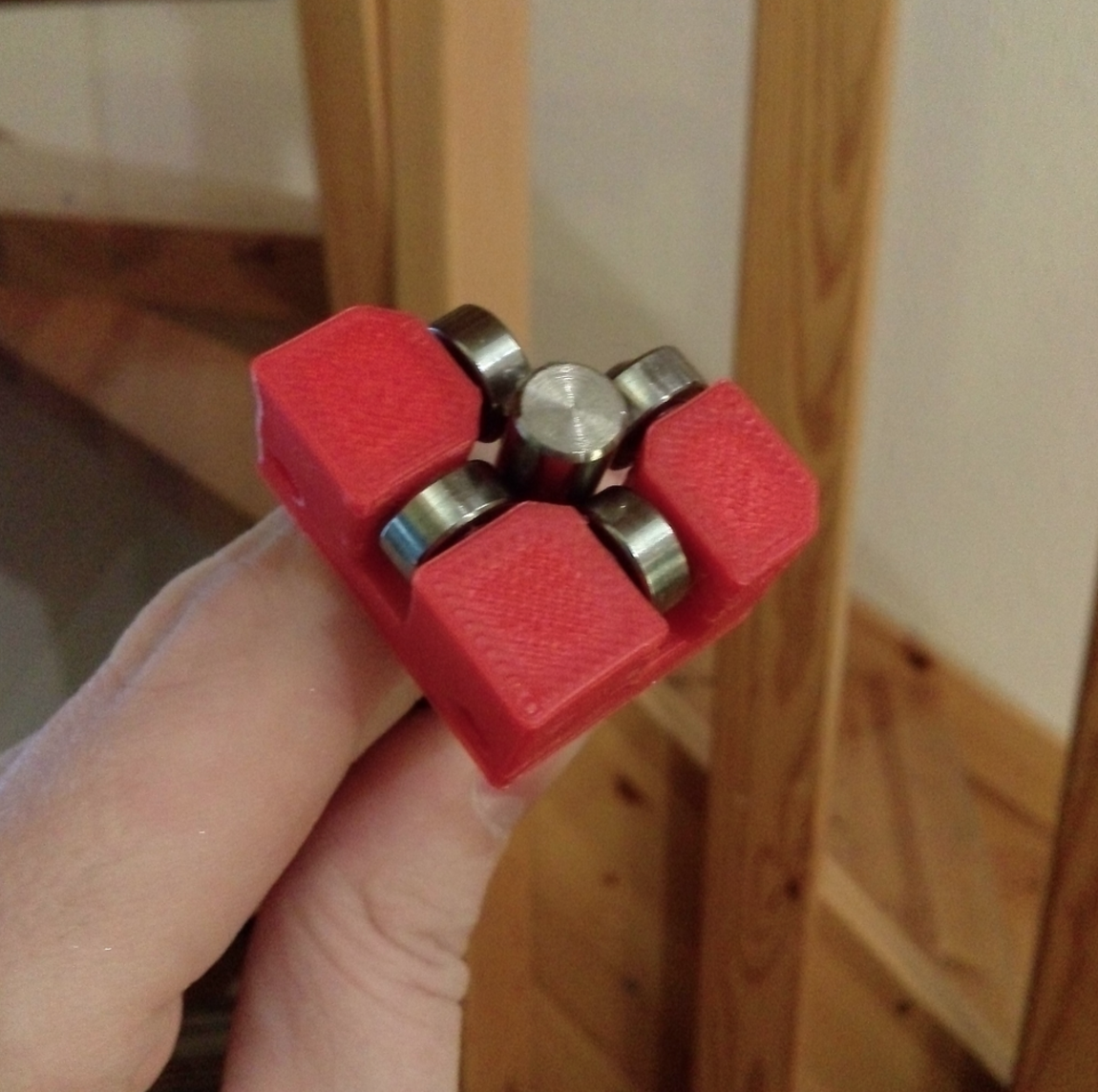

Uploaded new version fo the bearing with improved design. Bearing-01-4mm.stl Slightly tighter grip on the rod and using one 2x6x3 mm bearing to the one closest to the mounting face, so that it doesn't build higher than the standard bearing blocks used on most printers. They use the same M3 screws as before, but uses one M2x8 mm screw for the smaller bearing. I'm using these now on my Prusa and it's smooth, quiet and completely slop free.Bearing block for 8mm (or 5/16") shafts/round rails



3D printing settings

Bearing block for 8mm (or 5/16") shafts/round rails

3D printer file information

  • 3D design format: STL Folder details Close

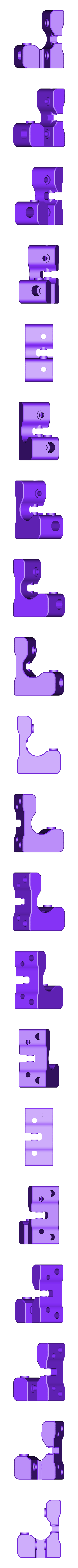

    • Bearing-01-4mm.stl
    • Bearing03.STL
  • Last update: 2018/10/29 at 18:37
  • Publication date: 2016/10/17 at 10:52

License

CC BY NC

Tags

Creator

Norwegian inventor/designer/cat owner.

Please don't ask for original design files or parametric files.

If you ask a question about a design, ask under the design so that I can answer there.
