Bar-End bike Plugs

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

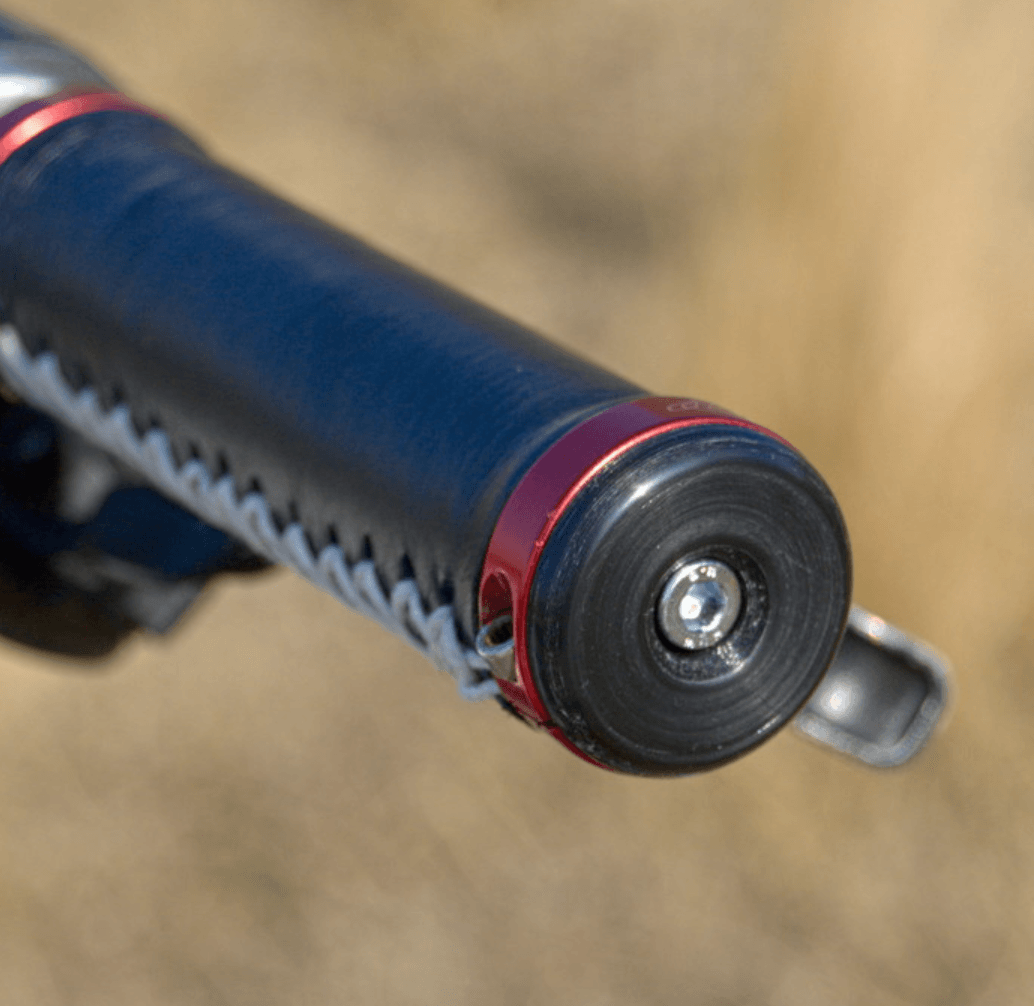

Quality plugs with effective grip. You will never lose your plugs again and will protect your bar in case of a crash. With this specific design the plug is very strong and if you over-tighten it, you will not destroy the plug but only the wedge (in contrast with the usual wedge design). There are two sizes: one with large (32mm)outer diameter if you are using lock-on grips (the cap will also protect the rings) and one with small (28mm) outer diameter for simple grips.There is a version with my name embossed and one without, in each diameter.

Except for the printed parts you will need a pair of M5 bolts (25mm). You don't need nuts because the wedge has built-in threads. Before you insert the plug into the bars, tighten the wedge a bit, so the plug fits snugly in the bar. That way the wedge will not rotate.Then tighten the bolt (do not use excessive force).

#LIFEHACK3D


3D printing settings

Printer Brand:

Prusa

Printer:

Prusa Mk2

Supports:

Yes

3D printer file information

  • 3D design format: STL Folder details Close
    • Plug_28mm.stl
    • Plug_32mm.stl
    • Plug_stamos_28mm.stl
    • Plug_stamos_32mm.stl
    • Wedge.stl

    Learn more about the formats

  • Last update: 2018-03-22 at 20:00
  • Publication date: 2018-02-05 at 10:40

License

CC BY NC SA
