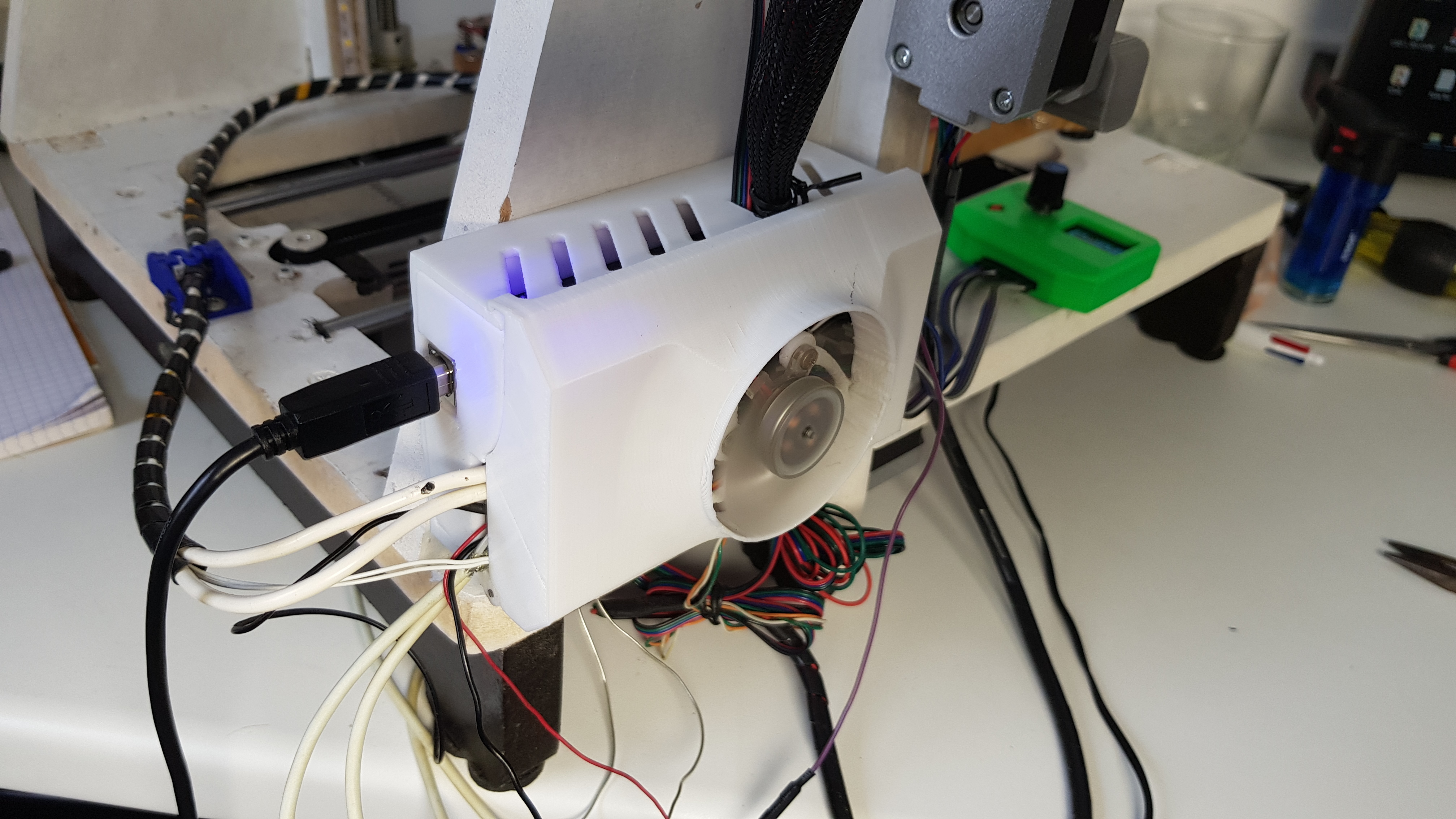

This is an optimized case for all ramps model work with arduino mega 2560.
I use ramps 1.6 + and it is perfect and fresh.
You need to use a 2mm*121mm steel bar for the hinge.
You can use a nice transparent fan (55mm*10mm), he look very nice.
If you use a full graphic controller there are no problem just remove the useless top part of connector like the picture 5.
I changed some imperfection on the models, the case will be better than the one in the photos.
Give me a cofee and this nice Case is for you:)
Ramps 1.6+ : http://s.click.aliexpress.com/e/NvJ5Nn1W
My Youtube Channel :
Nozzle diameter: 0.4 mm
Layer height: 0.2 or 0.3 mm
Temp: 205 °C
