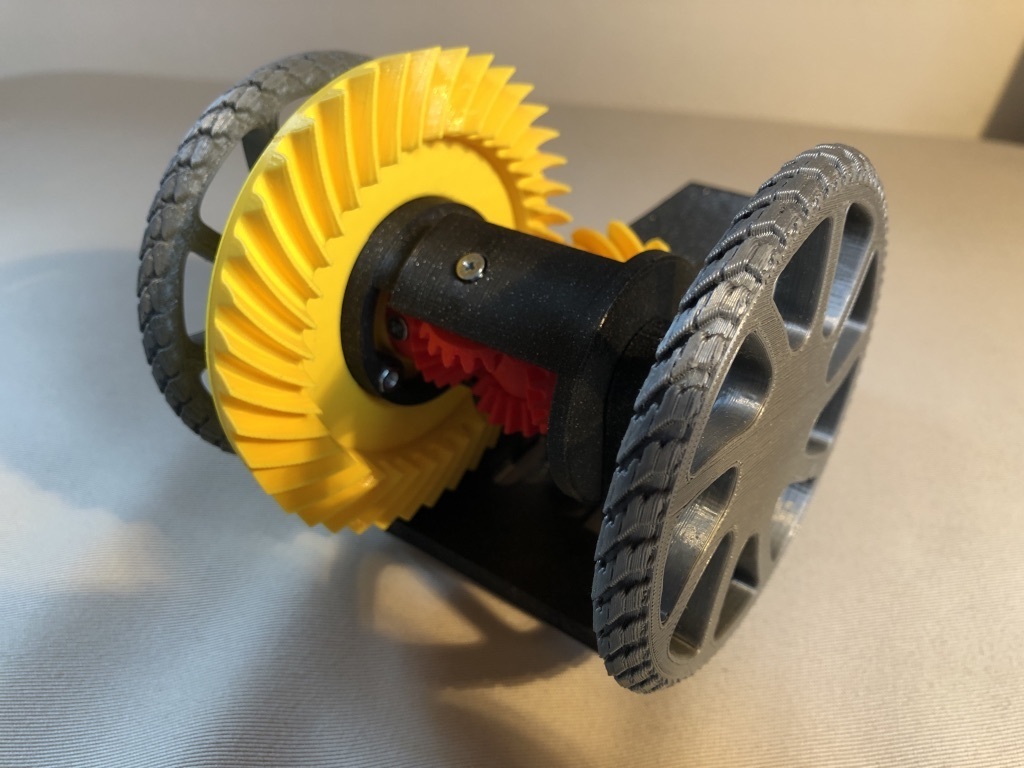

Automotive Differential (with Internal Power Supply)

Download free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, SeabirdDownload free STL file Automotive Differential (with Internal Power Supply) • 3D print template, Seabird

Did you 3D print this model?

3D model description

Many thanks to otvinta3d for providing this great mechanism!

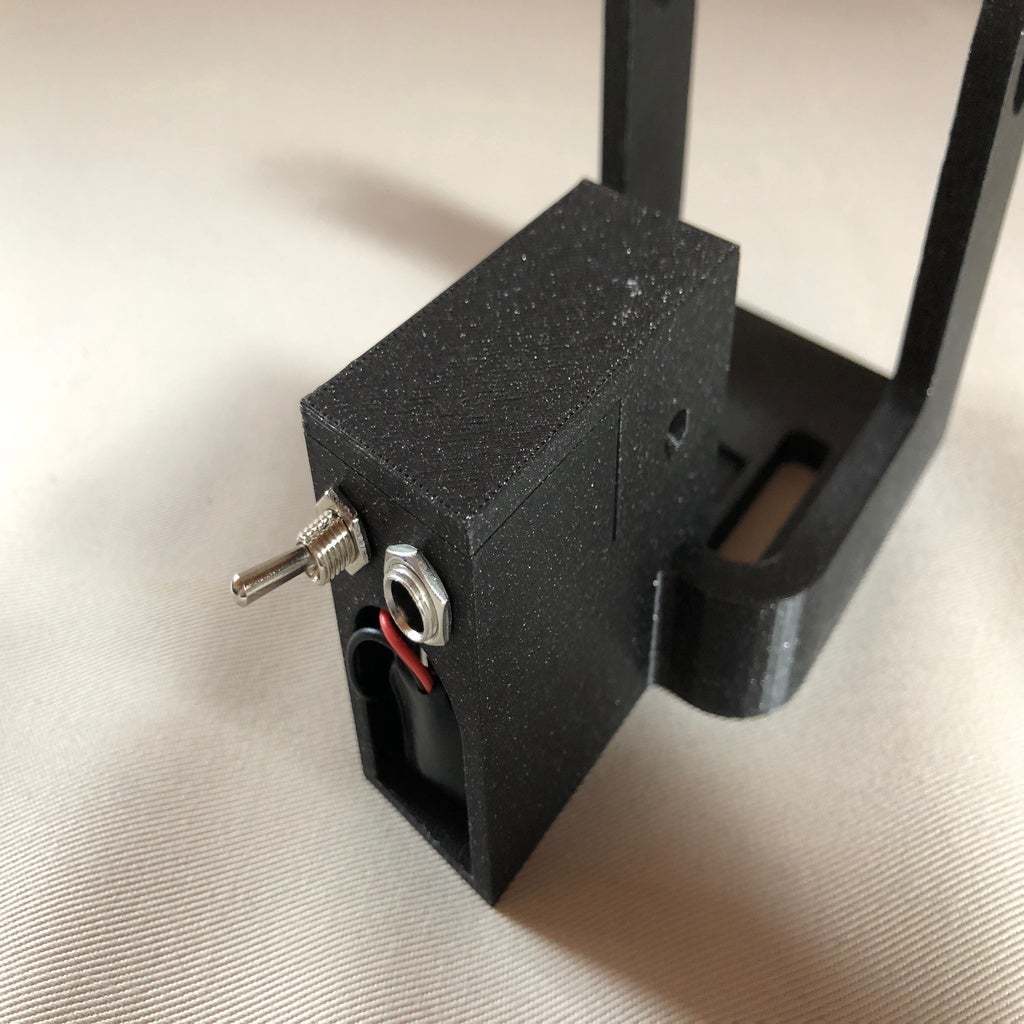

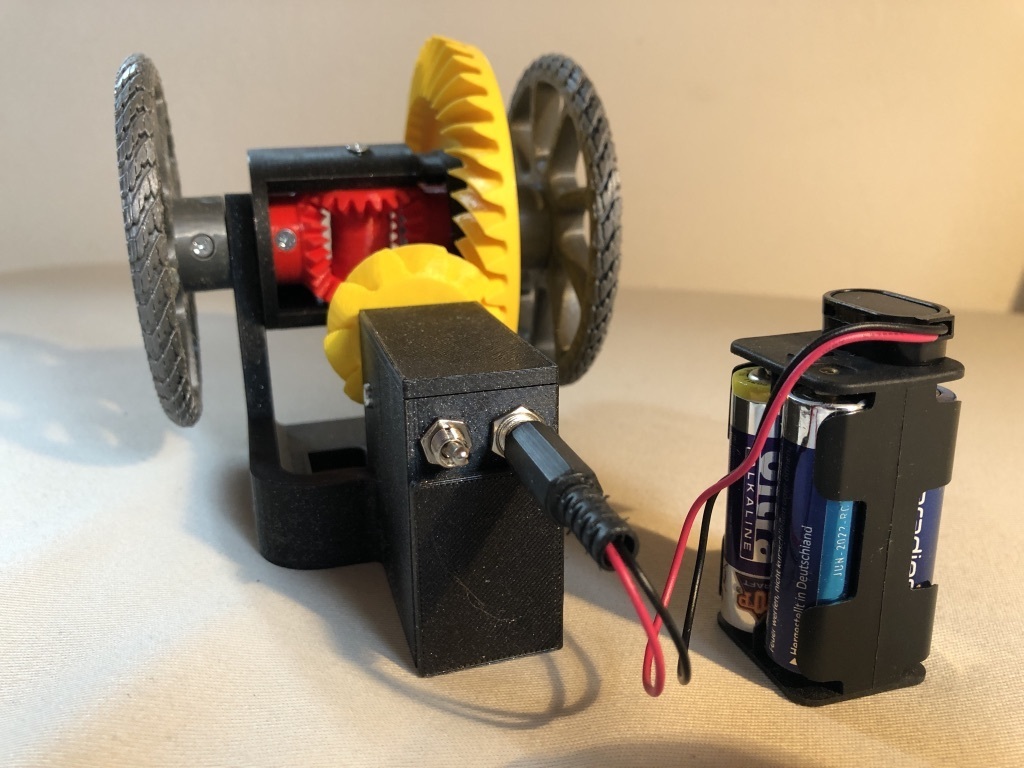

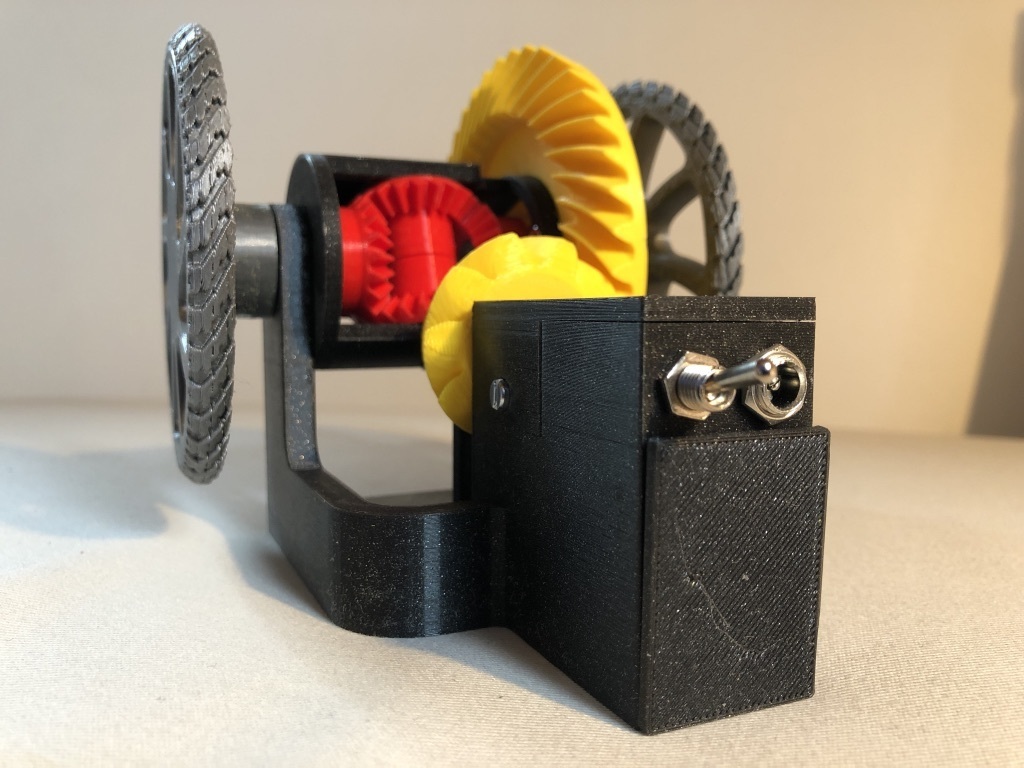

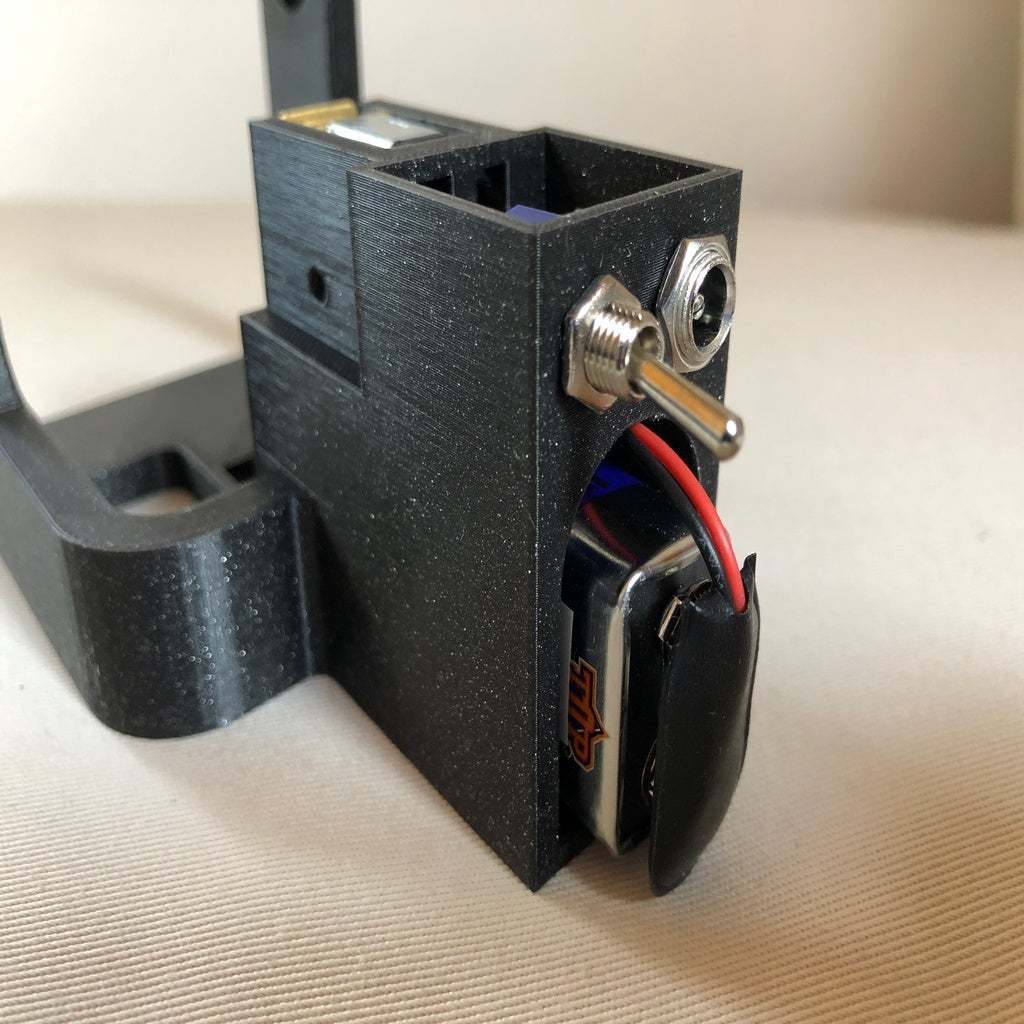

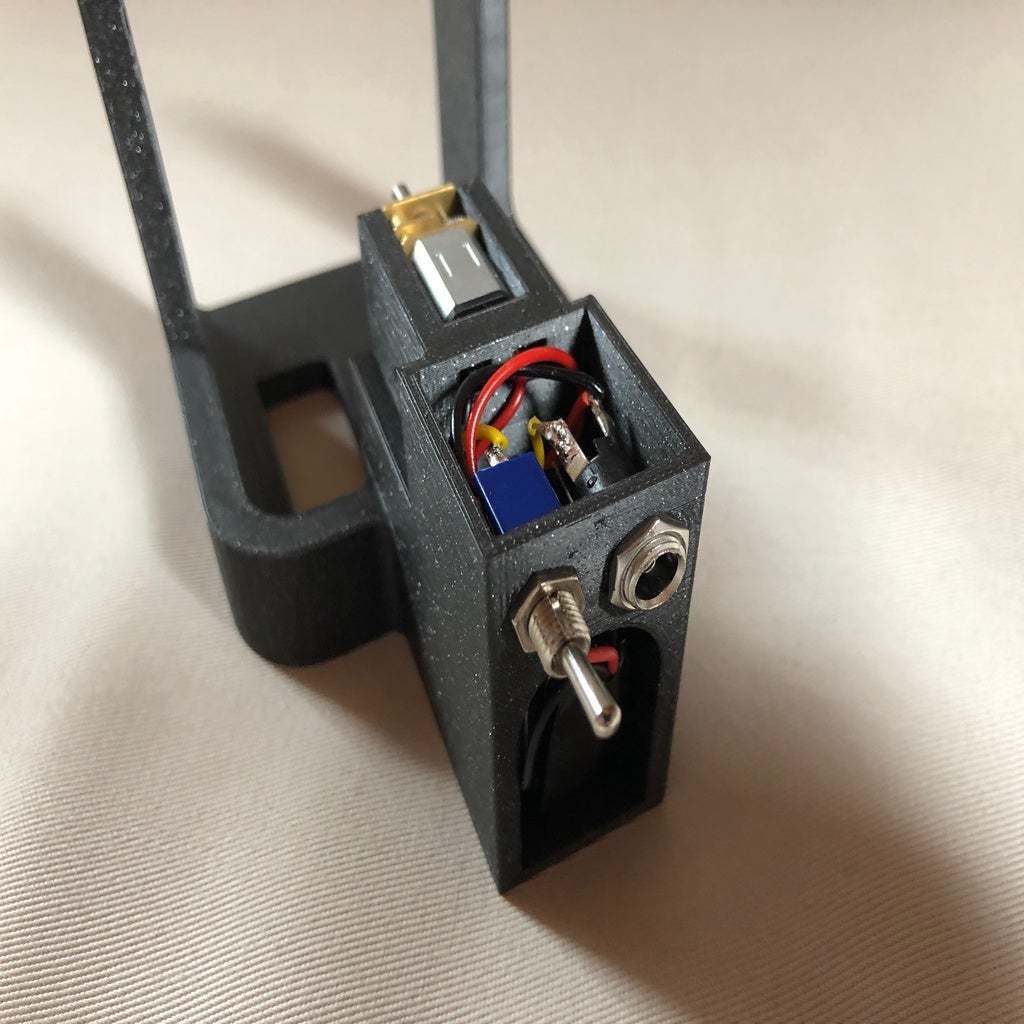

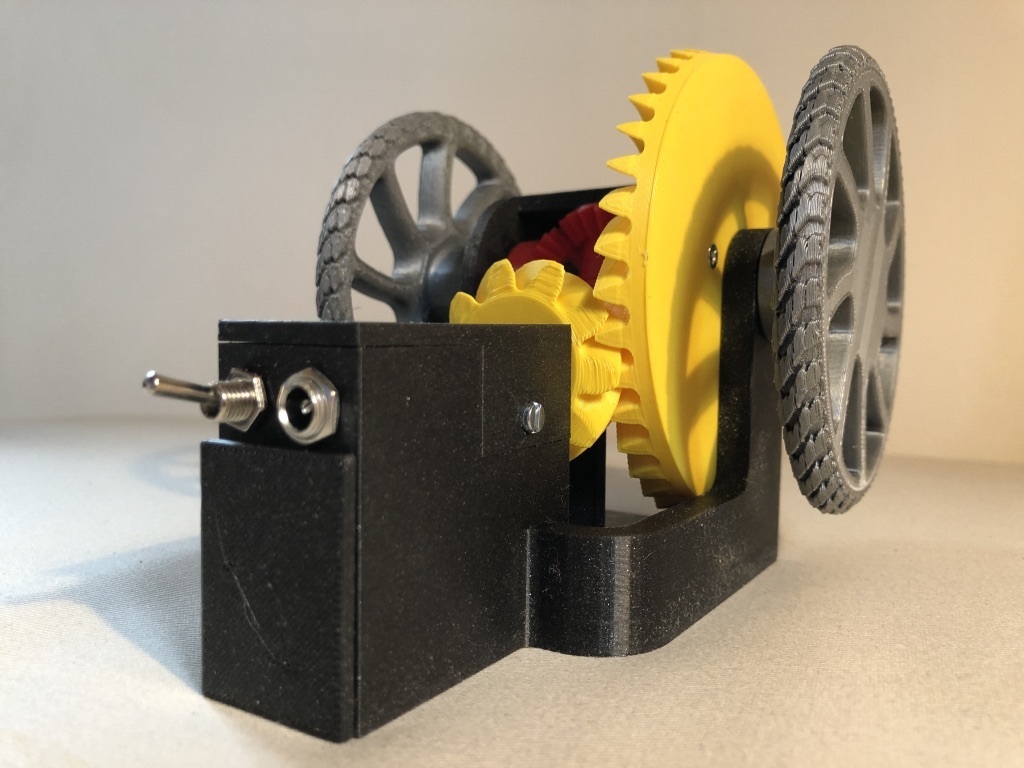

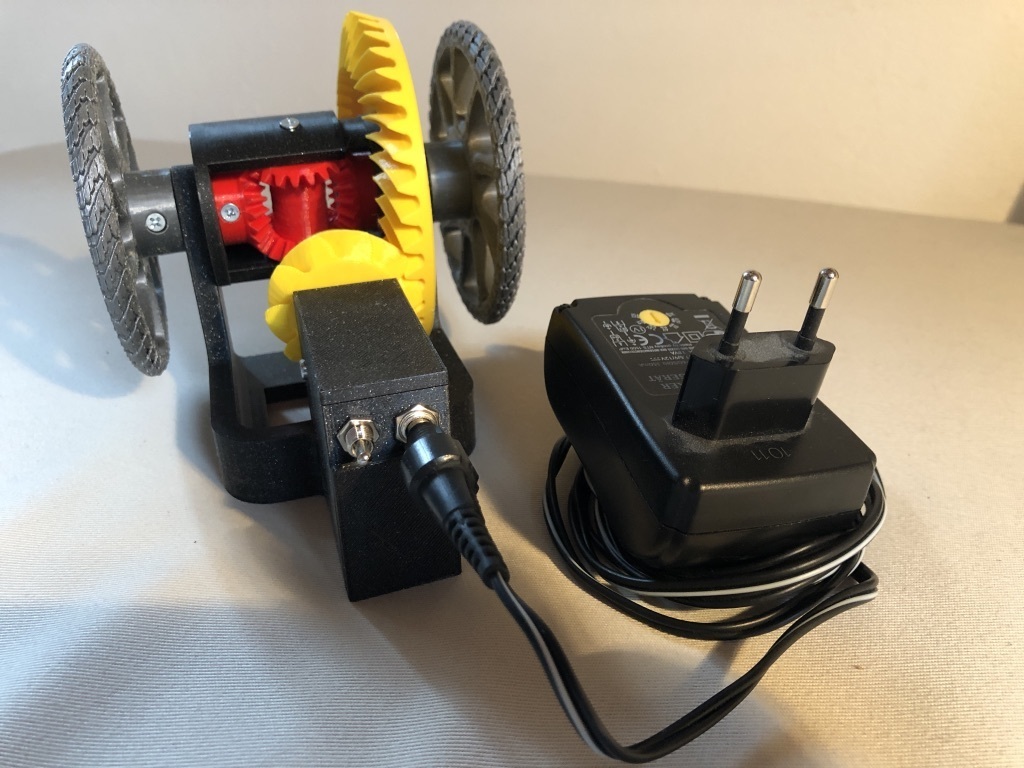

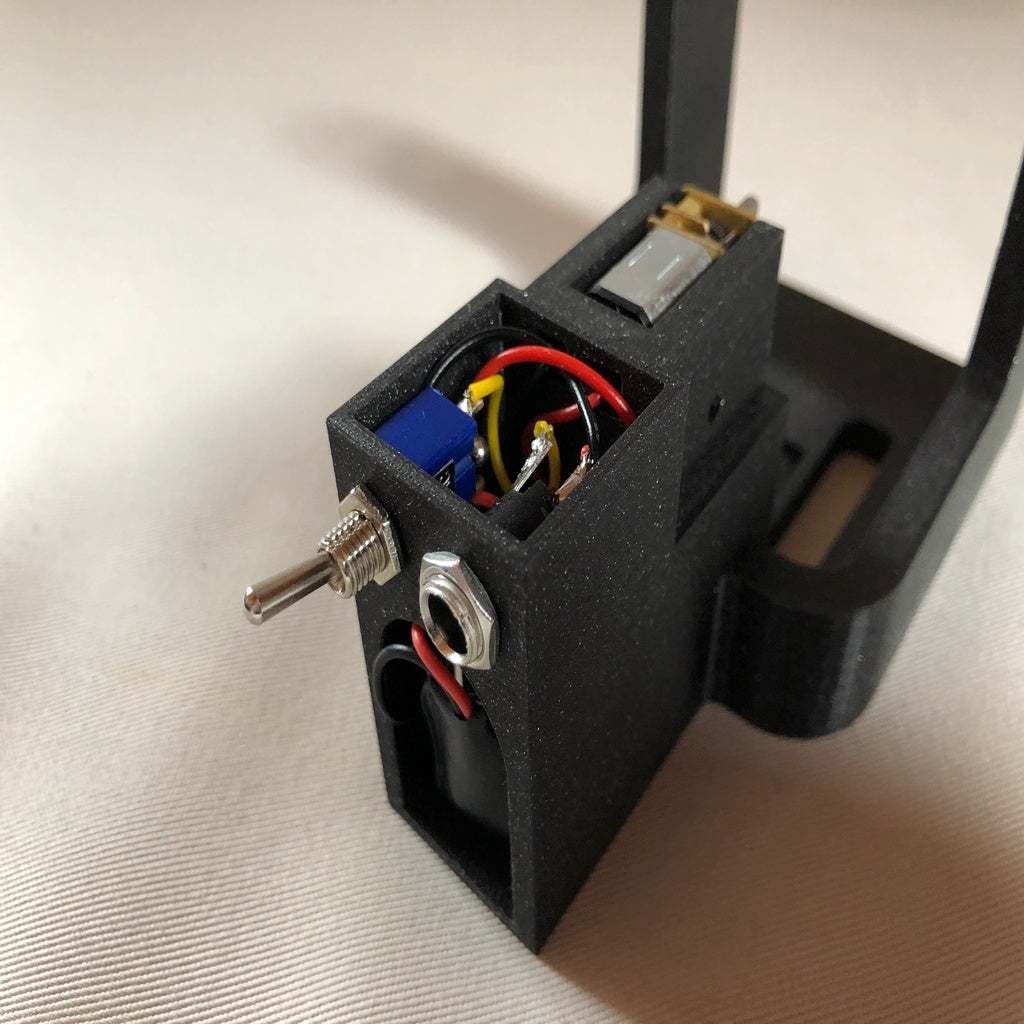

It all works very well (!) but I like it better when the power supply can also also be integrated into the object. Therefore I decided to rebuild this part accordingly. That means the integration of a battery compartment, an on/off switch and a power socket. It seemed most useful to me to integrate a place for a 9V battery.

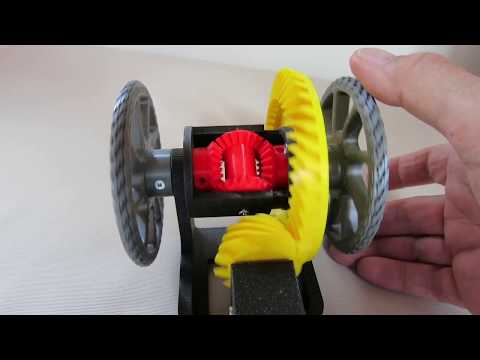

Here you can see the result in work: https://youtu.be/2CcygsiQ8xQ

These are the stl files with the changes:

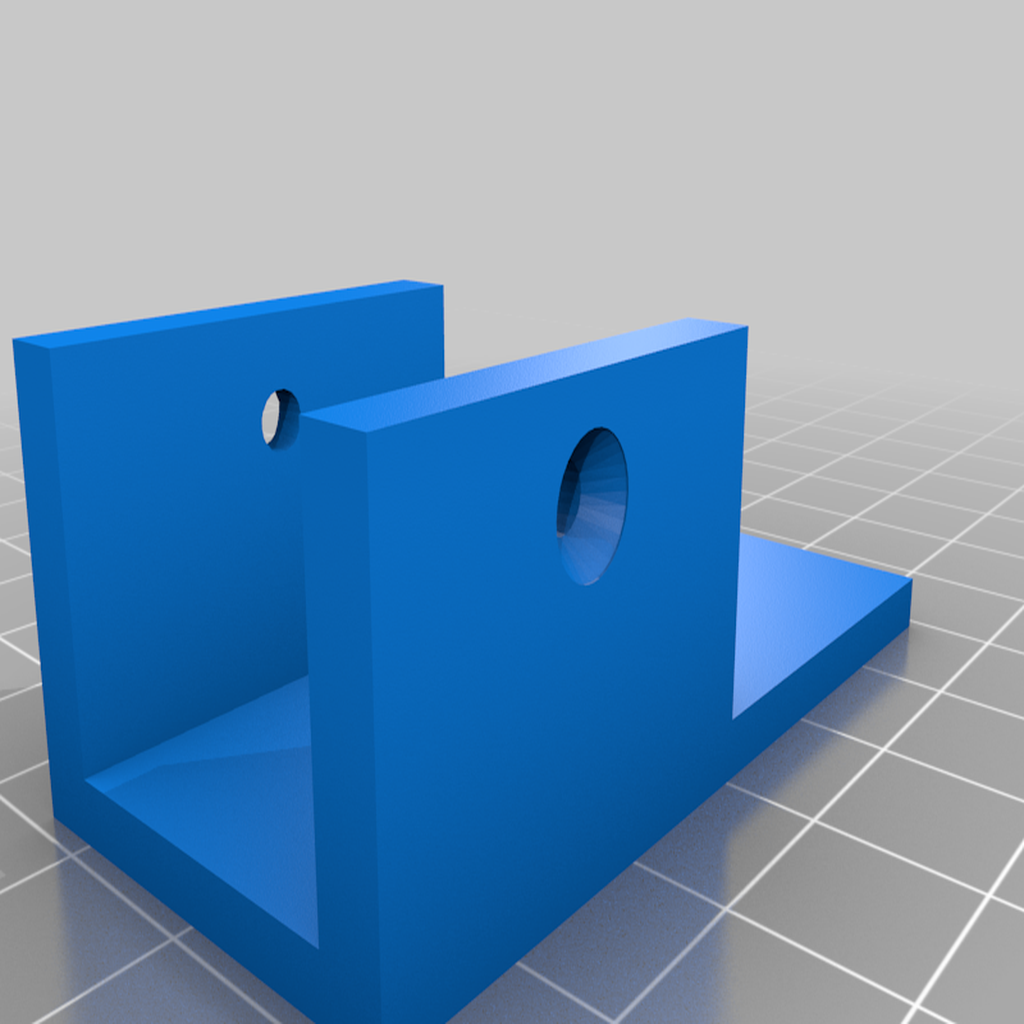

Diff_mot_cover_seabird.stl

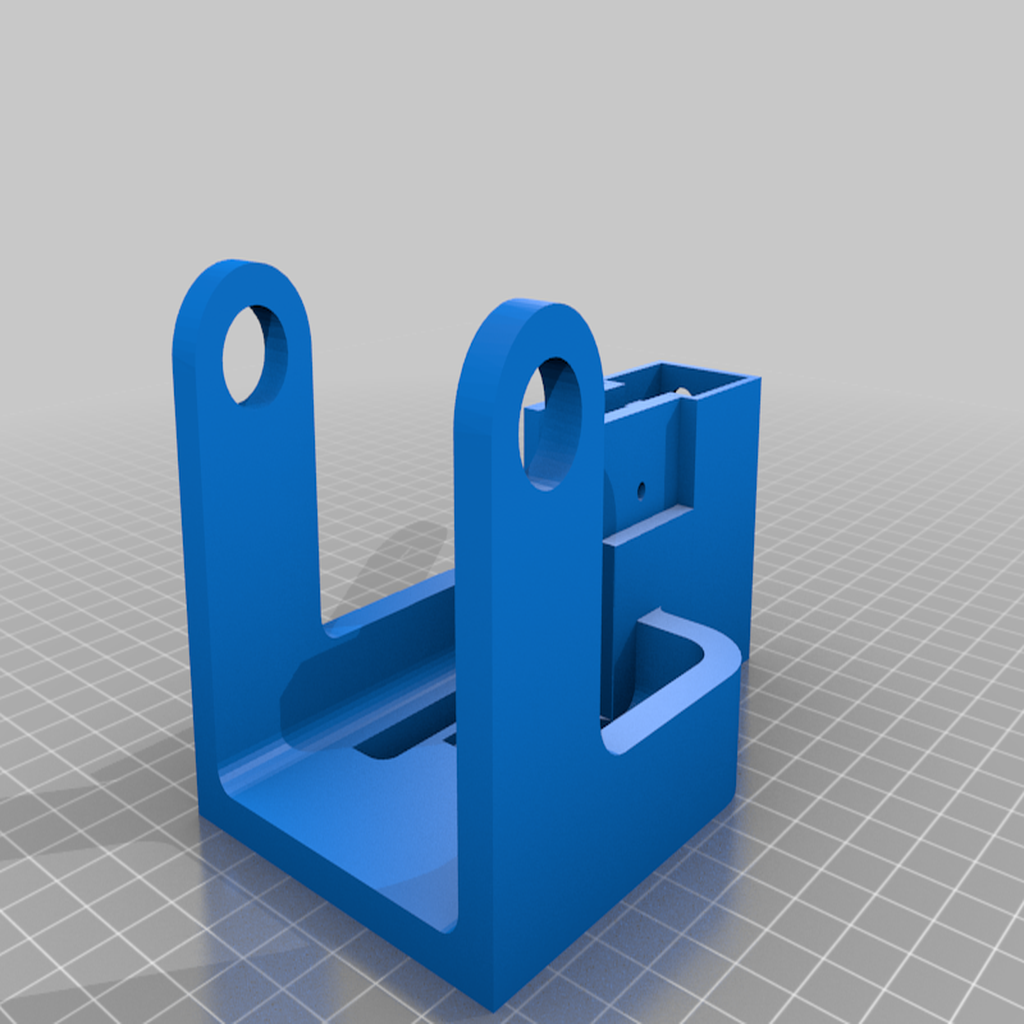

Diff_stand_seabird.stl

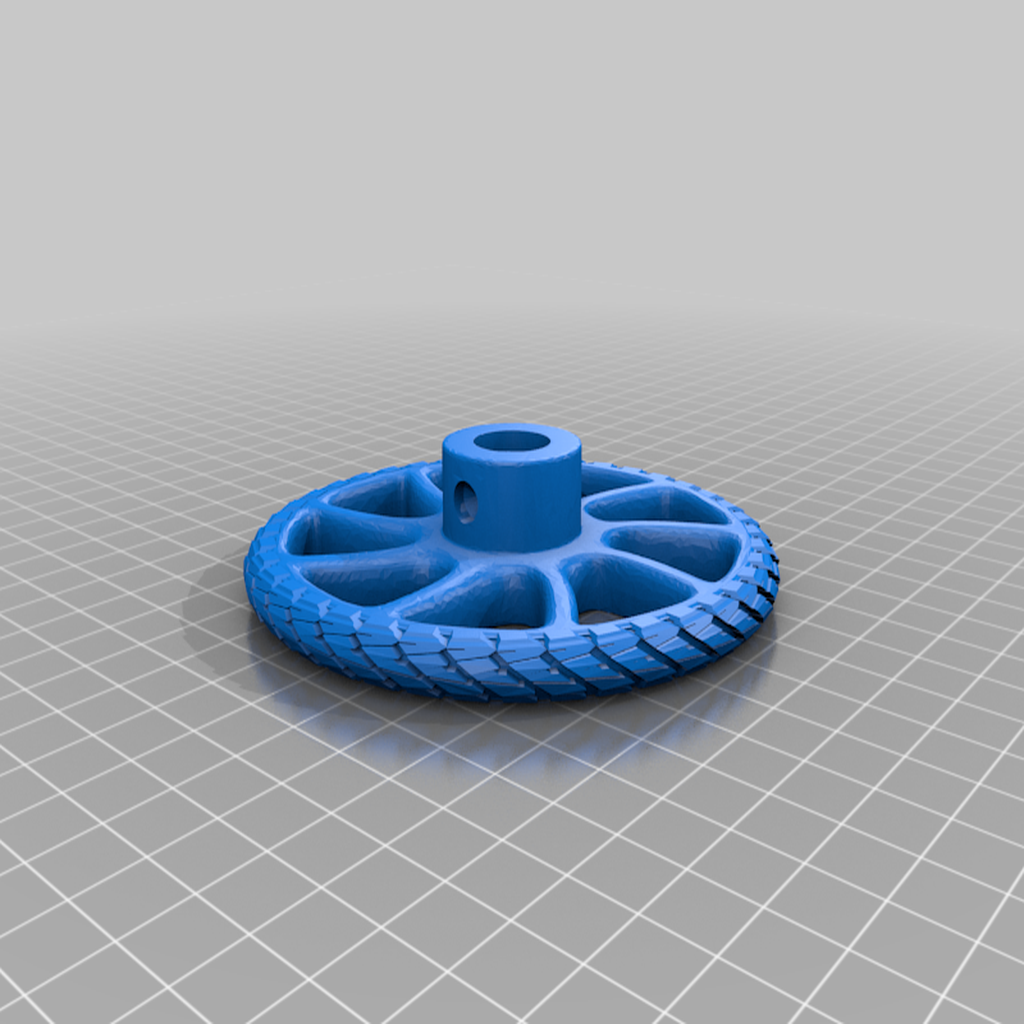

Diff_wheel_seabird.stl

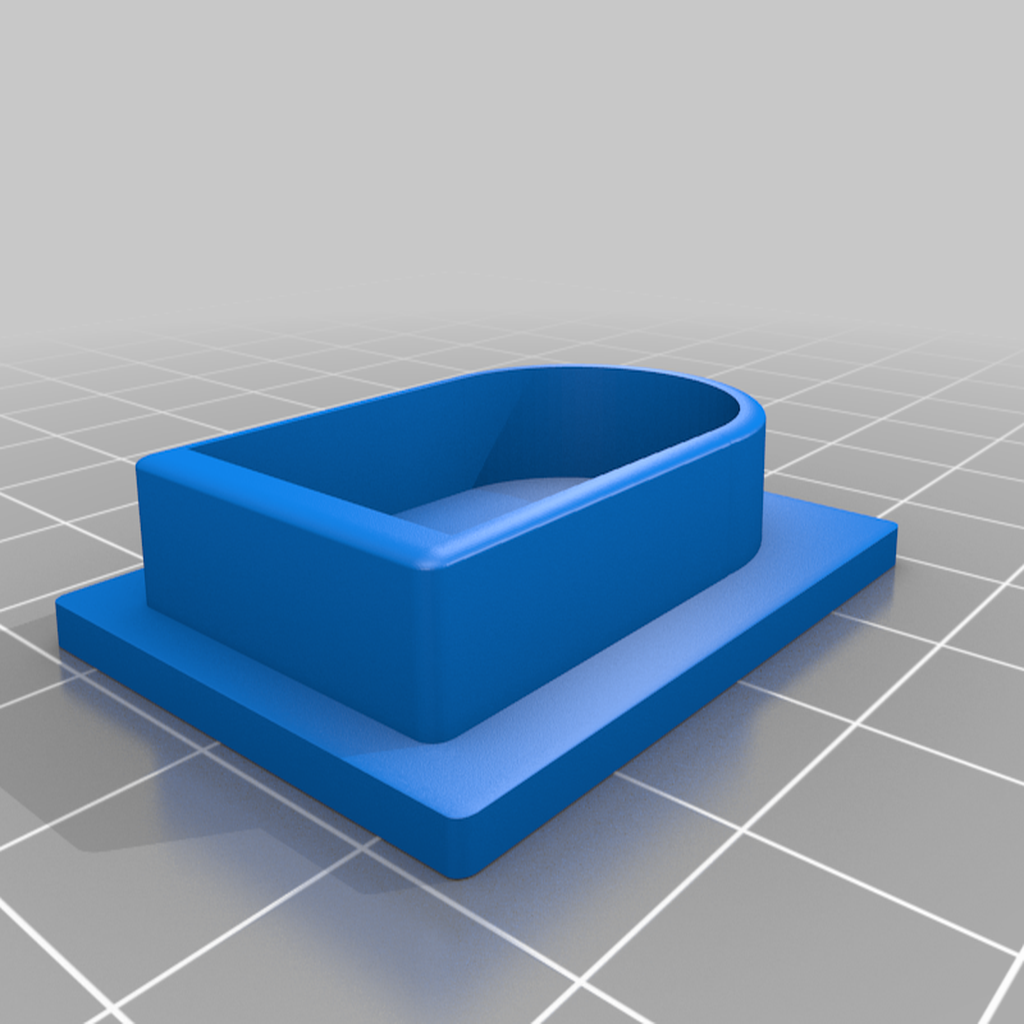

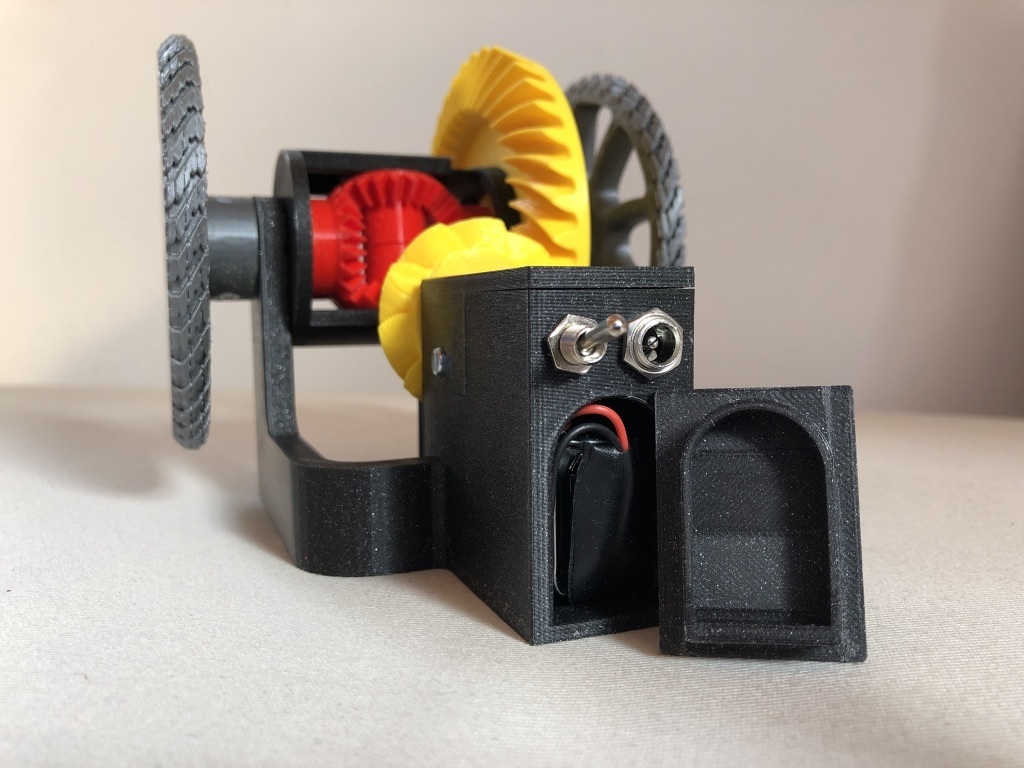

Diff_batt_cover_seabird.stl

Diff_batt_cover_seabird.stl comes very tightly dimensioned from the printer. This is intentional, as a well-fitting part would soon no longer hold. Here you might have to file or sand a little.

All parts can be printed without support.

All other required stl files are unchanged: https://www.thingiverse.com/thing:2116304

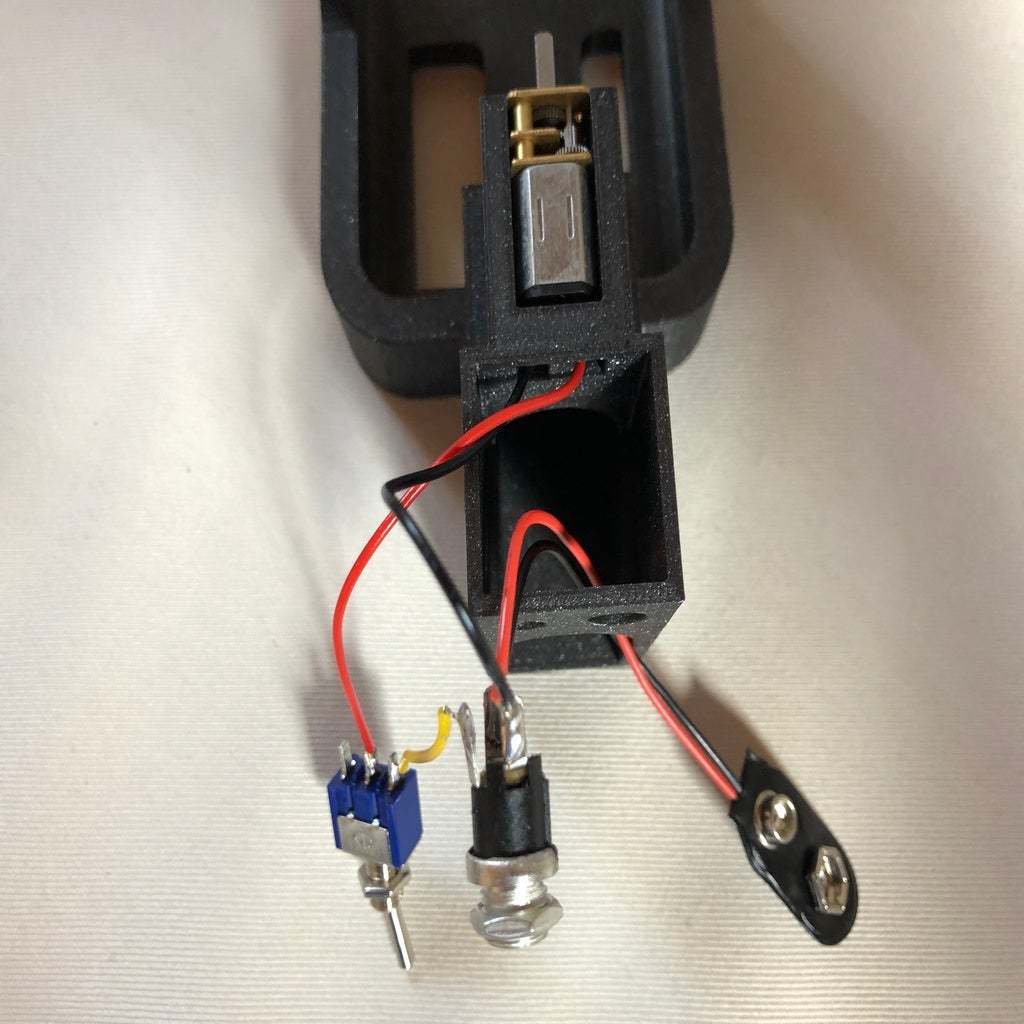

I used the following components:

Mini DC 6/12V 50/200/300 rpm Micro Gear Motor
AC 125 V 6A ON-ON 3 Pins 2 Position Mini Toggle Switch
2,1 x 5,5mm 3-pole DC socket connector, pin 2,1mm
  • 3D file format: STL
