Automatic Nozzle Cleaner
- 1.9k views
- 18 likes
- 55 downloads
3D model description

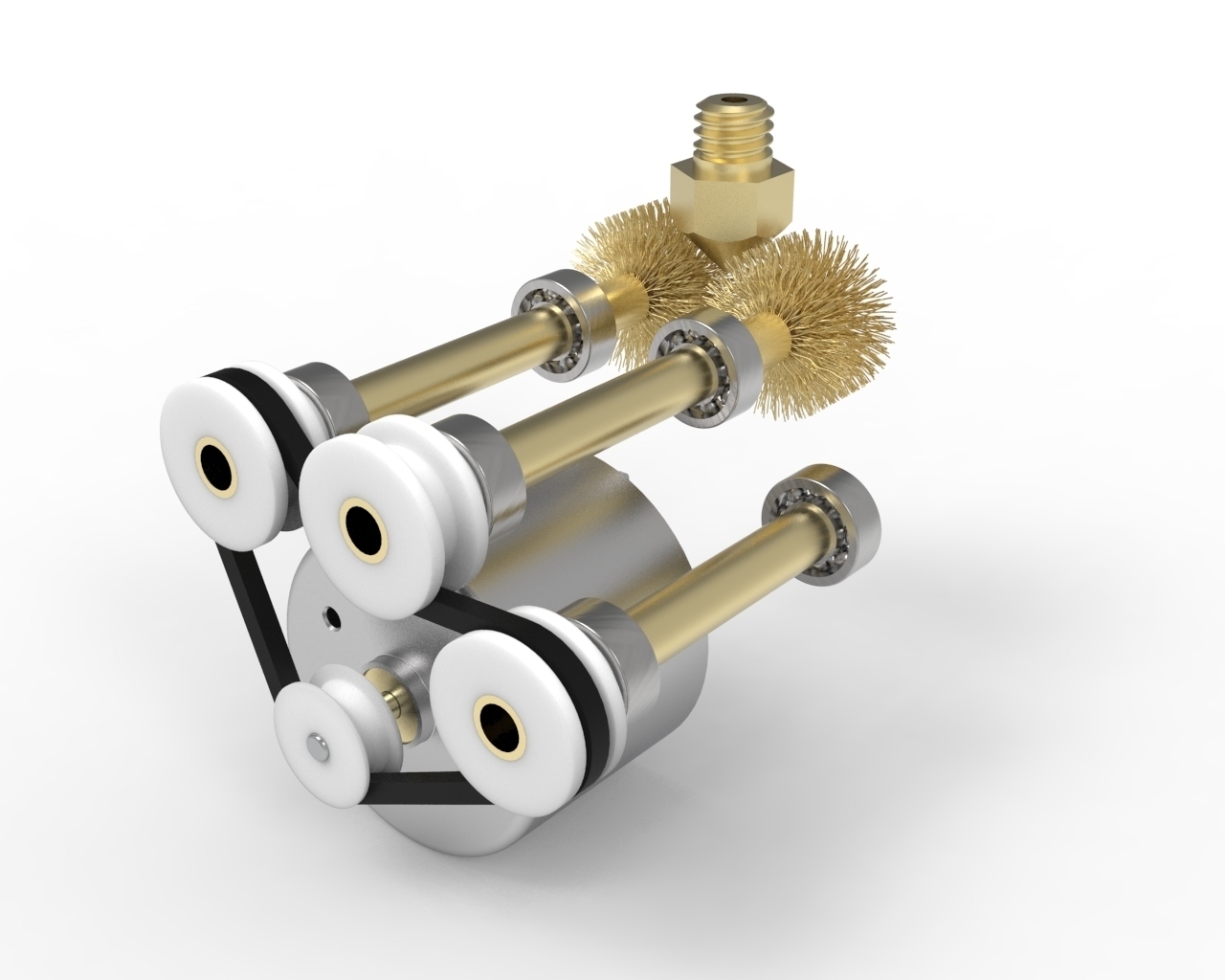

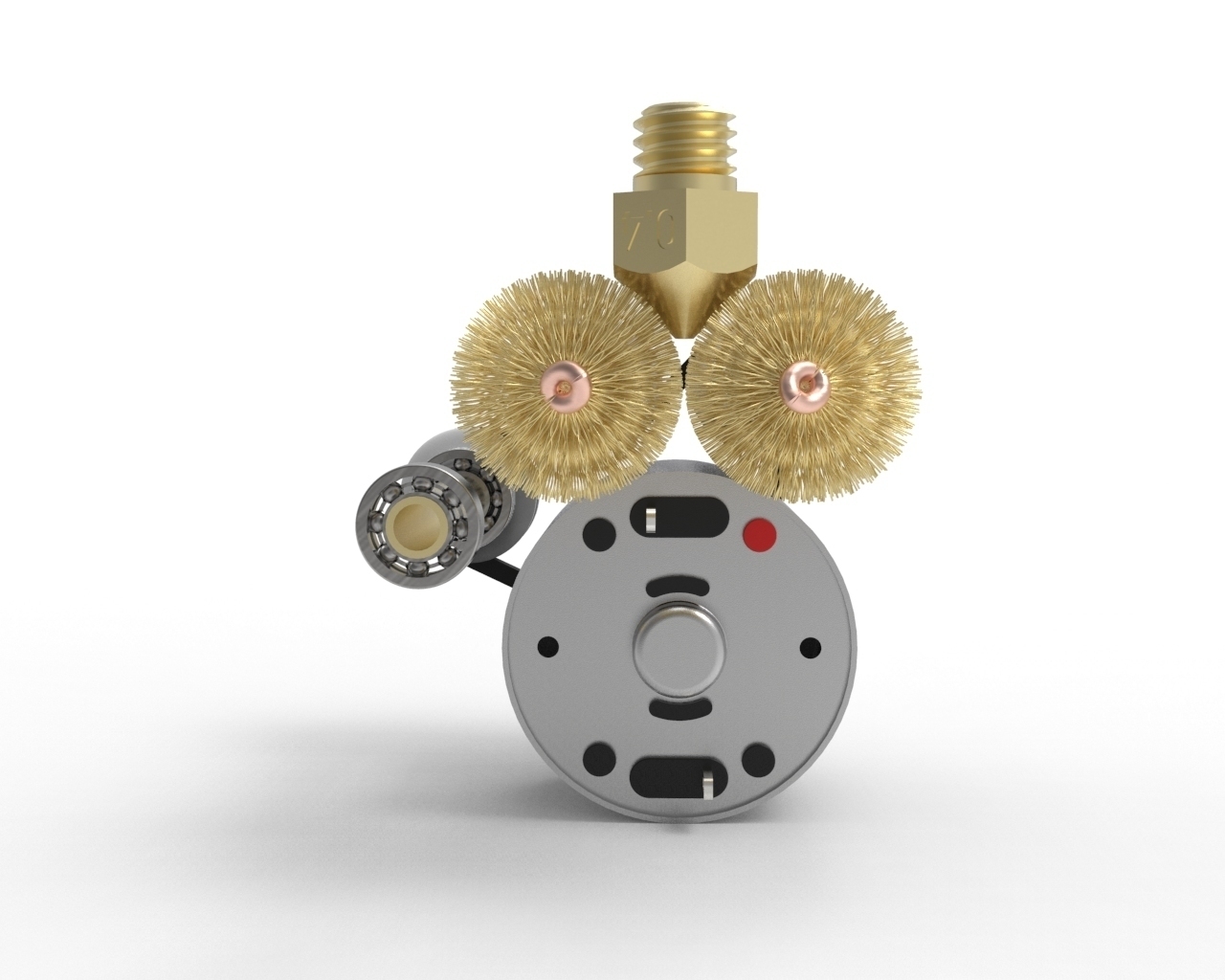

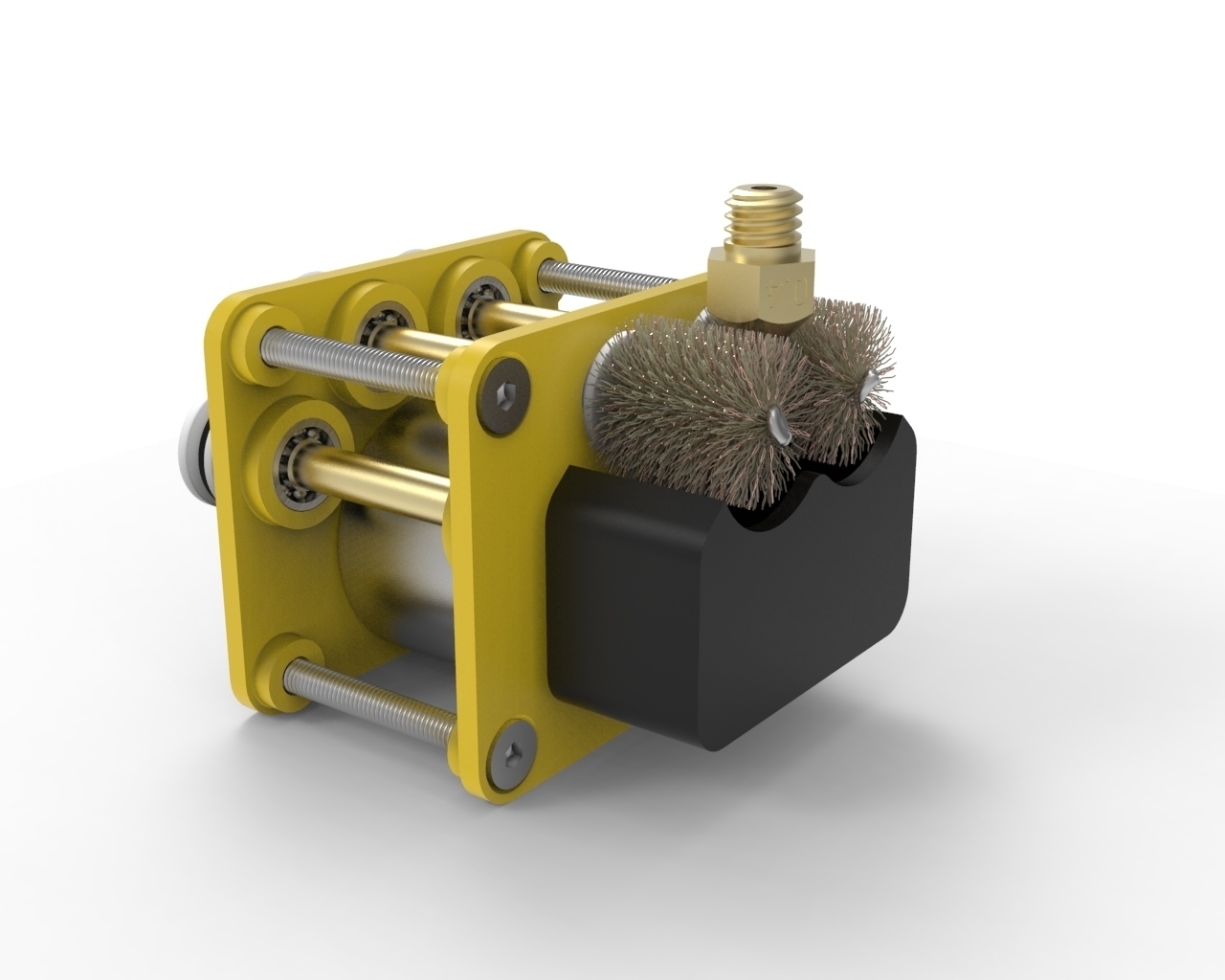

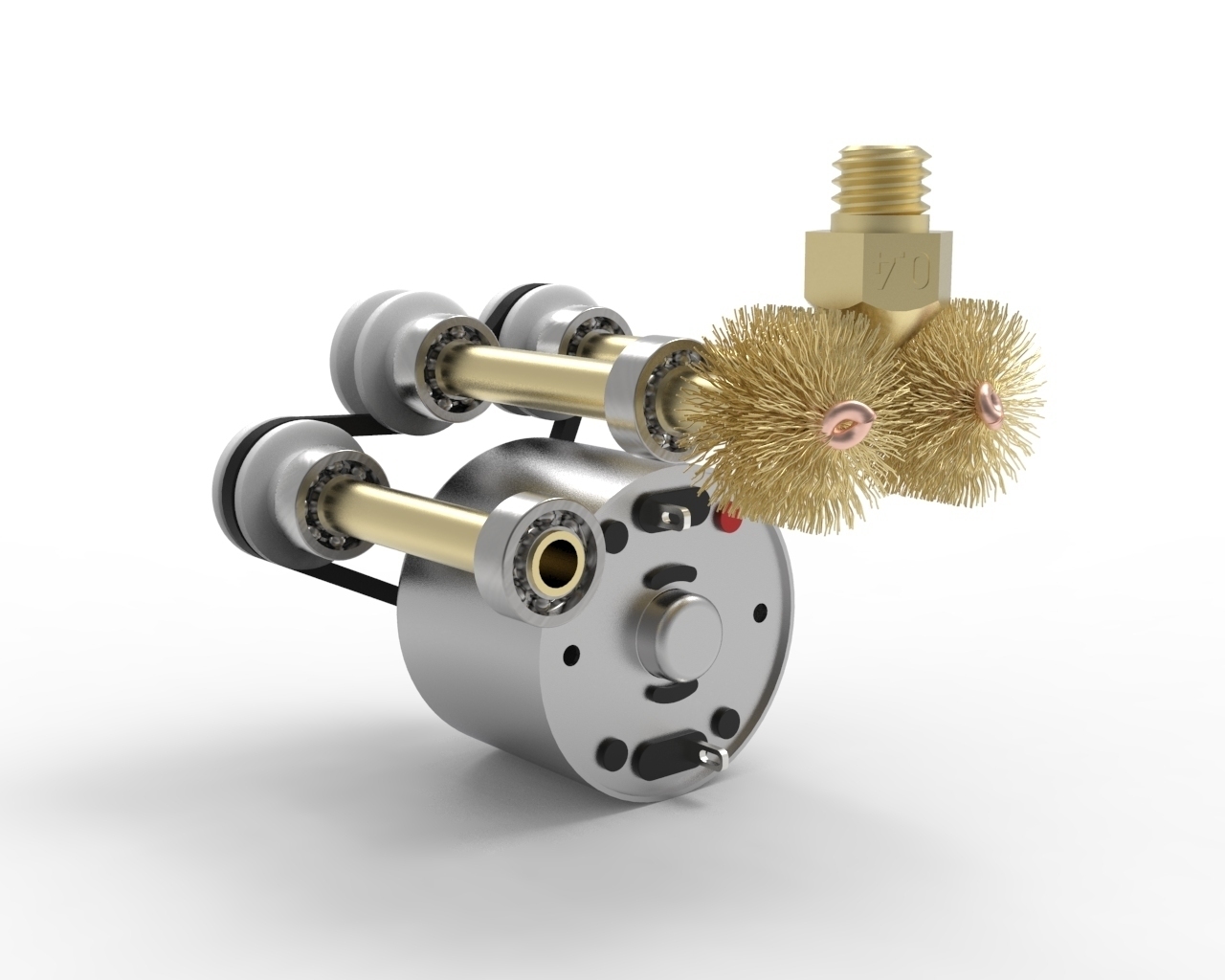

#Automatic Nozzle Cleaner
The project is not completed yet. A mounting bracket and movable mechanical parts will be added. I posted the first part of the project for those interested in this topic.

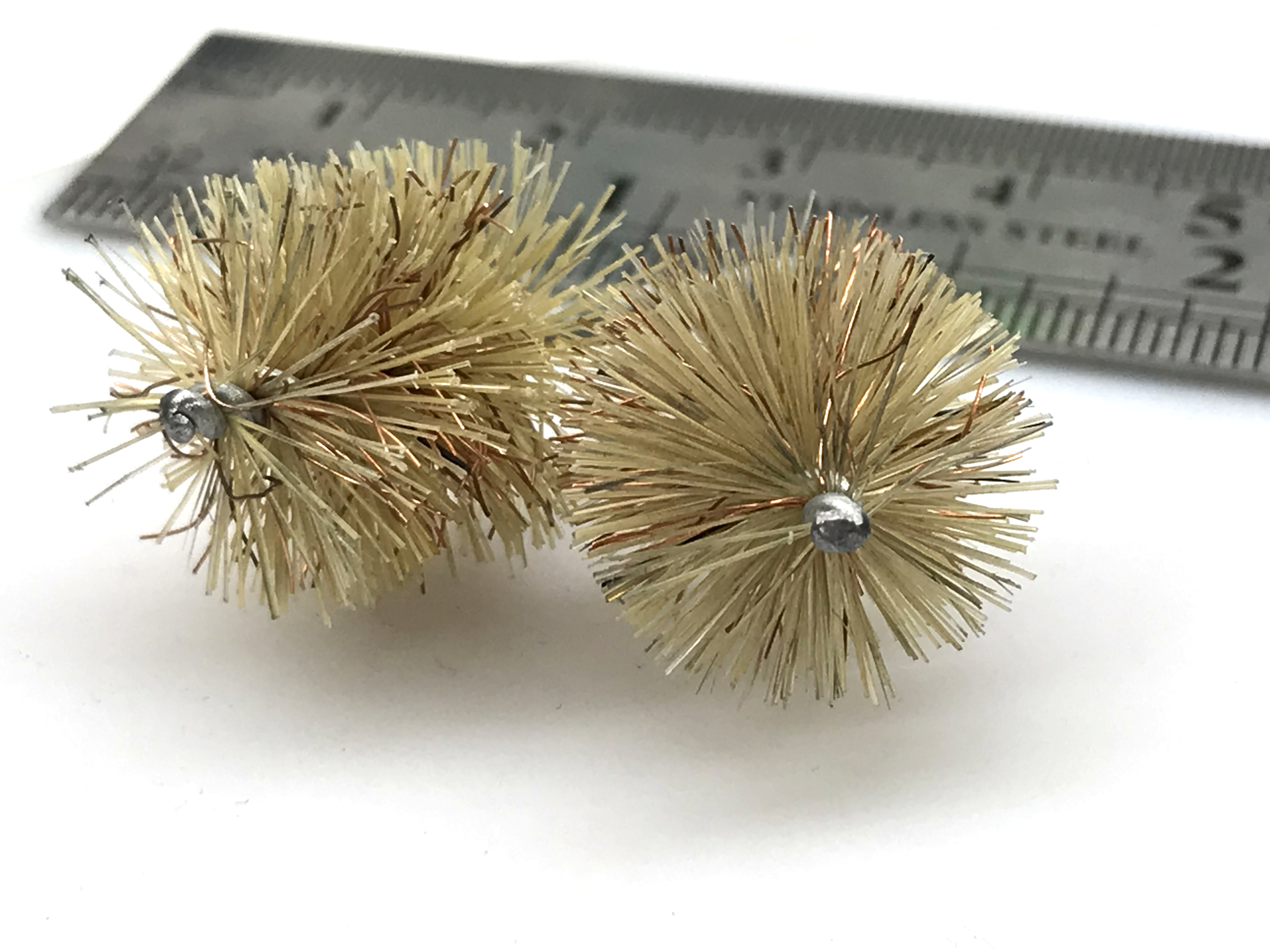

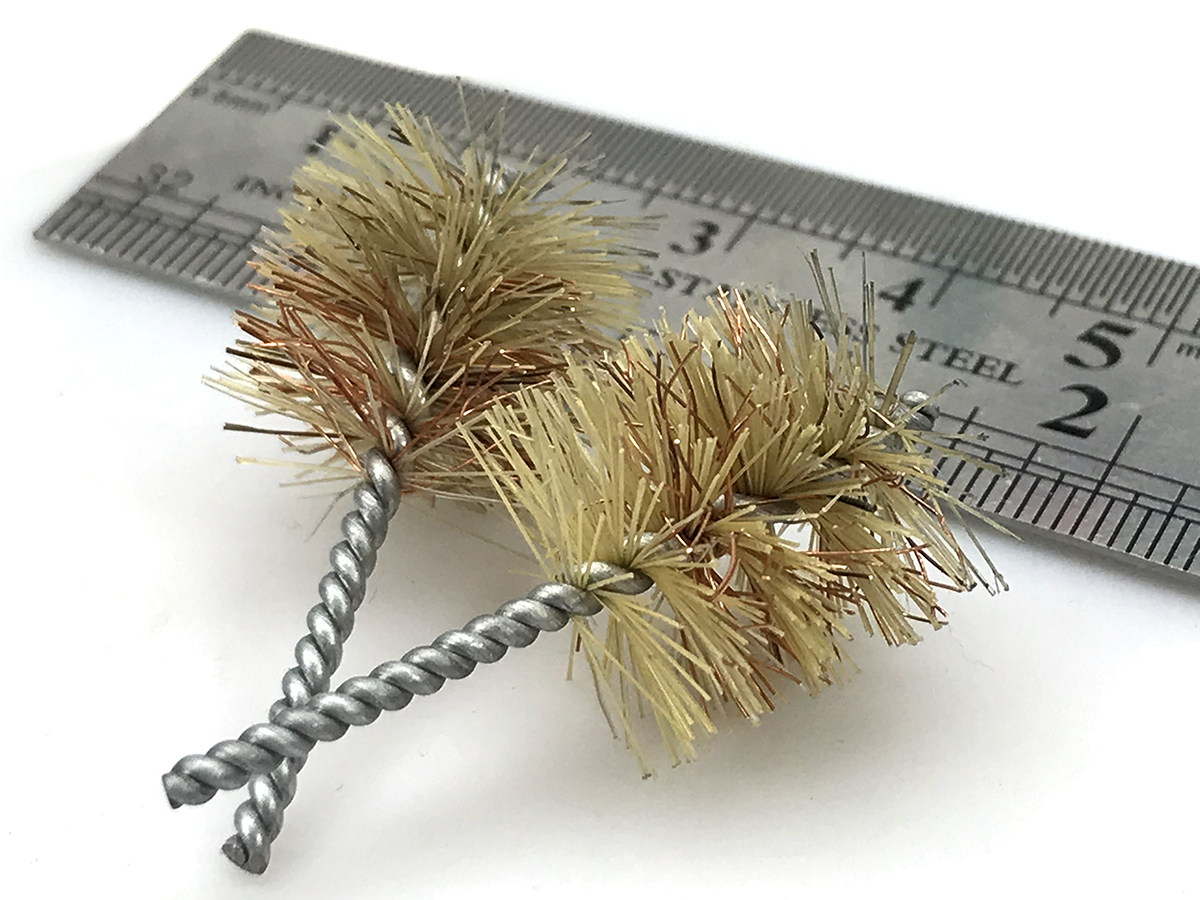

I also shot a video on how to make a spiral twisted brush (It was made of natural bristles and copper wires.). When I finish, I'll post it. Subscribe (Watch) in order not to miss the news.
##To be continued...

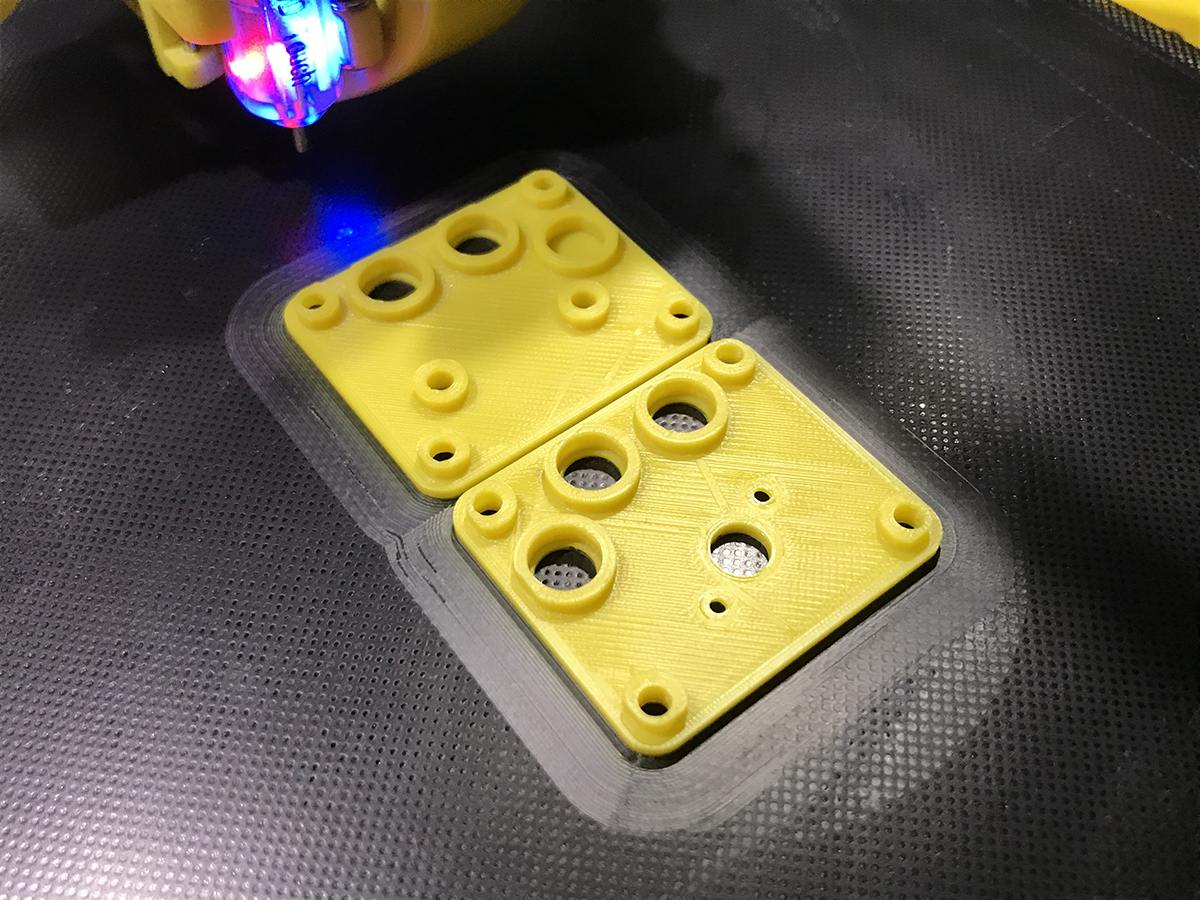

A set of current parts 1 except the black case are ready.
##Parts links below:
- Motor 24R18TRVB (from CD-ROM DVD) - http://ali.pub/4kynjy
- Brass Tube OD 4mm ID 3mm - http://ali.pub/4kyn6c
- Bearings - MR84ZZ 4*8*3 - http://ali.pub/4kynbe
- Screws M3 - http://ali.pub/4kynd5
- Insert Nuts M3 - http://ali.pub/4kynep
- Spiral Twisted Brass Wire Tube Brush (Easy to make by yourself) - http://ali.pub/4kynil
##Links to used tools:
- Mini Wireless Grinder - http://ali.pub/4hdmfe
- Polishers Buffers Abrasive - http://ali.pub/4hdmqo
- Dremel Tools - http://ali.pub/4hde9z
- NOGA deburring tool and Blades - http://ali.pub/2z2ah5
- AB Glue Epoxy - http://ali.pub/4hvg7o
- Super Glue 502 - http://ali.pub/4ipb7y
- E8000 Strong Liquid Glue - http://ali.pub/4ipc5s
##My favorites filament:
My some other things:
- 3D file format: STL
- Publication date: 2020/03/19 at 10:38
