3D model description


Français (description in English below)

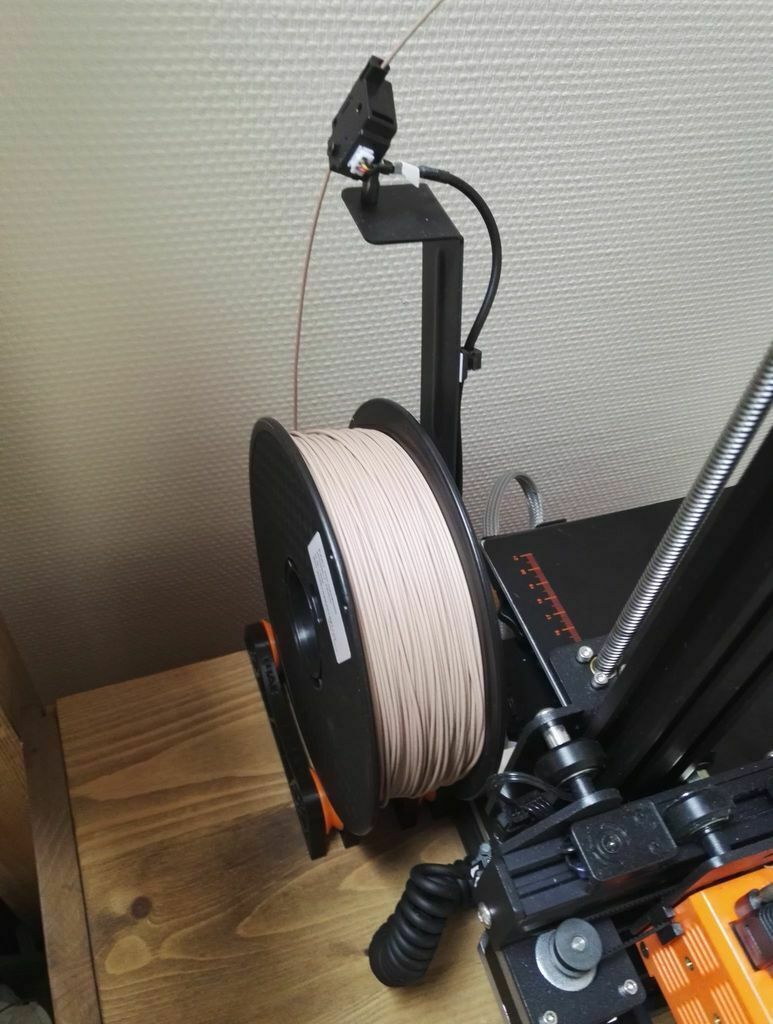

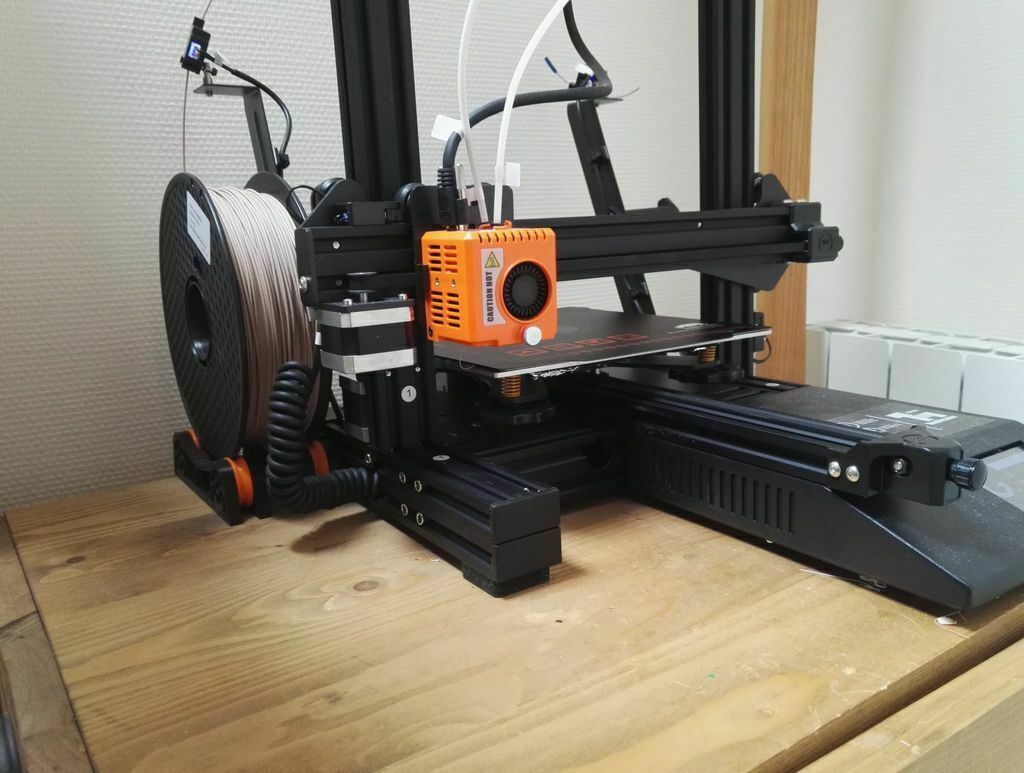

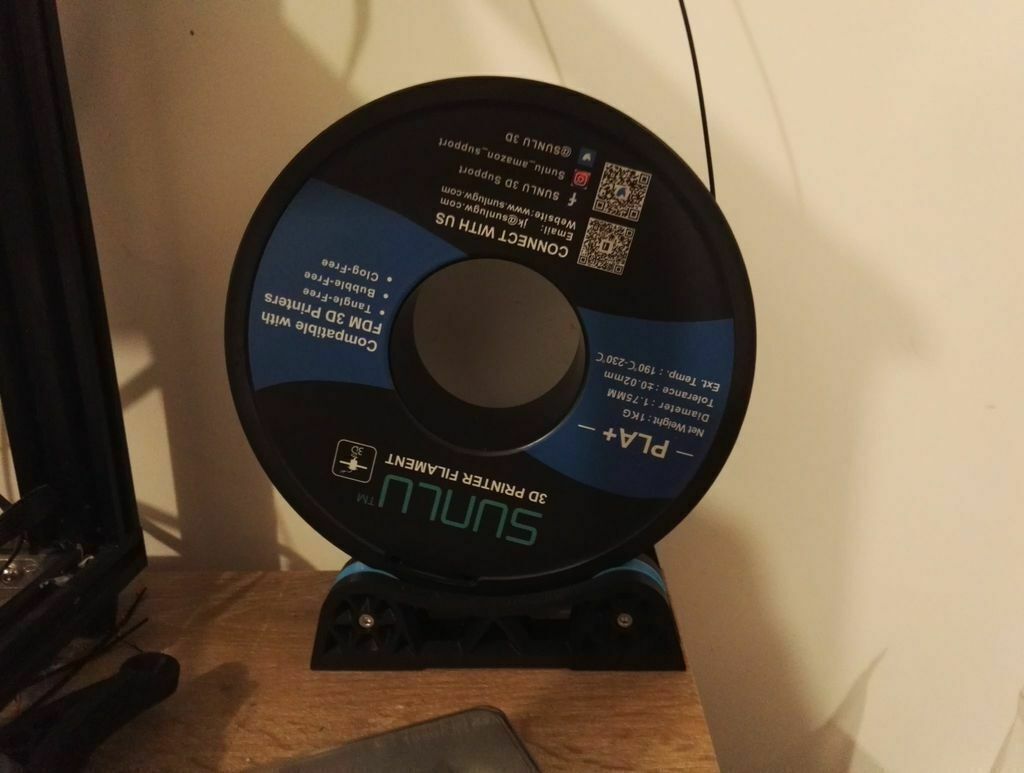

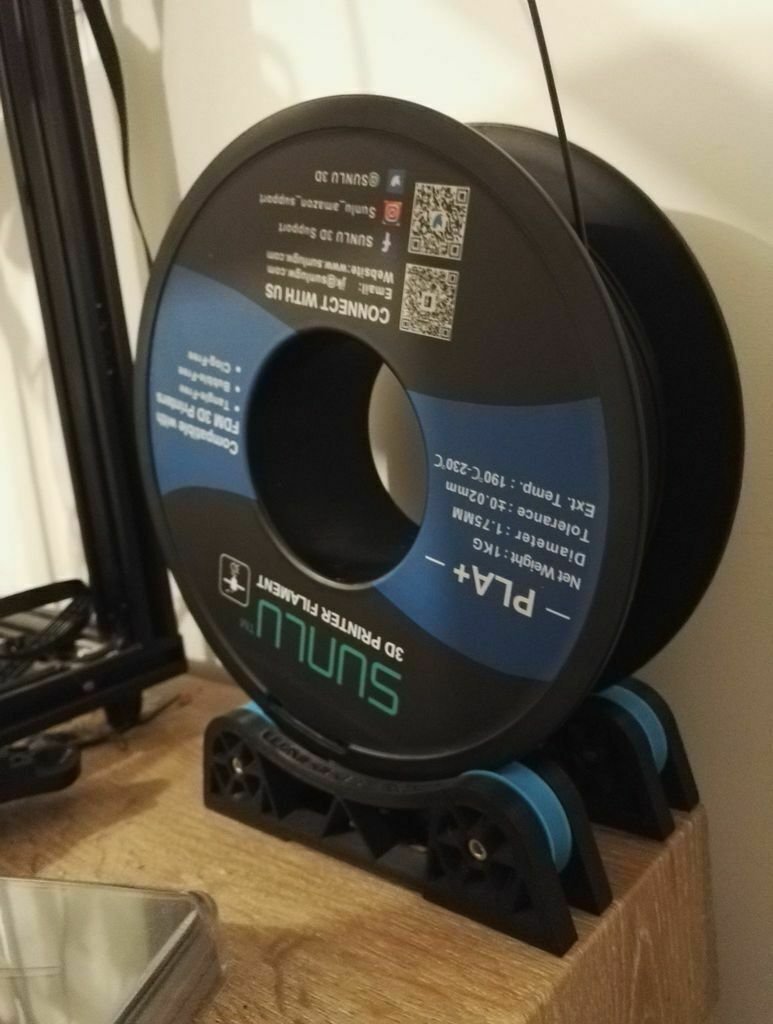

Dérouleur de bobines de filaments universel avec roulements à billes, plus silencieux avec un bon déroulement sans inertie (pas de déroulement intempestif).
Test Bobines inférieures ou égales à 3,5kg validé

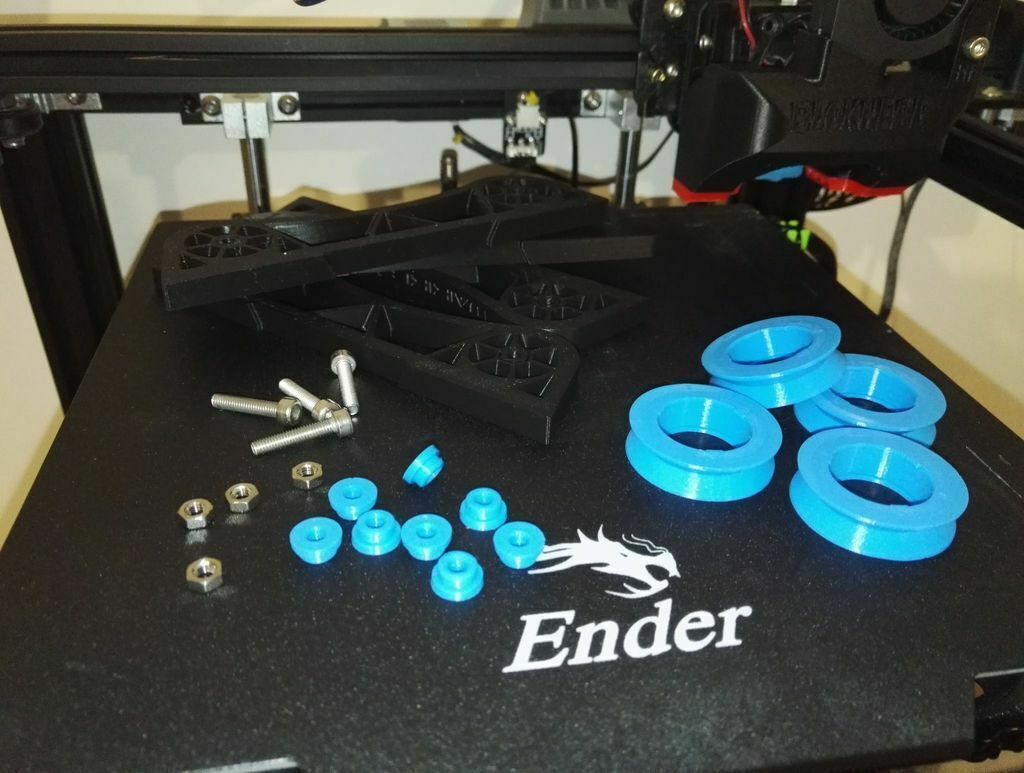

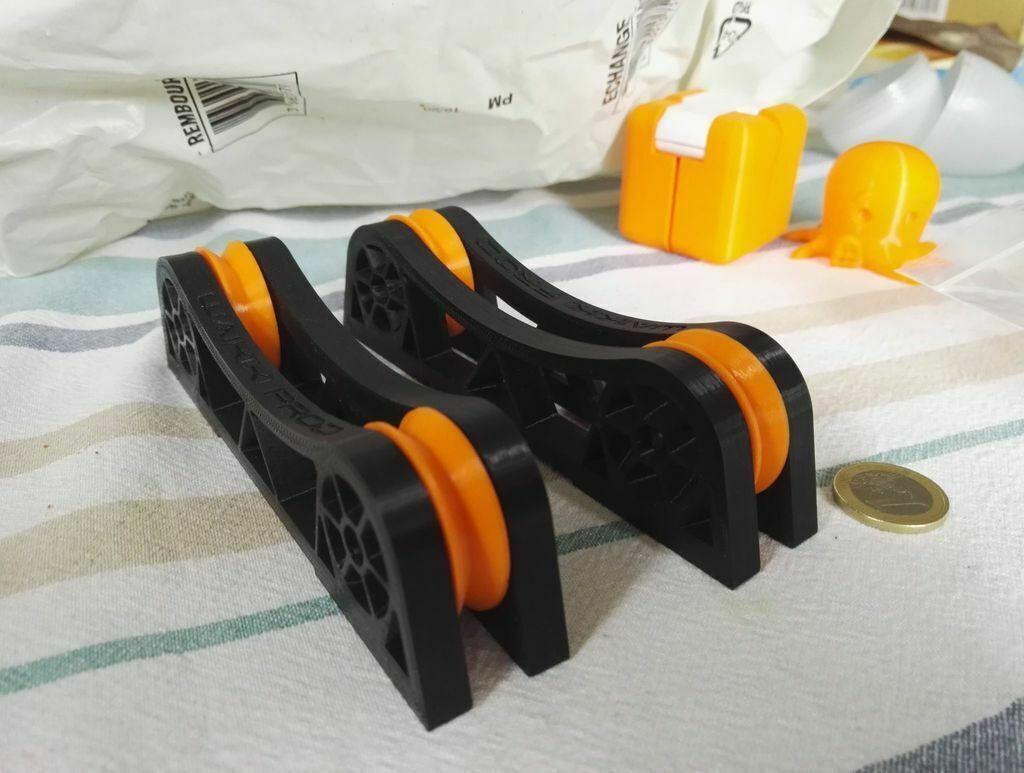

Imprimer à plat :
-2x ChassisINT

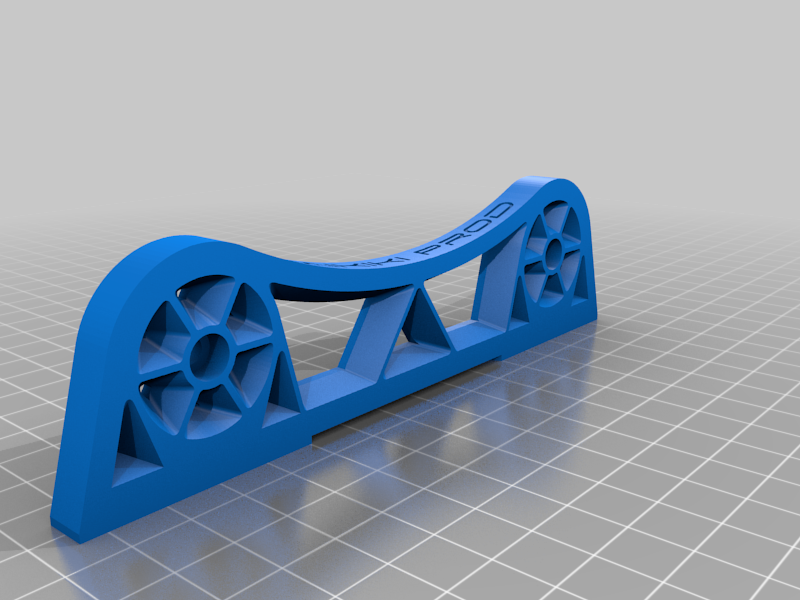

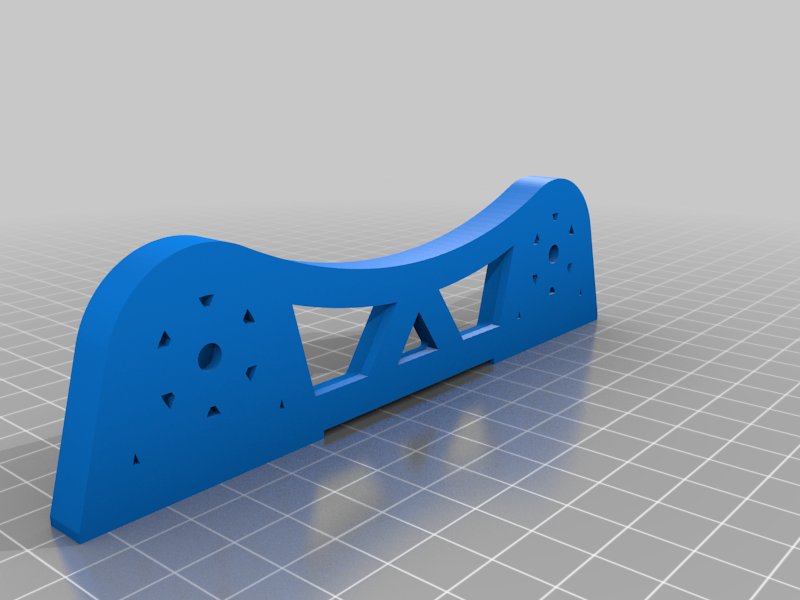

-2x ChassisEXT

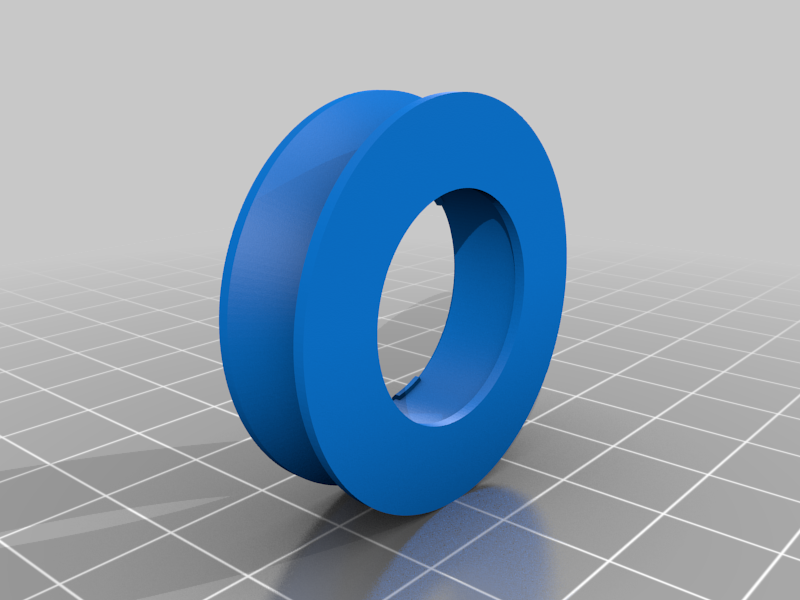

-4x Roue

4 roulements à billes 8 mm x 22 mm x 7 mm https://www.amazon.fr/gp/product/B07RZ765BS/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

Utiliser une qualité fine pour les roues
Choisir un remplissage assez élevé pour les entretoises, les roues et les chassis pour que le système puisse supporter de grosses charges.

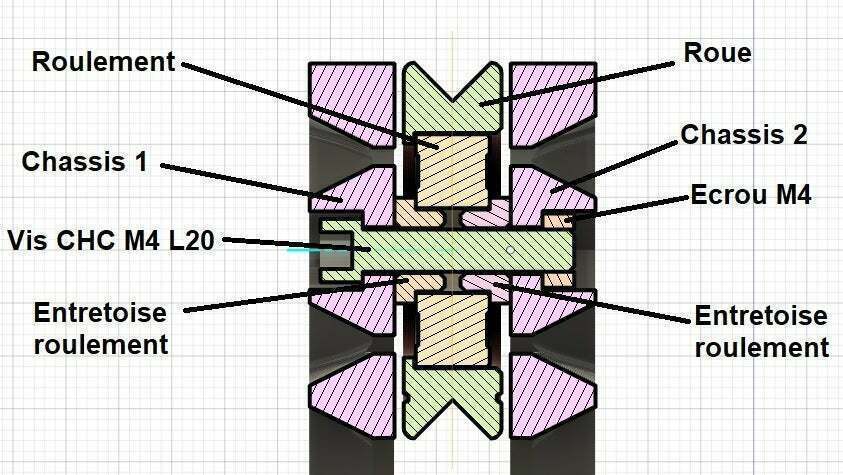

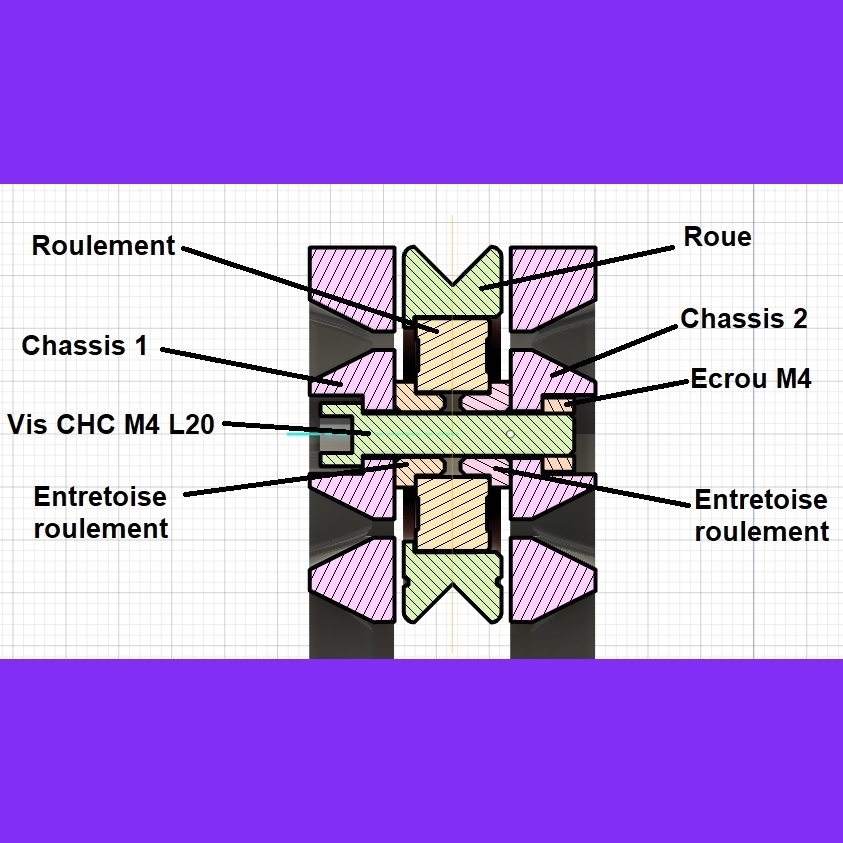

Pour le montage, il faut juste 4 vis M4 L20 et ses écrous.


English


Unwinder of spools of universal filaments with ball bearings, quieter with a smooth unwinding without inertia (no unwanted unwinding).
Coils less than or equal to 3.5 kg test validated

Print flat:
-2x ChassisINT
-2x ChassisEXT
-4x Wheel
-8x ball bearing spacer

4 roulements à billes 8 mm x 22 mm x 7 mm https://www.amazon.fr/gp/product/B07RZ765BS/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

Use fine grade for the wheels
Choose enough infill for spacers, wheels and frames so that the system can withstand heavy loads.

For assembly, you just need 4 M4 L20 screws and nuts.
