Arduino Materia 101 - Fan Guard With Logo

Download free STL files Arduino Materia 101 - Fan Guard With Logo, sportguy3DprintDownload free STL files Arduino Materia 101 - Fan Guard With Logo, sportguy3DprintDownload free STL files Arduino Materia 101 - Fan Guard With Logo, sportguy3DprintDownload free STL files Arduino Materia 101 - Fan Guard With Logo, sportguy3DprintDownload free STL files Arduino Materia 101 - Fan Guard With Logo, sportguy3DprintDownload free STL files Arduino Materia 101 - Fan Guard With Logo, sportguy3Dprint

Did you 3D print this model?

3D model description

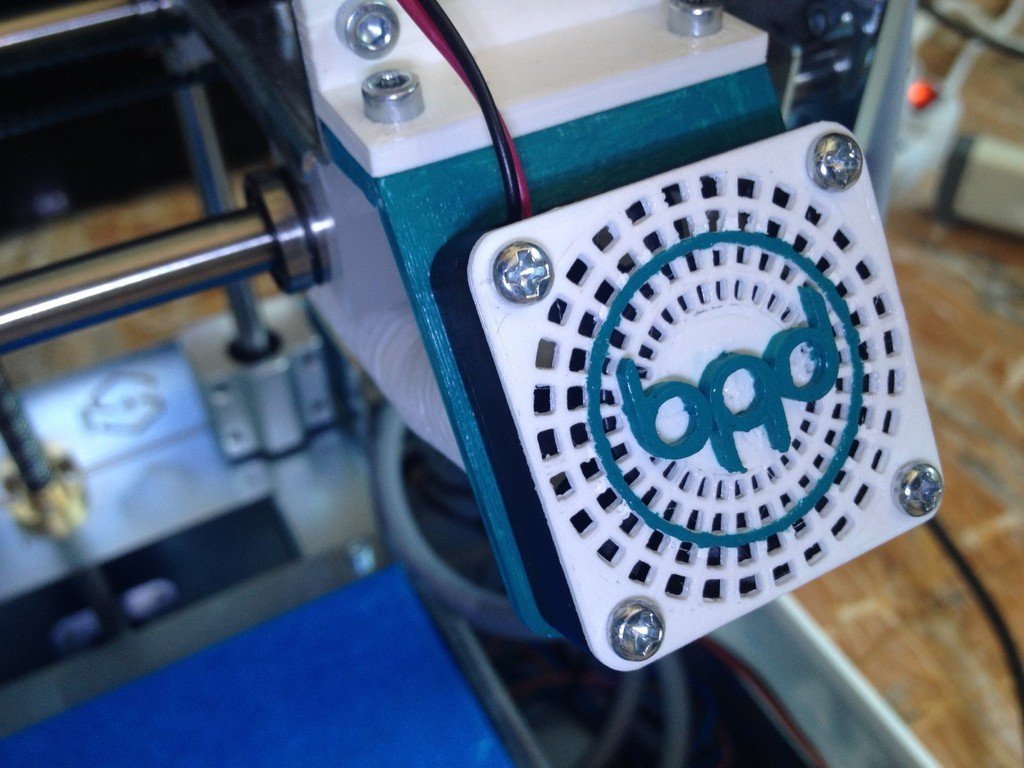

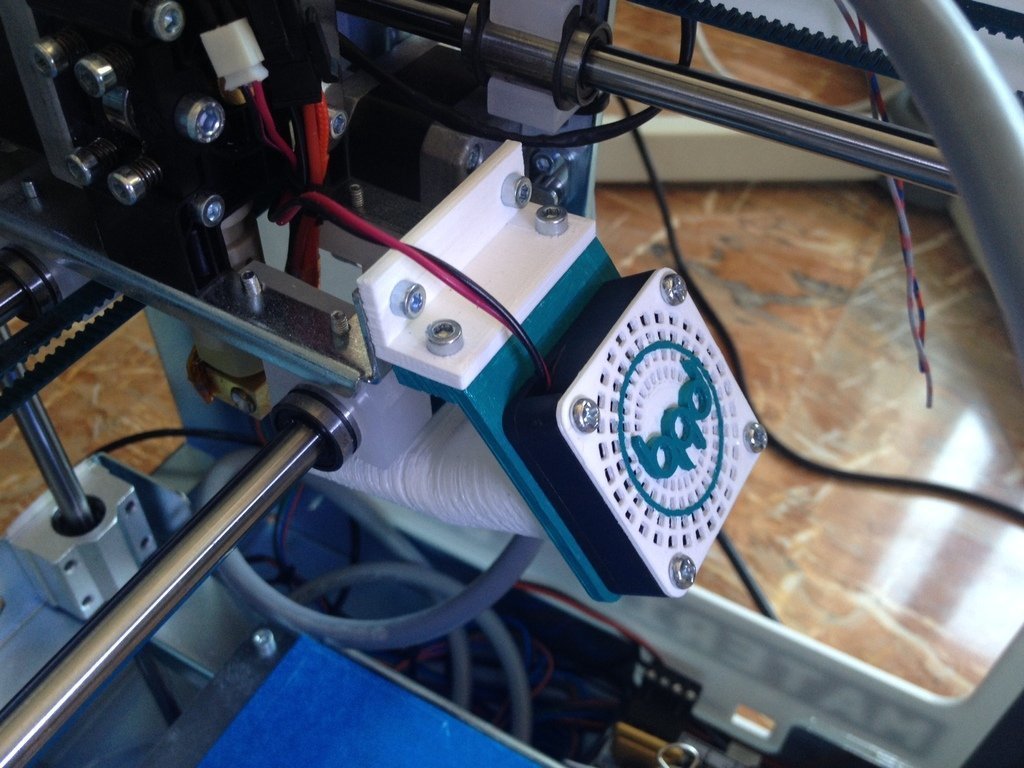

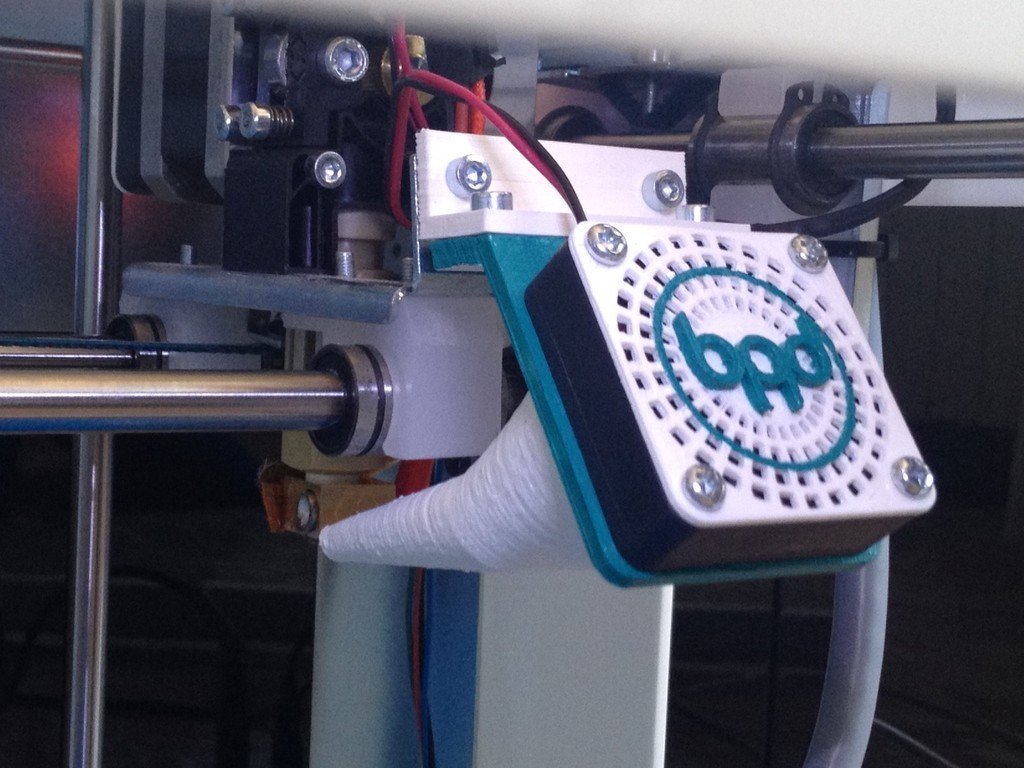

After noticing that dust tends to accumulate on the fan's "petals", I decided to make two fan guards for the extruder fan and for the X axis motor fan, with my logo on them.

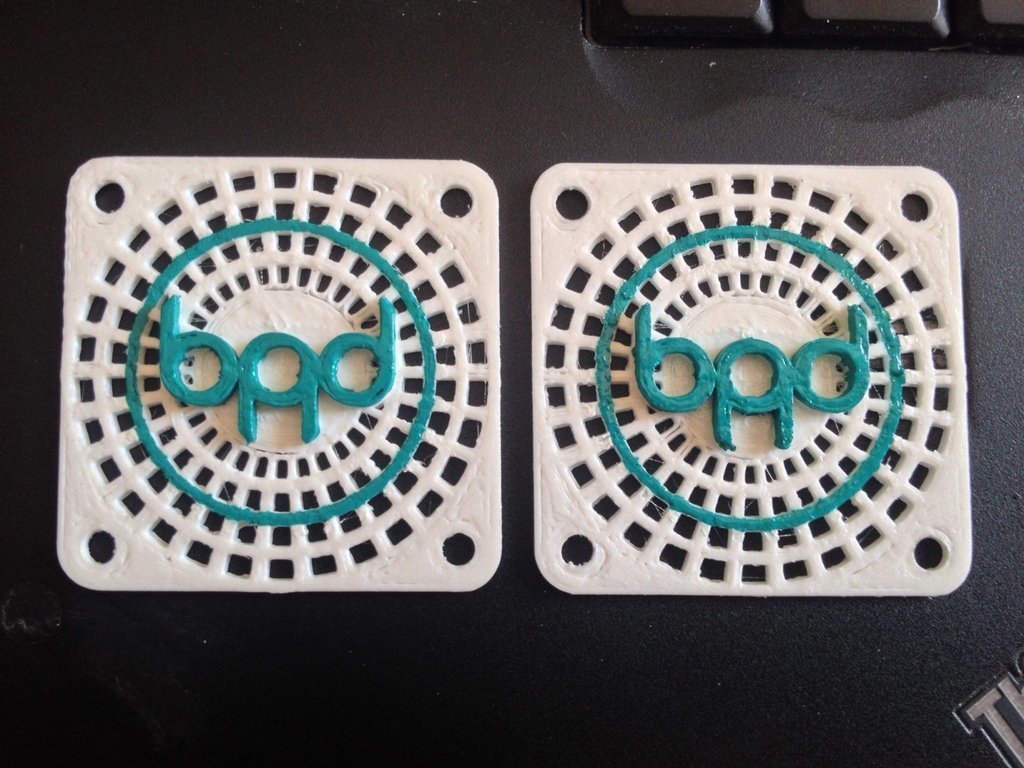

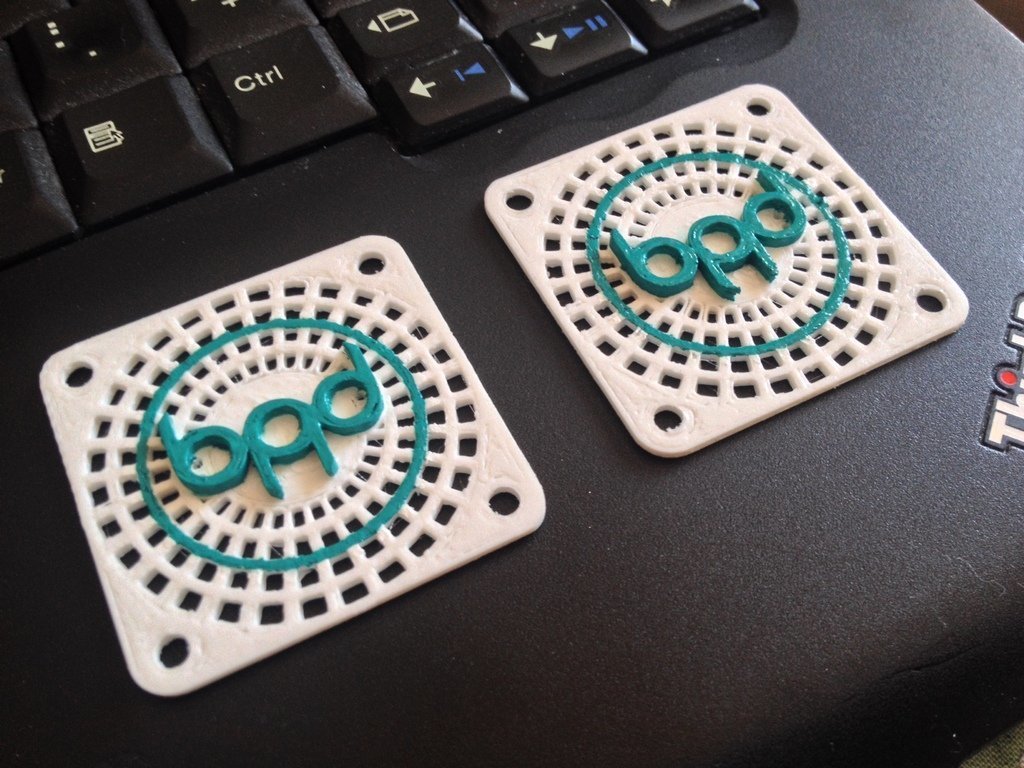

After printing, I painted the logo and one of the circles with acrylic paint and a gloss transparent finish.

This guard fits a 40x40mm fan.

3D printing settings

I printed mine in white PLA, with 0.2mm layer height and concentric infill.

After printing, please note that you will need longer screws or bolts to mount the guard behind the fans.

Also, you might need to introduce very thin washers between the fan and the guard, to allow for more room for the fan to turn.

  • 3D model format: STL

Tags

Creator

License

CC BY SA
