Anything on lathe QCTP

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.6k views
  • 13 likes
  • 155 downloads

3D model description

This is an adapter for lathe 0XA Quick Change Toolpost: mount various tools and objects, for example a Dremel tool to make vertical or diagonal slots and holes, otherwise not possible on a lathe.

A few variations are provided:

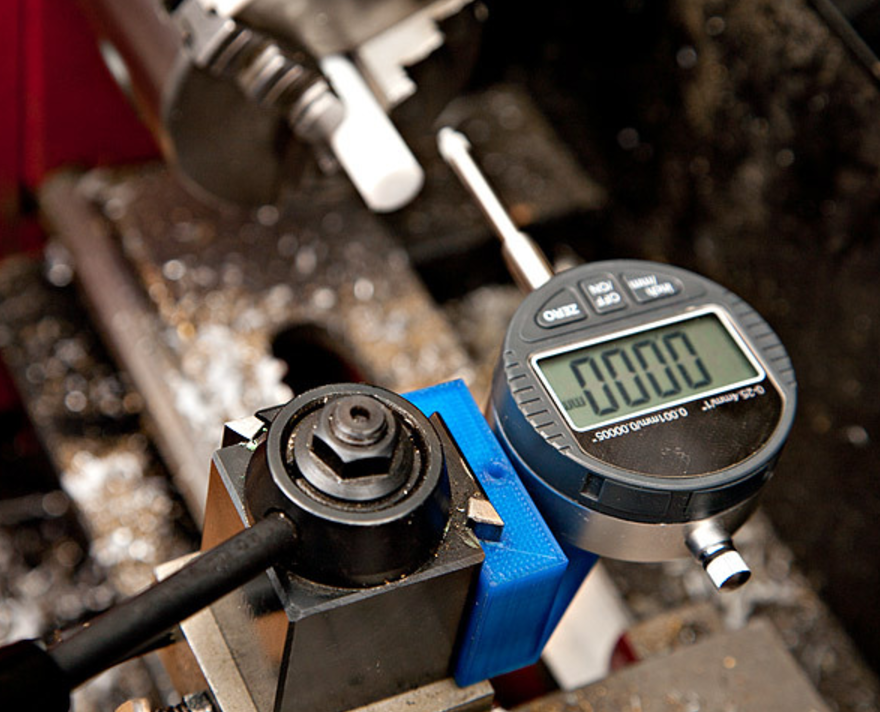

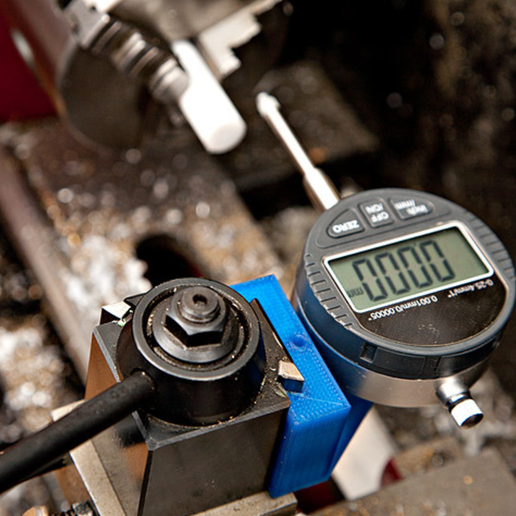

Horizontal 1/4-20 - for a Micrometer for example

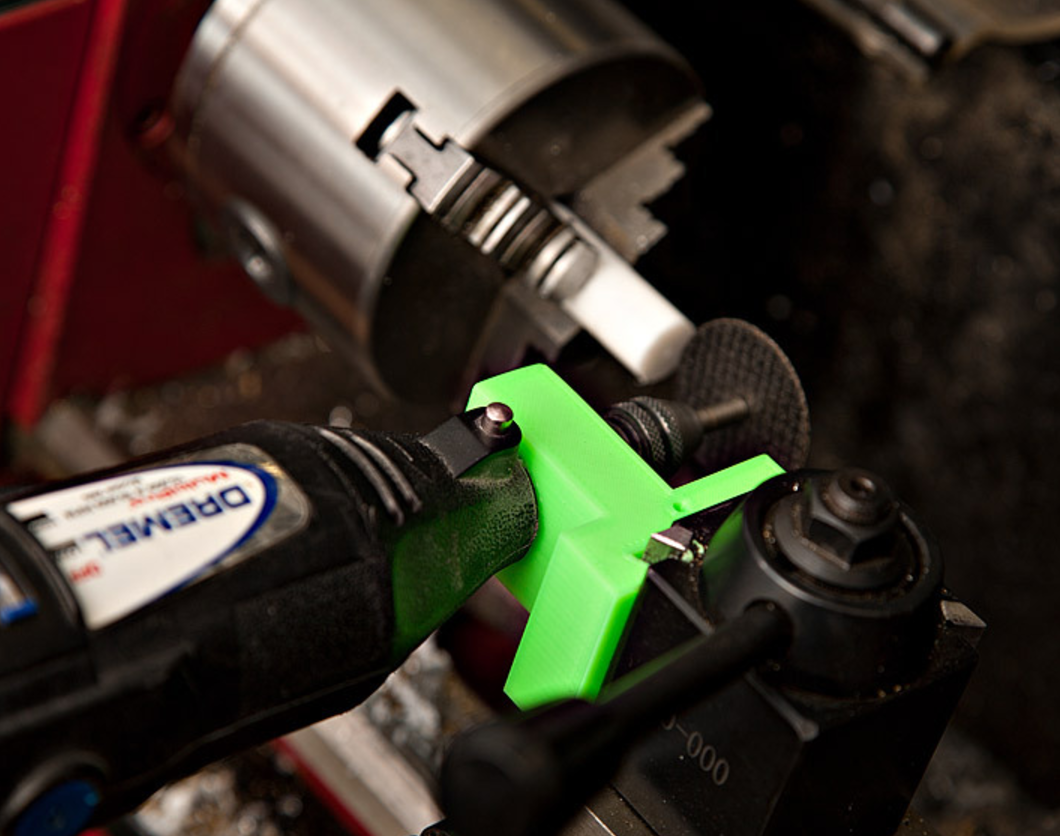

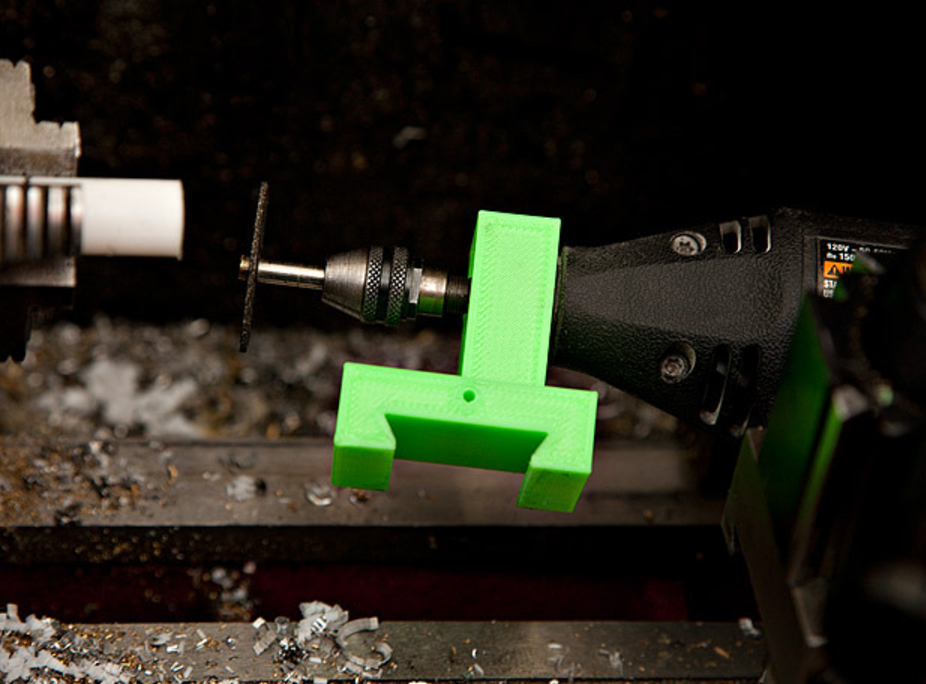

A screw-in Dremel support
Vertical 1/4-20
Generic base
You can create more adapters by boolean joining the generic plate included (Lathe_0XA.stl) with your custom object mount, if you have the two STLs you can do this easily in 3D Builder.

Note: this is designed for 250-000 tool-post (0XA) which is common in 7x10 mini-lathe (Harborfreight, LittleMachineShop, etc)

WARNING: 3D printed parts are obviously prone to failure in such an environment, especially because of mechanical stress. Do not use such adapters without proper protection when the late is spinning.
