Anycubic Predator Lighting ring Neopixel project.

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 105 views
  • 1 like

3D model description

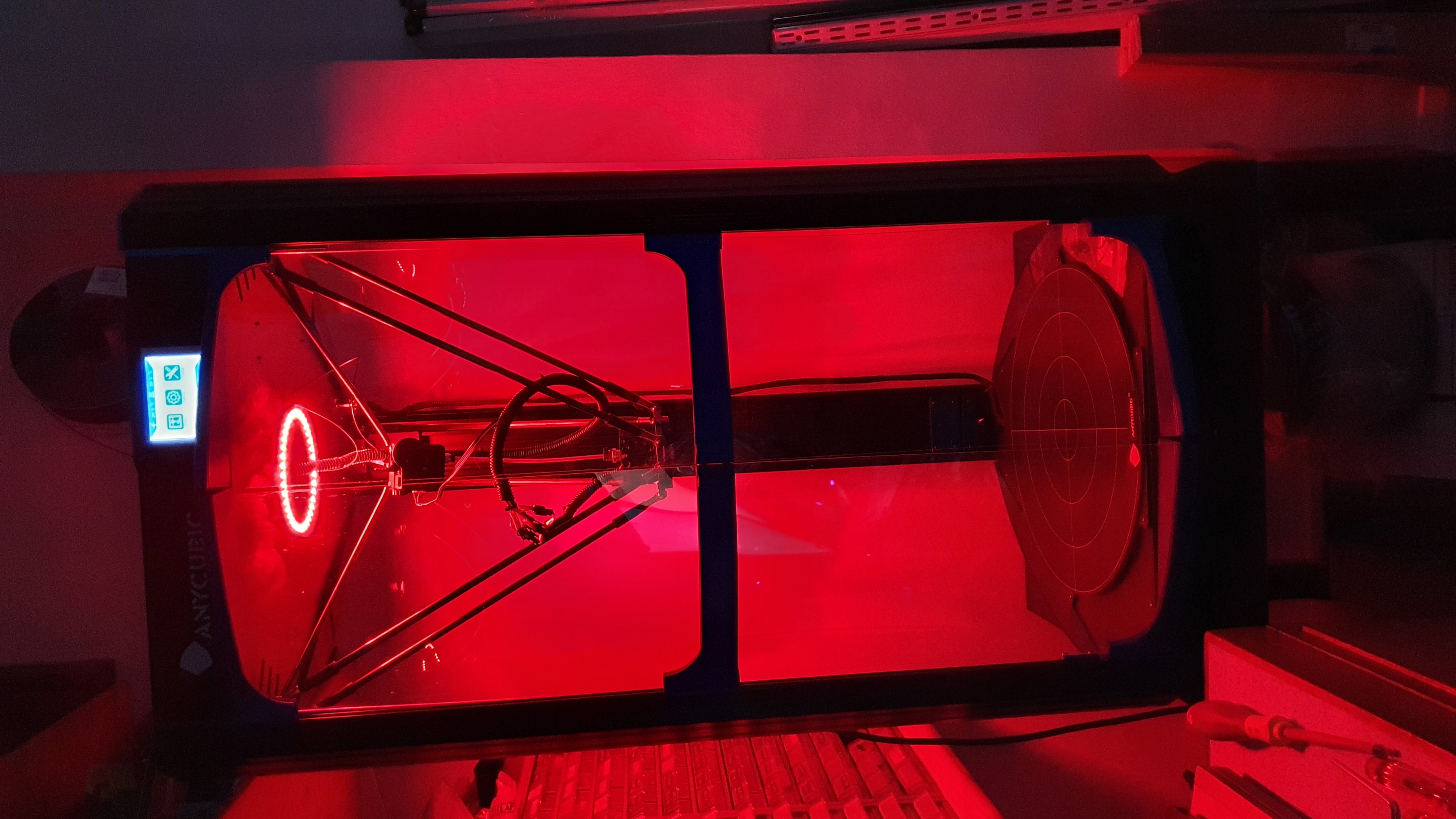

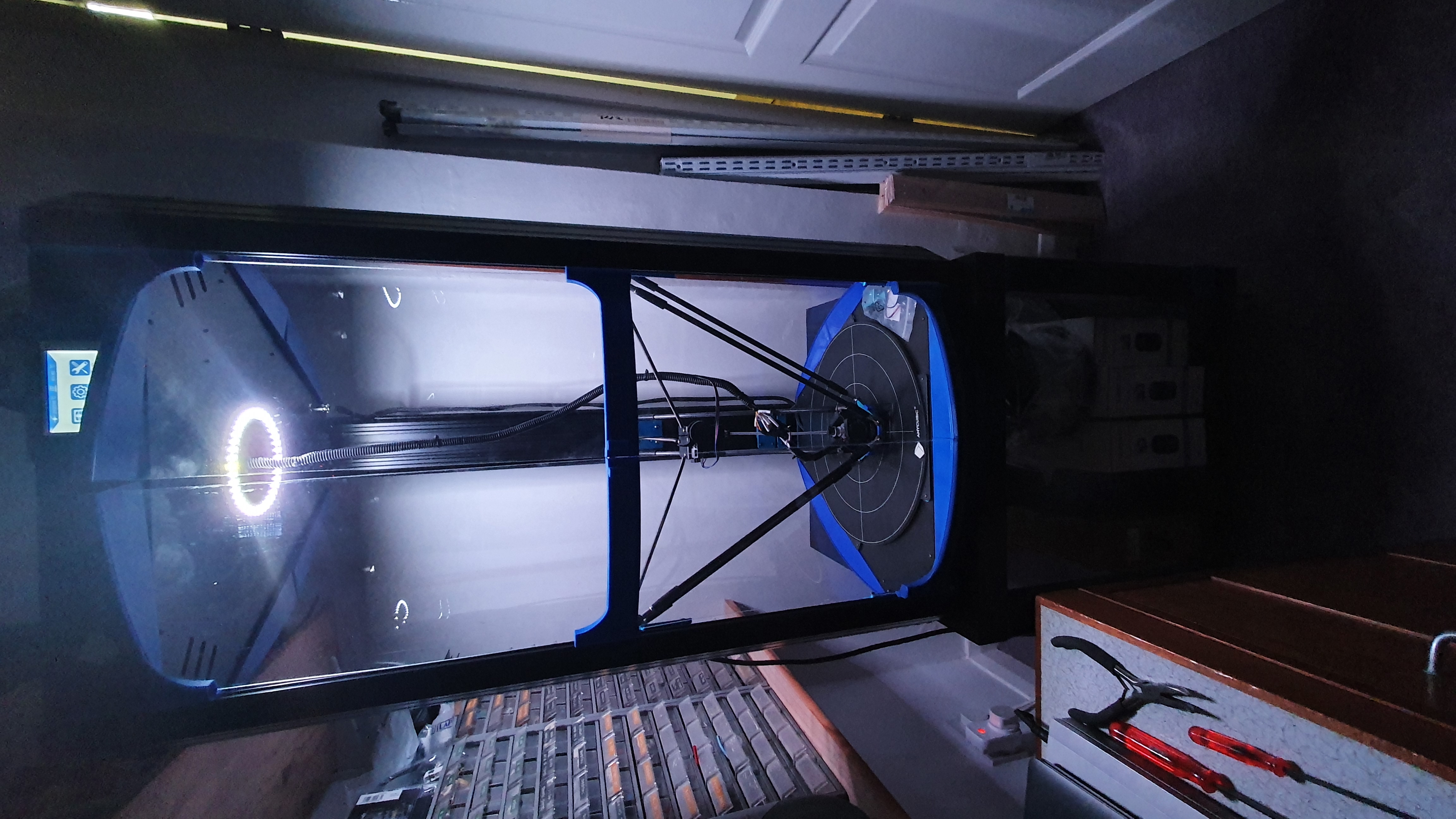

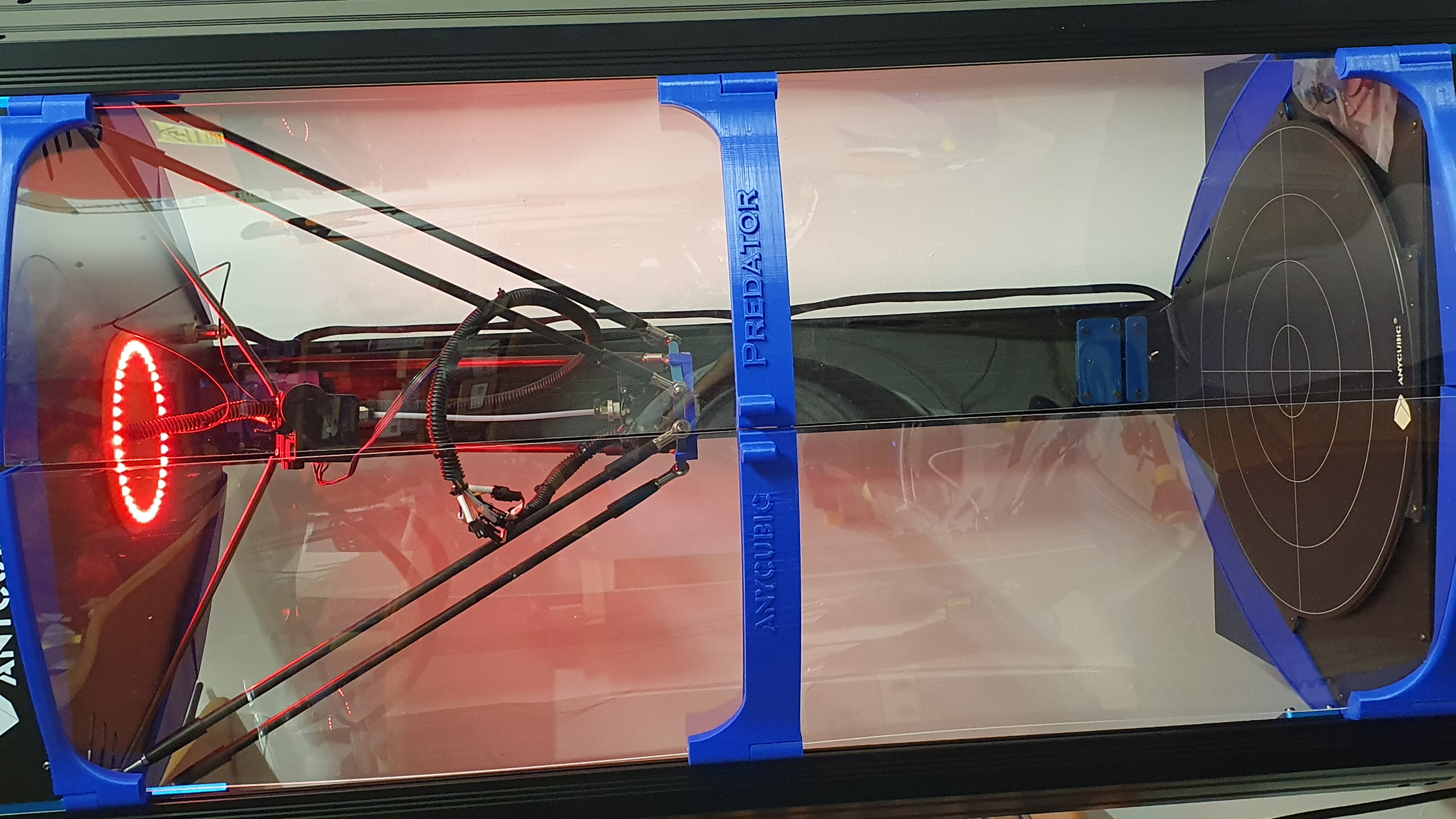

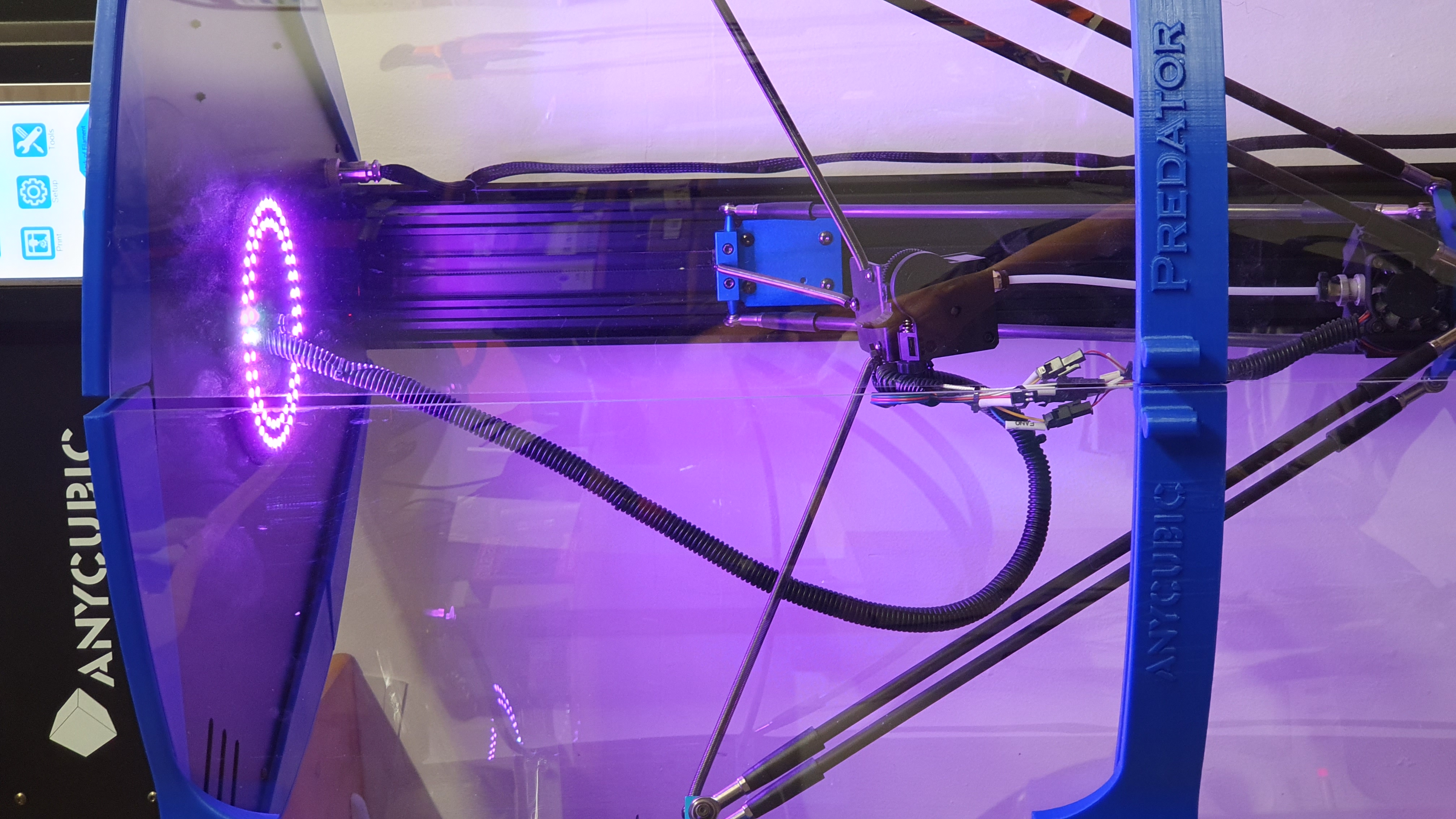

I usually fit my printers into an enclosure of some kind which usually have some form of illumination but the Predator is such a large machine and can be adapted with its own enclosure, I figured I'd install its own independent lighting system.
My Predator is still running the standard mainboard with a Raspberri Pi providing wifi connection via Octoprint. My last dabblings with Neopixels on my Tronxy X5S were controlled via Marlin and they worked well, but that wasn't an option for me with the Predator, at least not in its current state so I had a look around and checked out some Octoprint Plug-ins. I've gone with "WS281x LED Status.".
This project will be split between the hardware and electronics and I'll try to give a few pointers on the software setup too as I go along, especially if I get any issues.
The first thing you need is the hardware.

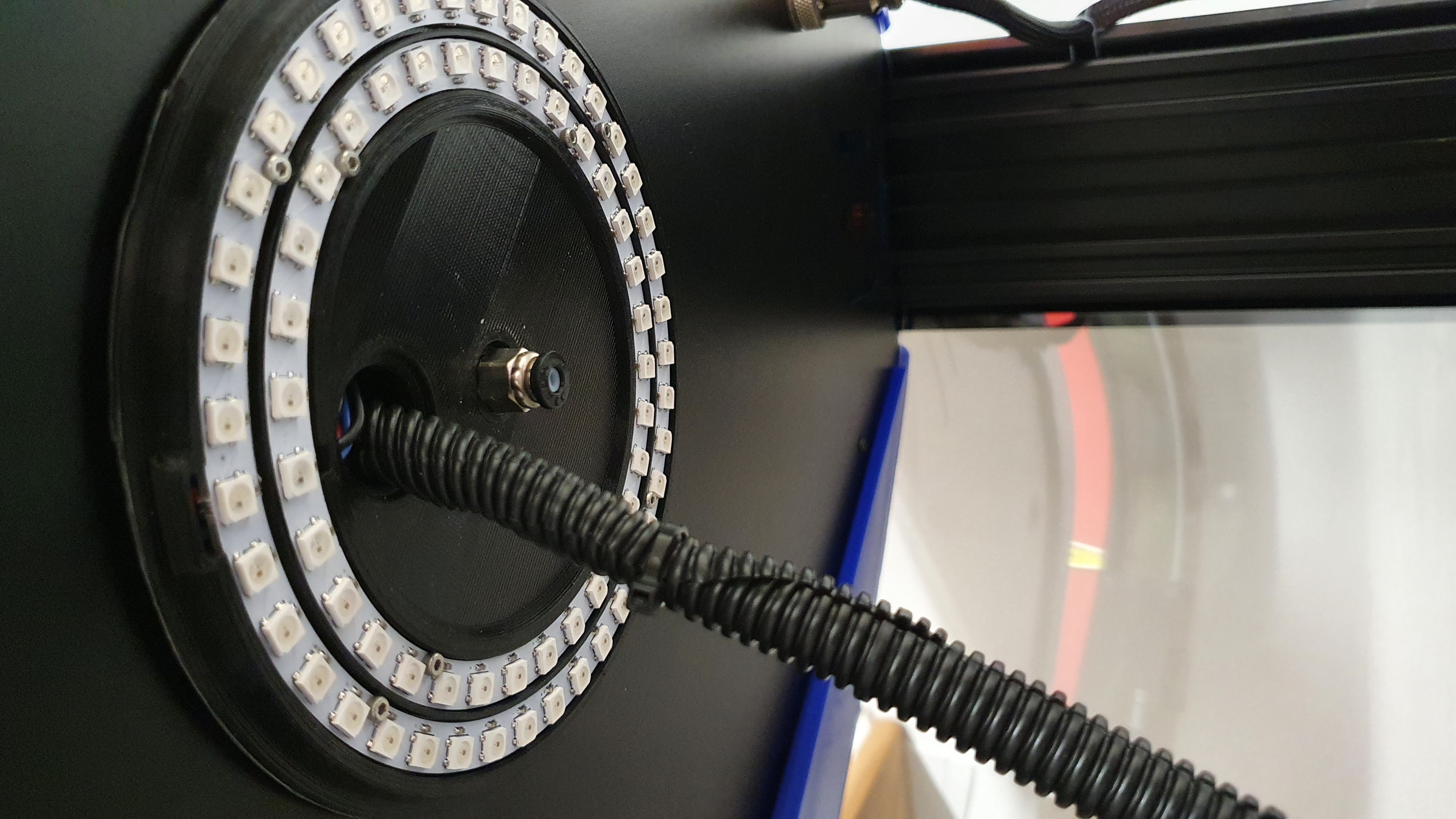

  1. One x 132mm 40 element Neopixel LED ring. https://www.ebay.co.uk/itm/40-LED-132mm-Ring-WS2812B-RGB-LED-Neopixel-compatible/132996155873?hash=item1ef73049e1:g:07wAAOSwLi1ckkf~

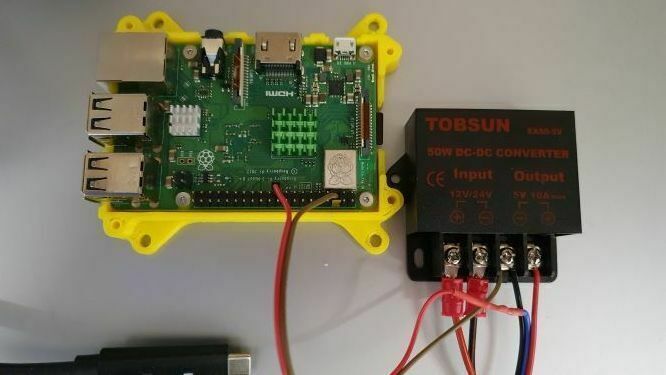

2.One x 24 Volt, - 5 volt DC 10Amp buck converter.
https://www.amazon.co.uk/gp/product/B07L6528VM/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

  1. If you don't already have one, a 24 volt to micro USB buck converter for the Raspberry Pi.
    https://www.ebay.co.uk/itm/DC-Step-Down-Buck-Converter-12V-24V-36V-8-50V-to-5V-3A-Micro-USB-Power-Adapter/272213233984?hash=item3f612c5140:g:VRUAAOSw3YNXYTf2

  2. A raspberry Pi and SD card of your choice. You can find these everywhere.

  3. Four off, M2 x 4mm Cap head screws (Neopixel ring fixing). (My screw box)

  4. a pair of female to female dupont jumper wires
    https://www.amazon.co.uk/AZDelivery-MB-102-Breadboard-Kit/dp/B07KYHBVR7/ref=sr_1_33?dchild=1&keywords=breadboard+jumper+wires&qid=1609174888&sr=8-33

7.A few feet of 1.0mm2 speaker wire.
https://www.amazon.co.uk/electrosmart-Black-Strand-Speaker-Cable-Red/dp/B06ZYB5XQF/ref=sxin_9_ac_d_rm?ac_md=3-2-c3BlYWtlciB3aXJlcyByZWQgYW5kIGJsYWNr-ac_d_rm&cv_ct_cx=speaker+wire&dchild=1&keywords=speaker+wire&pd_rd_i=B06ZYB5XQF&pd_rd_r=a8f61600-440b-4163-b3ea-0ec07a734eec&pd_rd_w=vrRwX&pd_rd_wg=oybiG&pf_rd_p=17aec670-a34a-456d-b214-b9a882c785b0&pf_rd_r=FPXZQGEJ9R1A5ENB93XS&psc=1&qid=1609176059&sr=1-3-fe323411-17bb-433b-b2f8-c44f2e1370d4

  1. Some fork crimps and a crimping pliers for that professional touch.

  2. 4x M2.5 x 4mm (or 6mm) (Raspberry Pi mounting).

  3. 2x M3 x 4mm (or 6mm) (Buck converter mounting).

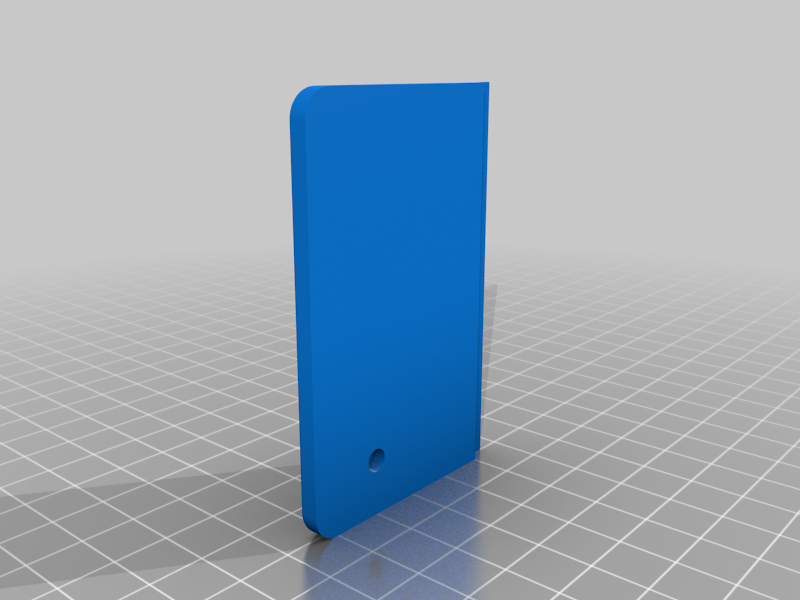

  4. 1x M4 x 12mm screw and nut (Stub plate fixing).

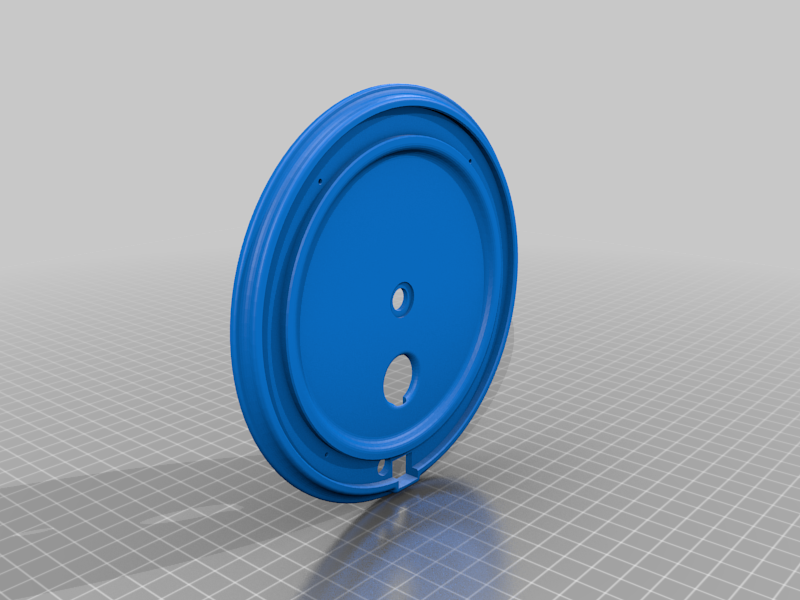

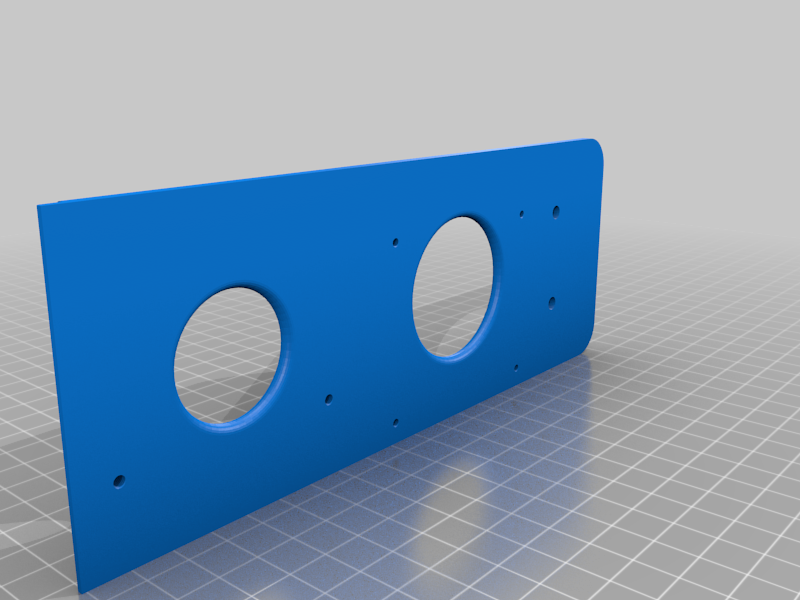

First thing to do is print the mounting plates and the LED ring holder. See printing instructions. While this is going on if you have another printer, you can start preparing the Predator.
You will need to move the filament runout sensor to inside the control electronics compartment. A lot of folk have already done this due to the potential to snag up on the wiring harness or filament when the printer homes. There's a "Thing" here with a decent guide by Seafax with the caveat that you do not discard the guide tube fitting that you remove from inside the control compartment as these instructions suggest. You'll need it later for this project.
https://www.thingiverse.com/thing:3665598

Rest of the instructions follow below.

  • 3D file format: STL
  • Publication date: 2020/12/29 at 11:33
