Anycubic Mega Liftup Frame (big fans, front SD, drawers)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 4 likes
  • 38 downloads

3D model description

Updates:
- 2019-12-24: Reworked side + fanmounts (easy print without support, less material)
- 2019-12-23: Reworked corner-with-sdmount for better fit
- 2019-10-25: Added drawer elements
- 2019-10-22: Finally fixed the hole in SD part, learned that edge is not the english word for corner and thus renamed filenames :)
- 2019-09-13: Fixed holes and middle part alignment

[English]

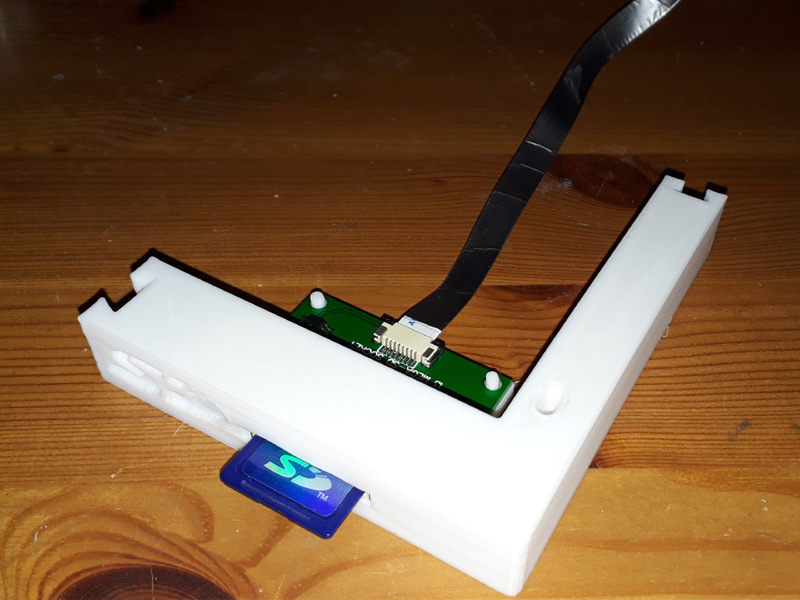

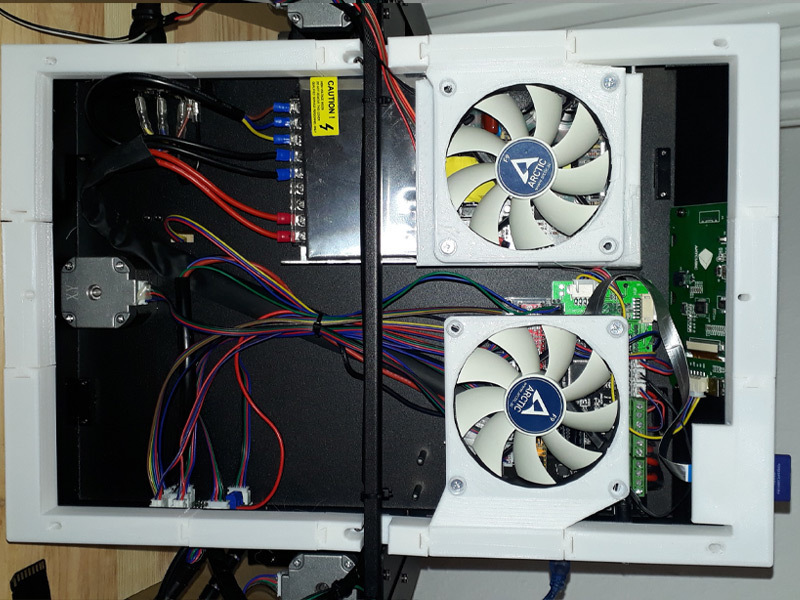

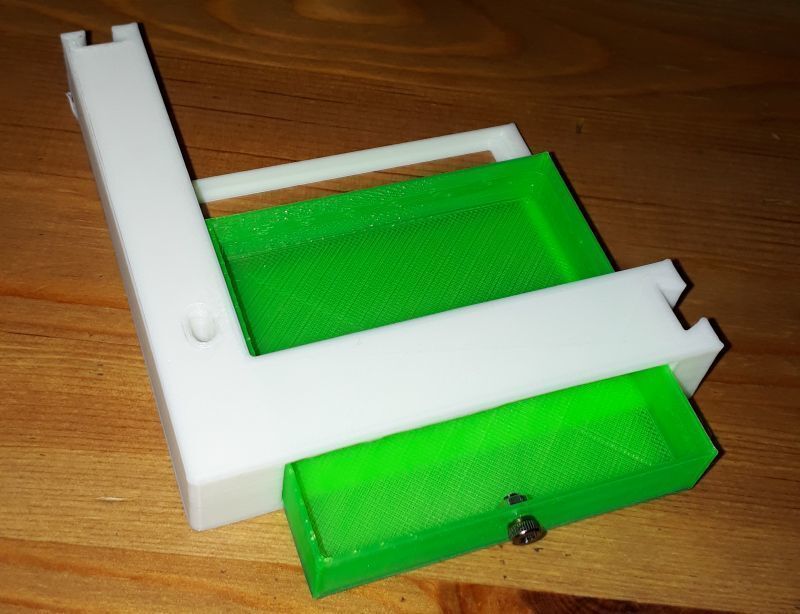

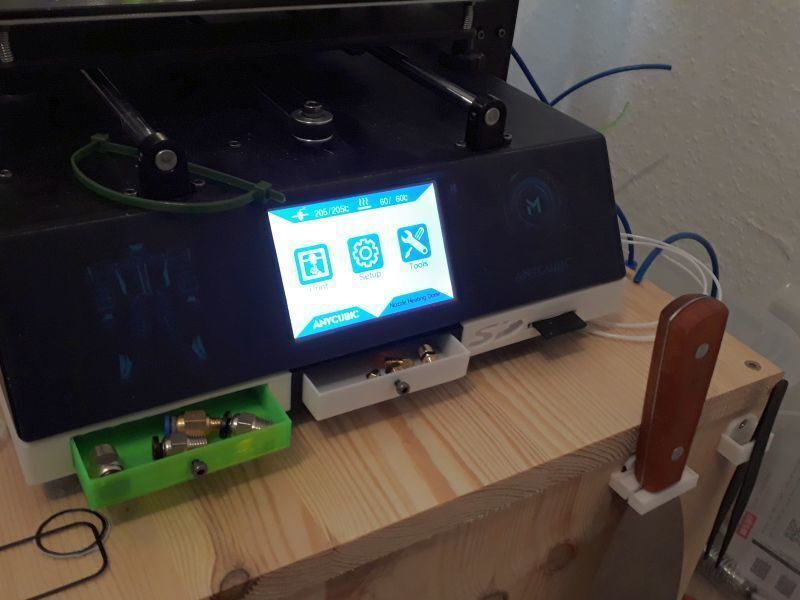

This frame fits perfectly between bottom plate and case of your anycubic I3 and lifts it up by 17 millimeters. That gives you enough space to place a 25mm thick standard fan (even if you are using higher motor driver heatsinks) and also allows you to move the SD card slot to the front side or add a little drawer for small stuff like nozzels.

Notes:

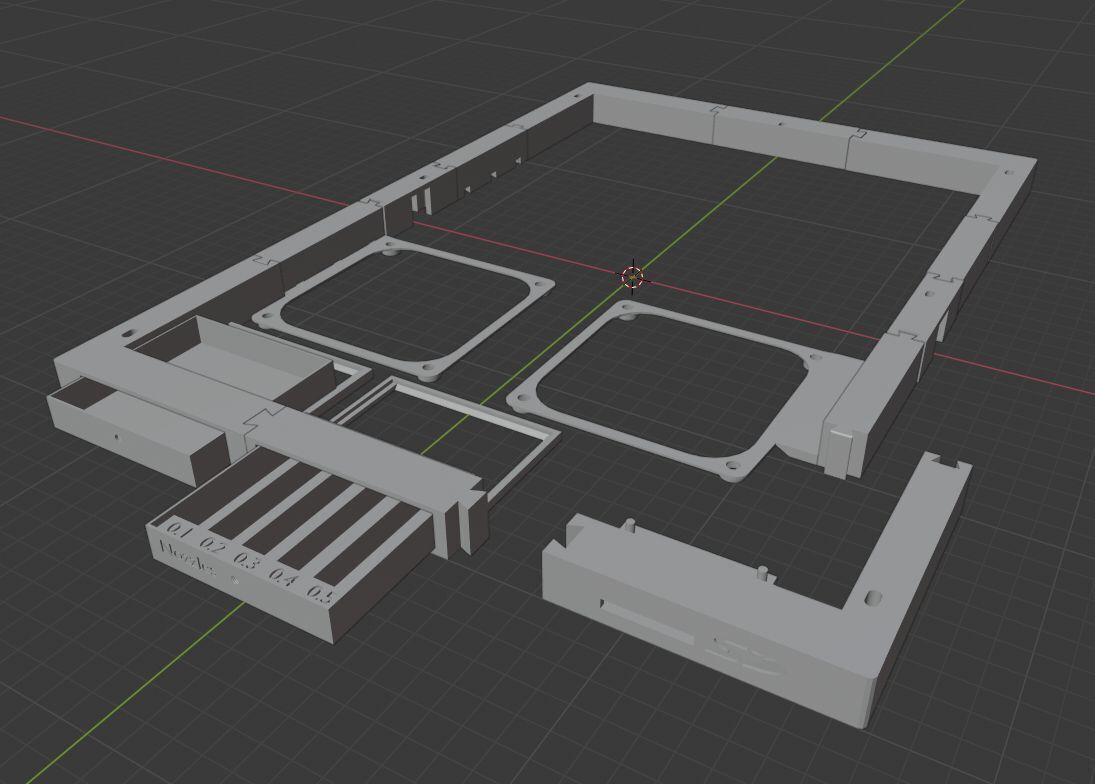

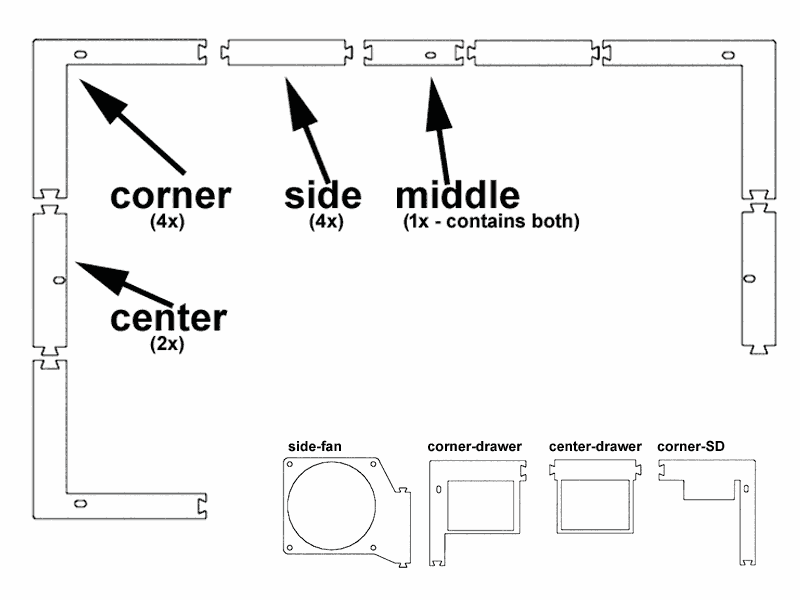

- Parts to print: 1x middle (contains both), 2x center, 4x side, 4x corner
- Start mounting the middle parts using the original short screws. Once they are fitted you can easily snap in the other parts.
- To use the corner drawer you need to slightly unscrew the device foot (or replace with shorter screw).
- You need 6 M3 x 25mm screws
- I have only tested the 92mm fan mount, the others might not fit (feedback welcome)

More compatible parts from other makers:
- Corner with power switch https://www.thingiverse.com/thing:3923403

[Deutsch]

Dieser Rahmen passt perfekt zwischen Bodenplatte und Gehäuse des Anycubic I3 und schafft damit 17mm mehr Platz für bis zu 25mm hohe Lüfter (selbst mit höheren Kühlkörpern auf den Motortreibern). Weiterhin kann man den SD Kartenslot einfach nach vorne verlegen und eine kleine Schublade für Kleinkram wie Nozzles hinzufügen.

Hinweise:
- Teile zum Drucken: 1x middle (enthält beide), 2x center, 4x side, 4x corner
- Zuerst die Mittelteile mit den kurzen Originalschrauben befestigen, im Anschluss lassen sich die anderen Teile einfach reindrücken.
- Für die Eck-Schublade muss der Gerätefuß etwas aufgeschraubt (oder mit einer kürzeren Schraube ersetzt) werden.
- Du benötigst noch sechs M3 x 25mm Schrauben
- Ich habe nur die 92mm Lüfterhalter getestet

Mehr kompatible Teile von anderen Makern:
- Ecke mit Netzschalter https://www.thingiverse.com/thing:3923403
