Anycubic Kossel Linear Plus Filament Spool Mount

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

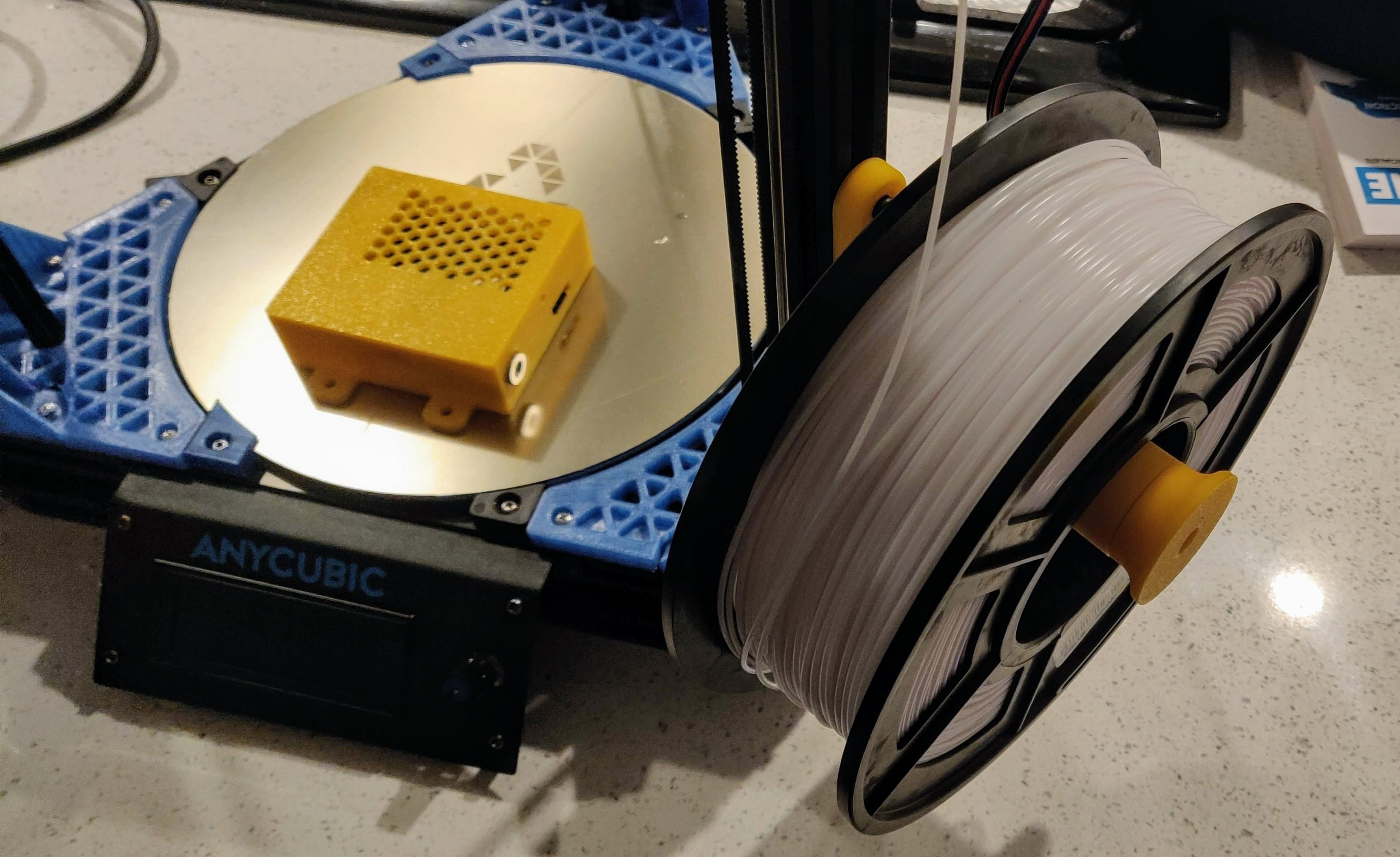

I modified my older hanging spool holder designs and adapted them to fit my Anycubic Kossel Linear Plus.

v2.0 - https://www.thingiverse.com/thing:3029252
v2.5 - https://www.thingiverse.com/thing:3029317

Required Components:
1 x 5/16 in.-18 tpi Zinc-Plated Hex Nut (25-Piece per Bag) - (Homedepot) - (https://is.gd/33W8Yd)
1 x 5/16 in. Zinc Nylon Lock Nut (15 per Pack) - (Homedepot) - (https://is.gd/e1HuBL)
1 x 5/16 in. -18 tpi x 6 in. Zinc-Plated Hex Bolt - (Homedepot) - (https://is.gd/gfU2Uu) - Optional
1 x 5/16 in. -18 tpi x 4 in. Zinc-Plated Hex Bolt - (Homedepot) - (https://is.gd/1Ntnnn)
2 x 608ZZ Bearings
2 x M4 - 12mm Hex Head Bolts
2 x M4 T-Nuts

Printed Components Needed:
1 x Anycubic_Kossel_Plus_2020_Spool_Mount.stl
1 x Anycubic_Kossel_Plus_2020_Spool_Cap.stl
1 x Anycubic_Kossel_Plus_2020_Spool_Roller_120mm_4in_Bolt.stl

Optional Parts:
1 x Anycubic_Kossel_Plus_2020_Spool_Cap_Alt.stl (Optional - Smaller)
1 x Anycubic_Kossel_Plus_2020_Spool_Roller_120mm_6in_Bolt.stl (Optional - 6in Bolt)

Supports are needed for the Anycubic_Kossel_Plus_2020_Spool_Roller (Build plate only) . All STLs are print ready oriented.

3D printer file information

  • 3D design format: STL Folder details Close
    • Anycubic_Kossel_Plus_2020_Spool_Cap.stl
    • Anycubic_Kossel_Plus_2020_Spool_Cap_Alt.stl
    • Anycubic_Kossel_Plus_2020_Spool_Roller_120mm_6in_Bolt.stl
    • Anycubic_Kossel_Plus_2020_Spool_Roller_75mm_4in_Bolt.stl
    • Anycubic_Kossel_Plus_2020_Spool_mount.stl

    Learn more about the formats

  • Publication date: 2020-02-05 at 15:53
    ?
    Published to Thingiverse on: 2019-05-03 at 07:33
