Anycubic Kossel HDD Motor Top Spool Holder

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 1 like
  • 24 downloads

3D model description

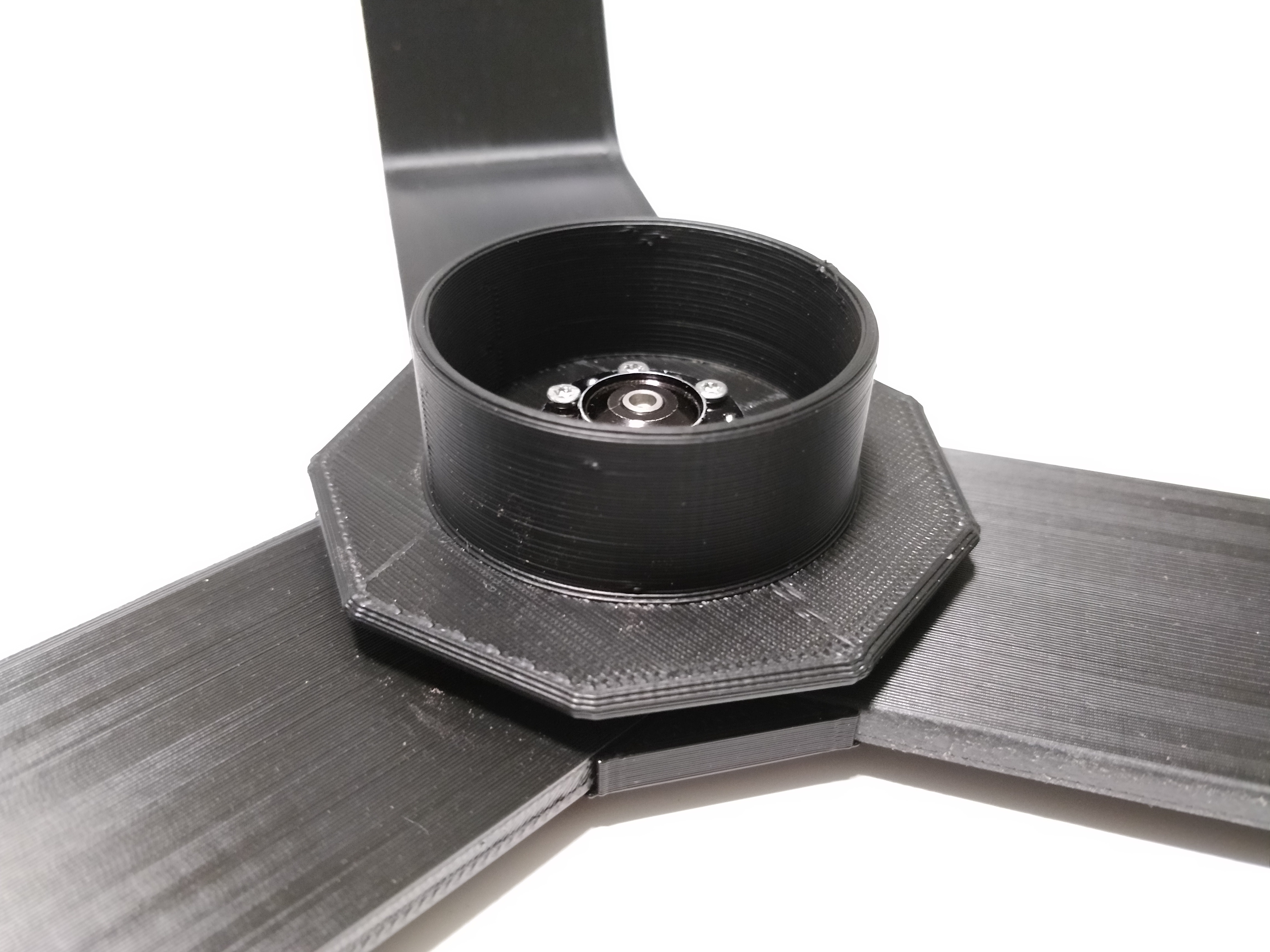

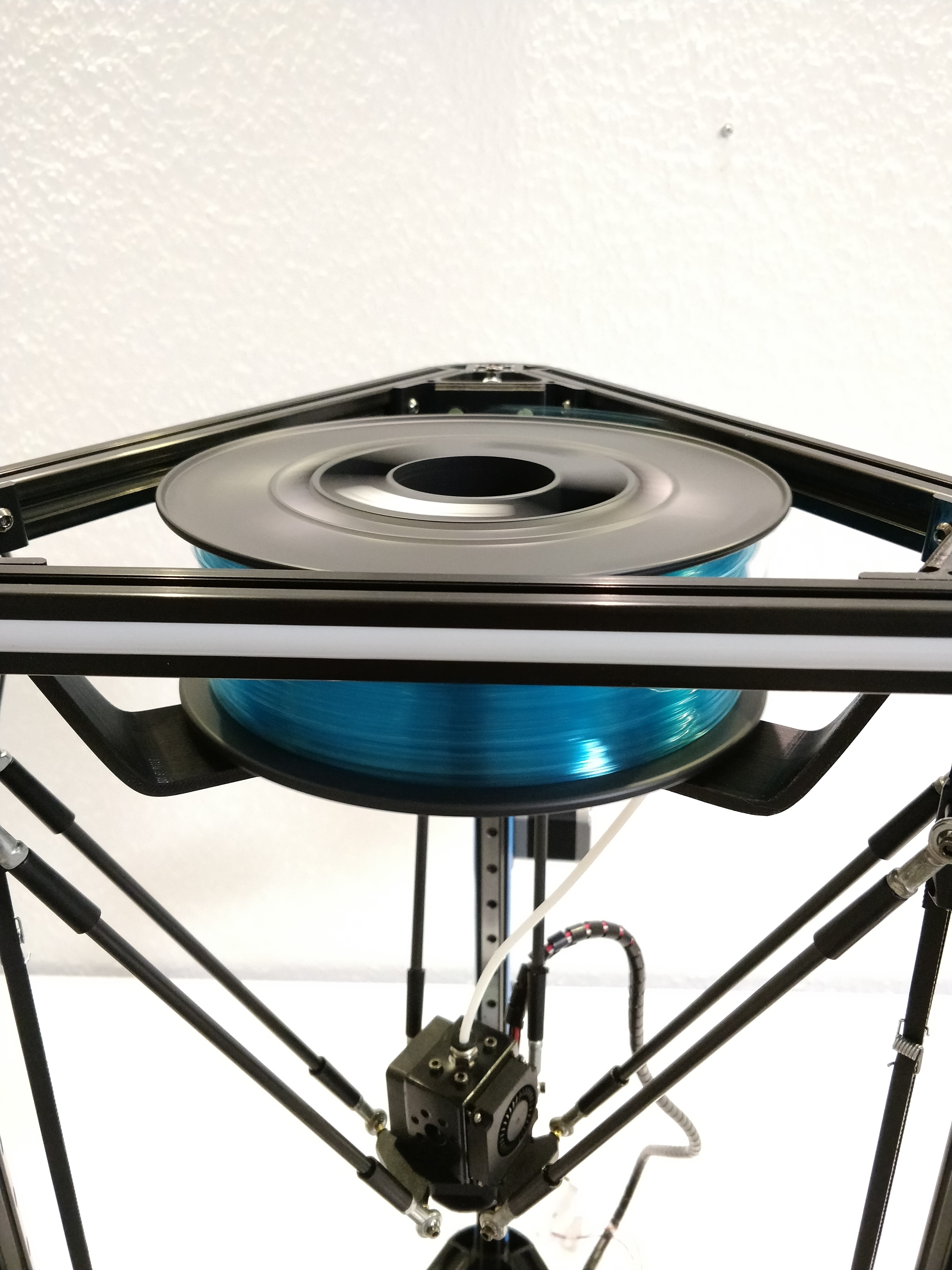

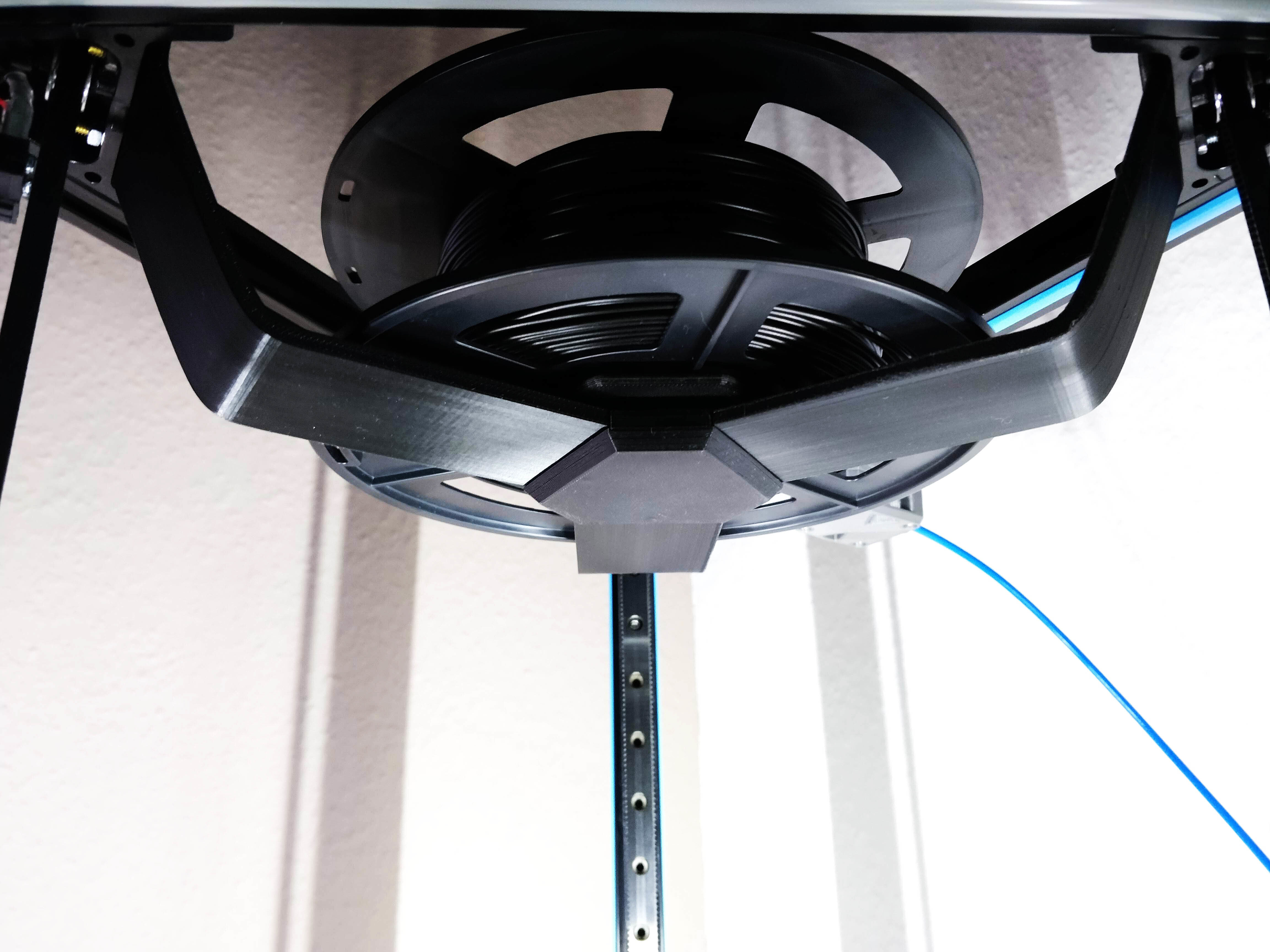

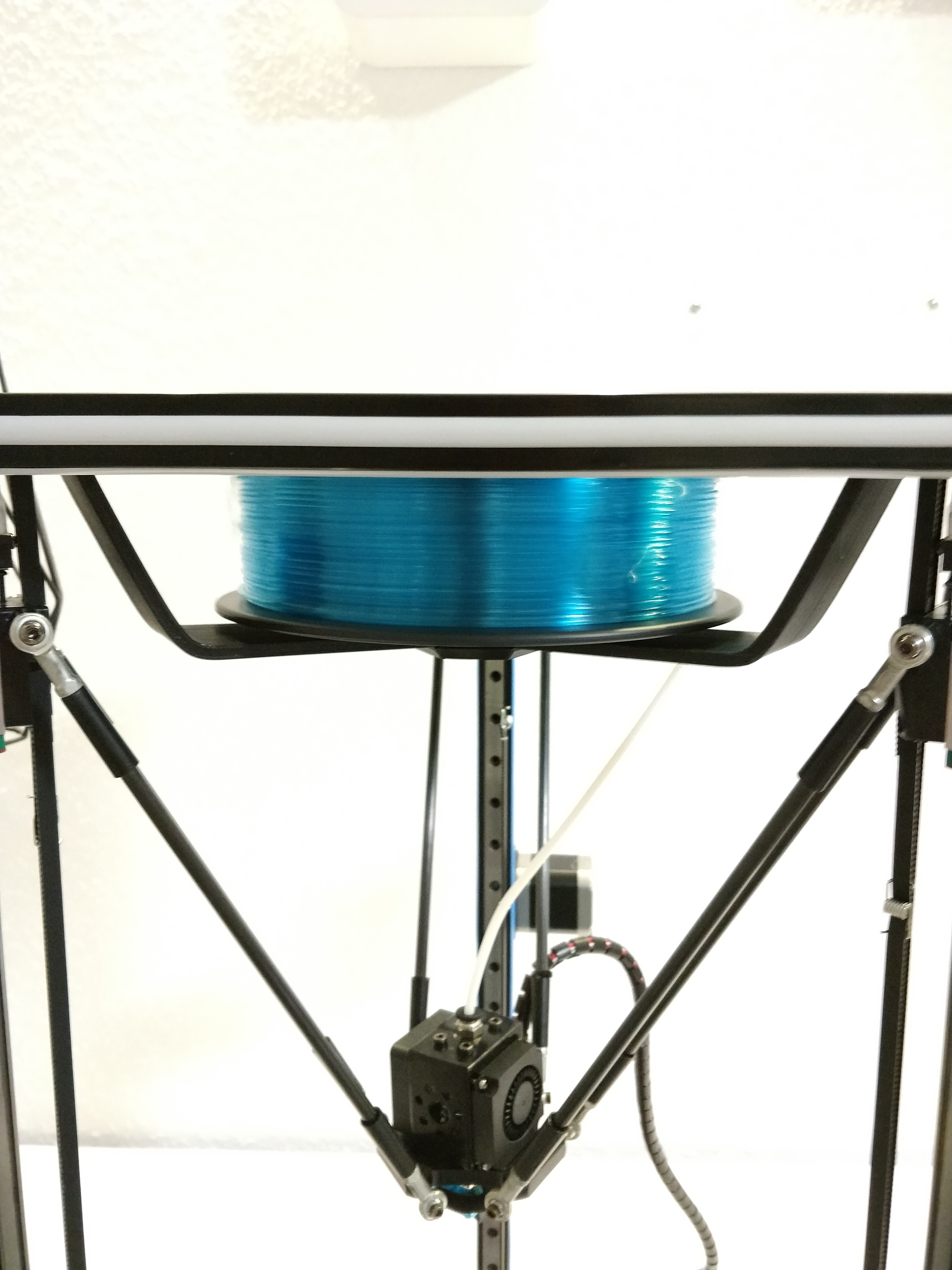

Hi there! This is my filament spool holder for Anycubic Kossel Plus with old HDD motor using as bearing.

For assembly you will need:

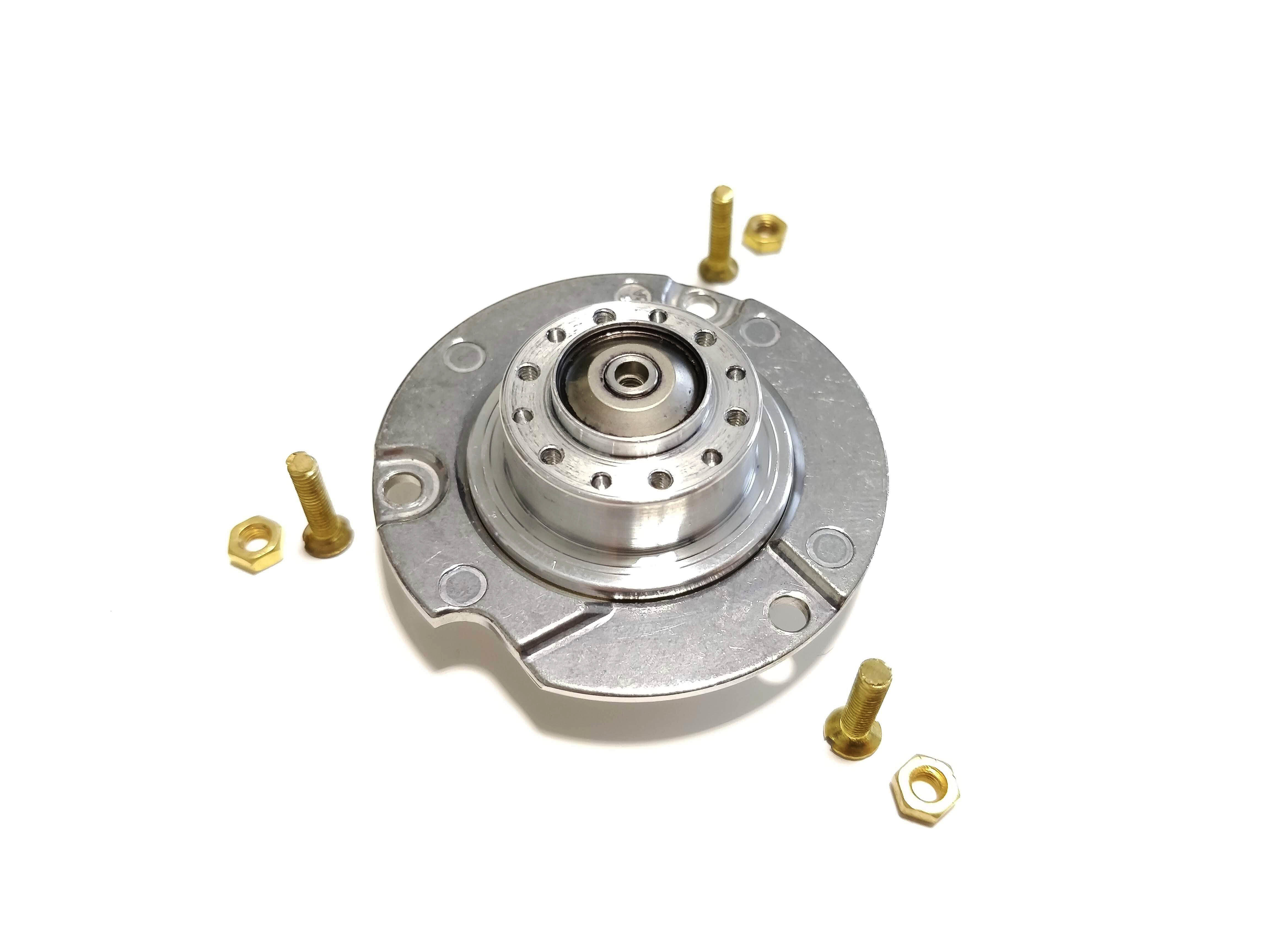

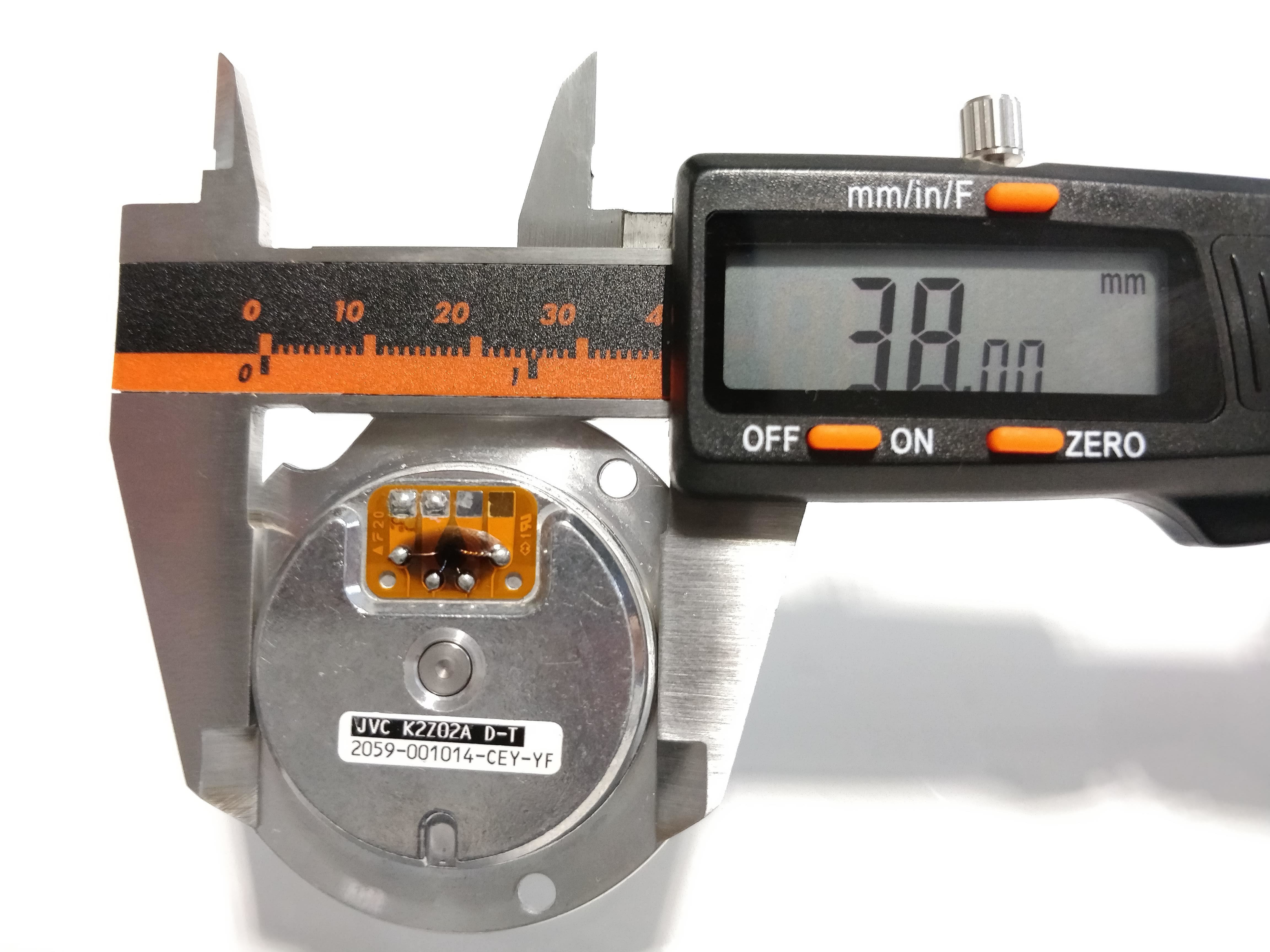

  • Removable HDD motor with 3 nut holes (like on picture)
  • M3 9mm screw (3pcs)
  • M3 nut (3pcs)

  • M4 12mm screw (6pcs)

  • M4 nut (6pcs)

That's all !

Update:
- added Spool_plate_v3 with rounded edges

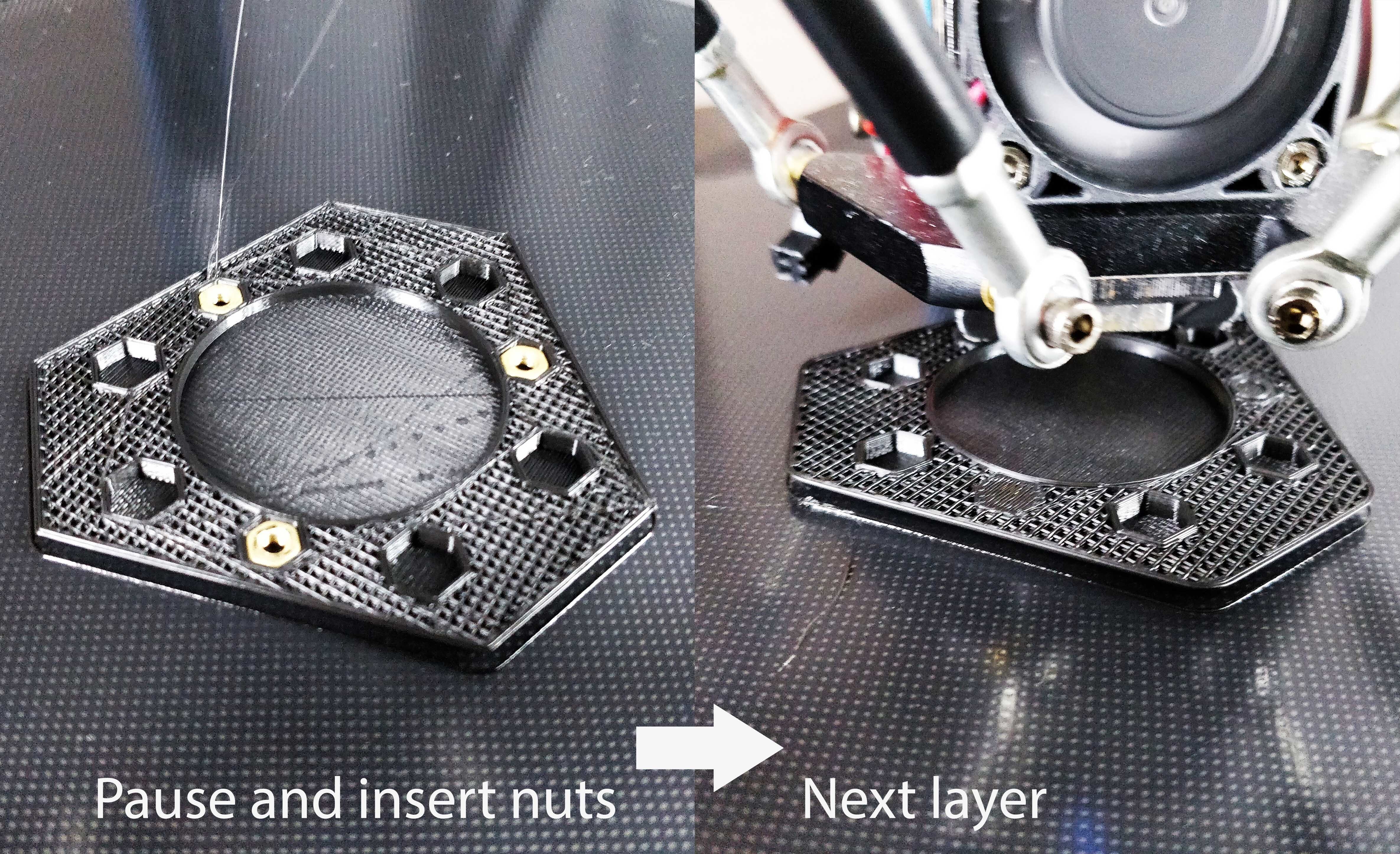

- added Spool_plate_v3 with solid bottom layer. So you can cut out the nut holes you need (It is just one layer thick and easy to cut out) or pause the print at last layer before the holes will covered and put the nuts inside so they will be hidden in the model. So it looks better without unused holes and you do not need to print it with support.
- the adapter diameter for the spool is now 94mm

If you want to make it more reliable, then you steel need 6pcs of M4 10mm screws with nuts.

Have fun!

  • 3D file format: STEP and STL
