Another ANYCUBIC PHOTON Easy Leveler + Springs

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.5k views
  • 32 downloads

3D model description

Another version of the great “ANYCUBIC PHOTON Easy Leveler" by wundel
https://www.thingiverse.com/thing:3096818

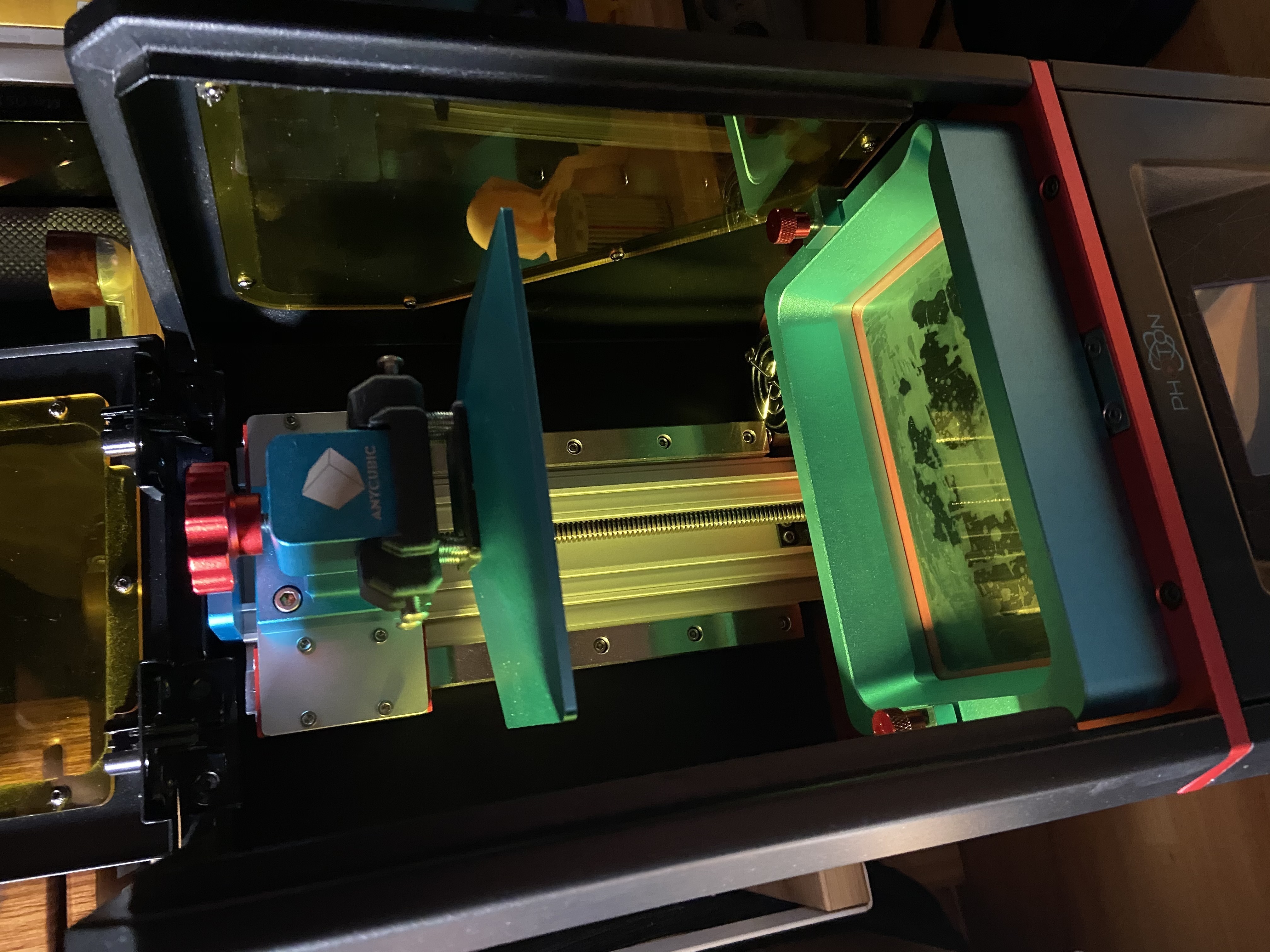

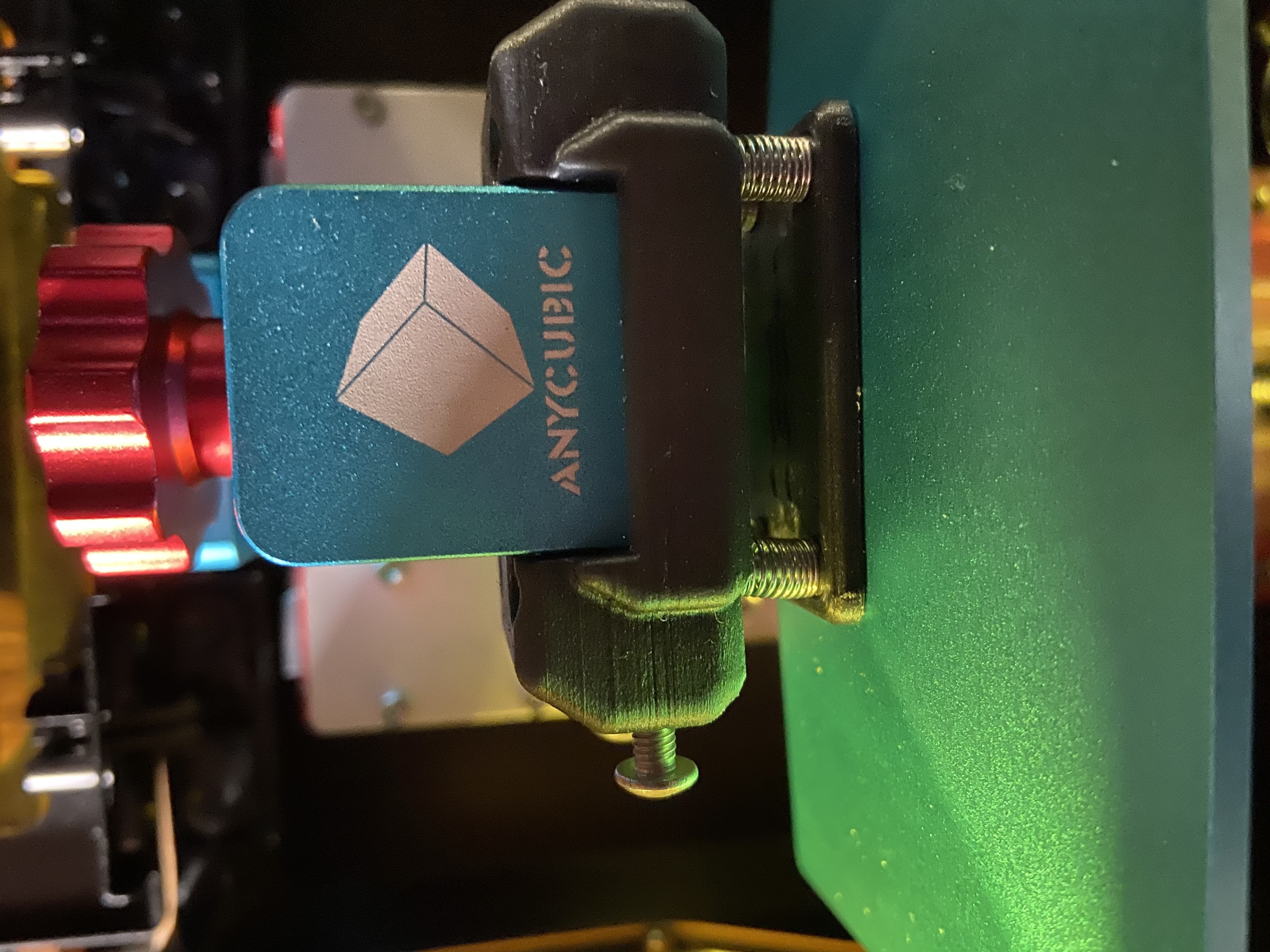

In this review the only improvements are the inclusion of pressure springs to avoid having to hold the plate by hand when fixing it and the position of the inserts are internal to exert more pressure on the guide screws.

Printed in PLA Carbon

The needs are the same as in the other designs, only 4 springs and 4 inserts are included.

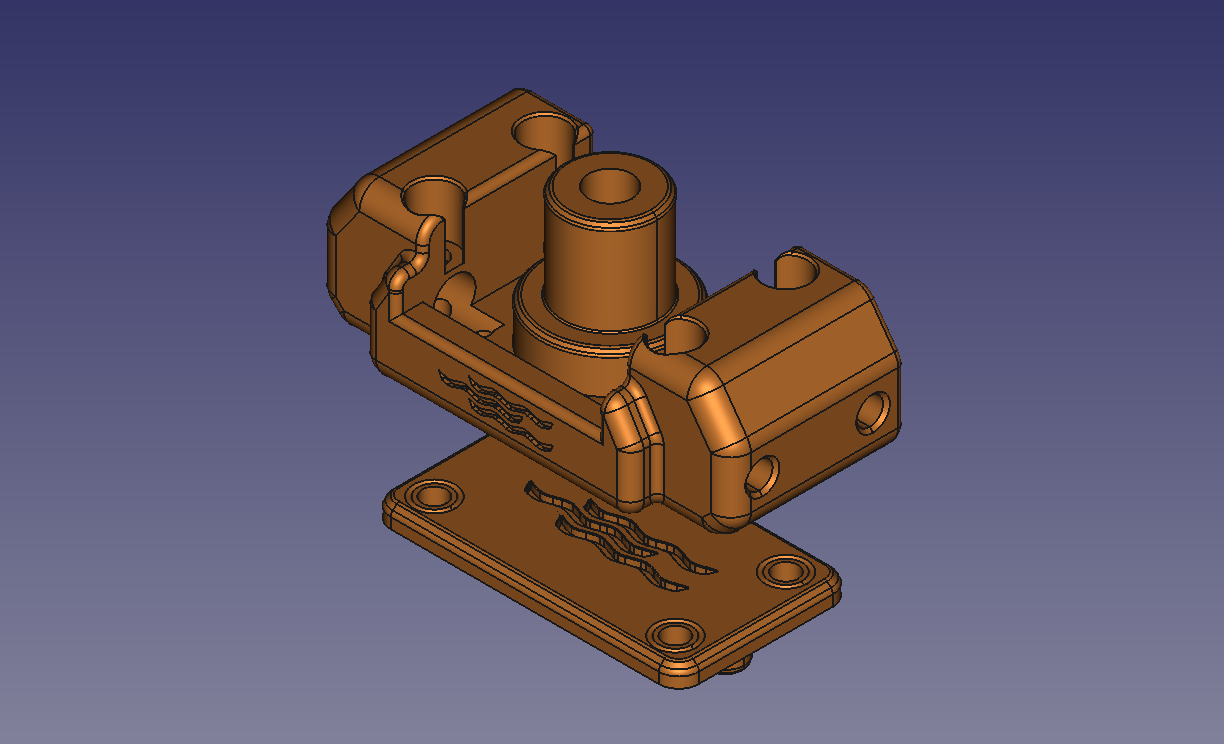

The FreeCAD file is included.

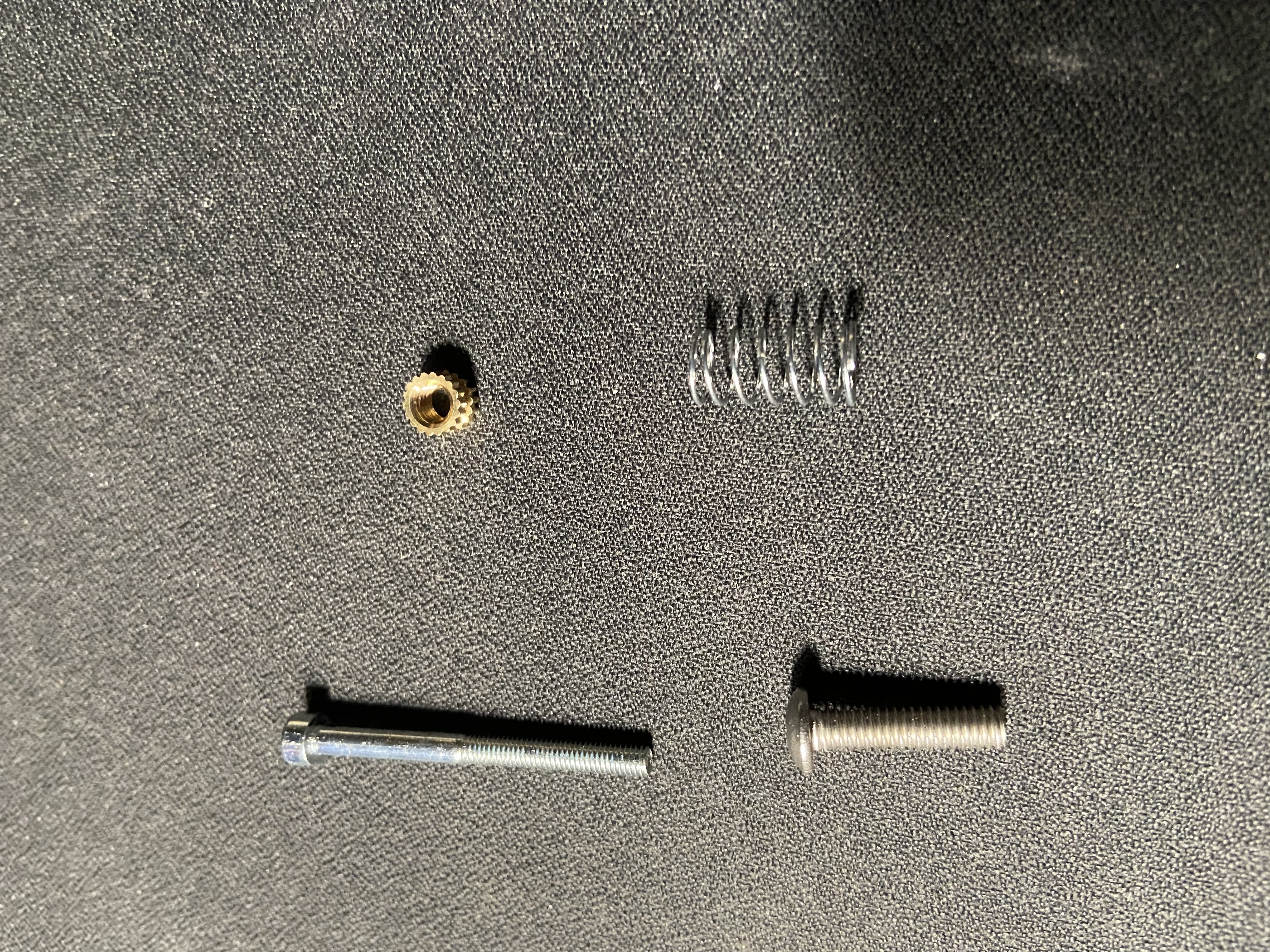

1 x M6x30
4 x M3x8 (Use the originals)
4 x M3x35
4 x M4x16

4 x Springs 12mm Ø6mm
4 x M4 4mm Ø6mm inserts

PD: This modification together with the "Twin Rail Z" kit from jacksonproducts made my Photon much better in its behavior.

////////////////////////////////////////////////////////////////////////
