Angled Spool Holder for 2020 rail
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/14013782/illustration-file/98e7b5cf-0eaa-4772-af3e-e73d3812ab23/with_spool2_display_large.jpg)
/https://preview3d-images.cults3d.com/variants/tm2se1j5w8o22li6n86ps9ppixpi/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
/https://files.cults3d.com/uploaders/14013782/illustration-file/98e7b5cf-0eaa-4772-af3e-e73d3812ab23/with_spool2_display_large.jpg)
/https://files.cults3d.com/uploaders/14013782/illustration-file/78736c89-d58f-4354-8333-d216787dc600/alone_display_large.jpg)
/https://files.cults3d.com/uploaders/14013782/illustration-file/e51188a2-d380-4d1d-8259-76de22e32a41/angled_spool_su_display_large.jpg)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 1k views
- 1 like
- 26 downloads
3D model description

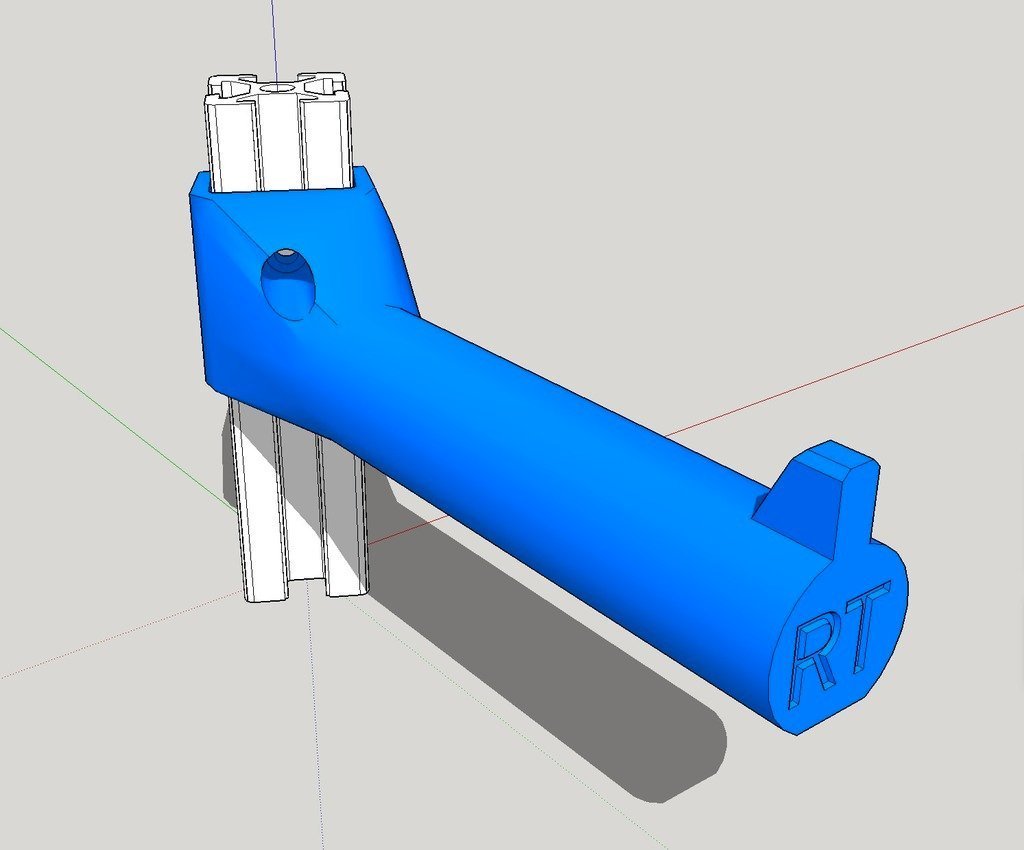

I want the spool to be more flush for my Kossel 2020 delta and have a better path to feed the extruder, I angled my spool holder 60 degrees. Also, I hollowed it out a bit to print a bit faster.

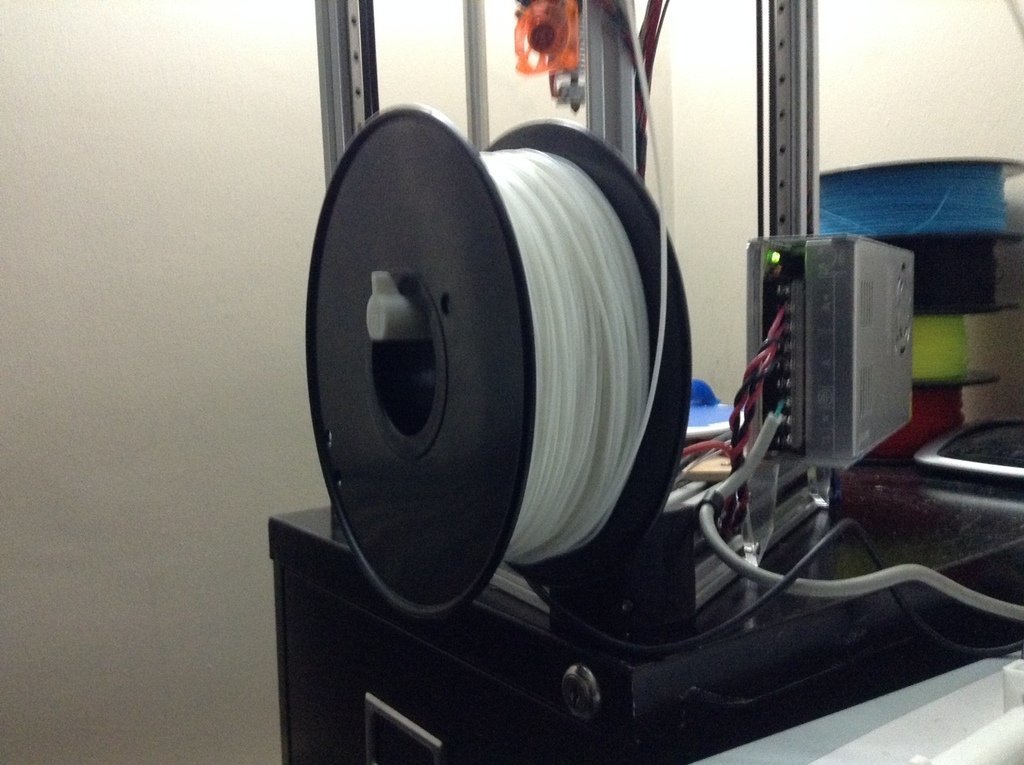

For 1kg rolls of filament that are up to 70mm wide.

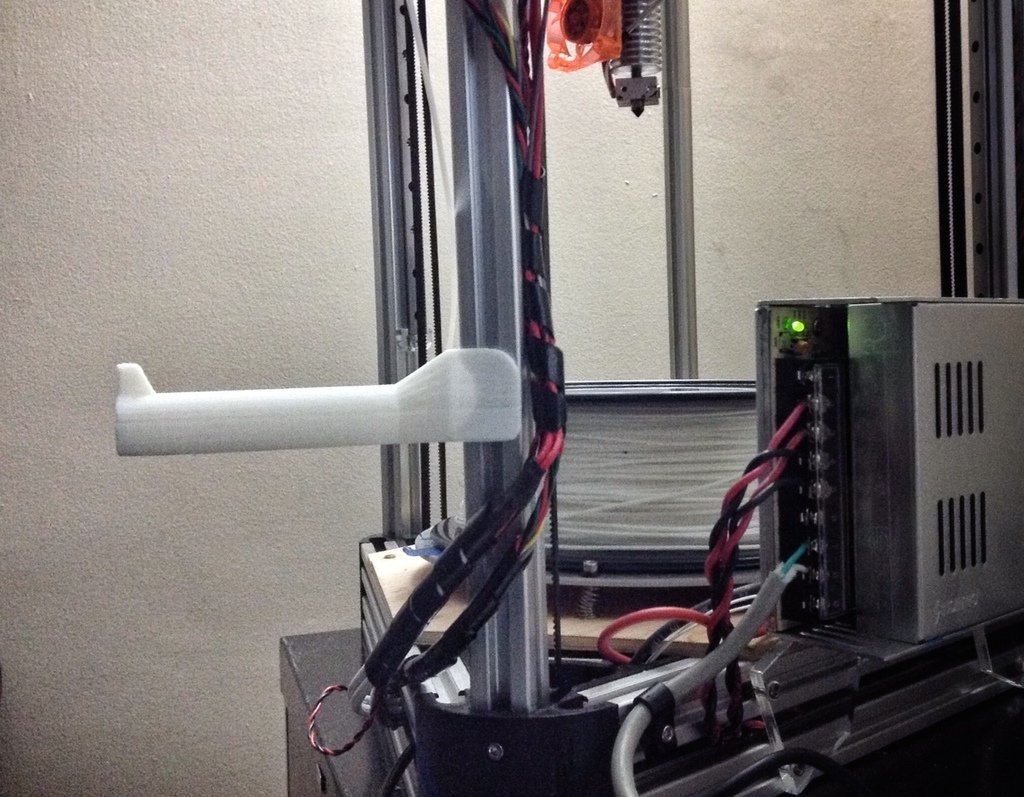

Snaps onto 2020 rail and mounts with an M3x12 screw and drop-in t nut.
3D printing settings
Printed with a 0.4mm nozzle at .3mm layer height. 20% fill with two perimeters. No supports. Still very solid to hold kilo roll.
Needs one (1) M3x12 screw and an M3 drop-in t nut to mount in the 2020 extrusion.
Add the screw and the t nut before you snap it onto the rail. Twist up towards the screw hole to remove if you for get the add the mounting screw.
3D printer file information
-
3D design format: STL Folder details Close
- rt_spool_angle_holder_2020.stl
-
Publication date:
2019-04-15 at 14:54
?
Published to Thingiverse on: 2015-03-03 at 13:05
