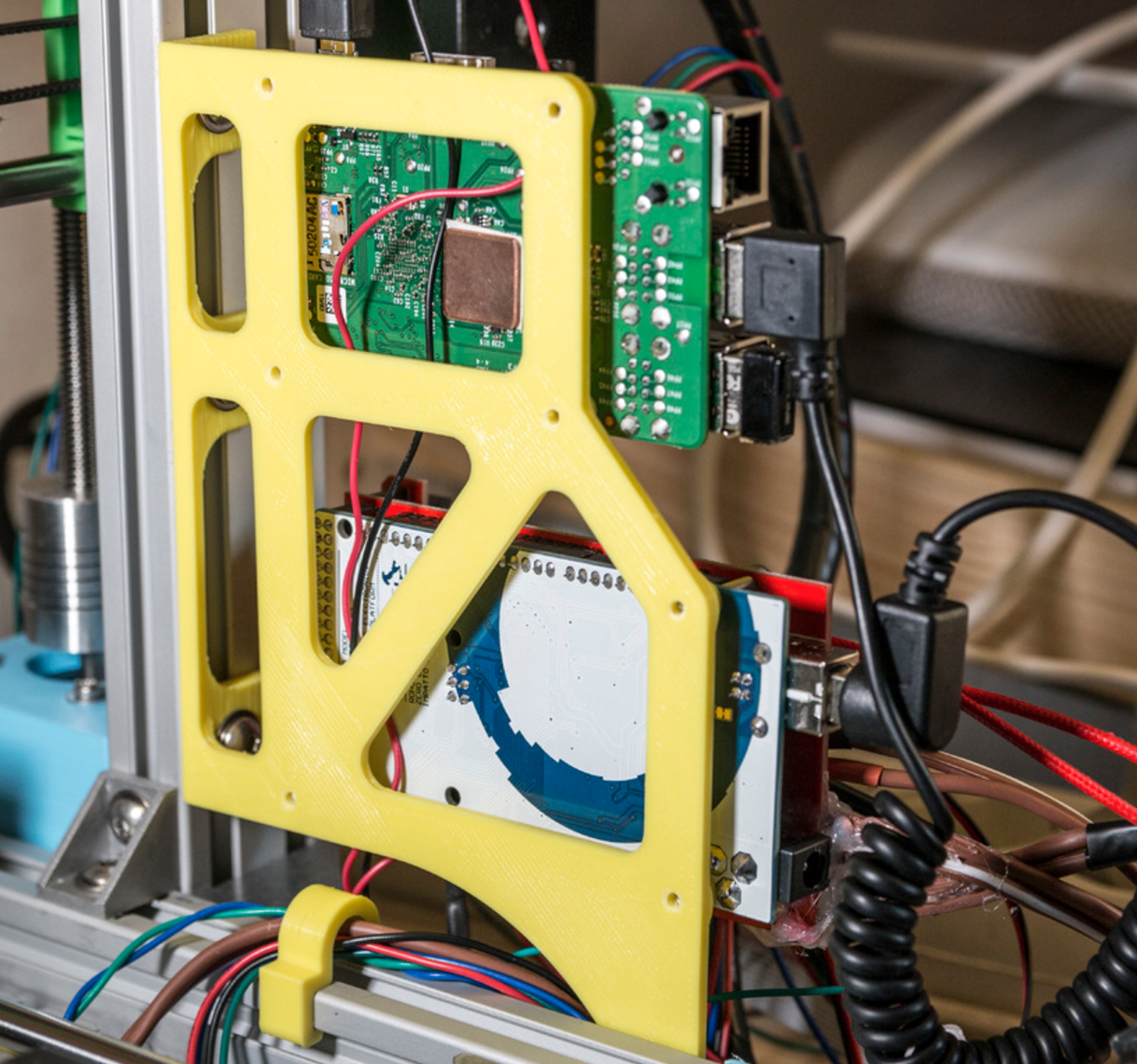

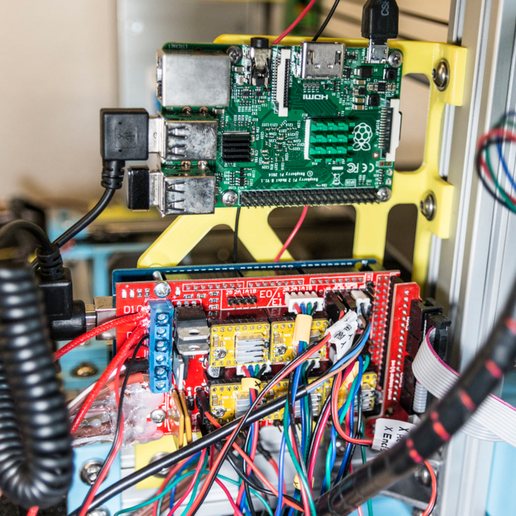

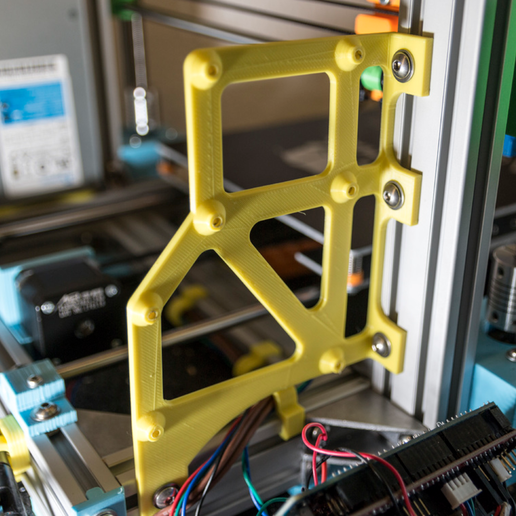

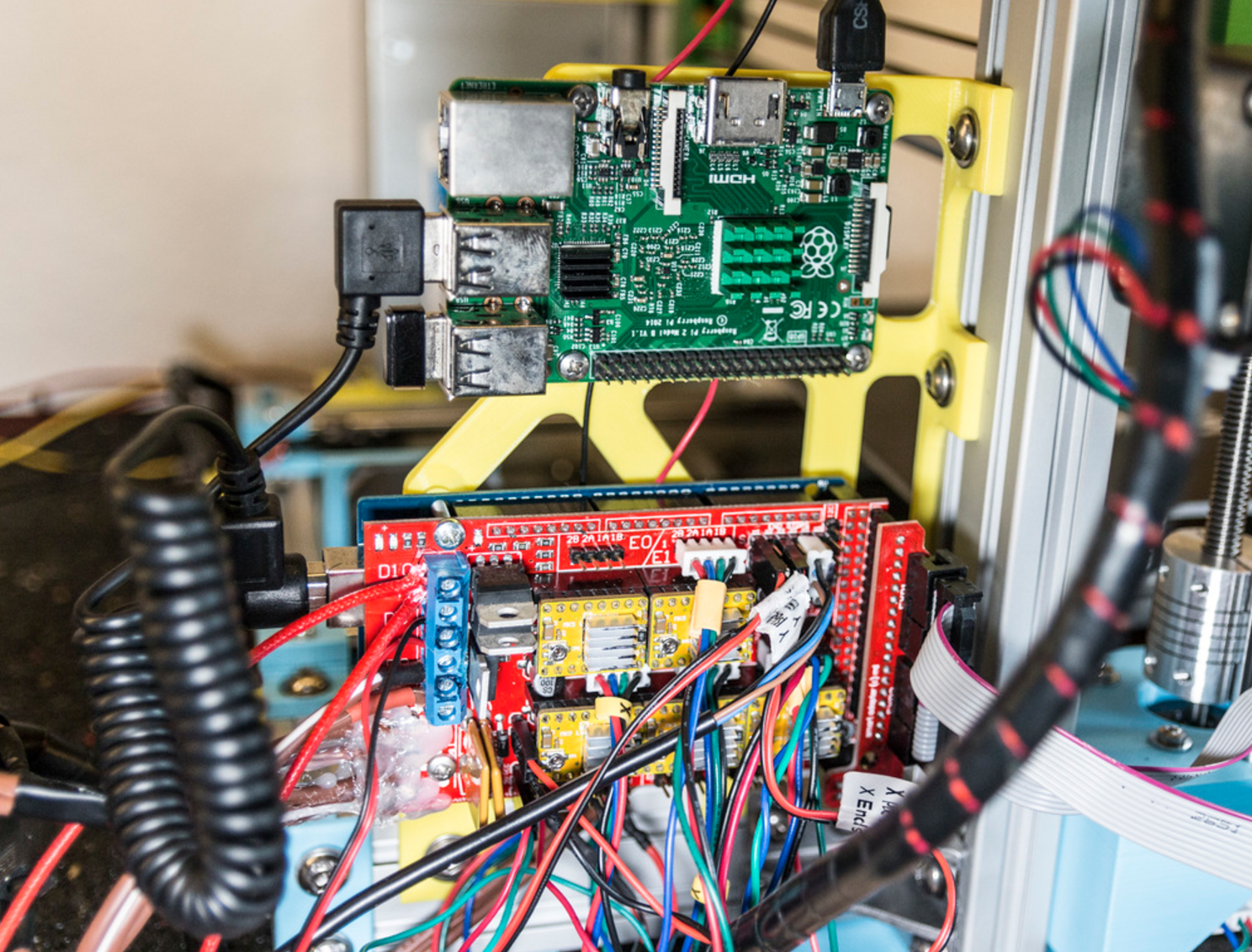

This is a RAMPS1.4 with Arduino Mega board + Raspberry Pi 2/3 Model B holder for 2020 or 2040 aluminium extrusion profiles.

BOM
4x M3 screws, 6mm minimum length to mount the Raspberry Pi
3x M3 screws, 20mm minimum length to mount the Ramps1.4 + Arduino Mega
4x M5 screws, 8mm length without washer and 10mm with washer
4x Hammer nut
Electronics
RAMPS 1.4 Board
Mega 2560 Board (Arduino Clone)
4-5x DRV8825 Stepper Driver
Raspberry Pi 2 or 3
Aluminium Extrusion Series

This is part of my Aluminium Extrusions series. Follow me, if you want to be informed about a new part of this series!

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Printer:
Anet AM8

Rafts:
No

Supports:
No

Resolution:
0.2

Infill:
25%+

Post-Printing

You have to tap or drill the holes out for the board. The holes have a printed diameter of 2.5mm
