Anet A8 Plus X axis belt clamp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 7 likes
  • 106 downloads

3D model description

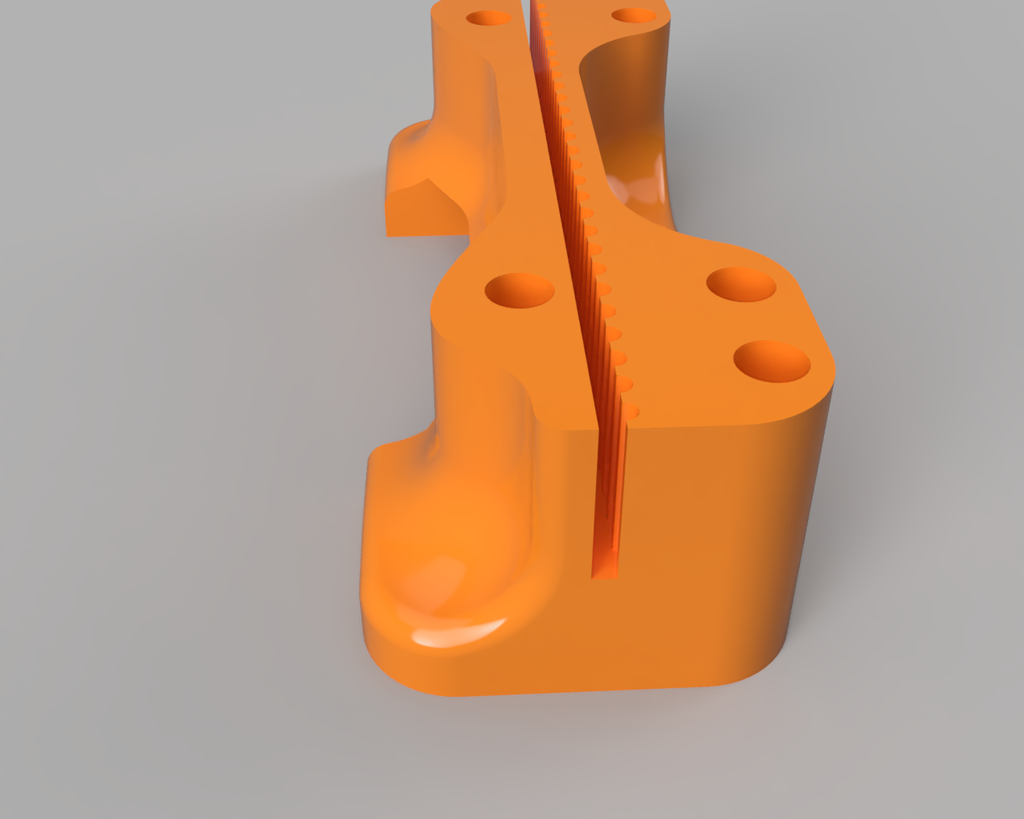

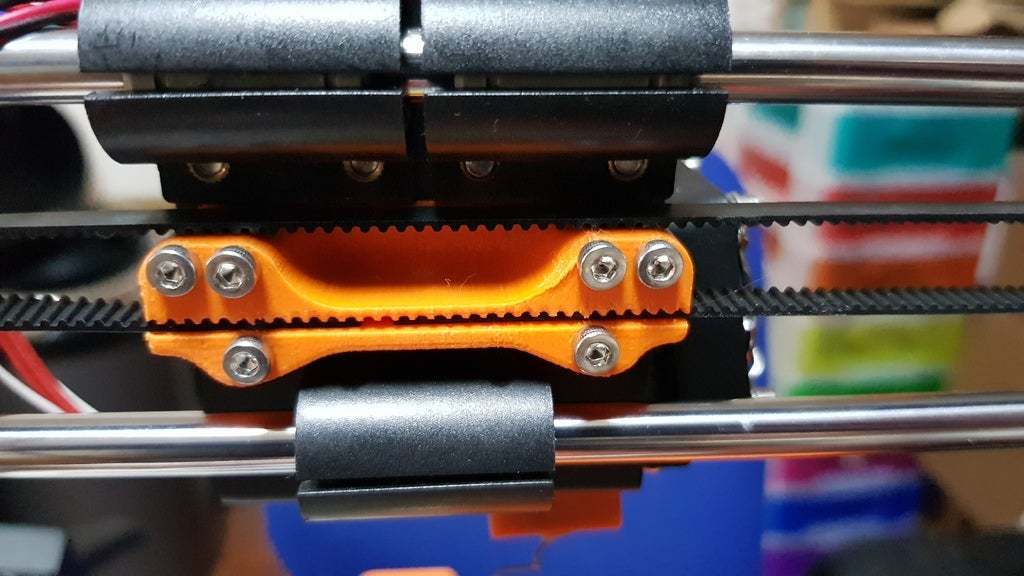

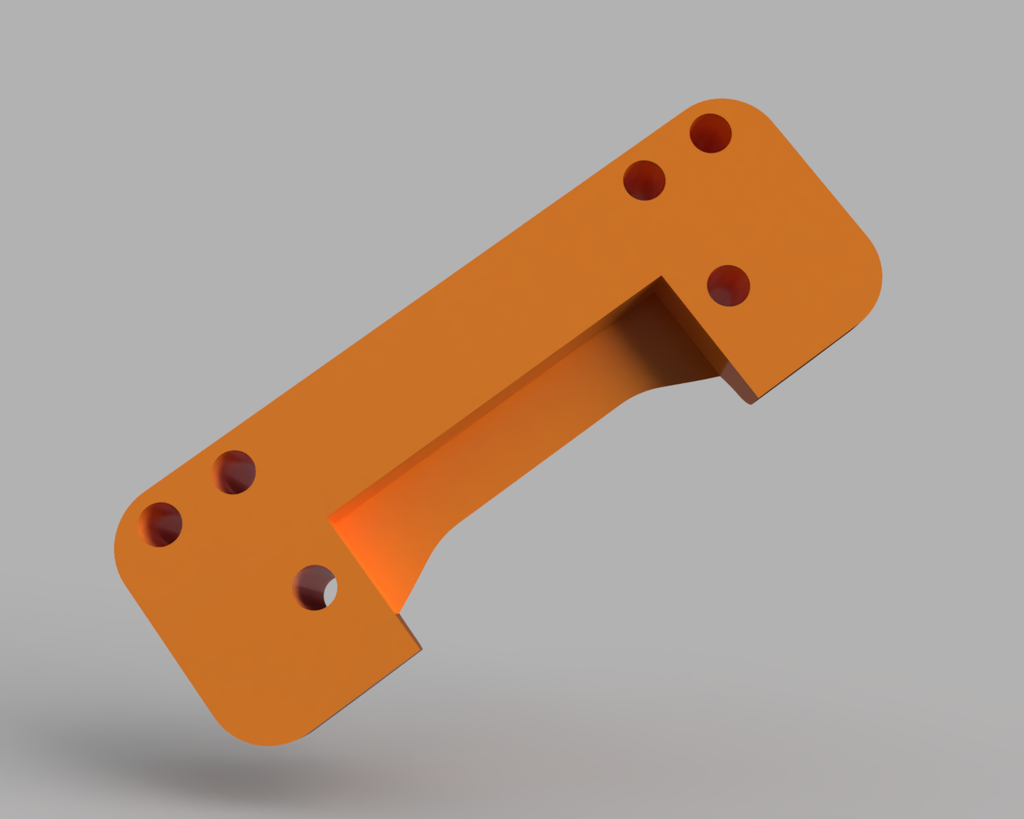

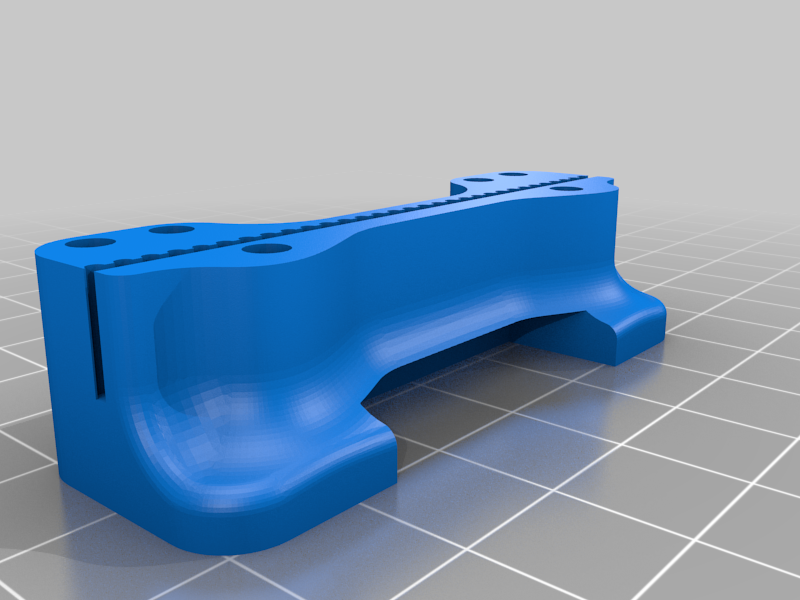

As part of my ongoing upgrade of my A8 Plus, this is a clamp for the X-axis belt on the carriage. This replaces the stock (rather poor) part with a solid one and removes the tensioning facility in favour of an external tensioner (which I've already published as https://www.thingiverse.com/thing:4505148)

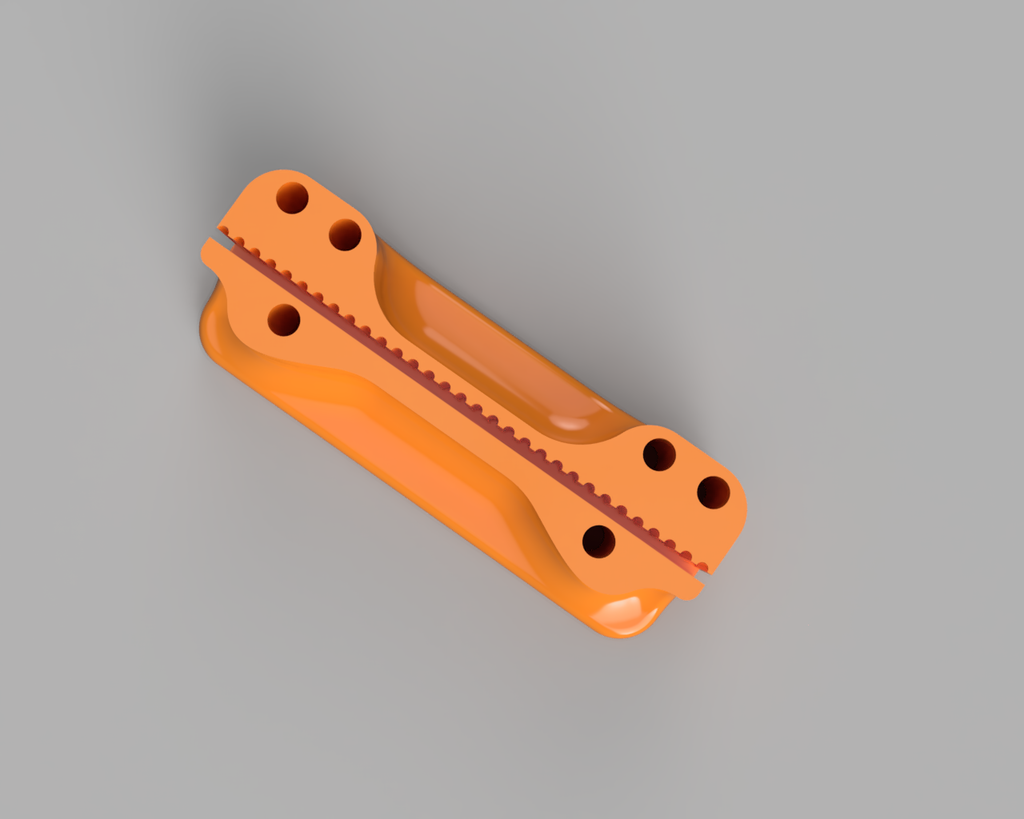

This design has belt grips built in so that the belt can simply be slotted into place from each side and then tensioned in place.

  • 3D file format: STL
  • 3D model size: X 62 × Y 22 × Z 16 mm
  • Publication date: 2020/07/16 at 09:34

Tags

Creator

Designs 126
Downloads 6.3k
Sales US$161
Followers 67

I am very much an enthusiastic amateur when it comes to designing. My designs tend to have two things in common

1) They serve a purpose. I like to design functional objects which have a real-world use. 3D printing for art is fine, but it's its real-world application which will take the technology forward
2) Wherever possible I design to be easy to print and try to eschew supports or complex printing; modifying the design where necessary and possible to achieve this.
