Anet A8 - LJC18A3-H-Z/BX right side mount
- 253 views
- 0 likes
- 8 downloads
3D model description
This is a remix of Anet A8 Capacitive probe LJC18A3-H-Z/BX right side by lipov3cz3k
Original design Anet A8 Capacitive probe LJC18A3-H-Z/BX on Marlin 1.1.9

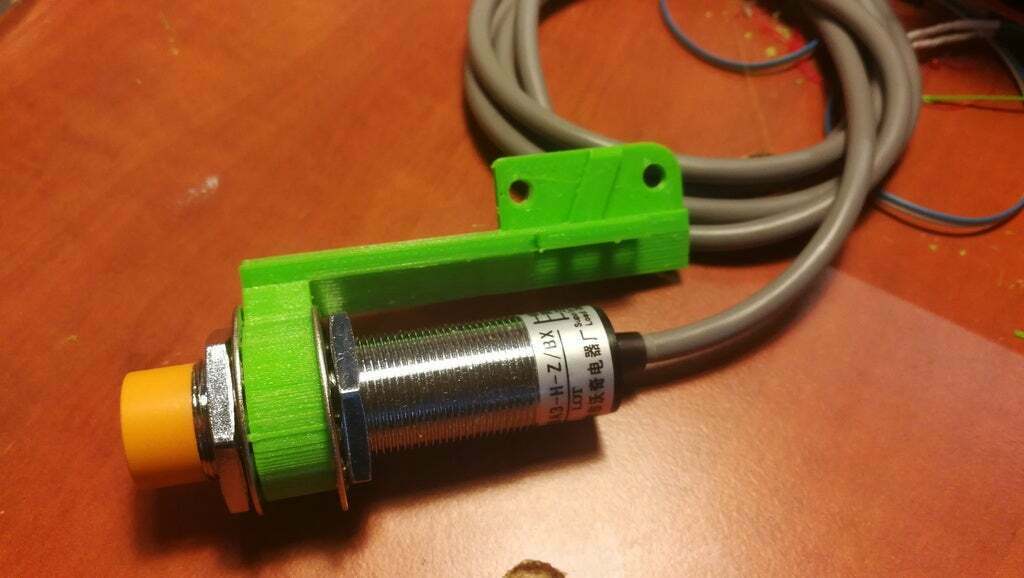

- I have added more clearance to sensor hole because i could not mount sensor with original nuts (see pic)
Wiring and Marlin configuration
- For wiring see Diagram for capacitive sensor with optocoupler module by Didakis
- For Marlin configuration see original thing and Marlin docs
Feel free to print or remix and don't forget to post it.
If you find it useful you can send tip or buy me a coffe. Thanks.
3D printing settings
- 3D file format: STL
- 3D model size: X 74.8 × Y 44.8 × Z 30.3 mm
- Publication date: 2021/04/05 at 02:06
- anet a8
- anet a8 mods
- anet a8 upgrade
- autolevel probe mount
- auto bed leveling
- capacitive ljc18a3
- probe mount
- z probe
- z probe mount
